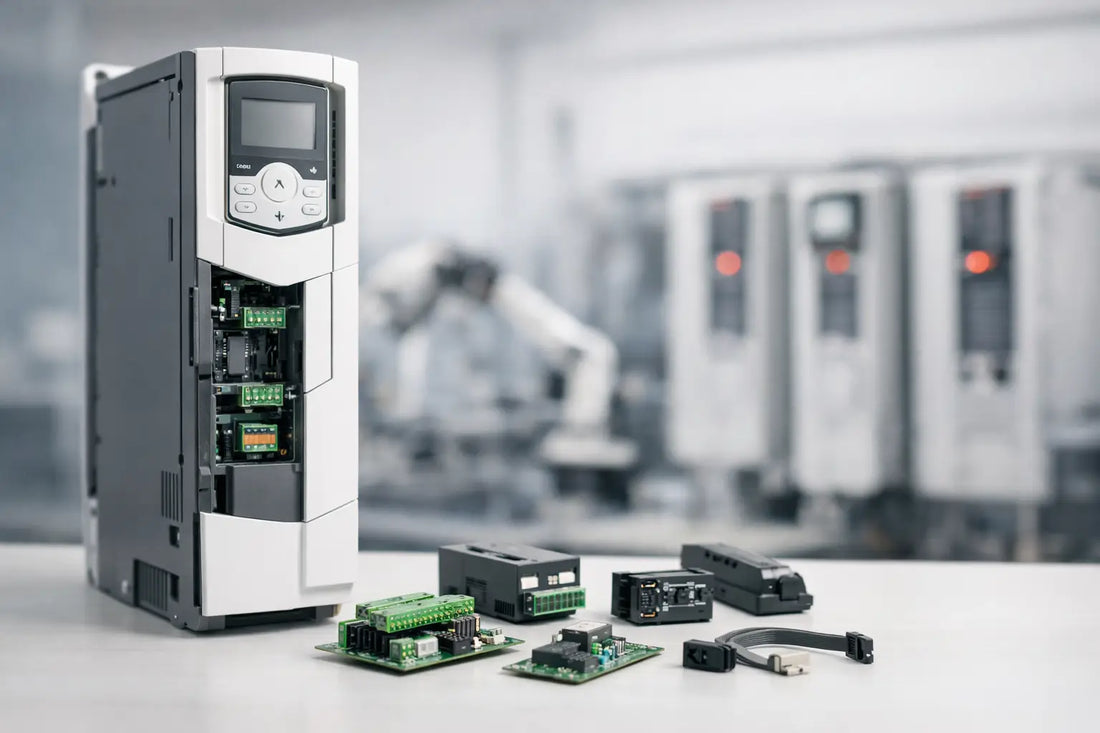

ABB ACS880 Option Codes Explained for Buyers
An ACS880 drive can look like the right replacement until one missing suffix reveals a different control unit, fieldbus interface, enclosure rating, or safety configuration. When ABB ACS880 option codes are explained correctly, the result is not just a cleaner purchase order - it is a better chance of restoring a machine without added wiring, commissioning delays, or compatibility problems.
For maintenance teams and buyers, the rule is straightforward: do not source an ACS880 from the series name alone. Read the complete type code from the drive data label, then verify the installed options against the application and the failed unit. A base drive may be electrically similar while still being wrong for the cabinet, network, operator panel, or safety circuit already in place.
What an ABB ACS880 Type Code Actually Tells You
The ACS880 family covers several drive configurations, including cabinet-installed wall-mounted drives, module-style units, multidrive systems, and regenerative supply units. The characters at the start of the type designation identify the product family and main hardware construction. For example, an ACS880-01 commonly identifies a wall-mounted single-drive unit, while other ACS880 variants can refer to modules or cabinet systems intended for different installation methods.
After the basic type designation, the code typically identifies the drive frame, current rating, voltage class, and options supplied with that unit. ABB type-code formats can differ by product version, market, and production period. That means a code should be interpreted using documentation applicable to the exact drive family and revision, not from a generic ACS880 option list found for another model.
The nameplate is the primary source. It normally provides the full type code, serial number, input voltage range, output current information, frame size, and production details. For a replacement order, the full string matters. A purchasing description such as “ACS880 480 V drive” does not provide enough information to confirm interchangeability.
ABB ACS880 Option Codes Explained by Function
ACS880 option codes usually describe factory-installed or ordered accessories. They may be represented by a plus sign followed by a code, such as +J, +K, +L, or another prefix depending on the option category. The letters themselves are not a universal shorthand that can be safely guessed. Their meaning depends on the specific ACS880 ordering guide.
What matters operationally is the function behind each option code. Most options fall into several practical groups: control and communications, operator interfaces, safety, power and braking hardware, environmental construction, and application-specific software or documentation.
Control Units, I/O, and Network Communications
A drive must communicate with the rest of the machine. An option code may identify a particular control unit, additional I/O capability, encoder interface, or a fieldbus communication adapter. Common plant networks may include EtherNet/IP, PROFINET, PROFIBUS DP, Modbus, EtherCAT, or other protocols, depending on the installed system.
Do not assume a communication module is included because the drive series supports that network. Some ACS880 units have a compatible slot but require a separate adapter, while others were ordered with a module already fitted. Check the actual control board, option slot, and installed module part number. If a failed drive has a fieldbus adapter that will be reused, verify that the replacement uses the same compatible control unit and firmware environment.
I/O differences can be equally significant. A conveyor, pump skid, or extruder may rely on specific analog inputs, relay outputs, thermistor connections, encoder feedback, or 24 V control arrangements. A replacement that lacks the required connections can create an avoidable retrofit during a downtime event.
Operator Panels and Mounting Arrangements
Certain codes identify an assistant control panel, panel mounting kit, extension cable, or other human-machine interface arrangement. This can seem minor until the operator panel must mount on a cabinet door or connect at a defined location.
A drive may be sold without the panel even though the original installation uses one. In other cases, the existing panel can transfer to the replacement unit. Confirm the panel model and connection method before treating it as reusable. Also check whether the drive is intended for flange mounting, cabinet mounting, or another arrangement. Physical fit, cooling clearance, and cable entry orientation can determine whether an otherwise compatible unit can be installed quickly.
Functional Safety Options
Safety-related options require more than a part-number match. ACS880 products may support Safe Torque Off and, depending on the configuration, additional safety functions through option modules or compatible control arrangements. The exact machine safety design may involve safety relays, safety PLCs, contactors, feedback circuits, and documented validation requirements.
An option code can indicate that a drive was ordered with a particular safety capability, but it does not prove the final machine circuit remains compliant after replacement. If the existing drive is part of a certified safety function, involve the responsible controls or safety engineer. Verify wiring, parameters, firmware requirements, proof-test procedures, and the machine documentation before returning equipment to service.
Braking, EMC, and Power-Side Hardware
Motor stopping performance often depends on options that are easy to overlook. A brake chopper, braking resistor arrangement, line reactor, sine filter, du/dt filter, common-mode filter, or EMC filter may be built into the ordered configuration or installed externally. The code can help identify what was supplied, but the installed power circuit must still be inspected.
This is especially relevant when replacing a drive on a high-inertia load. A crane, centrifuge, large fan, or fast decelerating conveyor may fault on DC overvoltage if the replacement does not have the same braking capability. Likewise, a long motor cable may require output filtering to protect motor insulation and reduce reflected-wave stress.
EMC arrangements deserve the same attention. Filter selection depends on the supply system, cable practices, installation environment, and local requirements. A built-in filter that is suitable for one grounded supply configuration may be inappropriate for another. Match the original design where possible, then confirm the site conditions instead of treating every suffix as a plug-and-play upgrade.
Enclosures, Environmental Ratings, and Regional Requirements
Option codes can also identify enclosure, packaging, labeling, documentation language, or regional compliance requirements. These details are not always visible in a listing photo, but they affect fit and approval.
For example, a drive located on a washdown-adjacent production floor has different needs than one installed in a clean electrical room. Ambient temperature, dust, vibration, altitude, and cabinet cooling all influence the acceptable configuration. If the original drive was derated or used a specific enclosure arrangement, carry that information into the replacement review.
How to Verify an ACS880 Before Ordering
The fastest way to prevent a mismatch is to capture the complete information before the drive is removed or scrapped. Provide clear photos of the nameplate, control compartment, installed option modules, and power terminal area. Include the machine application and the reason for replacement, such as a power fault, damaged control board, obsolete unit, or planned spare.
For a useful sourcing request, collect these five details:
- Complete ABB type code and serial number from the data label
- Input supply voltage, frequency, and available fault-current information
- Motor nameplate data, including voltage, full-load current, speed, and power
- Photos and part numbers for control panels, fieldbus modules, encoders, and safety hardware
- Cabinet dimensions, mounting method, cable direction, and any braking or filter components
Used, Surplus, and Replacement Drive Considerations
For used or surplus ACS880 equipment, verify condition as carefully as configuration. Ask whether the unit includes its control panel, control unit, communication adapters, terminal covers, mounting hardware, and any removable modules shown in the original installation. A drive can be operational yet incomplete for a direct replacement.
Firmware and parameter backup also affect restart time. If the old drive is still accessible, save its parameters and record network address, motor identification settings, acceleration profiles, limits, and fault history. Parameters should not be loaded blindly into a different frame size or option set, but they provide a valuable baseline for commissioning.
Used Industrial Parts can help buyers locate hard-to-find industrial equipment, but the complete type code remains the starting point for any accurate request. Clear identification shortens the path from failed drive to compatible replacement and helps avoid buying a unit that creates a second outage.
Before approving an ACS880 replacement, treat every option suffix as a question to verify rather than a detail to ignore. That extra check at the nameplate can save far more time than it takes - especially when the production line is waiting.
