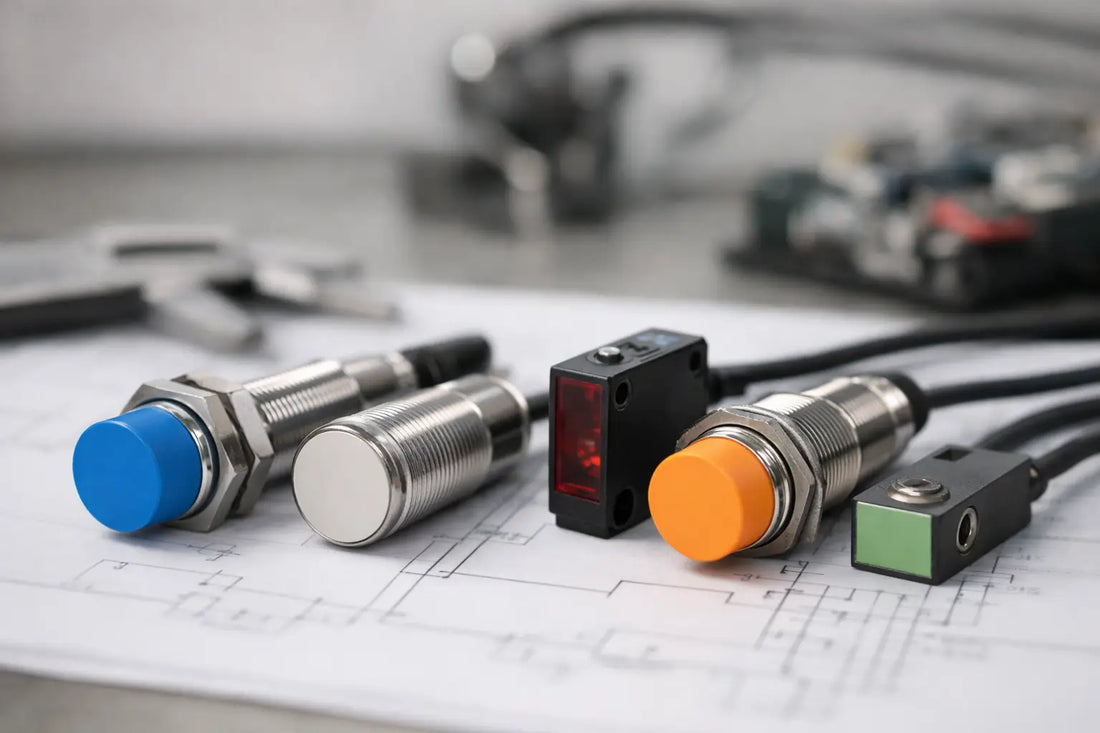

How to Identify Compatible Proximity Sensors
A sensor that fits the bracket but sends the wrong signal can stop a machine just as effectively as a failed sensor. Knowing how to identify compatible proximity sensors means matching the replacement to the machine's electrical input, target material, mounting arrangement, and operating conditions - not just matching its appearance.
For a direct replacement, begin with the complete manufacturer part number on the failed unit. Record every character, suffix, and connector code before removing it. Part numbers often identify output type, sensing distance, housing style, cable length, and special features that are not visible from the outside. If the label is damaged, use the checks below to build a reliable specification before ordering.
Start With the Sensor Technology
“Proximity sensor” covers several technologies. They are not interchangeable by default. The sensing principle must suit the object the machine needs to detect.
An inductive proximity sensor detects metal targets without physical contact. It is the most common choice for detecting steel parts, gear teeth, cams, pallets, and machine positions. Standard inductive sensors have their published sensing range based on mild steel. Aluminum, brass, copper, and stainless steel may reduce the usable range, sometimes significantly.
A capacitive proximity sensor can detect nonmetallic materials such as plastic, glass, wood, powder, grain, and liquids. It may also detect metal. Its sensitivity can be adjustable, but that does not make it a direct substitute for an inductive sensor. Moisture buildup, residue, and product variation can affect a capacitive sensor's switching point.
Photoelectric sensors use a light beam, while ultrasonic sensors use sound waves. They are generally selected when the target is farther away than a typical inductive sensor can reach, or when the target is nonmetallic. Magnetic cylinder switches are another distinct category, designed to detect a magnet in a pneumatic cylinder piston. A replacement must use the same sensing method unless the machine design and controls are being changed deliberately.
How to Identify Compatible Proximity Sensors Electrically
Electrical compatibility is where many emergency replacements fail. Read the sensor label, machine drawings, PLC input documentation, or wiring at the existing connector before selecting a replacement.
Match supply voltage and current type
First determine whether the sensor is DC or AC. Most modern automation sensors run on 10-30 VDC or 10-36 VDC, but older equipment may use 24 VAC, 110 VAC, or 230 VAC sensors. An AC sensor is not a substitute for a DC sensor, even if the thread diameter and sensing distance match.
Confirm the available supply voltage at the machine, not just the voltage printed on an old bill of materials. Measure it if there is uncertainty. Also check the replacement sensor's current consumption and the load current it must switch. A PLC input normally presents a small load, while a relay, solenoid, lamp, or counter input may require a sensor with a higher output rating.
Identify PNP, NPN, and output function
For a three-wire DC sensor, determine whether the output is PNP or NPN. A PNP sensor sources positive voltage to the load when it switches. An NPN sensor sinks the load toward 0 V. The PLC input card must be wired for and accept that output style. Replacing an NPN sensor with a PNP model without changing the input circuit can leave the input permanently off, permanently on, or potentially damage equipment.
Then match the switching function. A normally open, or NO, sensor turns its output on when the target is detected. A normally closed, or NC, sensor turns its output off when the target is detected. Some models provide complementary NO and NC outputs, but that does not eliminate the need to confirm which wire is connected in the machine.
Do not assume wire colors alone prove compatibility. Brown, blue, black, and white are common DC sensor colors, but older models, field-repaired cables, and special connectors may differ. Verify pin assignments against the sensor documentation or the existing wiring diagram.
Check wire count, connector, and output style
A two-wire sensor operates in series with its load and can have off-state leakage current and voltage drop. A three-wire sensor has separate supply and output conductors. Four-wire versions often provide both NO and NC outputs or a second signal. These configurations behave differently and should not be substituted casually.
Also match the termination method. This includes a fixed cable, cable length, M8 or M12 quick-disconnect connector, right-angle connector, and pin count. A connector may physically mate while using a different pinout. If a replacement uses a different connector, an adapter cable can work only after voltage, output, and pin assignments have been verified.
Confirm the Mechanical Fit and Sensing Range
Once the electrical interface is correct, inspect how the sensor is installed. Note the body shape and dimensions: threaded barrel diameter, rectangular housing size, face diameter, overall length, thread length, mounting holes, bracket clearance, and cable exit direction. A longer sensor may interfere with guards, moving tooling, or adjacent devices even when it shares the same M18 or M30 thread.
Sensing range deserves the same attention. Do not replace a 4 mm sensor with an 8 mm version simply because more range sounds better. Excess range can detect nearby machine structure or a passing part at the wrong time. Too little range can cause intermittent signals when vibration, target runout, or mounting tolerances are present.
Determine whether the sensor is flush mounted, also called shielded, or non-flush, also called unshielded. A flush-mounted inductive sensor can be installed nearly level with surrounding metal. A non-flush sensor requires metal-free clearance around its sensing face and usually provides a longer range. Installing a non-flush model into a flush metal bracket can shorten its sensing distance or cause false triggering.
Check target size, target material, and approach direction. Published sensing ranges are based on a defined standard target. A narrow tab, small bolt head, perforated part, or nonferrous target may need a closer mounting position than the catalog rating suggests. For high-speed applications, also review switching frequency or response time. A compatible sensor must reliably detect every event at the machine's actual cycle rate.
Account for the Operating Environment
A replacement sensor must survive where the original worked. Review the enclosure rating and the exposure at the installation point. Coolant, cutting oil, washdown chemicals, dust, hydraulic fluid, vibration, ambient heat, and repeated cable flexing all affect service life.
IP ratings help define protection against solids and water, but they do not answer every question. A sensor rated for water ingress may still be unsuitable for aggressive chemicals or continuous high-pressure washdown. If the sensor is installed near a weld zone, VFD-driven motor leads, or high-current conductors, consider electromagnetic interference resistance and cable routing as well.
For hazardous locations, food processing, outdoor equipment, or very high-temperature applications, use the required approvals and material specifications. A general-purpose replacement may function during a bench test but fail compliance requirements or degrade quickly in service.
Build a Replacement Specification Before You Order
When the original SKU is unavailable or obsolete, create a short replacement record. This is faster and safer than searching by a partial description such as “M12 prox switch.” Include these fields:
- Original manufacturer and full part number, if available
- Sensor technology and target material
- Supply voltage, AC or DC, and wire count
- PNP or NPN output, plus NO or NC switching logic
- Housing dimensions, mounting style, connector, and pinout
- Sensing range, flush or non-flush installation, and target details
- Environmental rating, temperature range, and required approvals
Verify the Replacement at the Machine
Before final installation, isolate power according to site safety procedures. Compare the replacement's wiring diagram and rating label with the documented machine circuit. Check connector orientation, torque threaded sensors correctly, and position the sensing face at the intended target distance.
After power-up, test both target-present and target-absent states. Watch the sensor indicator and the PLC input or machine diagnostic screen. Run the machine through normal motion, then observe several cycles at production speed. If the signal flickers, investigate target alignment, vibration, electrical noise, supply voltage, and clearance around the sensing face before assuming the new sensor is defective.
When an obsolete proximity sensor is holding up a repair, an exact model is often the lowest-risk choice. If an equivalent is necessary, Used Industrial Parts can help maintenance and purchasing teams source new, used, and discontinued industrial components with the specifications needed to keep the replacement decision focused on uptime.
A good replacement is not the one that powers up first. It is the one that delivers the correct signal, at the correct moment, through every cycle after the machine returns to service.
