How to Test Industrial Relays Without Guesswork
A relay can look perfectly normal and still be the reason a motor will not start, a safety circuit will not reset, or a production line remains down. Knowing how to test industrial relays helps maintenance teams separate a failed relay from a wiring, control-voltage, PLC-output, or load-side problem before ordering parts.
The test must match the relay type and the circuit it serves. An electromechanical plug-in relay, a contactor, a timer relay, and a solid-state relay do not fail in the same way or require the same checks. Start with the relay data sheet or markings on the housing, then test methodically rather than relying on whether the relay clicks.
Start With Safety and Identification
De-energize the equipment, apply lockout/tagout procedures, and verify absence of voltage before removing a relay or opening a panel. Stored energy can remain in capacitors, power supplies, and motion-control equipment after disconnecting main power. If the relay is part of a safety circuit, do not bypass it for troubleshooting. Follow the machine builder's procedure and document any replacement work.
Before testing, record the exact part number, coil voltage, contact arrangement, current rating, and terminal layout. Industrial relays commonly use SPDT, DPDT, 3PDT, or 4PDT contact configurations. A relay with the same physical footprint may have a different coil voltage, pinout, contact rating, polarity requirement, or timing function. Those differences matter when a replacement is needed quickly.
Inspect the relay, socket, and surrounding terminals first. Heat discoloration, a burnt odor, melted plastic, loose socket contacts, corrosion, cracked housings, and damaged suppression components are useful evidence. Also look for signs of vibration. A relay may be electrically sound but intermittently lose connection in a worn socket or at a loose control-wire termination.

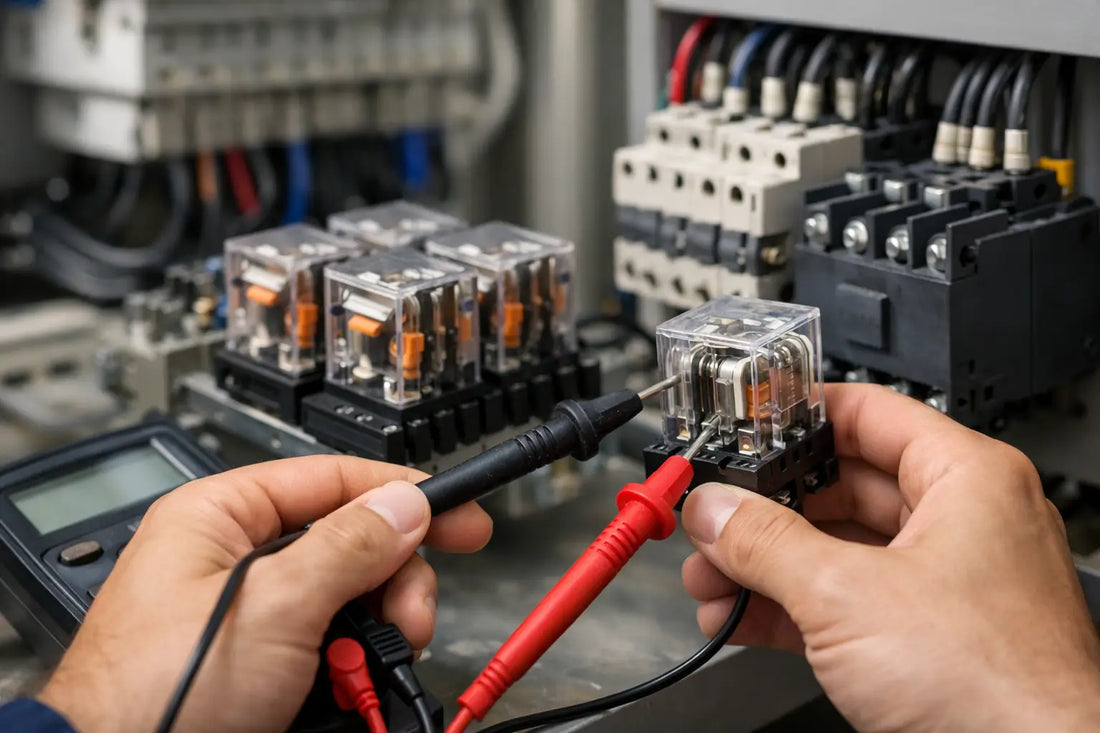

How to Test Industrial Relays With a Multimeter
For a standard electromechanical relay, the basic checks are coil resistance and contact continuity. Remove the relay from its socket when practical. Testing it in circuit can produce misleading readings because parallel components and connected loads affect the meter.
Check the Coil
Set a digital multimeter to resistance and measure across the coil terminals identified on the relay diagram. A healthy coil should show a finite resistance value. An open reading or OL usually indicates a broken coil winding. A reading close to zero ohms can indicate a shorted coil, although expected resistance varies substantially by coil voltage and relay design.
Compare the measurement with the manufacturer's published value when available, or compare it with a known-good relay of the same part number. Do not assume that a low-voltage DC relay and a 120 VAC relay should have similar resistance. Their coil designs are different.
A correct resistance reading does not prove the coil will operate reliably under voltage. Weak coils can pull in inconsistently, especially when supply voltage is low or the relay is hot. The next test confirms mechanical operation.
Check Normally Open and Normally Closed Contacts
With no coil power applied, identify the common, normally closed, and normally open terminals from the relay case diagram. Measure continuity between common and normally closed contacts. The meter should indicate continuity or very low resistance. Measure common to normally open contacts. This path should be open.
Then apply the relay's rated coil voltage using an appropriate, controlled source. For DC coils, observe polarity when the relay includes a diode, LED, or other polarity-sensitive suppression circuit. The relay should actuate cleanly. Once energized, normally open contacts should close and normally closed contacts should open.
A click is only a preliminary sign. Contacts can click into position while remaining resistive, pitted, welded, or unable to carry their rated current. Watch for unstable meter readings while gently moving the relay or its terminals. Intermittent continuity often points to contact wear, contamination, or mechanical damage.
Measure Contact Resistance Carefully
A typical handheld multimeter can identify an open or closed contact, but it is not the best instrument for measuring very low contact resistance. If the relay handles meaningful current or controls a critical process, use a milliohm meter or a four-wire micro-ohmmeter where available.
High contact resistance creates heat. Under load, that heat can cause voltage drop, nuisance faults, welded contacts, and socket damage. A relay may pass a basic continuity test yet fail in service because its contacts cannot conduct current efficiently. This is especially common on relays switching solenoids, heaters, brake coils, lamps, and motor-control loads.
Test the Relay in Its Actual Circuit
Bench testing verifies the component. Circuit testing identifies whether the control system is commanding it correctly and whether it is doing useful work under load. Reinstall the relay only after confirming the socket and terminal condition is acceptable.
With the machine in a safe state, measure voltage at the coil terminals when the relay should be energized. The measured voltage must match the relay coil rating within the manufacturer's acceptable operating range. A 24 VDC relay receiving 17 VDC may chatter or fail to pull in. A 120 VAC coil supplied by a weak control transformer can behave similarly.
If there is no coil voltage, the relay may not be the problem. Trace upstream through the fuse, control transformer or power supply, PLC output, selector switch, interlock, overload contact, safety relay, and field wiring. If correct coil voltage is present but the relay does not change state, the relay or socket is the likely fault.
Next, verify the output side under operating conditions. Measure voltage across the closed relay contacts while the load is energized. Ideally, voltage drop should be very low. A noticeable voltage drop across a closed contact suggests resistance and possible failure. Also measure at the load to confirm it receives the required voltage.
For current-carrying circuits, use a clamp meter to check load current against the relay's contact rating and the machine's expected load. Repeated overcurrent, inrush current, or inductive switching without proper suppression shortens relay life. Replacing the relay without correcting the cause can lead to another failure soon after startup.
Special Cases That Need Different Tests
Time-delay relays need both electrical and functional testing. Confirm the coil receives the proper command, then measure whether the output changes state after the specified on-delay, off-delay, interval, or repeat-cycle setting. Incorrect timer settings, supply-voltage variation, and failed internal electronics can all look like a relay problem.
Solid-state relays require a different approach because they have no moving contacts and often do not click. Check the control input voltage first, then verify switching on the output side with the correct load connected. A solid-state relay can fail open, fail shorted, or leak a small off-state current. Heat is also significant. Confirm the relay has the required heat sink, thermal compound where specified, airflow, and load derating.
Safety relays should be tested only according to the equipment documentation and applicable safety procedures. Their force-guided contacts, feedback loops, dual-channel inputs, and fault-monitoring functions are not adequately evaluated with a simple continuity check. If a safety relay is suspected, record fault indicators and test the entire safety circuit rather than substituting jumpers.
Decide Whether to Replace the Relay or the Socket
Replace the relay when its coil is open or shorted, contacts fail to transfer, contact resistance is excessive, operation is intermittent, or the housing shows heat damage. Replace the socket too when its terminals are loose, discolored, cracked, corroded, or unable to hold the relay pins securely. A new relay installed in a damaged socket can fail prematurely and create the same downtime event again.
When sourcing a replacement, match the full manufacturer part number whenever possible. If the original is obsolete, verify coil type and voltage, terminal pattern, contact form, contact material, switching rating, approval requirements, indicator or test-button options, and suppression features. For timer, monitoring, and safety relays, matching the function is as critical as matching the footprint.
Used Industrial Parts can help when an exact relay or legacy control component is no longer available through standard channels, with inventory options suited to urgent maintenance and repair needs. Before ordering, keep the relay label, photos of the socket, and your measured coil voltage available to avoid a near-match that delays the repair.
A relay test is most valuable when it answers the larger question: did the component fail, or did the machine create the conditions that caused it to fail? Confirm the control signal, load current, socket condition, and suppression method before returning equipment to service. That extra few minutes protects the replacement part and gives the repair a better chance of lasting.
