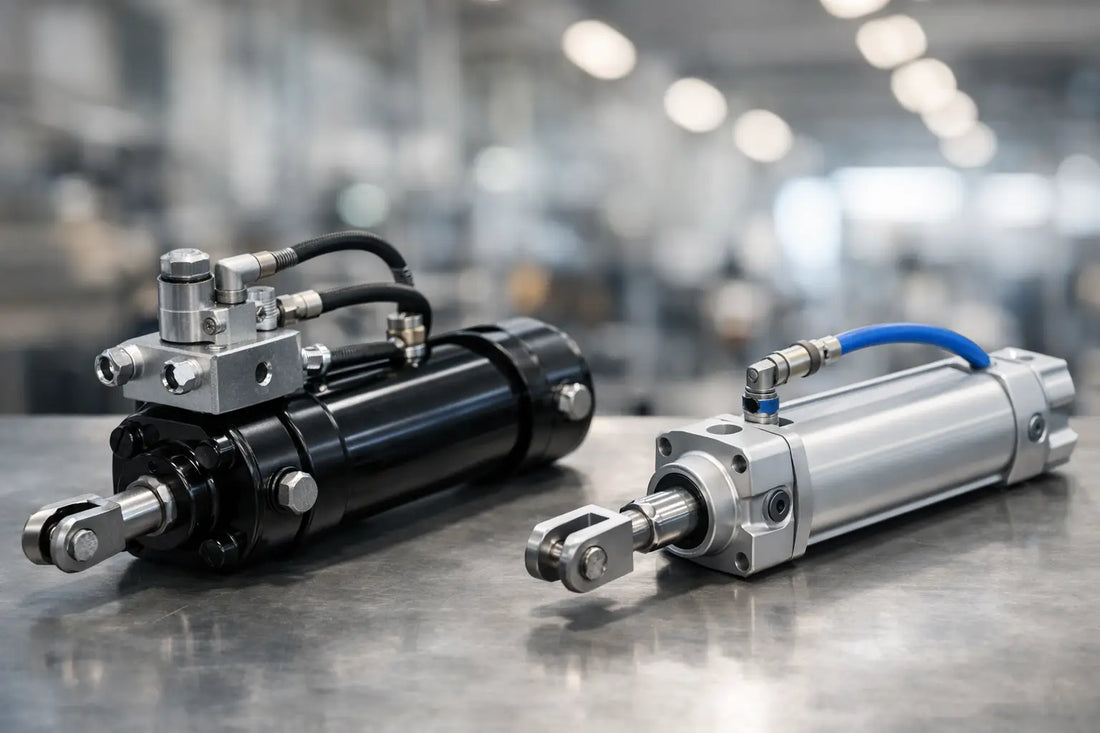

Hydraulic vs Pneumatic Actuators Compared
A failed actuator can stop a press, clamp, valve, lift, or packaging station just as effectively as a failed PLC. When comparing hydraulic vs pneumatic actuators, the practical question is not which technology is better overall. It is which system matches the required force, motion profile, operating environment, and replacement constraints of the machine already on your floor.
Hydraulic and pneumatic cylinders may look similar from the outside, but they behave very differently in service. Replacing one with the wrong type, or ordering a near-match without confirming mounting and operating specifications, can create performance issues that are harder to diagnose than the original failure.
Hydraulic vs Pneumatic Actuators: The Core Difference
Hydraulic actuators use pressurized liquid, usually hydraulic oil, to create linear or rotary motion. Because hydraulic fluid is largely incompressible, a hydraulic actuator can produce substantial force in a controlled, stable manner. This makes hydraulics common in presses, heavy clamping systems, material handling equipment, injection molding machines, mobile equipment, and high-load process applications.
Pneumatic actuators use compressed air. Air is compressible, which gives pneumatic systems fast response and a simpler power source in facilities that already maintain plant air. Pneumatic cylinders are widely used for part positioning, pick-and-place equipment, packaging machinery, light clamping, gates, diverters, and other repetitive motions where moderate force and high cycle speed are more valuable than maximum power.
The actuator itself is only one part of the decision. Cylinder bore, stroke, rod diameter, seal materials, mounting style, available pressure, valve sizing, cushioning, sensor feedback, and the load being moved all determine whether a replacement will work as intended.
Force: Where Hydraulic Actuators Pull Ahead
Force is usually the fastest way to narrow the choice. Cylinder force is calculated from pressure multiplied by piston area. Hydraulic systems commonly operate at far higher pressures than standard compressed-air systems, so they can produce much more force from a relatively compact cylinder.
A pneumatic cylinder operating at 80 to 100 psi can handle many industrial tasks, particularly when the load is light and travel is short. However, increasing the required force means increasing bore size. A large-bore pneumatic cylinder may consume significant air volume and still lack the stiffness needed for a heavy-load application.
Hydraulic cylinders are generally the better fit when the machine must press, form, lift, hold, or clamp with high force. They also handle changing loads well when the hydraulic circuit is correctly designed. That advantage comes with more system complexity: pumps, reservoirs, filters, hoses, fittings, valves, and fluid condition all affect performance.
Do not select by bore size alone. Extension force and retraction force differ on double-acting rod cylinders because the rod reduces effective piston area on the retract side. Side loading, speed, and mounting geometry can also limit a cylinder that looks adequate on paper.
Speed, Control, and Repeatability
Pneumatic actuators are often selected for quick, repetitive movement. With correctly sized directional valves and flow controls, a pneumatic cylinder can cycle rapidly and economically in an automated assembly or packaging operation. The simplicity of an air-powered system is a major benefit when the movement only needs to travel from point A to point B.
The trade-off is that compressed air behaves like a spring. Loads can cause speed variation, bounce, or position drift. End-of-stroke cushions, shock absorbers, flow controls, and rod locks can improve behavior, but standard pneumatic cylinders are not the first choice for high-force precision positioning.
Hydraulic actuators usually provide better motion stability under load because the fluid does not compress significantly. Proportional hydraulic valves and servo systems can deliver controlled acceleration, deceleration, and force. This is valuable when a machine needs consistent pressing force or controlled movement of a large load.
Hydraulics are not automatically precise, however. Internal leakage, oil temperature changes, contaminated fluid, valve wear, and poorly adjusted controls can reduce repeatability. For highly accurate position control, determine whether the existing machine uses linear transducers, encoders, servo valves, or proportional controls before sourcing an actuator replacement.
Installation and Operating Environment
Pneumatics work especially well where cleanliness matters. A properly maintained air system avoids the oil leaks associated with hydraulic equipment, which is useful in food packaging, pharmaceutical support equipment, electronics handling, and clean manufacturing areas. Exhaust air can still carry moisture, oil mist, or contaminants, so air preparation is not optional.
Filters, regulators, lubricators where required, water separators, dryers, and drain maintenance all affect pneumatic actuator life. Water in compressed air can corrode cylinder bores and damage valves. Low supply pressure may cause weak or inconsistent cylinder movement that resembles a mechanical problem.
Hydraulic equipment is better suited to outdoor, heavy-duty, and high-load environments, but fluid containment matters. A leaking hydraulic cylinder can create a housekeeping issue, a safety hazard, and a contamination risk. Hose condition, fitting compatibility, seal material, oil grade, filter condition, and reservoir cleanliness should be checked whenever a cylinder failure is found.
Temperature also changes the decision. Cold environments can thicken hydraulic oil and slow response until the system warms up. High heat can degrade oil and seals. Pneumatic systems may experience moisture freezing in lines or exhaust ports if the air supply is not dry. Specify seals and accessories for the actual temperature range, not just the normal operating condition.
Maintenance Requirements and Failure Modes
Pneumatic systems are usually easier to service at the component level. Technicians can often isolate air, replace a valve or cylinder, set flow controls, and return a light-duty machine to operation quickly. Common symptoms include slow travel, failure to reach end of stroke, air leakage at the rod seal, bent rods, worn piston seals, and damaged magnetic switches.
Hydraulic systems require greater attention to fluid health. Contamination can damage pumps, valves, cylinder seals, and proportional components across the system. A replacement cylinder may fail early if the root cause is dirty oil, excessive pressure, misalignment, a scored rod, or a damaged load-bearing pivot.
For either technology, inspect the full motion path. A cylinder with a bent rod or damaged mounting can indicate side loading from a worn linkage, loose clevis, misaligned guide, or shifted machine frame. Replacing the actuator without correcting that condition can turn an urgent repair into repeat downtime.
Cost Should Include Utilities and Downtime
Pneumatic components often have a lower initial purchase price and simpler installation requirements. They are a practical choice for lower-force automation, especially in a facility with available compressed air. But compressed air is expensive to generate, and persistent leaks raise operating costs over time.
Hydraulic systems can cost more to install and maintain because they need a power unit and fluid-management components. Their power density can reduce cylinder size and make them the more economical option for heavy-duty work. On equipment already designed for hydraulics, converting to pneumatic operation is rarely a direct substitution and can require major changes to controls, structure, and safety systems.
For replacement sourcing, the lowest unit price is not always the lowest-risk option. An exact or technically compatible actuator can avoid fabrication delays, port-adapter issues, sensor incompatibility, and mounting changes that extend a shutdown.
What to Verify Before Ordering a Replacement
Start with the actuator nameplate or manufacturer part number when available. On older equipment, the original part may be discontinued, modified, or missing identification. In that case, document the specifications before removing the failed unit.
Confirm whether the actuator is hydraulic or pneumatic; single-acting or double-acting; linear or rotary; and tie-rod, welded-body, compact, guided, rodless, or another construction type. Record bore, stroke, rod diameter, retracted and extended length, port thread and location, mounting style, operating pressure, cushion arrangement, and sensor provisions.
Also verify the application details that do not appear on a nameplate. These include load direction, cycle rate, required end position, exposure to washdown or heat, and whether the cylinder must hold a load when pressure is lost. Vertical loads and personnel-adjacent equipment may require load-holding valves, rod locks, mechanical stops, or other safety provisions beyond the actuator itself.
A clear set of photos and dimensions speeds up sourcing when an exact SKU is unavailable. For legacy machinery, Used Industrial Parts can be a practical source for new, used, and obsolete industrial components when standard distribution channels no longer stock the required item.
Before putting any replacement into service, compare its dimensions and ratings against the machine documentation and test the motion at controlled pressure. The right actuator is the one that restores the machine's intended force, speed, and safety margin without creating the next maintenance problem.
