Danfoss MP 55 Differential Pressure Control - 060B0151

Brand: Danfoss
Model: MP 55
Type: Differential Pressure Switch
Part Number: 060B0151

Technical Specs:
- Function: Safety switch for protecting refrigeration compressors against low lubricating oil pressure; shuts down compressor if oil pressure fails after a set period
- Regulating Range: 0.3 to 4.5 bar
- Differential Pressure: Adjustable
- Contact Configuration: SPDT
- Electrical Rating: 250 V AC; 6 A
- Enclosure Rating: IP20
- Operating Temperature Range: -40°C to 70°C
- Media Temperature Range: Up to 120°C
- Fluid Connection: 1/4" flare
- Thermal Time Delay: Fixed release time
- Operating Medium: Suitable for R717 (ammonia), HCFC, and non-flammable HFC refrigerants
- Additional Features:
  - Adjustable differential pressure for precise control
  - Robust design resistant to shock and vibration
- Certifications: CE (EN 60947-1, EN 60947-5-1), UL (File E87037), CCC, ABS, DnV, GL, RINA, RMRS, NKK, CCS, BV, KR, LR (marine approvals)

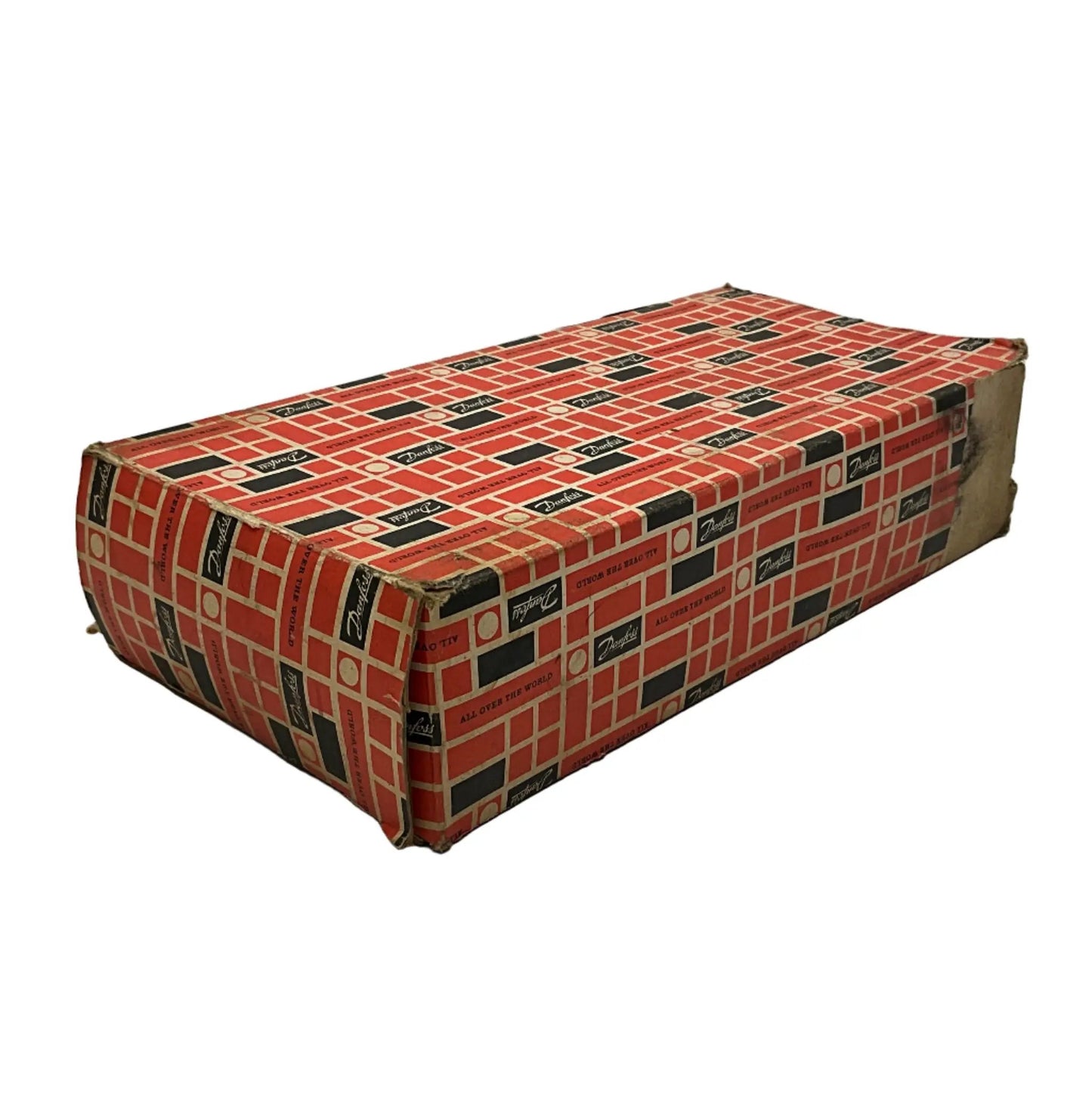

* New Old Stock

Dimensions: 190 x 100 x 50 mm, Box: 280 x 130 x 60 mm

Weight: 800 g

Country of Origin: Denmark

HS Code: 9026.20
