IMI Norgren

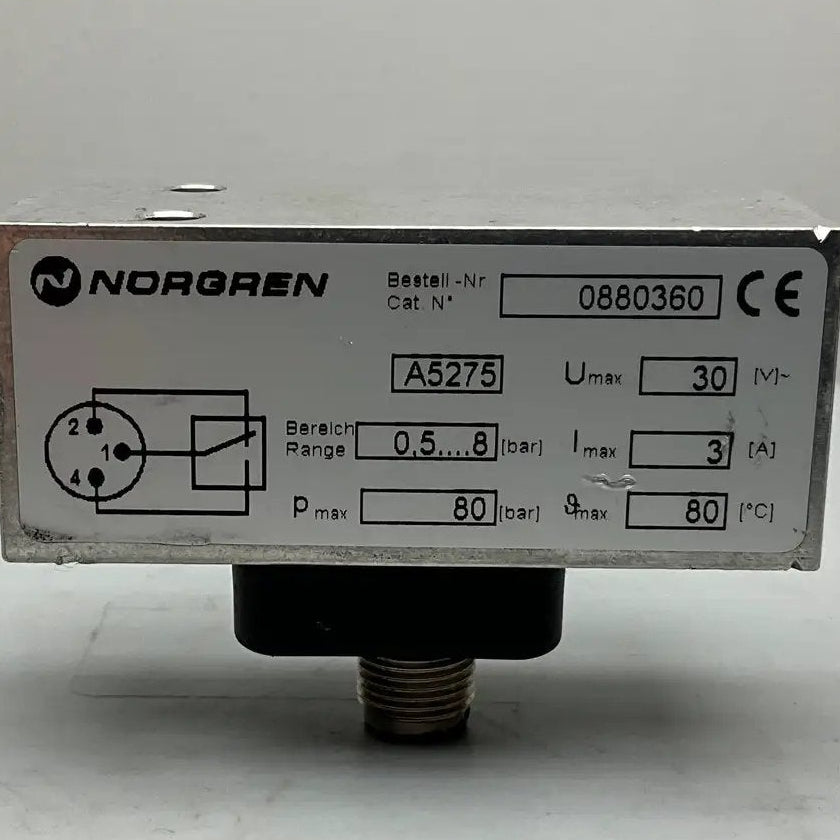

IMI Norgren 0880360 Electro-mechanical Pneumatic Pressure Switch

IMI Norgren 0880360 Electro-mechanical Pneumatic Pressure Switch

€78,65incl. VAT
€65,00 excl. VAT

المخزون: 26

Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandIMI Norgren (IMI Herion)
Model0880360
TypeElectro-mechanical Pneumatic Pressure Switch (18D Series)
Part Number0880360000000000
Technical Specs

Pressure Setting Adjustment Range: 0.5 to 8 bar

Overpressure Limit80 bar
Fluid / Media SuitabilityNeutral, gaseous, and liquid fluids
Sensing ElementHigh-durability piston/diaphragm design matrix
Switching ElementMicroswitch with gold-plated contacts
Switching FunctionSPDT
Terminals OperationContacts 1-3 close on rising pressure; Contacts 1-2 open on rising pressure
Electrical Connection TypeM12 x 1 plug connection layout (3-pin)
Maximum Electrical Rating30 V AC/DC / 0.1 A (Gold-layer protection threshold)
Maximum Switching Frequency100 electrical cycles per minute
Temperature Limits0°C to +80°C

Shock & Vibration Resistance: Up to 15 g

Repeatability / Accuracy±3% of full-scale final value
Viscosity LimitUp to 1000 mm²/s
Core Materials (Body)Robust anodized aluminum
Core Materials (Seals)Fluoroelastomer / Fluoro-Polymer-Material (FPM)
Mounting PositionOptional
Enclosure Protection ClassIP65
Weight200 g
Dimensions80 x 30 x 50 mm
Country of OriginCzechia
HS Code8536.50.90
