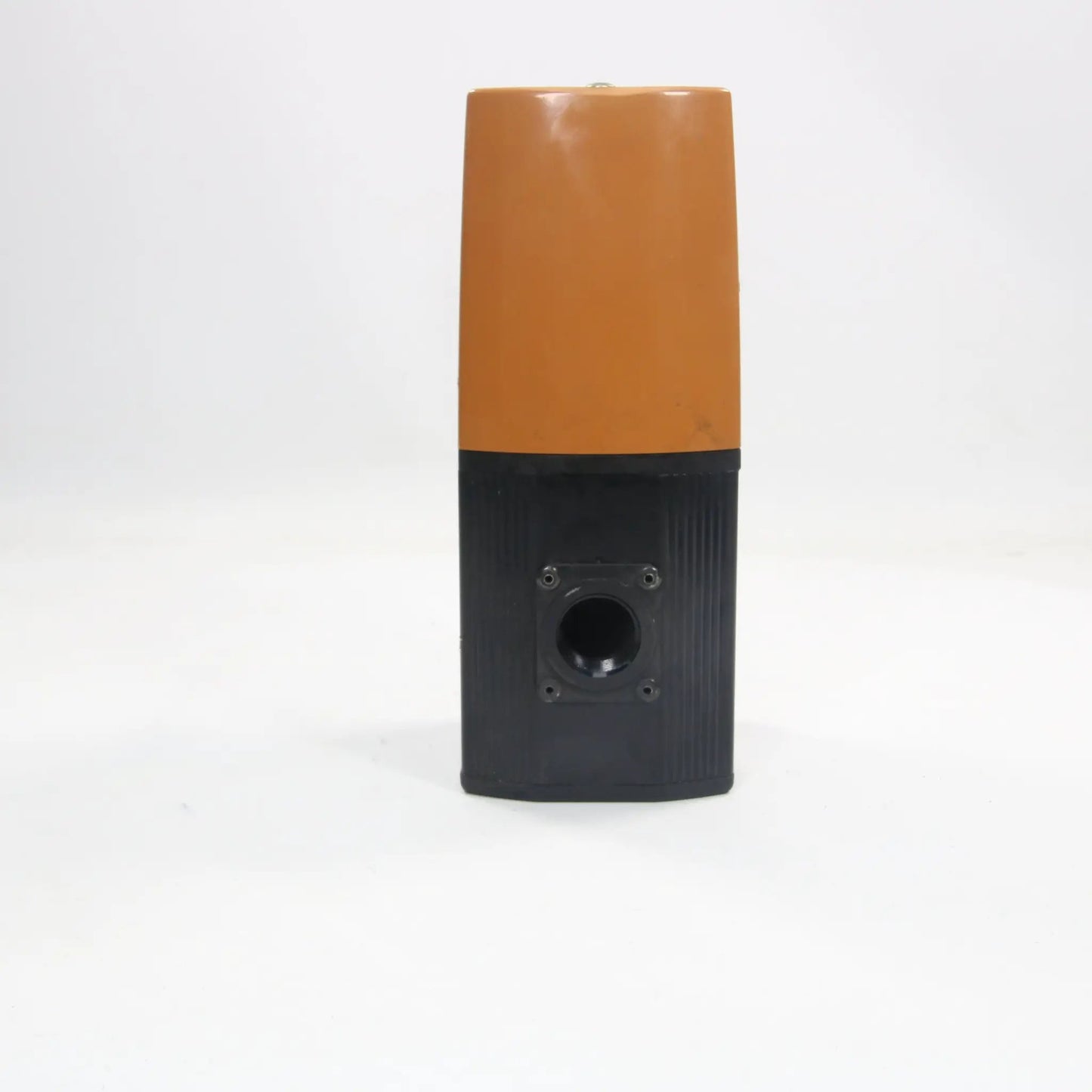

Parker Lucifer EPP3 Transducer

- Brand: Parker Lucifer
- Model: EPP3-JC41U90310
- Type: Electro-Pneumatic Pressure Regulator
- Technical Specifications:
  - Series: EPP3
  - Function: Remote-controlled pneumatic pressure regulator with closed-loop integrated electronic control
  - Control Signal: Proportional regulation of outlet pressure based on electrical control signal
  - Pressure Range: Up to 12 bar
  - Supply Voltage: 24 V DC
  - Input Signal: 0-10 V DC or 4-20 mA (configurable)
  - Output Pressure: Proportional to input signal, adjustable via integrated electronic control
  - Response Time: Very fast (specific value not detailed, typically <50 ms)
  - Flow Rate: up to 150 l/min
  - Port Size: 1/2" NPT
  - Operating Temperature: 0°C to +50°C (typical for EPP3 series)
  - Protection: IP65 (dust-tight and protected against water jets)
  - Materials: Aluminum body, NBR seals
  - Features:
    - Closed-loop control for high accuracy
    - Flexible control options with fast response times
    - Integrated electronic control and gauge
    - Long life expectancy and low power consumption
  - Applications: Industrial automation, pneumatic control systems, precision pressure regulation
- Dimensions: Height 182 mm, Width 75 mm, Length 110 mm
- Weight: 900 grams
- Country of Origin: France
- HS Code: 84812090
