PDL Electronics

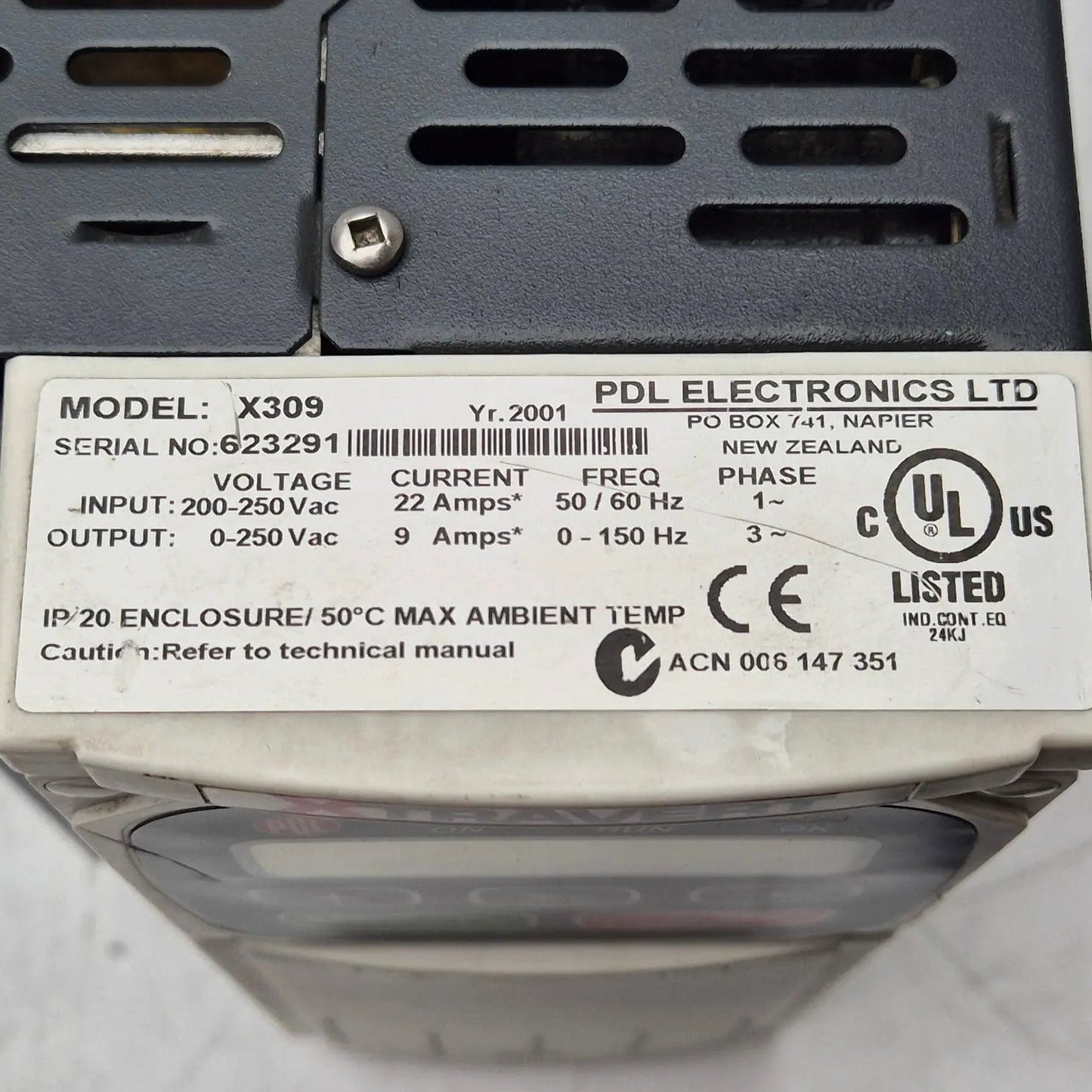

PDL Electronics Xtravert X309 Variable Speed Drive

PDL Electronics Xtravert X309 Variable Speed Drive

€756,25incl. VAT
€625,00 excl. VAT

المخزون: 1
Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandPDL Electronics (acquired by Schneider Electric)
ModelXtravert X309
TypeVariable Speed Drive / Frequency Converter
Part numberX309
Technical specs
Output functionVariable frequency
Electrical design16-bit Microcontroller-driven IGBT inverter using space vector modulation and WhisperWave modulation technology
VoltageInput: 200...250 V AC 1~ | Output: 0...250 V AC 3~
Temperature0...50 °C ambient operating temperature range
Current RatingInput: 22 A  | Output: 9 A
Short-circuit ProtectionYes
Overload ProtectionYes
FunctionControls the speed and torque of smaller three-phase AC induction motors rated up to 2.2 kW (typical configuration for the 9A frame) in machinery and fluid/gas management applications
Max. power consumptionHigh efficiency design (>97% at full load, 50 Hz)
Setting mechanismFully digital programming configuration via the alphanumeric control panel; features 7 switch-selectable preset speeds and a ±10V reference option

Output frequency resolution range selectable: ±50 / ±60 / ±100 / ±120 Hz

Connection typeHeavy-duty screw terminals for mains input, motor output, and internal DC bus connections
Housing materialEngineered industrial polymer and metal alloy structural chassis
Mounting typeVertical wall-mounting inside switchboards or protective enclosures
Protection ratingIP 20
Status indication32-character alphanumeric LCD display panel with integrated status LEDs for Power On, Run, and Fault conditions
Weight7.3 kg
Dimensions281 x 135 x 220 mm
Country of originNew Zealand
HS Code8504.40.90
