SMC

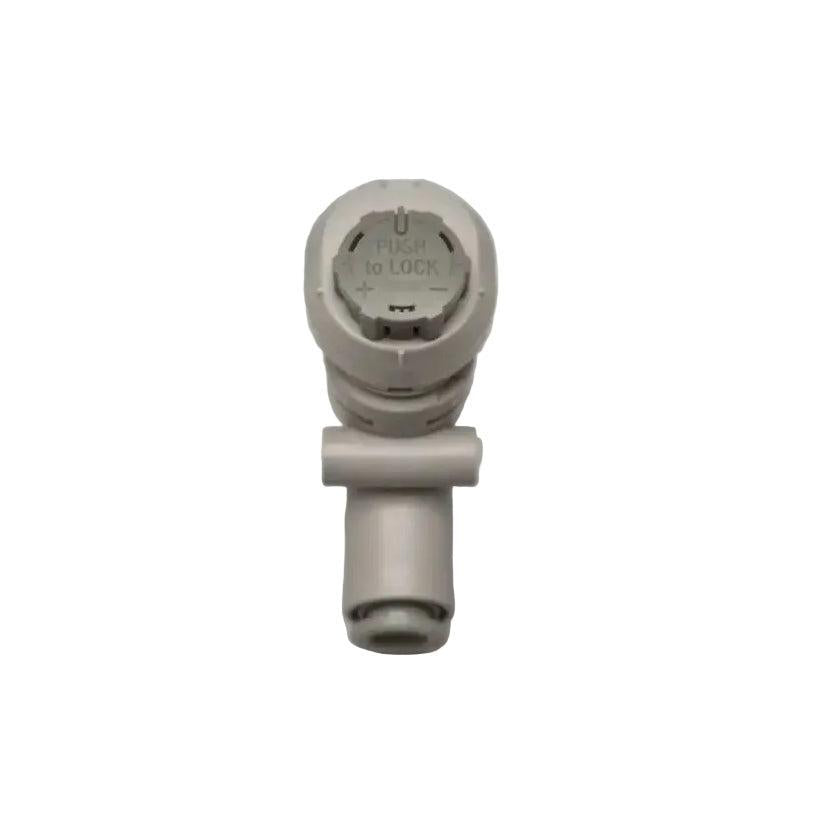

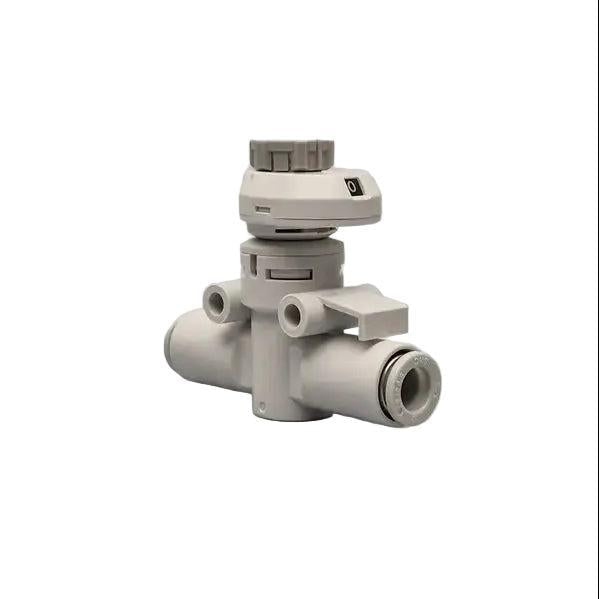

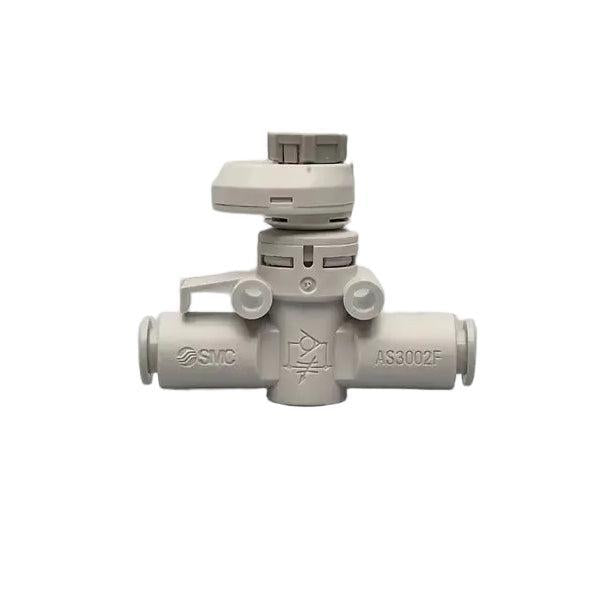

SMC AS3002F Flow Control Valve

SMC AS3002F Flow Control Valve

€26,62incl. VAT
€22,00 excl. VAT

المخزون: 5

Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandSMC
ModelAS3002F-08
TypeFlow Control Valve
Order numberAS3002F-08
Technical specs
Output functionMeter-out or Meter-in flow regulation
Temperature-5...60 °C ambient and fluid operating temperature range
FunctionPrecise regulation of drive speed in pneumatic actuators by controlling the volumetric flow rate of compressed exhaust or supply air
Setting mechanismLinear needle valve adjustment knob with locking nut to secure set positions
Media selectionCompressed air
Operating pressure range1...10 bar
Connection typeØ 8 mm One-touch push-in fittings (Both ports)
Housing materialPBT resin (Body); Seal/Diaphragm: NBR
Mounting typeIn-line plumbing installation or bracket mounting via integrated body slots
Weight30 g
Dimensions65 x 25 x 52 mm
Country of originJapan
HS Code8481.20.90
