IMI Norgren

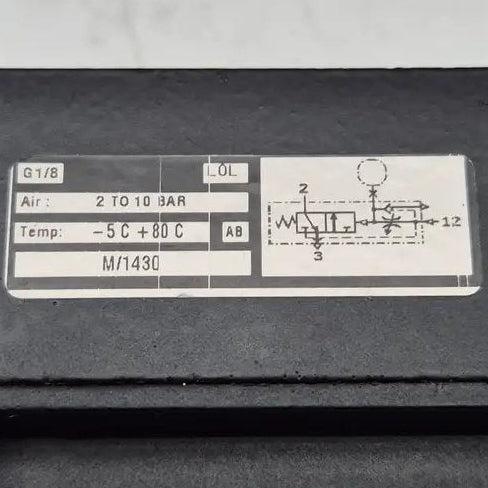

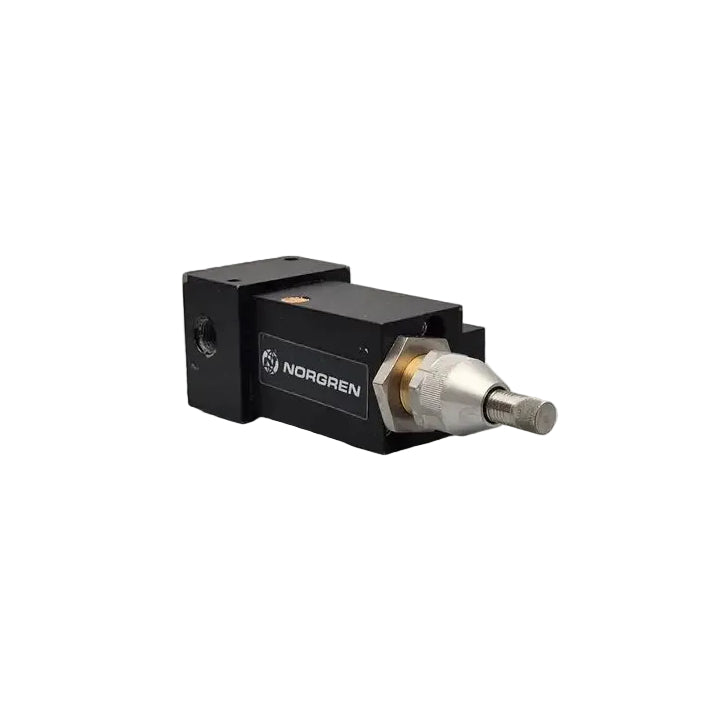

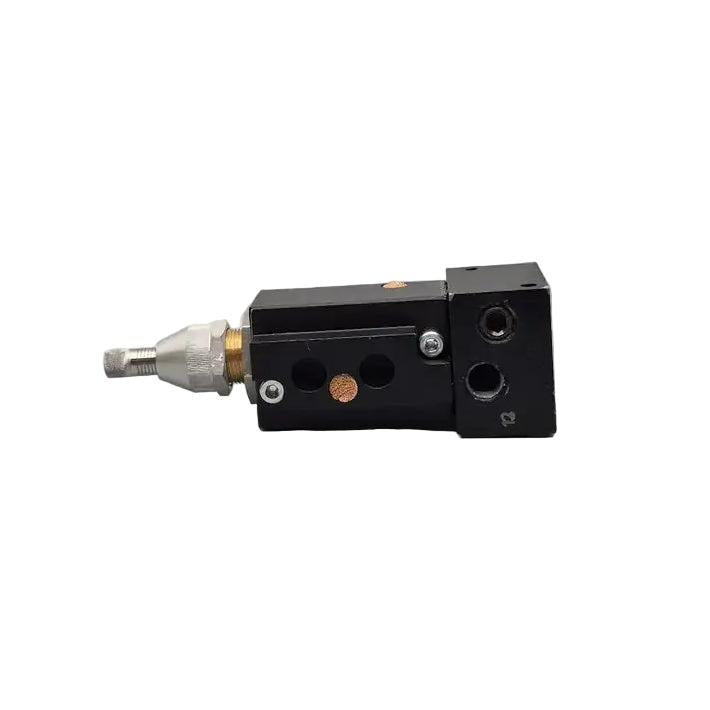

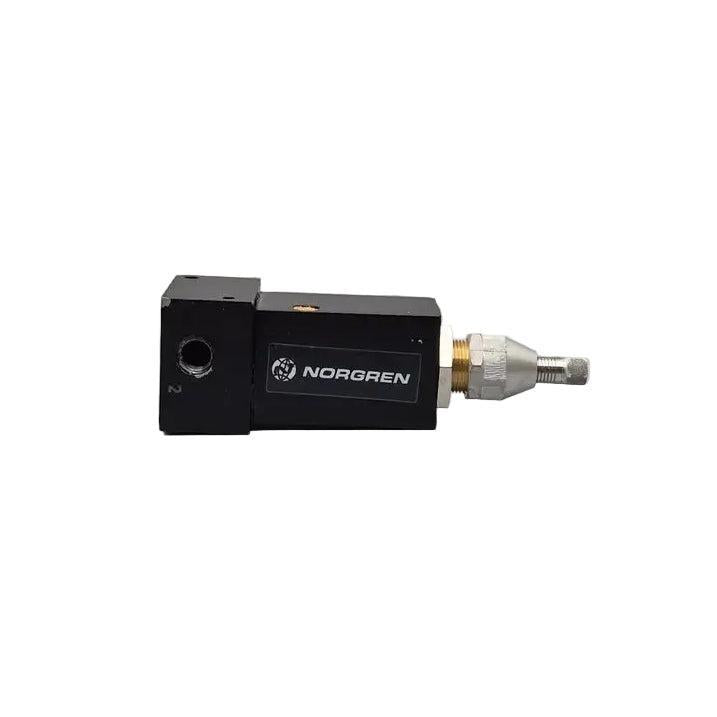

IMI Norgren M/1430 Pneumatic Time Delay Valve

IMI Norgren M/1430 Pneumatic Time Delay Valve

€453,75incl. VAT
€375,00 excl. VAT

Sklad: 1
Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandIMI Norgren
ModelM/1430
TypePneumatic Time Delay Valve
Part number20157
Technical specs
Output functionPneumatic time-delayed output activation with automatic reset when the input pilot signal is removed
Temperature5...80 °C ambient and medium operating temperature range
FunctionProvides an adjustable delay period between consecutive pneumatic operations in a sequence by allowing pilot pressure to gradually bleed into an internal chamber
Channels3 ports / 2 positions
- Adjustable delay range0.2 to 5 seconds
Setting mechanismIntegrated adjustable needle screw with locking nut
Media selectionCompressed air (Filtered, lubricated, or non-lubricated)
Flow rating $C_v$ 0.12
Operating pressure range2...10 bar
Connection typeG 1/8 internal threaded ports on a side-ported sub-base
Housing materialPressure die-cast zinc alloy body and sub-base; Seals: Nitrile rubber (NBR)
Mounting typeThrough-holes in sub-base for surface or gang/manifold mounting
Weight540 g
Dimensions40 x 40 x 125 mm
Country of originUnited Kingdom
HS Code8481.20.90
