Kinco SMC80S-0075-30MBK-3DSH-(5) AC Servo Motor s planetovou převodovkou

Kinco SMC80S-0075-30MBK-3DSH-(5) AC Servo Motor s planetovou převodovkou

€266,20incl. VAT
€220,00 excl. VAT

Skladové zásoby docházejí, zbývající množství: 8
Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
ZnačkaKinco (Servo Motor)
ModelSMC80S-0075-30MBK-3DSH-(5) (Servo Motor)
TypAC Servo Motor s planetovou Gearbox
Číslo díluSMC80S-0075-30MBK-3DSH
Technické specifikace
Typ Servo MotoruAC Servo Motor, nízkonapěťová řada
Jmenovitý výkon750 W
Jmenovitý točivý moment2,39 Nm
Jmenovitá rychlost3000 ot./min
Maximální točivý moment7,17 Nm
Maximální rychlost4000 ot./min
Typ Encoderu2500 PPR inkrementální Encoder
Moment setrvačnosti0,25 kg·cm²
Napětí48 V DC
Jmenovitý proud19 A
Třída izolaceF
Stupeň krytíIP65
Rozsah okolní teploty0°C až 40°C

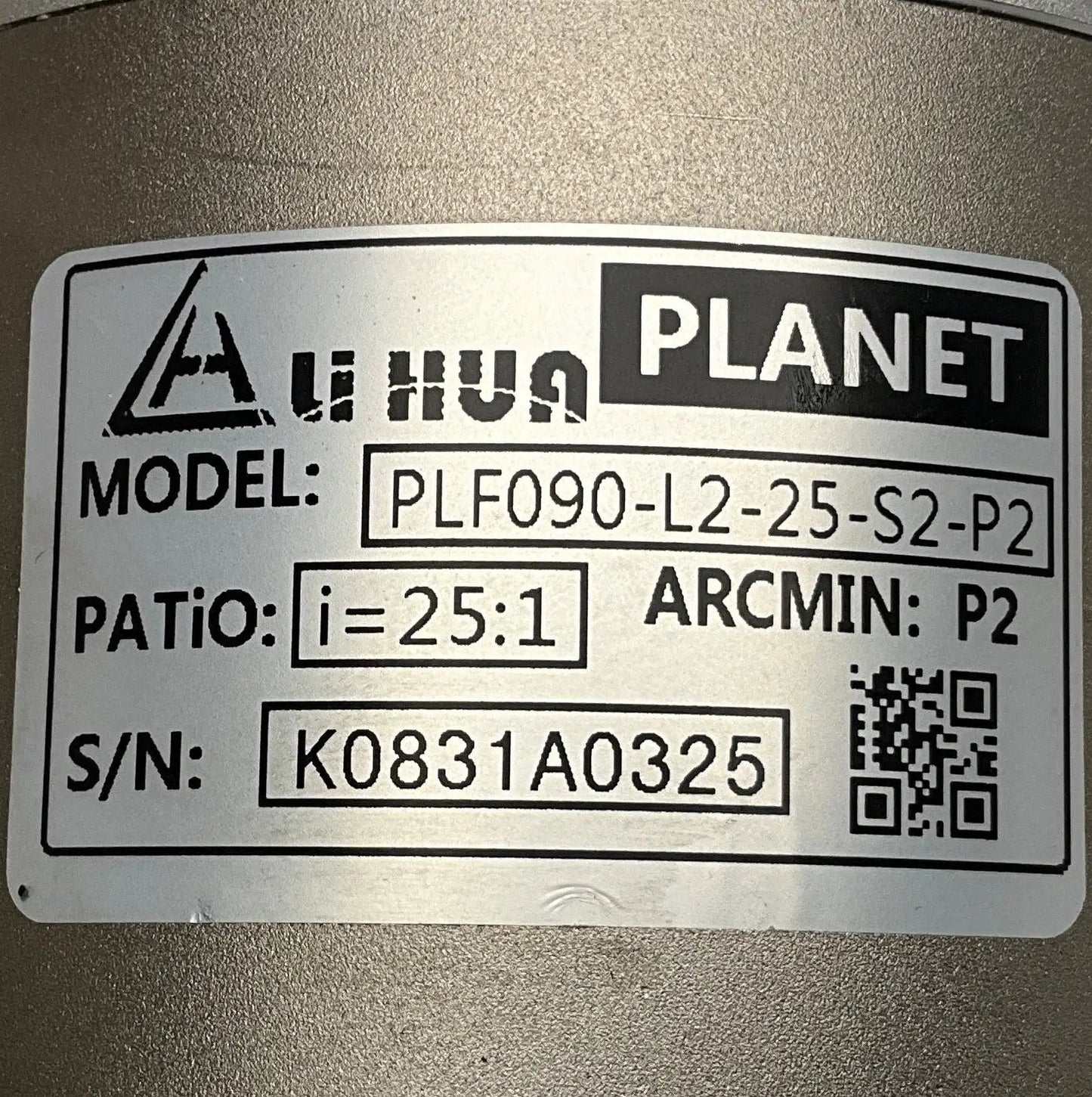

Typ Gearboxuplanetová Gearbox
Převodové poměry20:1/25:1/35:1
Zpětný chodP2 obloukových minut
Vstupní rychlost (Gear)3000 ot./min
Účinnost≥ 90%
Materiálhliníková slitina pouzdra pro převodovku
Další vlastnosti

  Kompaktní a lehký design pro snadnou integraci

  Nízký zubový moment pro plynulý chod

  Možnost brzdy (30MBK označuje motor s brzdou)

  Vysoká přetížitelnost (300 % po dobu 1 sekundy)

  Modulární kompatibilita pro servo systémy Kinco

CertifikaceCE, RoHS kompatibilní
Rozměry
Velikost příruby motoru90 x 90 mm
-Motor/Gear340 x 100 x 90 mm
-Hmotnost7,9 kg
Země původuČína
HS kód8501.52
