Teledyne Hastings Instruments

Teledyne Hastings Instruments HFM-200 Mass Flow Controller

Teledyne Hastings Instruments HFM-200 Mass Flow Controller

€296,45incl. VAT
€245,00 excl. VAT

Sklad: 1
Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandTeledyne Hastings Instruments

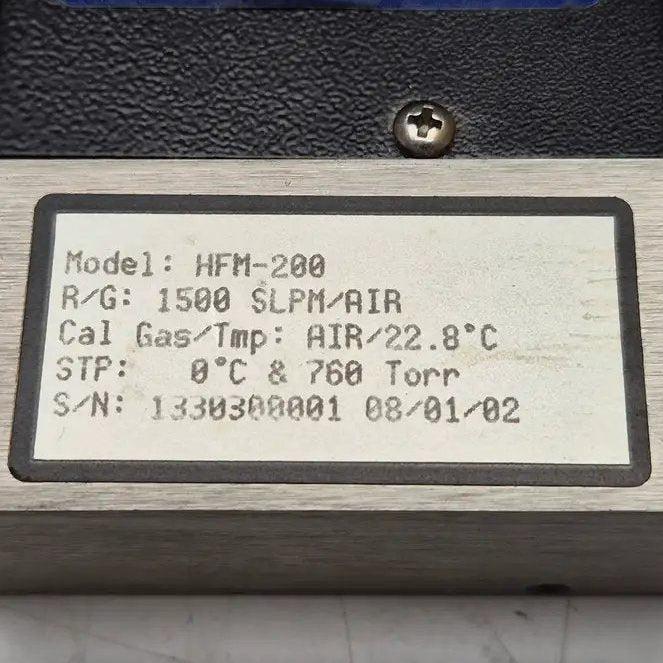

ModelHFM-200 (High Capacity / LFE Series)
TypeMass Flow Controller (High Flow Configuration)
Configuration SuffixesR/G: 1500 SLPM/AIR | Cal Gas/Tmp: AIR/22.8 C
Technical specs
Output function0...5 VDC linear analog mass flow output signal
Electrical designNon-valve thermal transfer mass flow sensor operating in tandem with an integrated high-capacity Laminar Flow Element (LFE)
Voltage±(14...16) VDC (Dual bipolar supply)
Temperature22.8 °C calibrated operating temperature
Max. working pressure34.5 bar
-Current RatingMax. 30 mA at ±15 VDC
STP0 C & 760 Torr (1.01 bar)
Short-circuit ProtectionYes
Overload ProtectionYes
Reverse Polarity ProtectionYes
FunctionHigh-capacity monitoring and precise verification of total gaseous volumetric flow rate via downstream heat-sink profiling, bypassing pressure shifts
Max. power consumption< 1 W
Media selectionCalibrated for Air (R/G: 1500 SLPM/AIR baseline)
Accuracy±1.0% of Full Scale
Repeatability±0.05% of Full Scale
Flow capacity range0...1500 SLPM (Standard Liters Per Minute)
Connection type15-pin subminiature D-connector (For ±15 VDC builds) Fluid ports with Swagelok elbows
Housing material316L Stainless Steel wetted parts, Viton elastomer O-ring seals
Mounting typeIn-line plumbing installation
Protection ratingIP 40
Weight850 g
Dimensions140 x 30 x 135 mm
Country of originUnited States
HS Code9026.10.20
