Haehne

Haehne AME2-C Strain Gauge Amplifier

Haehne AME2-C Strain Gauge Amplifier

€598,95incl. VAT
€495,00 excl. VAT

Lager: 1
Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandHaehne
ModelAME2-C
Type2-Channel Strain Gauge Amplifier / Tension Measuring Amplifier
Part number222581
Technical specs
Output function2 x Analogue outputs (0...10 V or 0/4...20 mA, configurable via internal jumpers)
Electrical designAnalogue strain gauge evaluation circuit
Voltage24 V DC (Operating voltage range: 18...30 V DC)
Temperature0...50 °C ambient operating temperature range
Current RatingMax. 150 mA (Current consumption at 24 V DC)

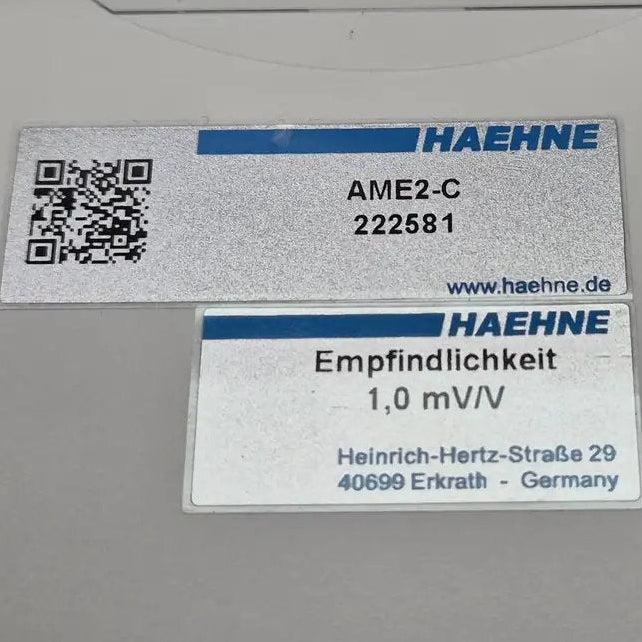

Sensitivity1,0 mV/V
Overload ProtectionYes
Reverse Polarity ProtectionYes
FunctionProcessing and amplification of industrial sensor signals from strain gauge web tension sensors or load cells
Channels2 independent channels (Dual-channel bridge amplifier)
Max. power consumptionMax. 4 W
Setting mechanismMulti-turn potentiometers accessible through front panel for Zero adjustment and Gain/Span calibration
Linearity error< 0.1% of full scale
Connection typePlug-in screw terminal blocks (Max. wire size 1.5 mm²)
Housing materialPolyamide plastic
Mounting typeDIN-rail installation
Protection ratingIP 20
Status indication1 x Green LED (Power ON indication)
Weight180 g
Dimensions115 x 100 x 25 mm
Country of originGermany
HS Code8543.70.90
