Schneider Electric

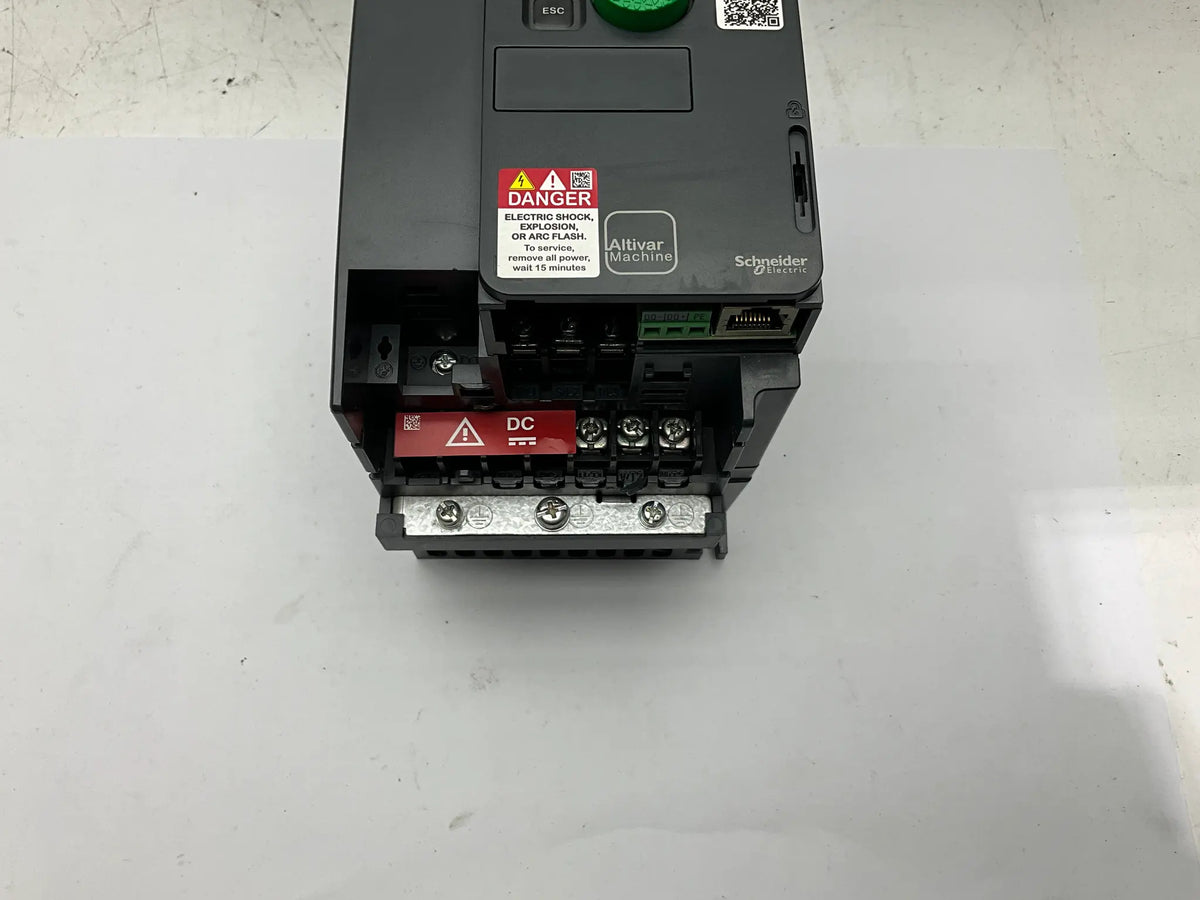

Schneider Electric Altivar 320 Variable Speed Drive - ATV320U15N4C

Schneider Electric Altivar 320 Variable Speed Drive - ATV320U15N4C

€538,45incl. VAT
€445,00 excl. VAT

Lager: 1
Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandSchneider Electric
ModelAltivar Machine ATV320
TypeVariable Speed Drive
Part NumberATV320U15N4C
Technical Specs
Motor Power (kW)1.5 kW | 2.0 HP
Input Voltage380 - 480 V AC, 50/60 Hz
Output Voltage0....380 - 480 V AC, 0...599 Hz
Input Current6.4 A max
Output Current4.1 A
Nominal Switching Frequency4 kHz
Control ProfilesAsynchronous motors and Synchronous motors
Integrated Safety FunctionsSTO, SLS, SS1, SMS, GDL
Communication ProtocolIntegrated Modbus RTU and CANopen
Discrete Inputs6 x Programmable discrete inputs (LI1 to LI6), 24 V DC (compatible with PLC level 1)
Analogue Inputs3 x Programmable analogue inputs (AI1: Voltage 0...10V, AI2: Bipolar voltage ±10V, AI3: Current 0...20mA)
Discrete Outputs1 x Programmable logic output (LO+), 1 x Relay output (R1A/R1B/R1C - 1 NO + 1 NC), 1 x Relay output (R2A/R2C - 1 NO)
Analogue Outputs1 x Programmable analogue output (AQ1: Voltage 0...10V or Current 0...20mA)
Breaking CapabilityIntegrated braking transistor
Thermal ProtectionDrive thermal overcurrent, motor thermal protection via calculation or PTC sensor loop integration
Mechanical Design FormatCompact/Book form factor footprint
Cooling MechanismFan ventilation forced cooling system
Enclosure Protection ClassIP20
Weight1.4 kg
Dimensions160 x 105 x 130 mm
Country of OriginIndonesia
HS Code8504.40.95
