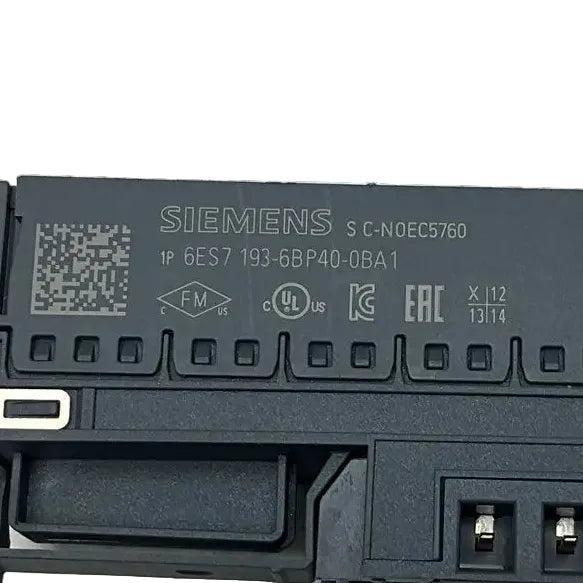

Siemens Simatic ET 200SP 6ES7 193-6BP40-0BA1 Base Unit

Siemens Simatic ET 200SP 6ES7 193-6BP40-0BA1 Base Unit

€21,78incl. VAT
€18,00 excl. VAT

Lager: 22
Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandSiemens
ModelSIMATIC ET 200SP Base Unit (BU15-P16+A0+12B/T)
TypeDistributed I/O System Terminal Module / Component Socket Base (BU Type A1)
Part Number6ES7193-6BP40-0BA1
Technical Specs
Core FunctionHouses and wires ET 200SP I/O modules, providing push-in terminal connection points for field sensors/actuators.
BaseUnit Class TypeBU Type A1
Potential Group FormationPotential group continued from the left uit breaker with Type B or C tripping characteristics.
Current Carrying CapacityMax. 10 A
Current Carrying CapacityMax. 2 A per terminal

Total Process Terminals to I/O Module: 16

AUX Bus Terminals0
Integrated Temperature SensorYes
Galvanic IsolationYes, between backplane bus and the supply voltage lines
Connection TechnologyTool-free, vibration-resistant Push-in terminals.

Conductor Cross-Section Capacity: 0.14 mm² to 2.5 mm² (26 to 14 AWG) solid, stranded, or fine-stranded with ferrule.

Shield Connection AdaptabilitySystem-integrated shield connection framework.
Hazardous Area CertificationsATEX Gas-Ex-Protection, Category 3G (Zone 2 deployment ready).
Structural Mounting FormatDirect snap-fit mounting to symmetrical 35mm DIN rail setups.
Weight65 g
Dimensions140 x 33 x 20 mm
Country of OriginGermany
HS Code8538.90.99
