Wago

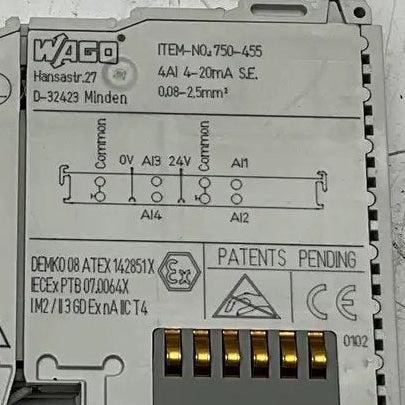

Wago 750-455 Analog Input Module

Wago 750-455 Analog Input Module

€139,15incl. VAT
€115,00 excl. VAT

Lager: 3
Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandWAGO
ModelI/O-SYSTEM 750
TypeModular PLC Expansion Block - Analog Input (AI)
Part Number750-455
Technical Specs
Number of Input Channels4 Single-Ended Channels
Signal Input Range4 to 20 mA DC
Internal Signal Resolution12 bits
Input Resistance (Impedance)Max. 220 Ω
Conversion TimeTyp. 10 ms
Full-Scale Error< ±0.2% of the full-scale value at 25°C ambient
Temperature Coefficient< ±0.01%/K of the full-scale value
Data Format / Bit Allocation4 x 16-bit data words
Power Supply24 V DC via power jumper contacts; Internal current consumption typ. 10 mA from the 5 V DC logic bus

Power Supply (External/Field Bus): 24 V DC via internal power jumper contacts

Isolation500 V system/field galvanic isolation boundary barrier
Diagnostic IndicatorsFront panel array of 4 x Green LEDs
Wire Termination TechnologyCAGE CLAMP® spring pressure connection network

Conductor Cross-Section Capacity: 0.08 mm² to 2.5 mm² (28 to 14 AWG) solid or fine-stranded

Module Width/Pitch Spacing12 mm
Housing MaterialPolycarbonate, polyamide 6.6 matrix
Structural Mounting FormatDirect snap-fit insertion onto standard symmetrical 35mm DIN rail (EN 50022), linking system bus contacts automatically
Enclosure Protection ClassIP20
Weight75 g
Dimensions100 x 10 x 70 mm
Country of OriginGermany
HS Code8538.90.91
