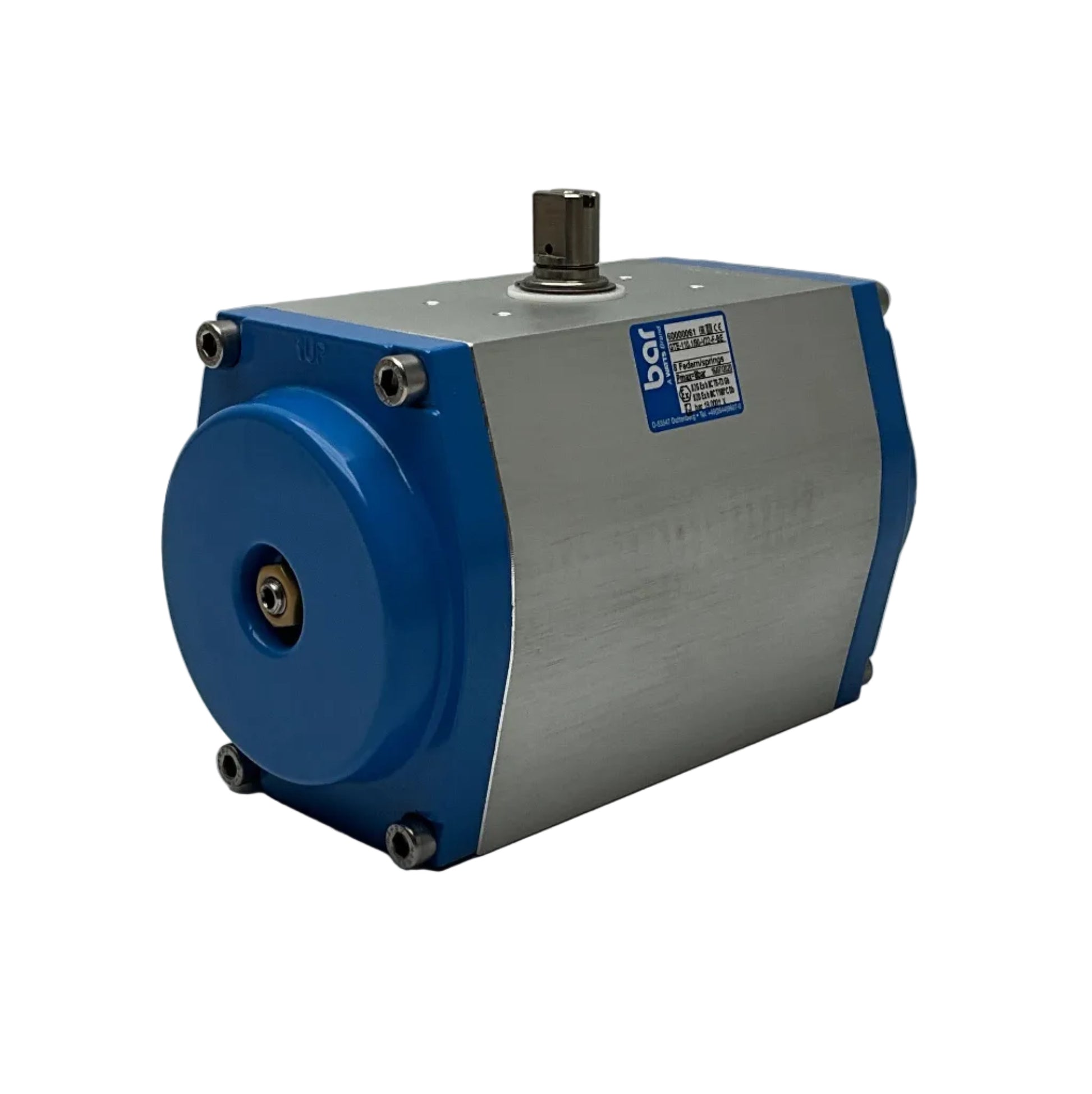

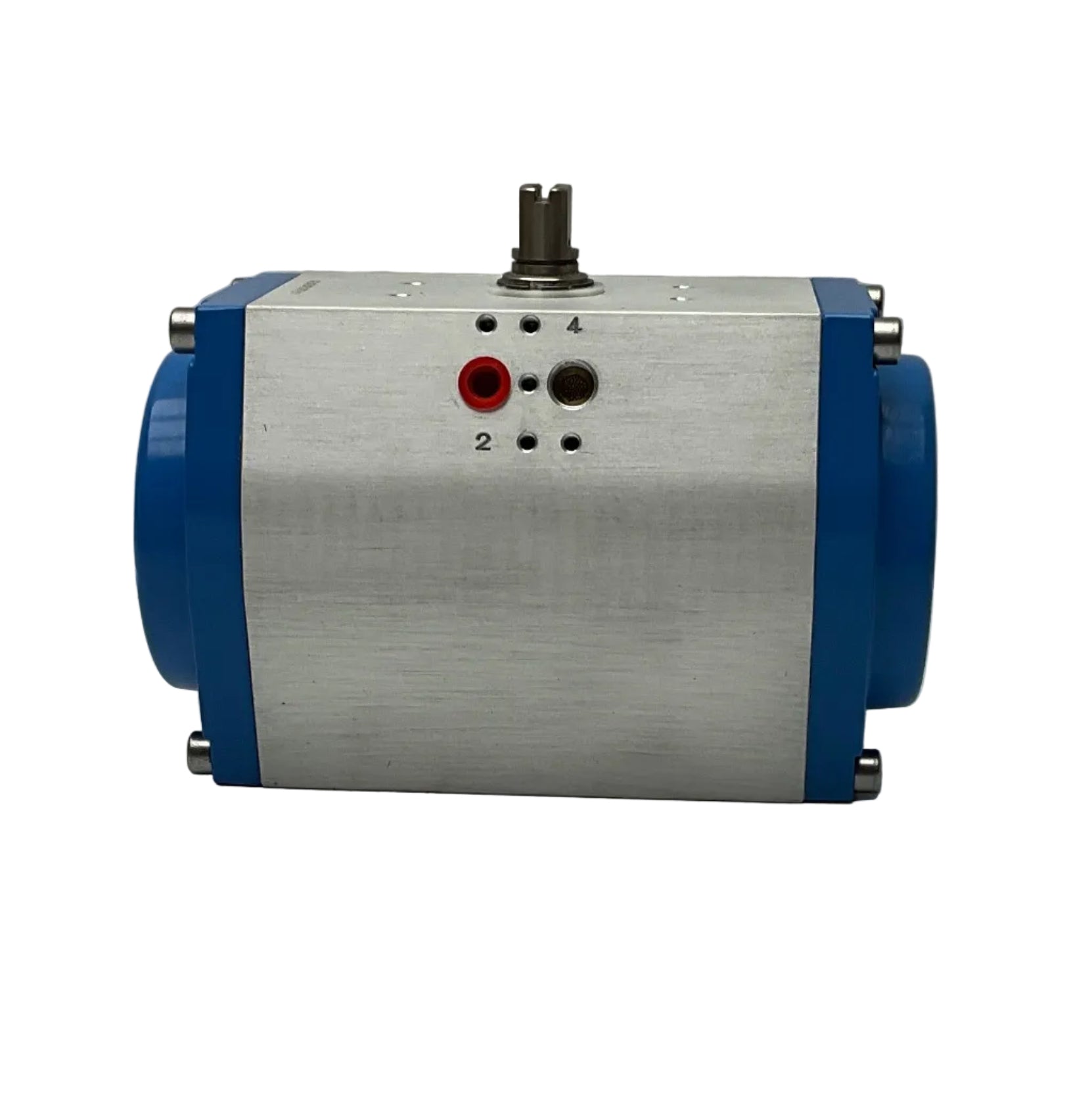

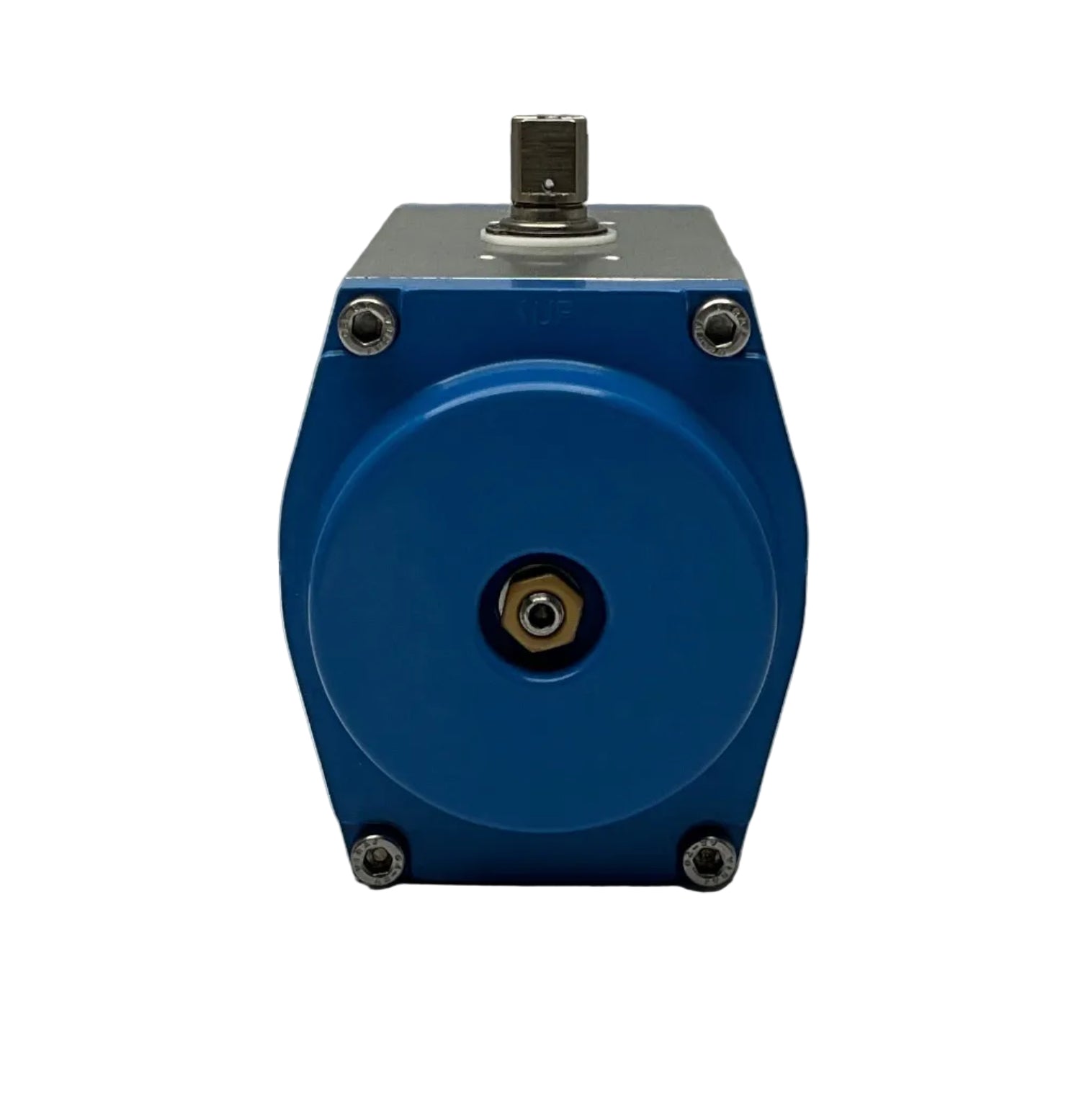

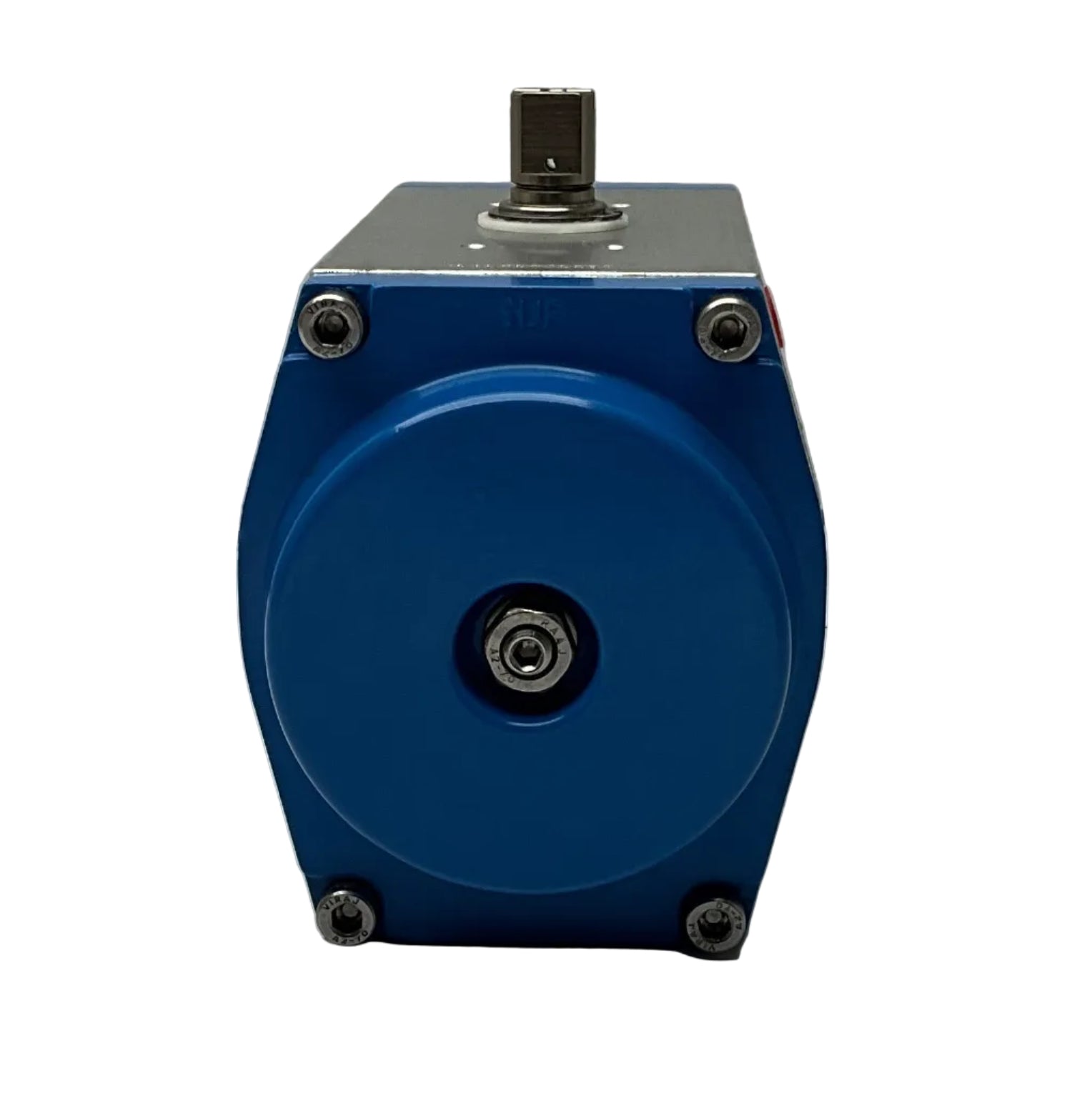

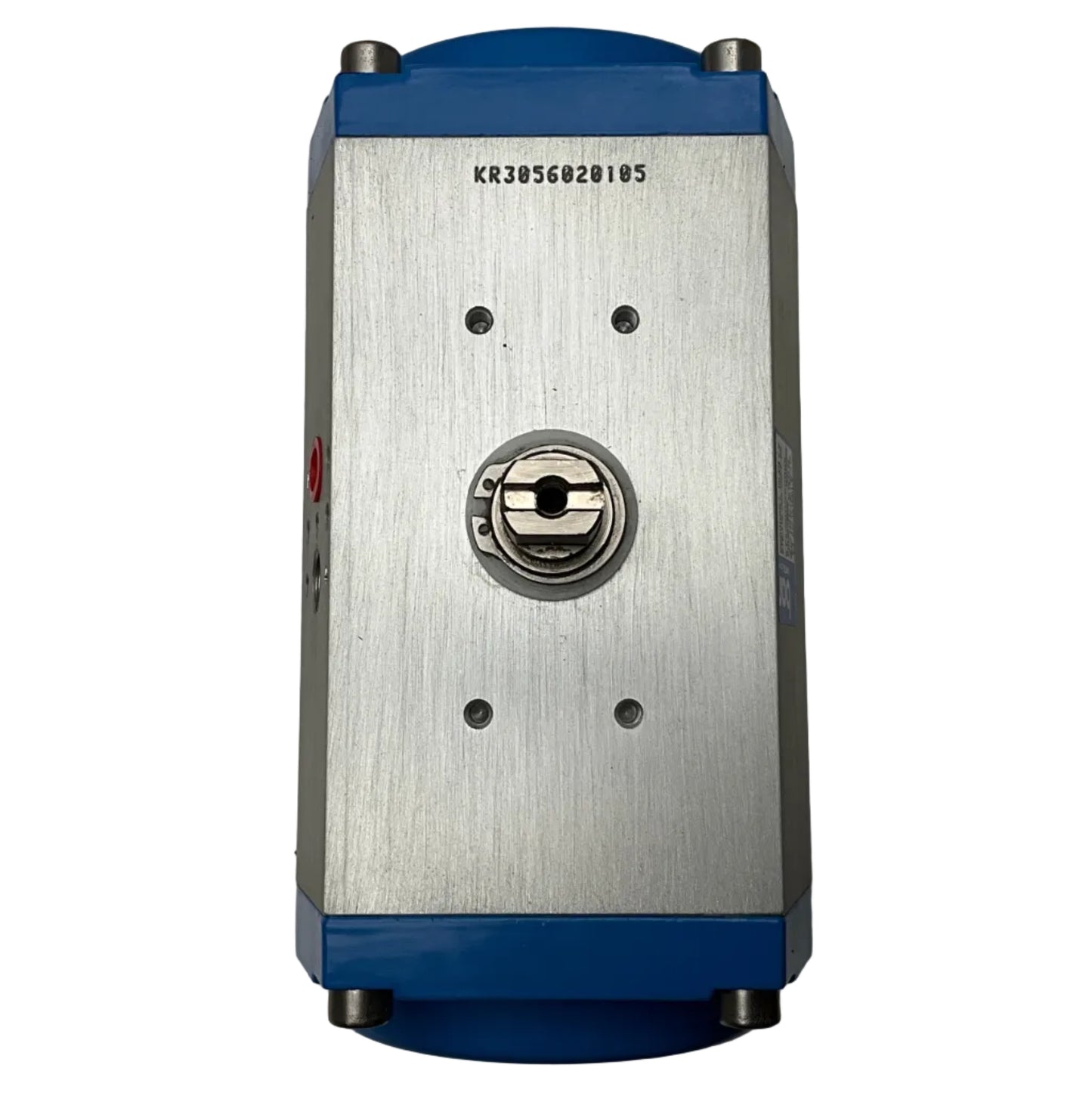

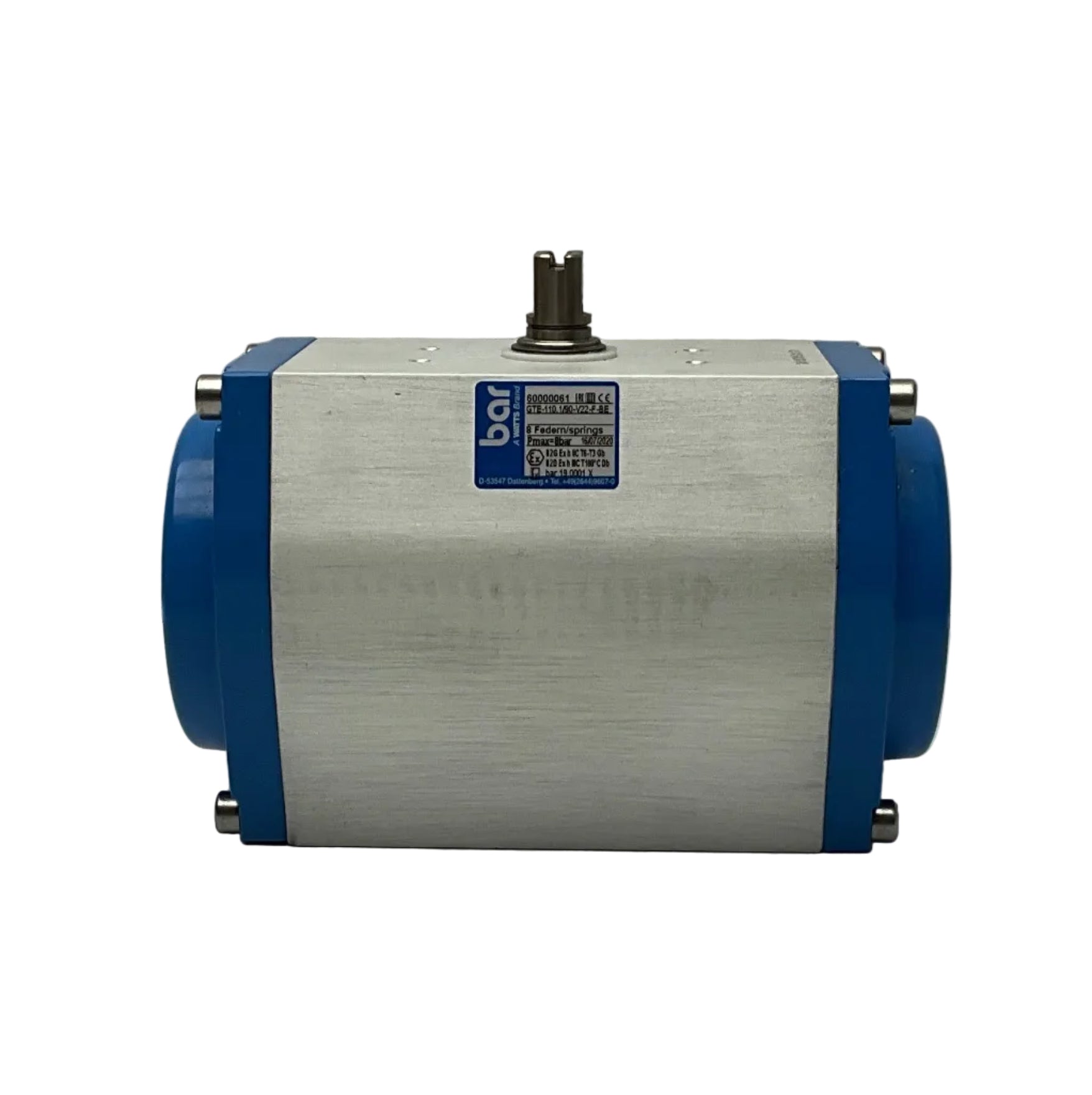

Bar GmbH GTE-110.1/90-V22-F-BE Pneumatischer Doppelkolbenantrieb

Bar GmbH GTE-110.1/90-V22-F-BE Pneumatischer Doppelkolbenantrieb

€538,45incl. VAT
€445,00 excl. VAT

Lagerbestand: 1
Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
MarkeBAR GmbH (bar pneumatische Steuerungssysteme GmbH)
ModellGTE-110.1/90-V22-F-BE
TypPneumatischer Doppelkolben-Vierteldreh-Antrieb

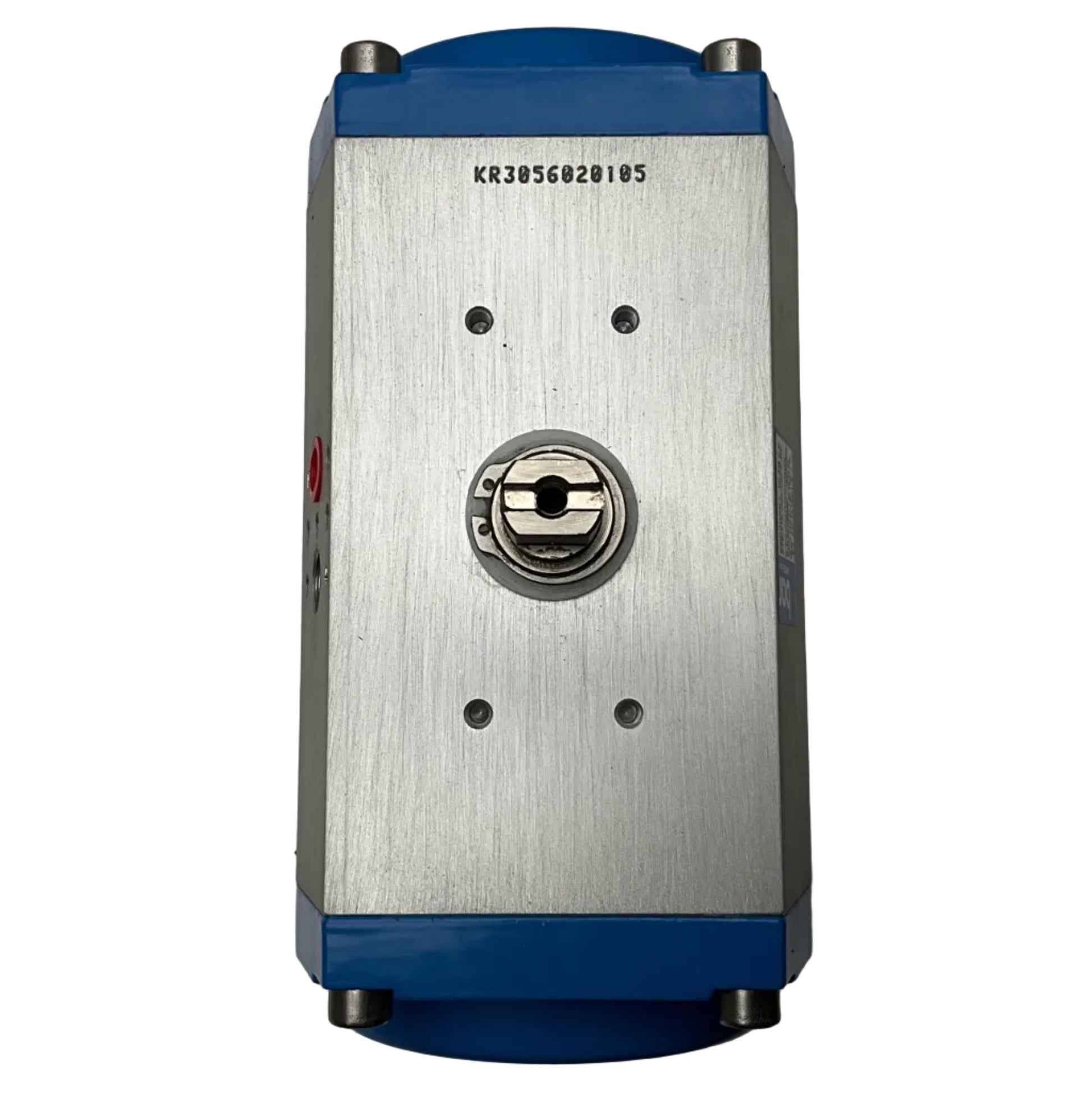

TeilenummerKR3056020105
Technische Daten
AntriebstypEinfachwirkender (Feder-Rückstellung) pneumatischer Doppelkolbenantrieb
Nenn-Drehwinkel90°
RitzeldesignV22
MontageversionF
EndlageneinstellungTyp BE
Max. Steuerdruck8 bar
Temperaturbereich-20°C bis +80°C
GehäusematerialEloxierte Aluminiumlegierung
AbdeckungenAluminiumlegierung, epoxidbeschichtet
DichtungenNBR

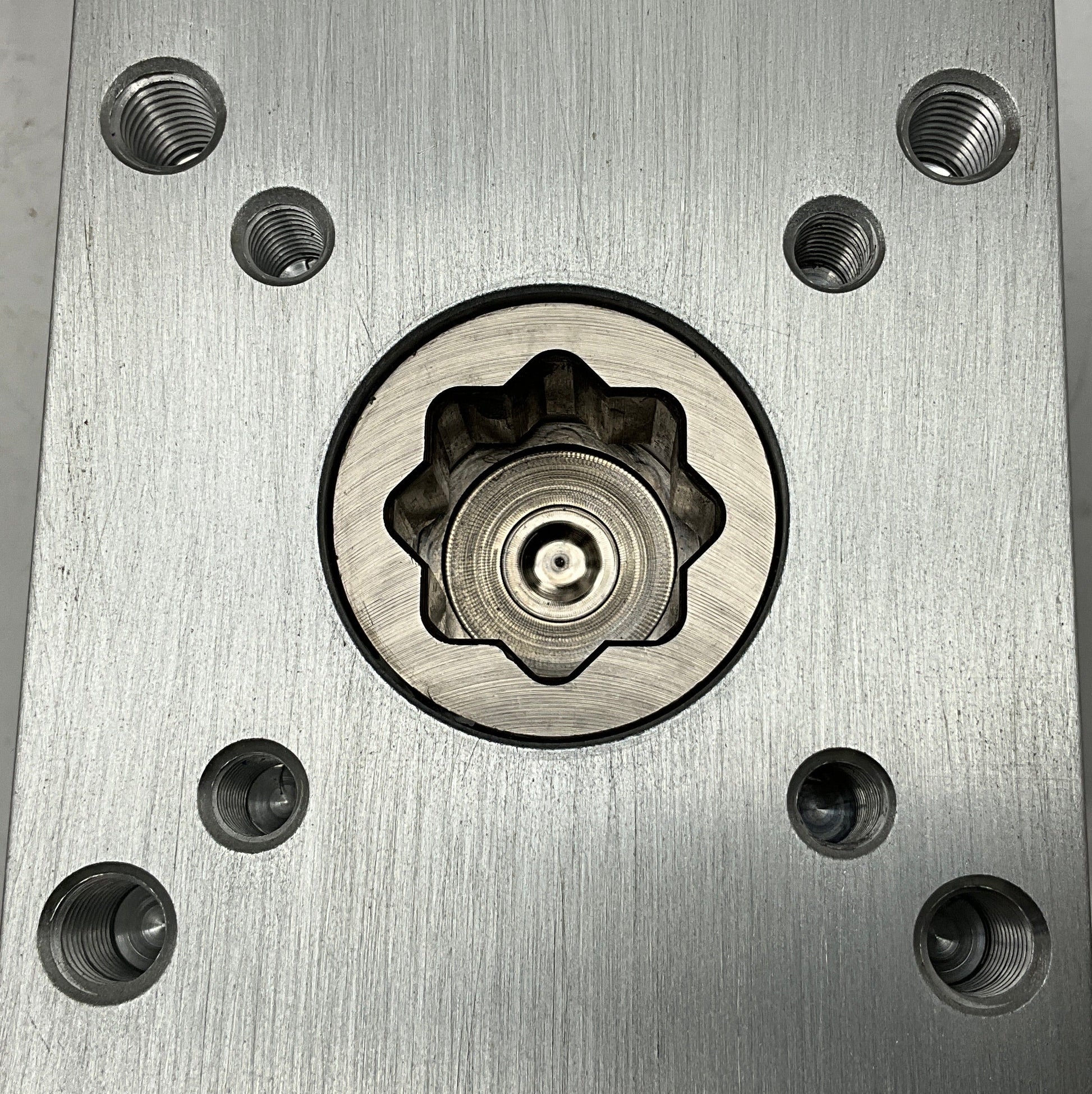

NormenSchnittstelle Antrieb/Ventil gemäß VDI/VDE 3845
EinbaulageBeliebig
SteuerungsmediumGefilterte Luft
Zusätzliche Merkmale

  Zahnstangen- und Ritzel-Design mit selbstzentrierender Kolbenführung

  Hervorragende Verschleißfestigkeit durch Gleitlager

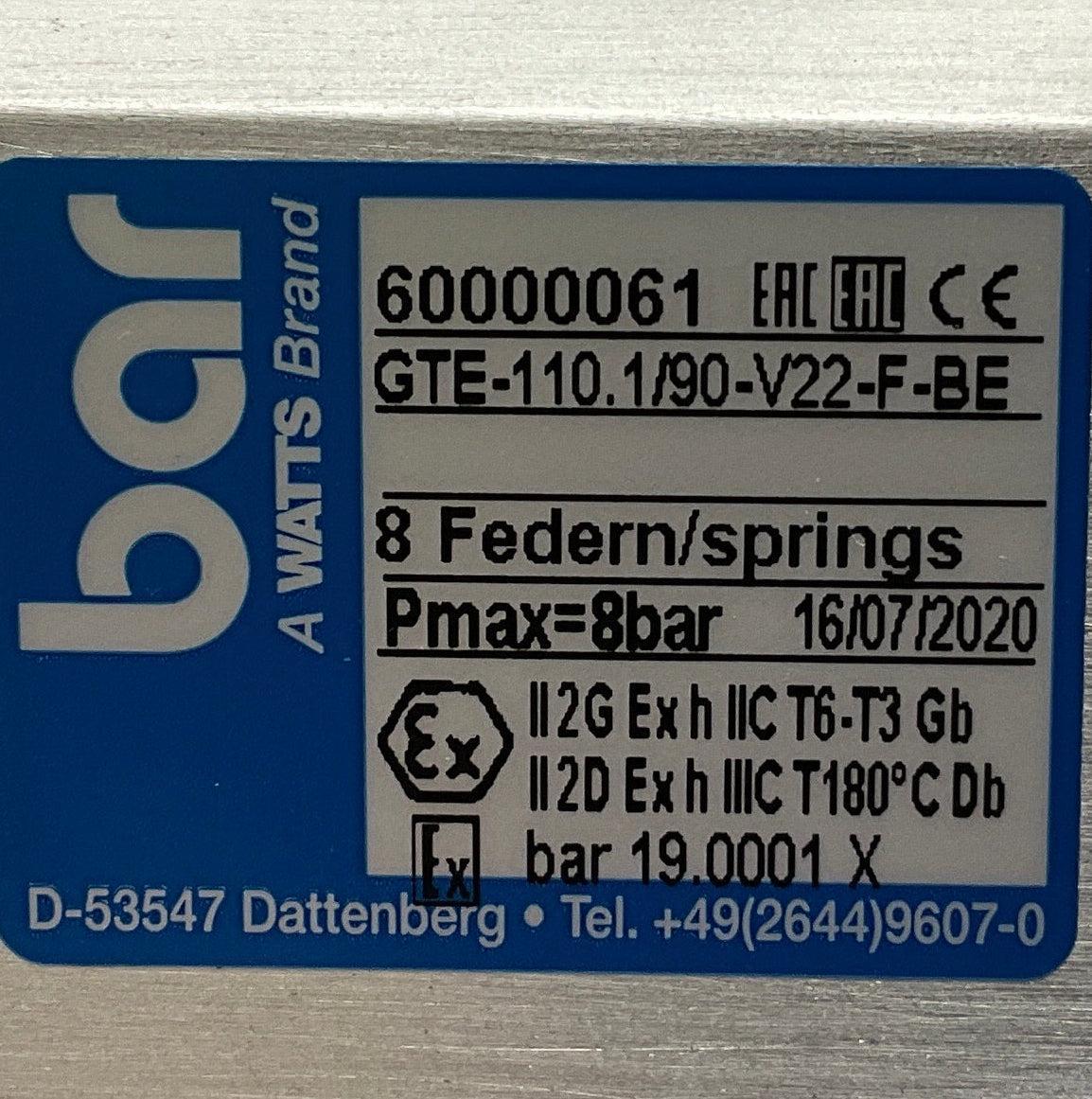

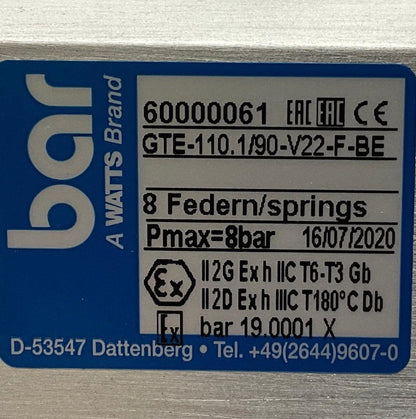

  Atex-zertifiziert II 2G Ex h IIC T6-T3 Gb

  Sicherheitfedern für zuverlässige Feder-Rückstellung

  Umkehrbare Drehung

  Geräuscharmer Betrieb

Abmessungen230 x 130 x 180 mm
Gewicht5,6 kg
HerkunftslandDeutschland
HS-Code8412.31
