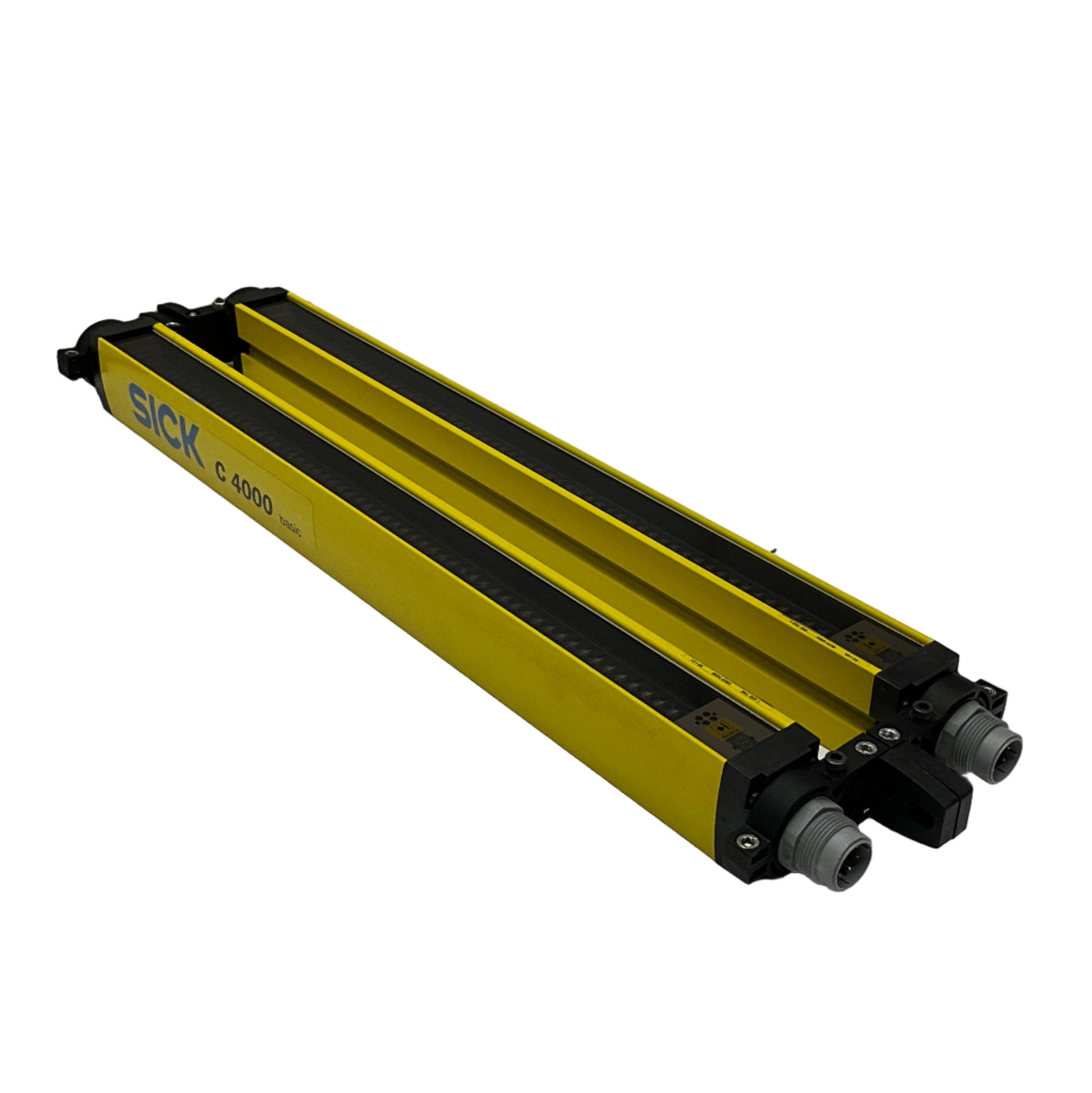

Sick C 4000 Basic Light Safety Curtain Set

Brand: SICK
Model: C 4000 Basic
Type: Safety Light Curtain
Part Number: C40E-0401AH030 (Receiver) / C40S-0401AA030 (Sender)

Technical Specs:
- Protective Field Height: 450 mm
- Resolution: 14 mm
- Scanning Range: 0 to 2.5 m
- Synchronization: Optical synchronization
- Supply Voltage: 24 V DC (±20%)
- Power Consumption (Sender): ≤ 0.1 A
- Power Consumption (Receiver): ≤ 0.2 A (without load)
- Output Type (Receiver): 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Output Current (Receiver): ≤ 500 mA
- Response Time: ≤ 20 ms
- Safety Integrity Level: SIL3 (IEC 61508)
- Performance Level: PL e (EN ISO 13849)
- Enclosure Rating: IP65
- Operating Temperature Range: 0°C to 55°C
- Storage Temperature Range: -25°C to 70°C
- Housing Material: Aluminum, extrusion
- Front Screen Material: Polycarbonate
- Vibration Resistance: 5 g (10-55 Hz, per IEC 60068-2-6)
- Shock Resistance: 10 g (16 ms, per IEC 60068-2-29)
- Additional Features:
  - Integrated laser alignment tool for easy setup
  - Intuitive diagnostics via LED indicators
  - Configurable via DIP switches for basic settings
  - Compatible with SICK safety controllers and accessories
- Certifications: CE, cTÜVus, cULus Listed

Dimensions:
- Cross Section: 40 mm
- Length (Protective Field Height): 450 mm
- Total Length: 570 mm

Weight:
- Sender: 1.2 kg
- Receiver: 1.2 kg

Country of Origin: Germany

HS Code: 9031.49
