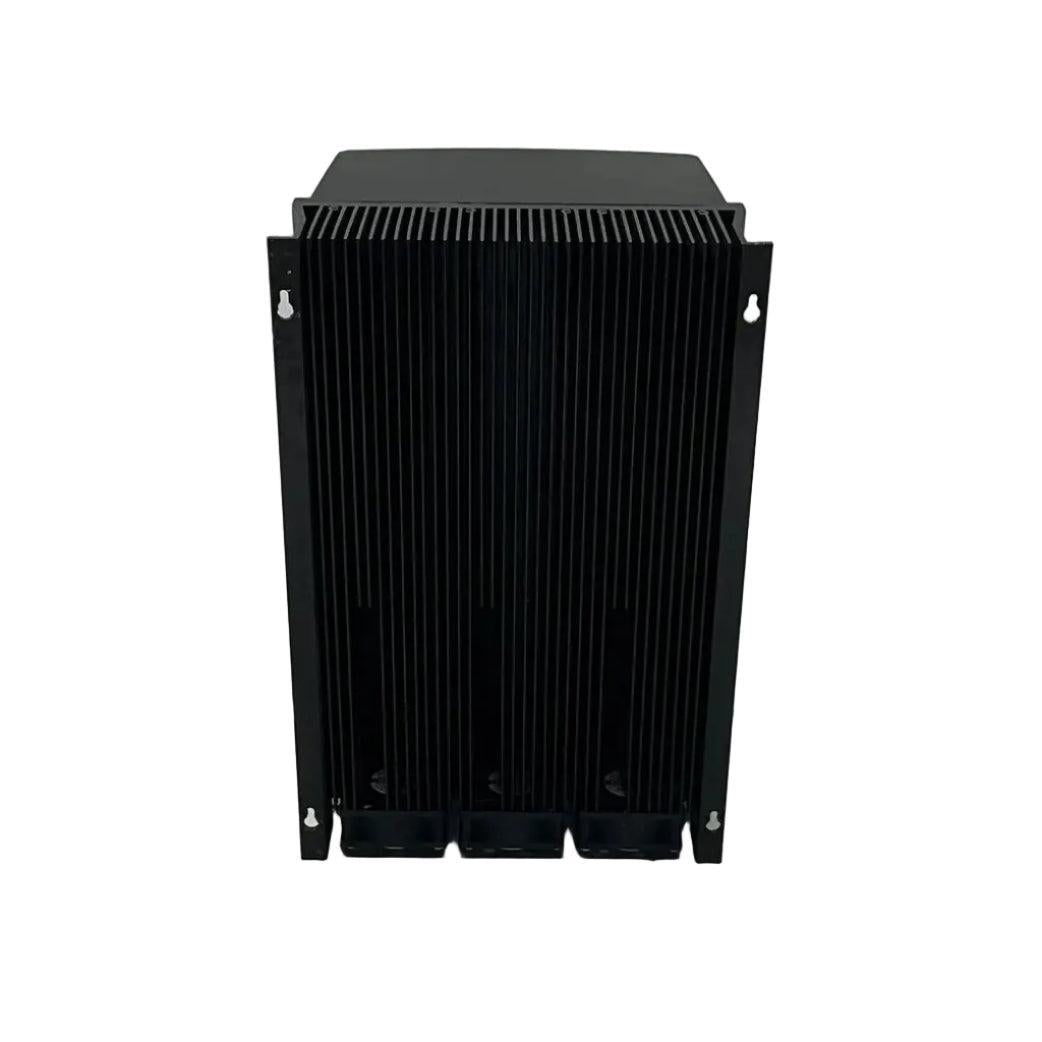

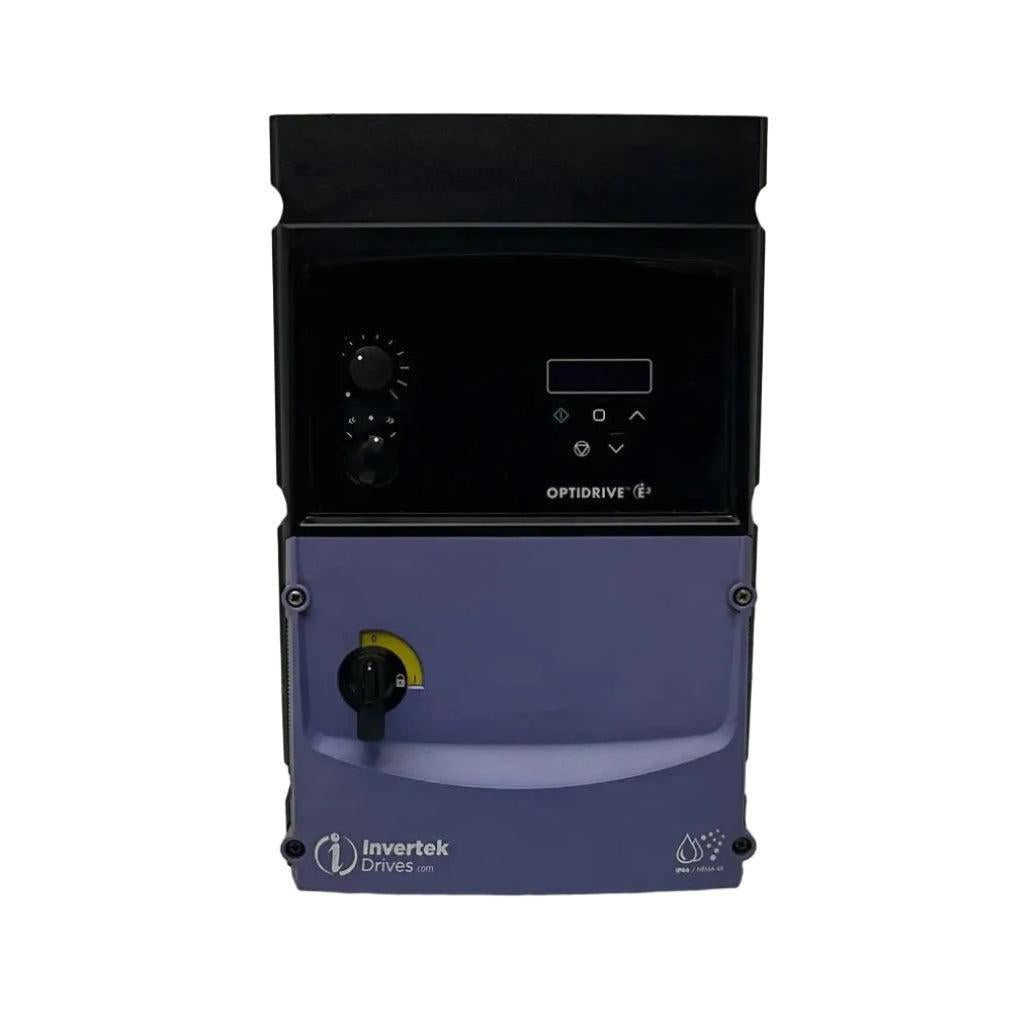

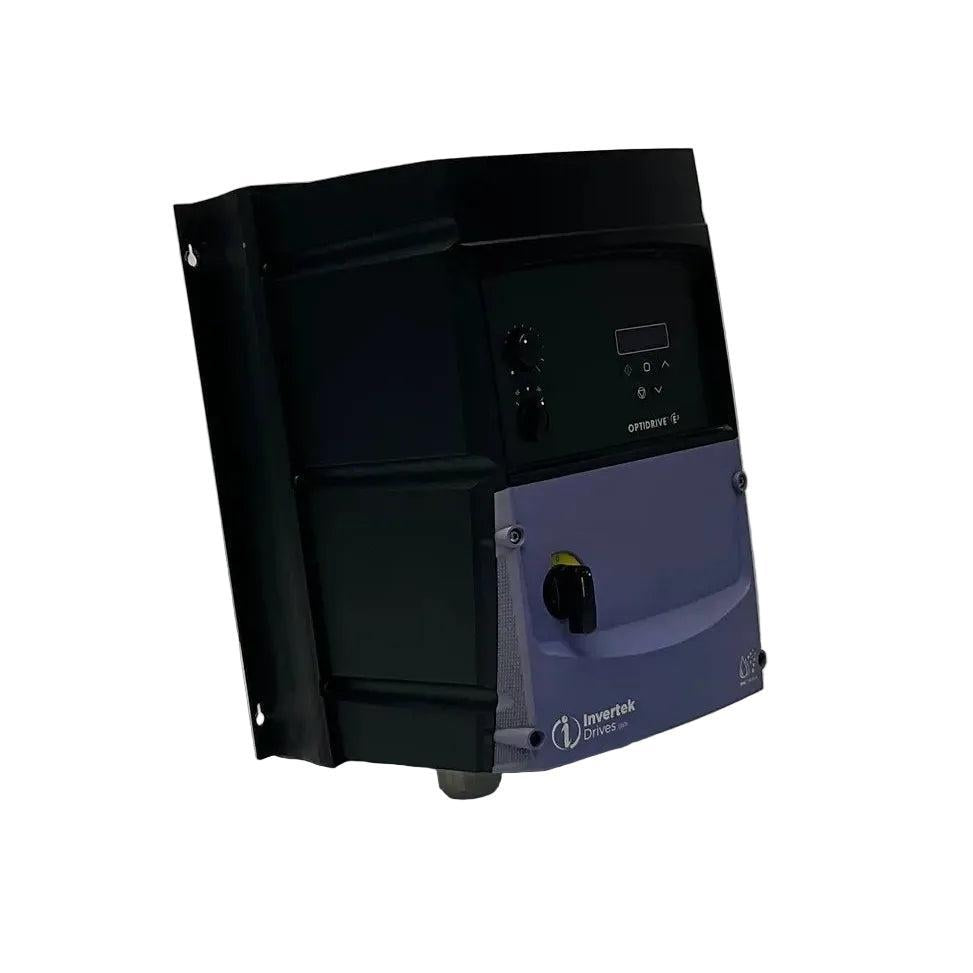

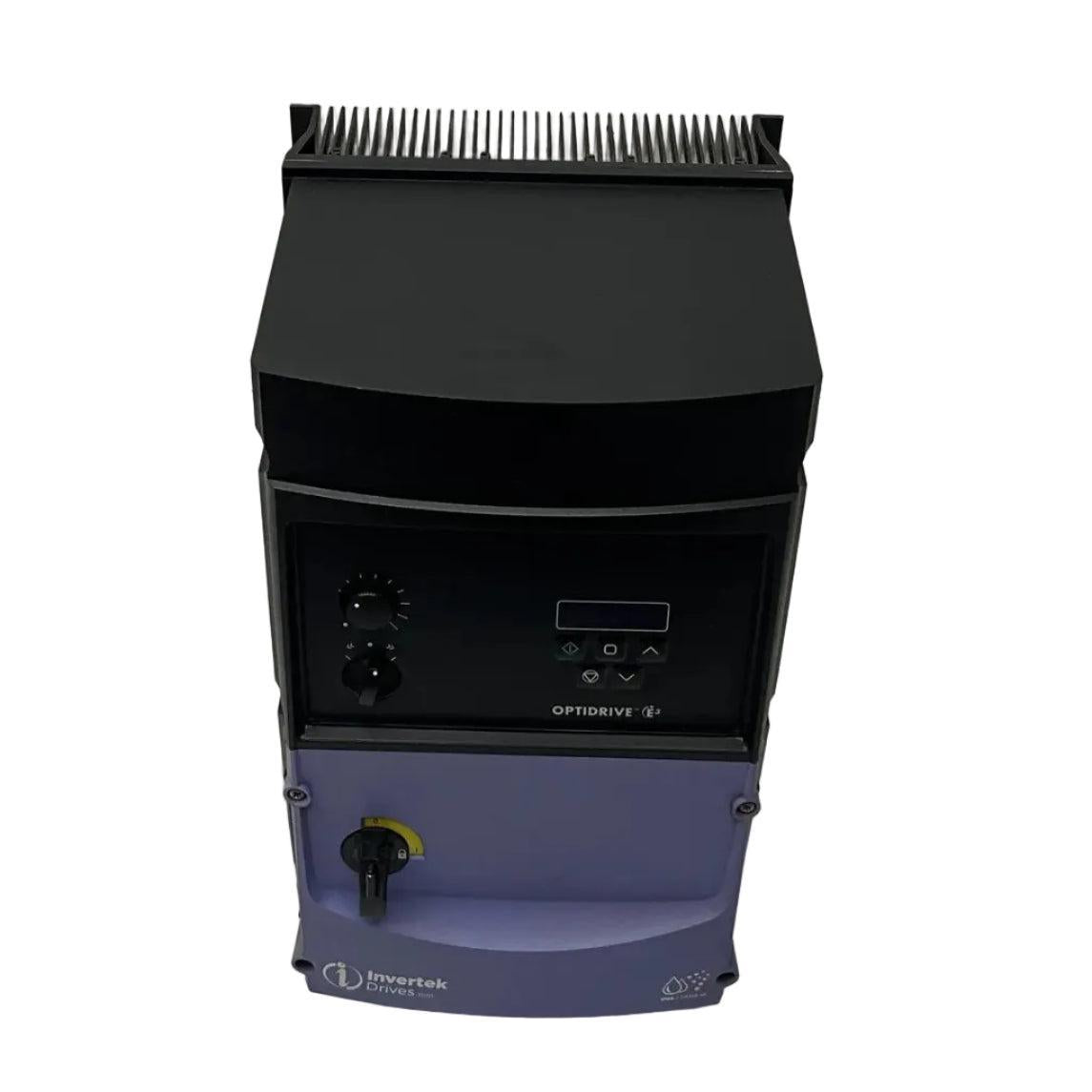

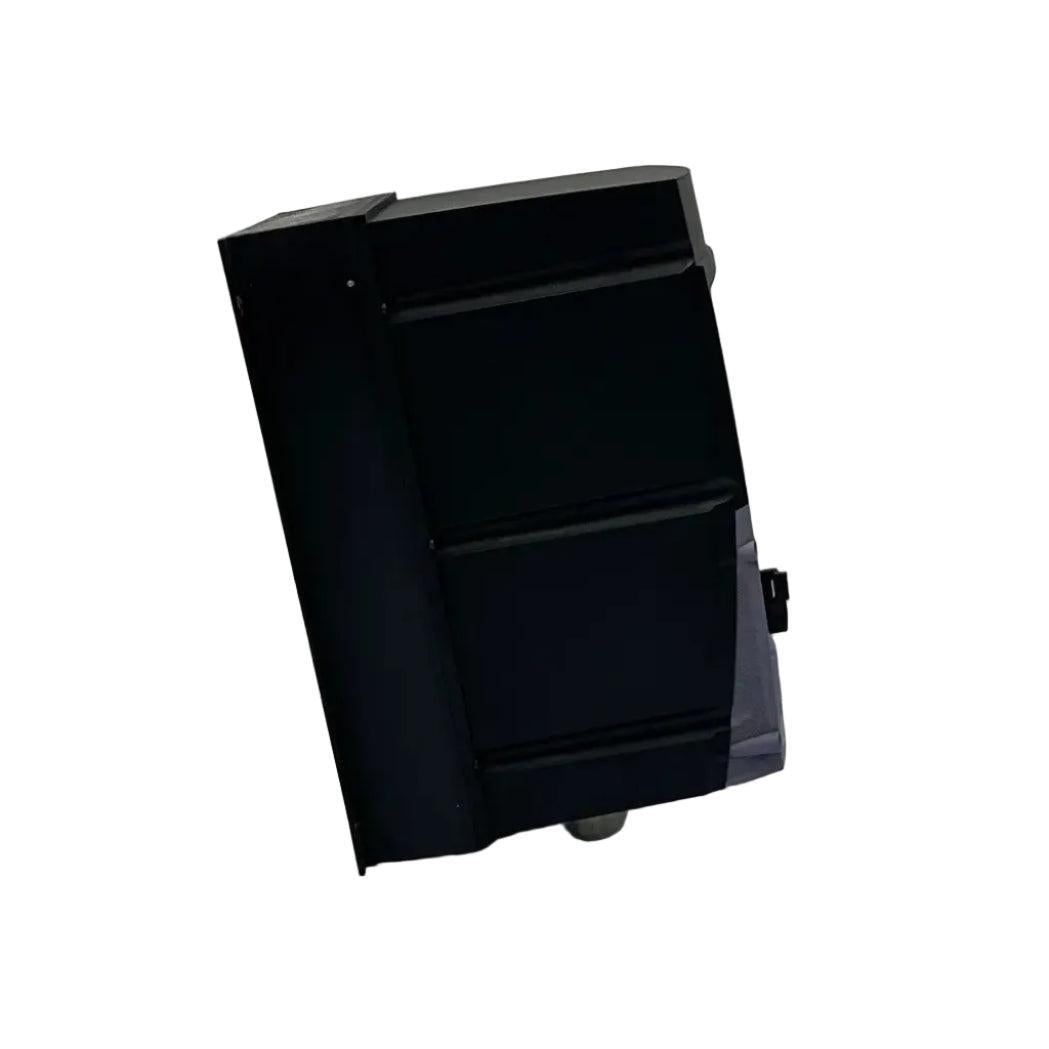

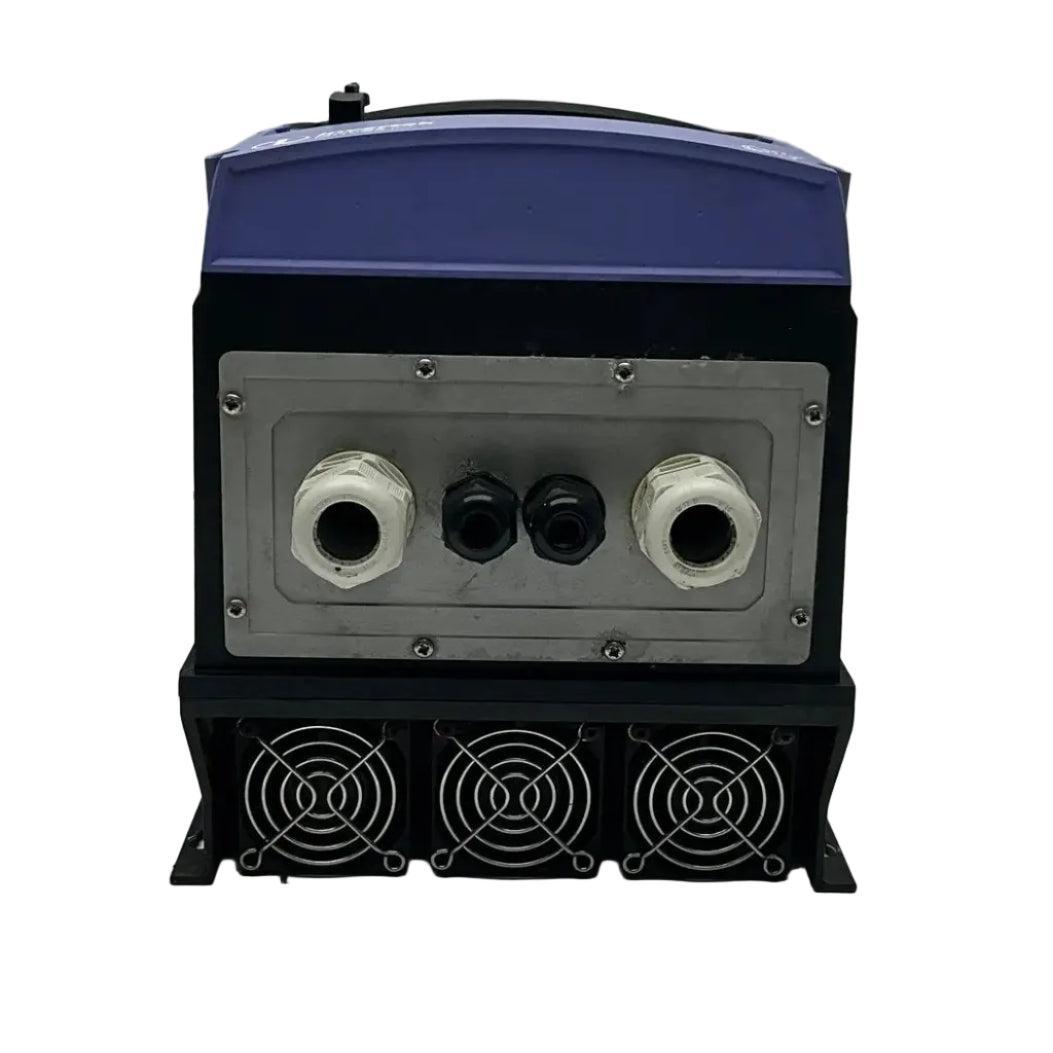

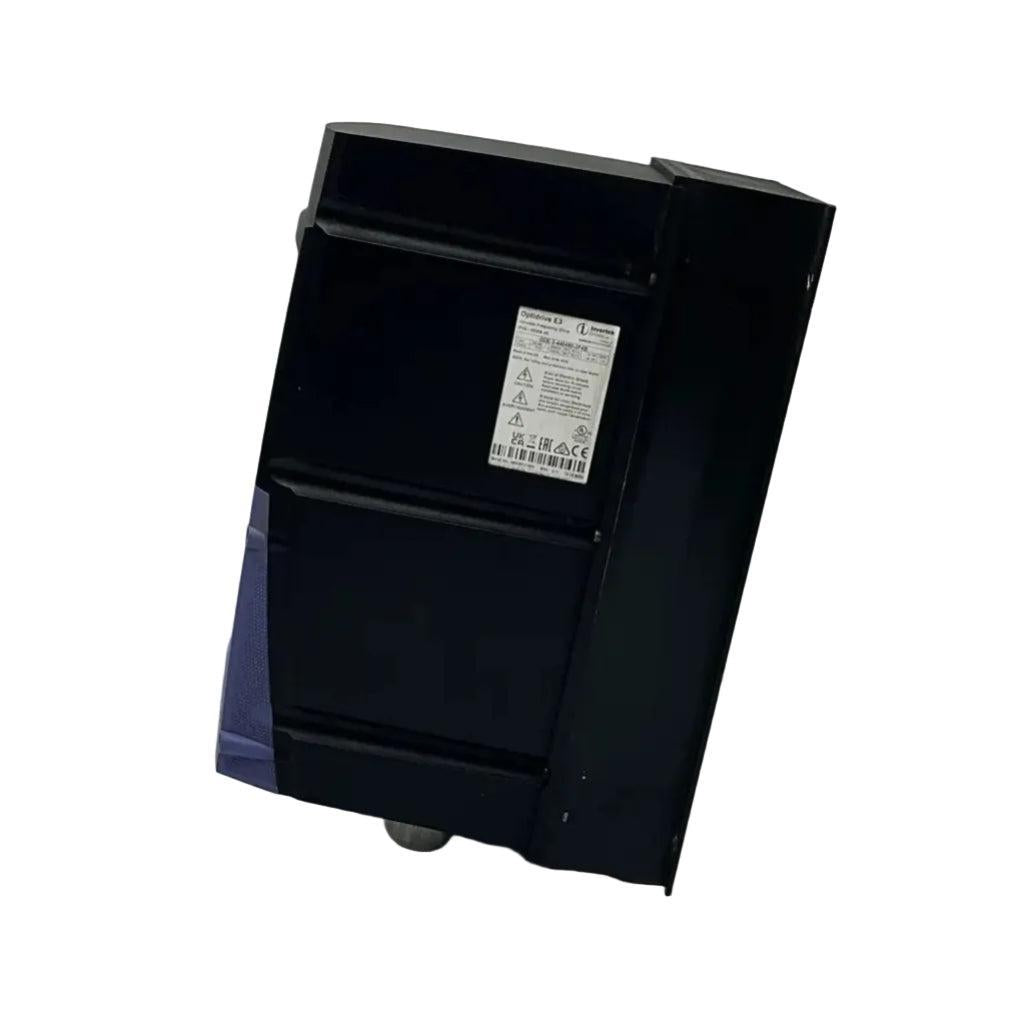

Invertek Drives Optidrive E3 Outdoor Switched Variable Frequency Drive

Invertek Drives Optidrive E3 Outdoor Switched Variable Frequency Drive

€1.815,00incl. VAT
€1.500,00 excl. VAT

Laoseis: 2

Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandInvertek Drives
ModelOptidrive E3 Series

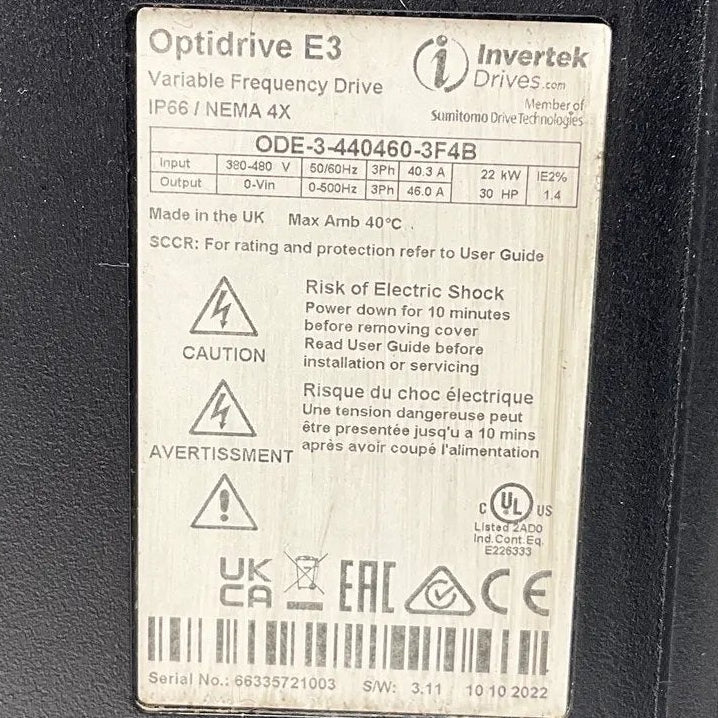

Part NumberODE-3-440460-3F4B
TypeOutdoor Switched Variable Frequency Drive (VFD) / Inverter
Technical Specs
Core ApplicationEnergy-efficient speed control for 3-phase induction and permanent magnet AC motors driving pumps, fans, conveyors, compressors, and general industrial machinery.
Model Breakdown (ODE-3-440460-3F4B)
ODE-3Optidrive E3 Product Line
4Frame Size 4
40Input Voltage - 380V to 480V 3-Phase AC
0460Rated Output Current - 46.0 Amps
33-Phase Input / 3-Phase Output
FInternal EMC Filter (Class C1/C2 integrated)
4Enclosure Rating - IP66 / NEMA 4X Outdoor Non-Switched Outdoor Enclosure
BInternal Braking Transistor (Brake Chopper) Integrated
Rated Output Power

22 kW (30 HP) at 380–480V AC

Nominal Output Current46.0 A
Overload Capacity150% for 60 seconds / 175% for 2 seconds
Input Voltage Range380 V to 480 V AC (±10%, 3-phase, 48 to 62 Hz)
Output Frequency Range0 to 500 Hz
Efficiency> 98%
Motor Control Modes

Sensorless Vector Control (SVC) for speed and torque control

V/Hz (Voltage/Frequency) standard speed control

Permanent Magnet (PM) AC Motor Control

Brushless DC (BLDC) Motor Control

Synchronous Reluctance (SynRM) Motor Control

Integrated Features & Peripherals

Built-in EMC/RFI Filter

Built-in Dynamic Braking Chopper

Dual Mini OLED / 7-Segment LED User Interface Display with 5-Button Keypad

Integrated Modbus RTU support

Enclosure RatingIP66 / NEMA 4X

Ambient Operating Temperature Range: -20°C to +40°C

Weight10 kg
Dimensions360 x 240 x 271 mm
Country of OriginUnited Kingdom
HS Code8504.40.83
