Used Industrial Parts

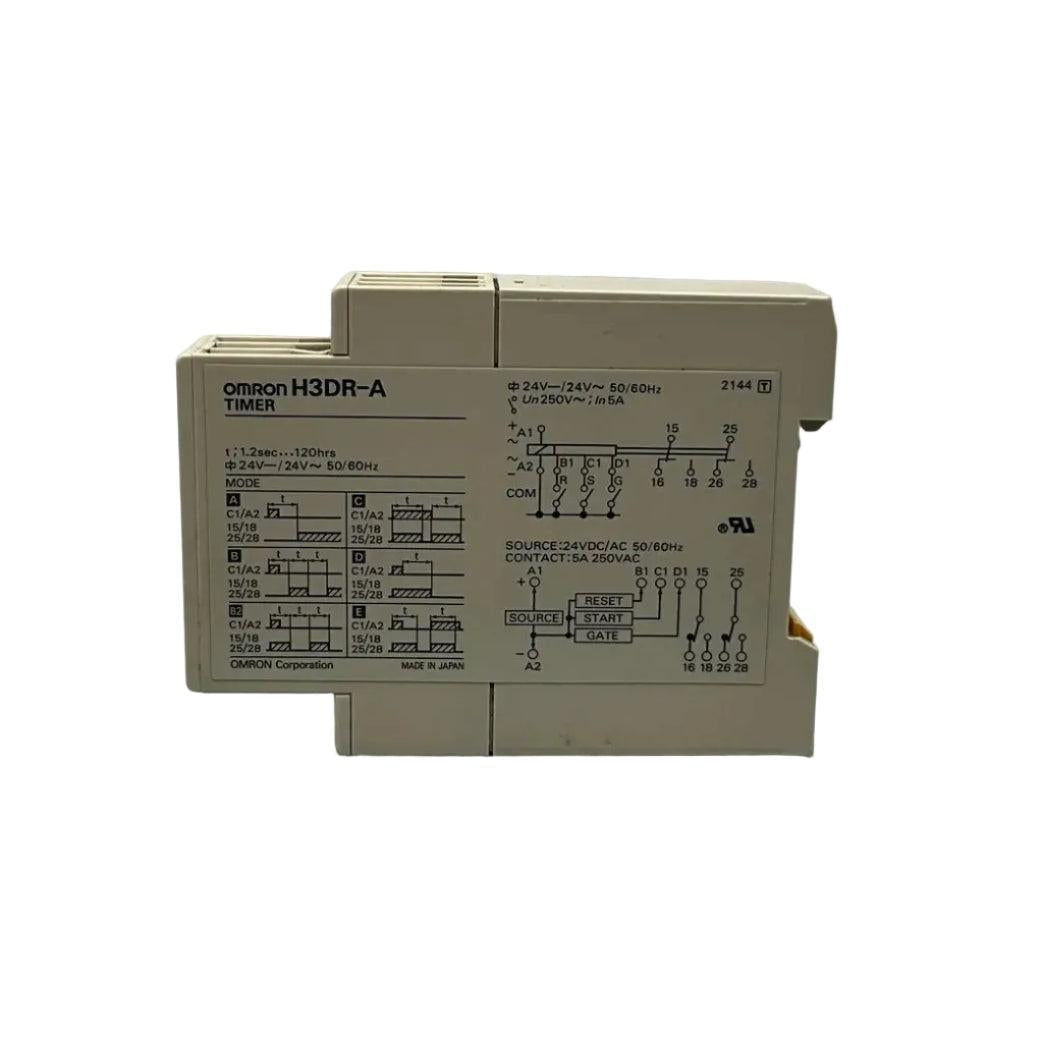

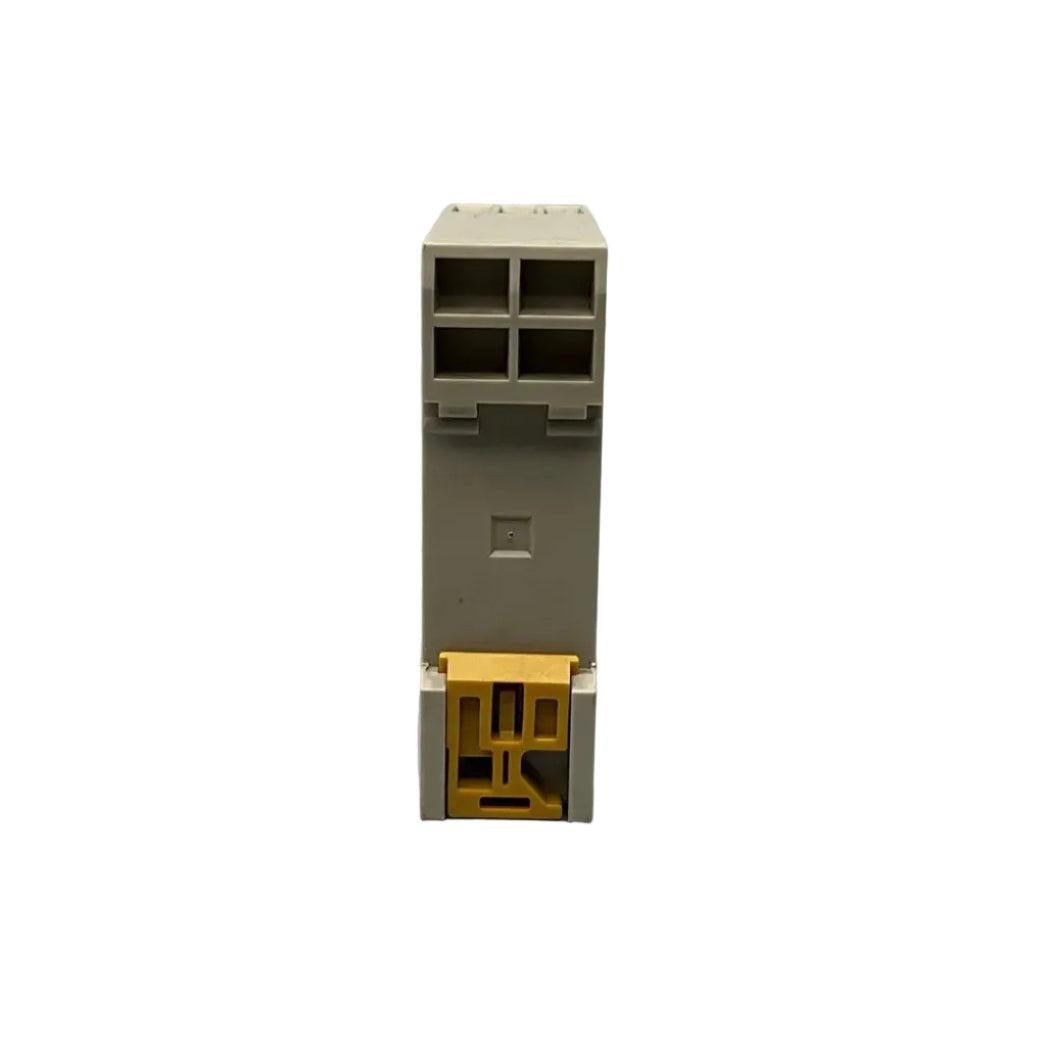

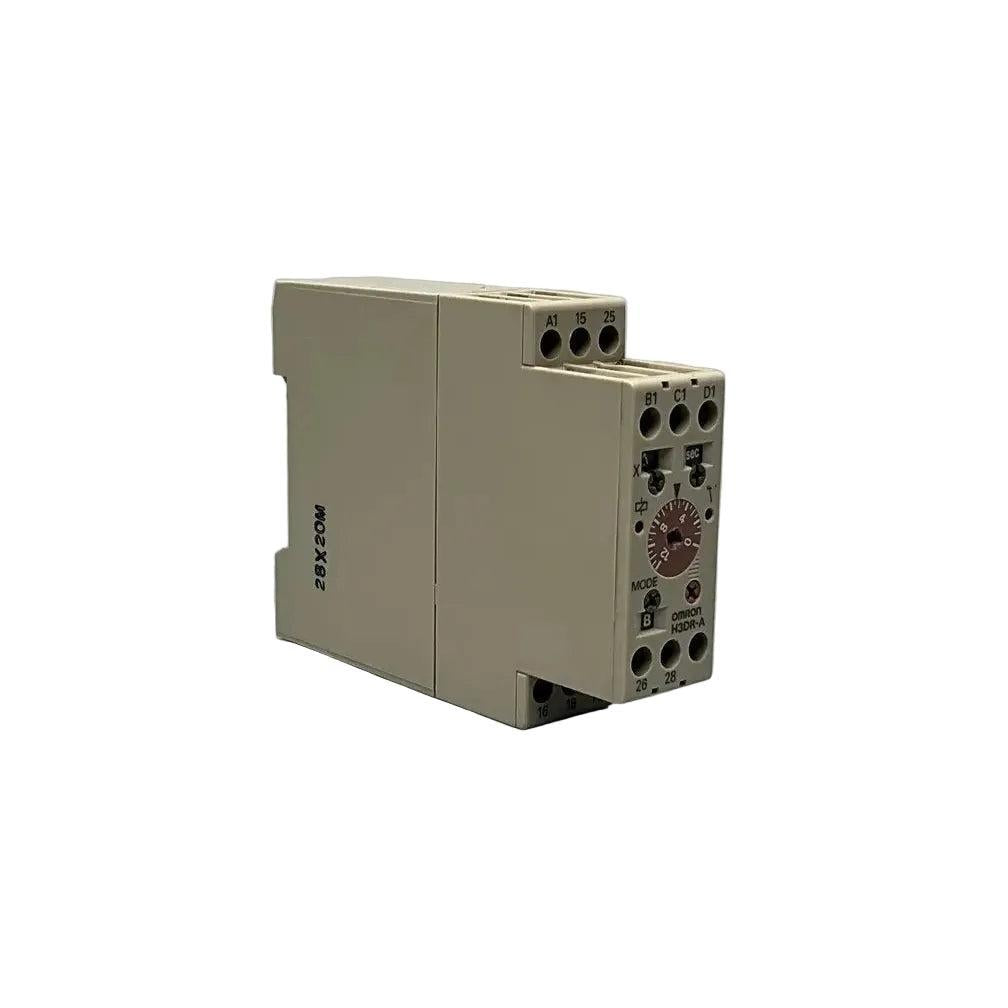

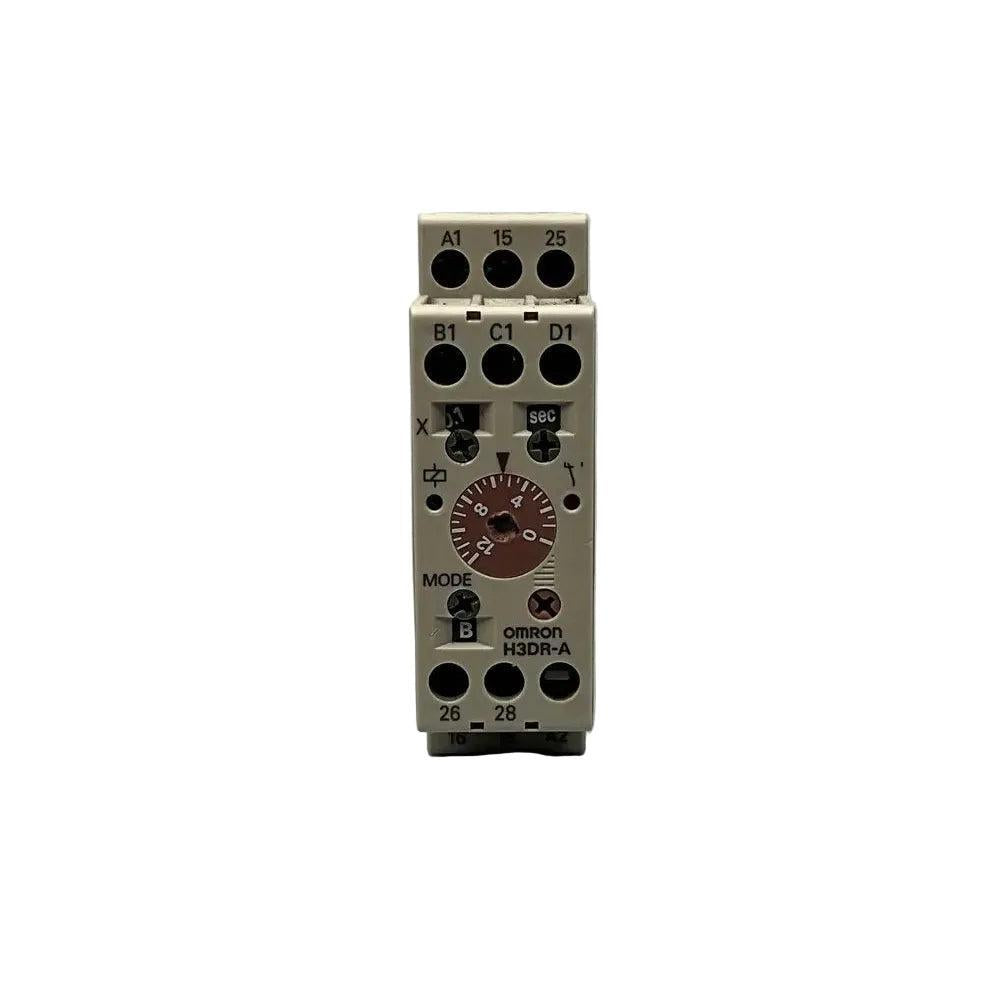

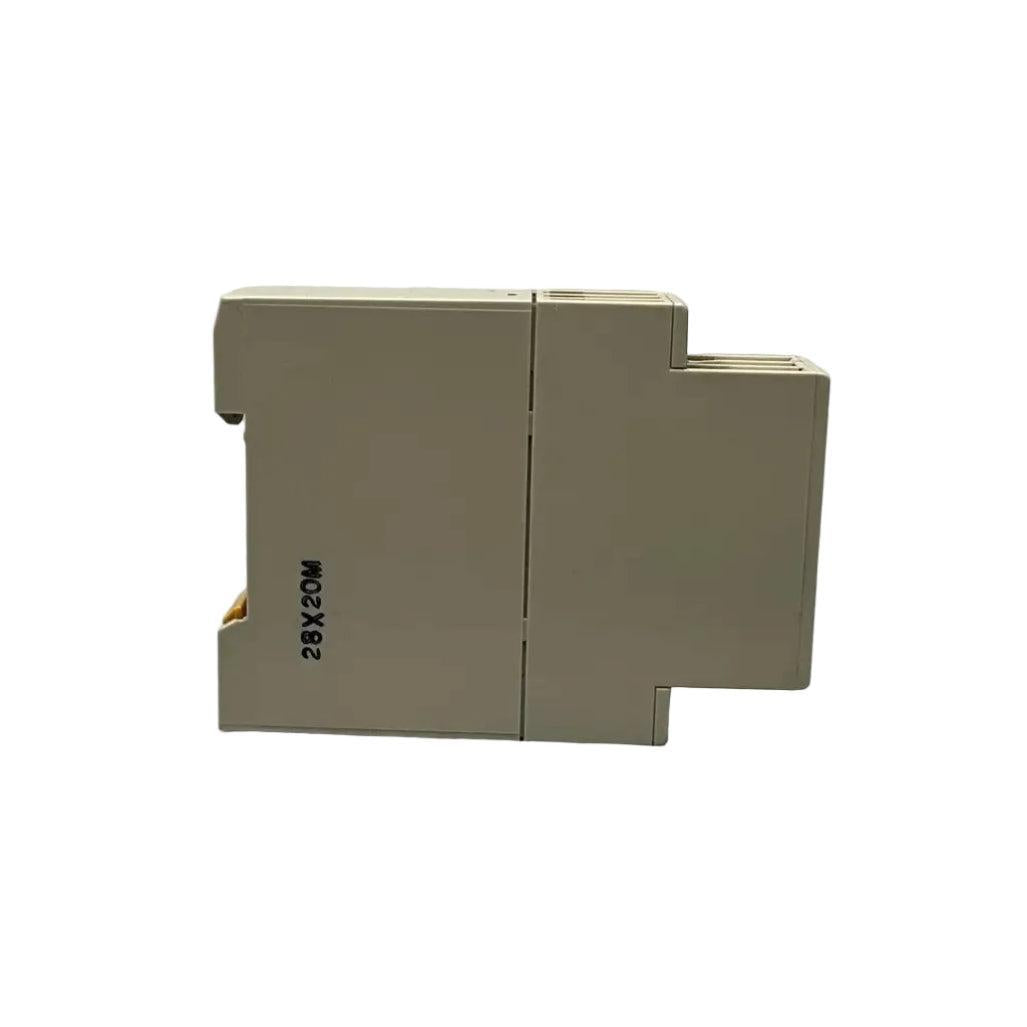

Omron H3DR-A Multi-Function Timer Relay

Omron H3DR-A Multi-Function Timer Relay

€90,75incl. VAT
€75,00 excl. VAT

Laoseis: 2
Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandOmron Industrial Automation
ModelH3DR-A
Part Number2144 T
TypeMulti-Function Timer Relay
Technical Specs
Core ApplicationPrecision timing control, delayed switching, sequential control, and pulse generation in industrial automation panels, HVAC systems, and motor starter control circuits.

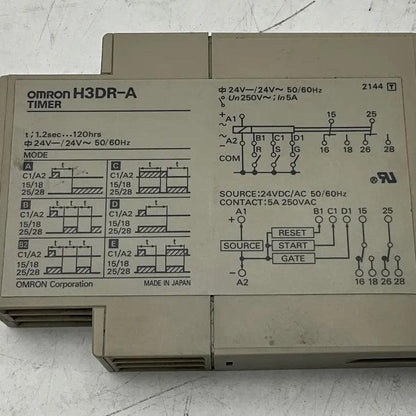

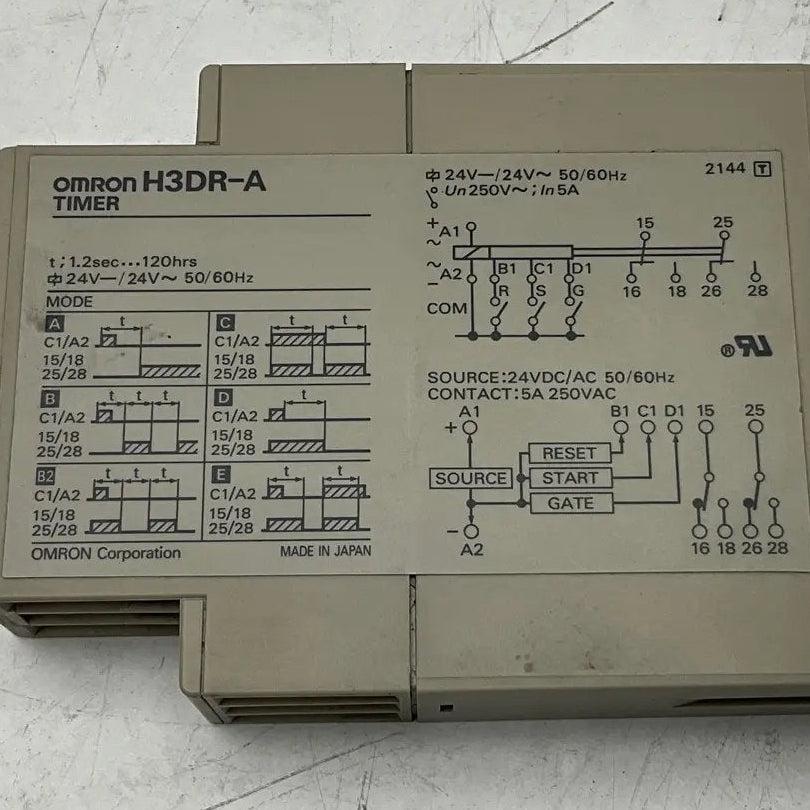

Operating Modes
Mode AON-Delay
Mode BFlicker OFF Start
Mode B2Flicker ON Start
Mode CSignal ON/OFF-Delay
Mode DSignal OFF-Delay
Mode EInterval / One-Shot Output
Power Supply Voltage Options

100 to 240 V AC (50/60 Hz)

24 to 48 V AC/DC (50/60 Hz)

Power ConsumptionApprox. 3.0 VA (AC) / 0.9 W (DC)
Time Ranges0.1 second to 120 hours across 8 selectable ranges
Contact Ratings
Resistive Load5 A at 250 V AC / 30 V DC
Inductive Load (cos φ = 0.4)2 A at 250 V AC
Repeat Accuracy±0.2% max. (±0.2% ±10 ms)
Setting Error±5% FS ±50 ms max.
Reset Voltage10% max. of rated supply voltage
Reset Time0.1 second max.
Indicators & Diagnostics
Green LEDPower ON / Timing state indicator
Red LEDRelay Output status ON/OFF

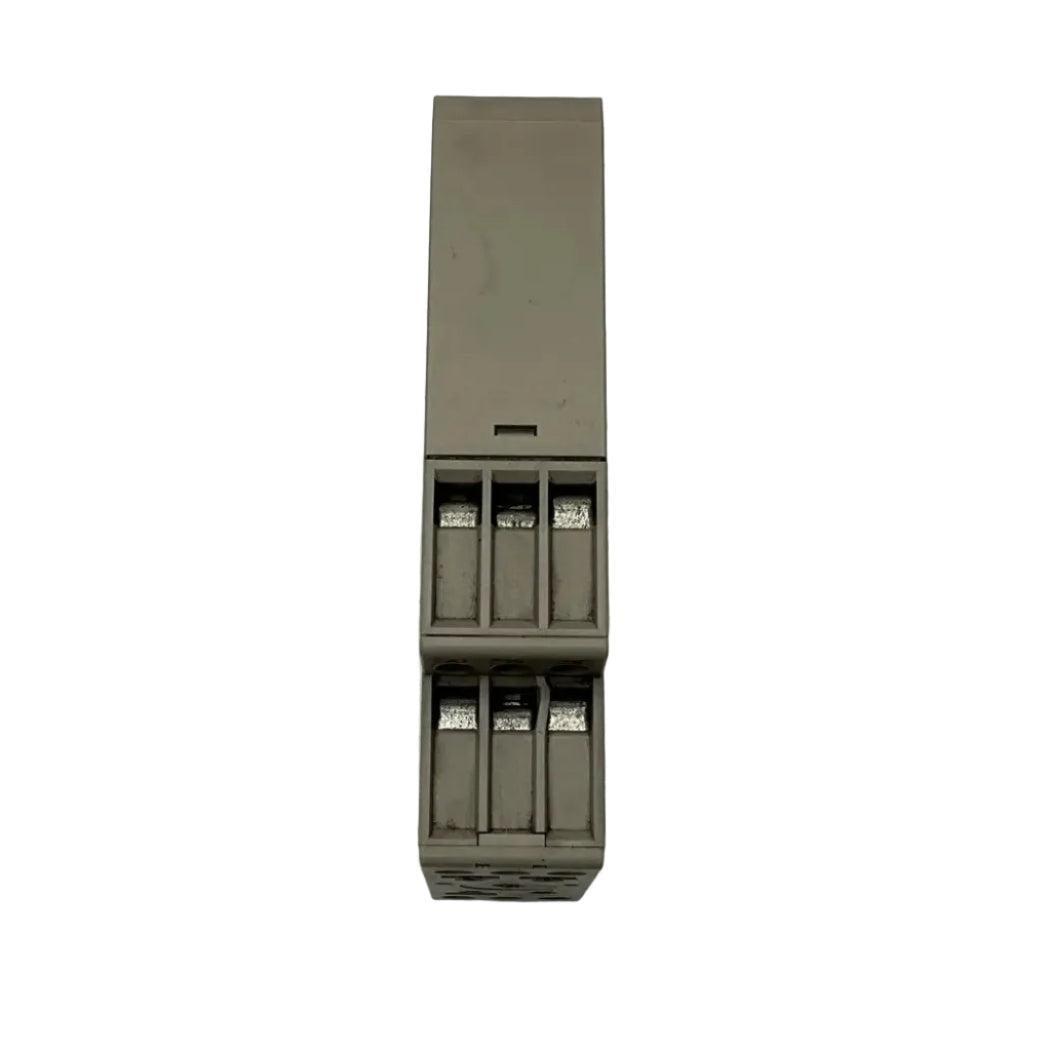

Terminal / Wiring TypeFinger-safe screw terminals
Mounting Format17.5 mm width ultra-slim DIN rail mounting (EN 60715)
Housing MaterialPolycarbonate UL94V-0 self-extinguishing resin
Protection Class / IP RatingIP20
Operating Temperature Range-10°C to +55°C
Weight150 g
Dimensions100 x 75 x 25 mm
Country of OriginJapan
HS Code9031.80.80
