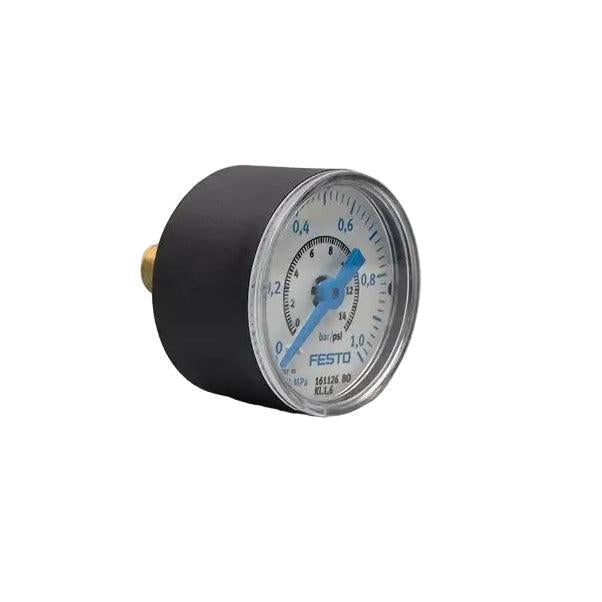

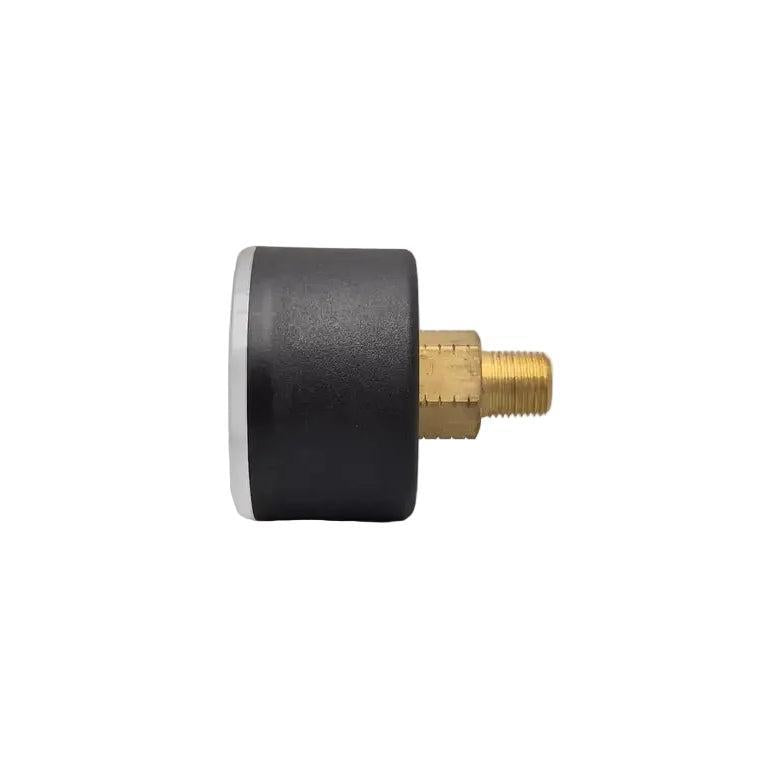

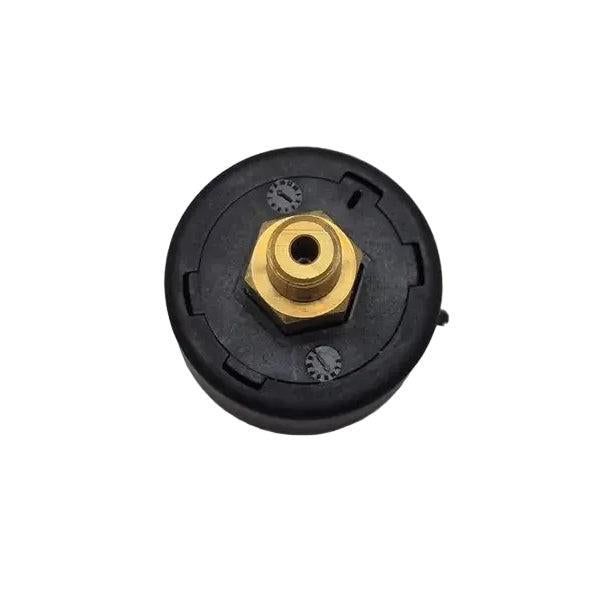

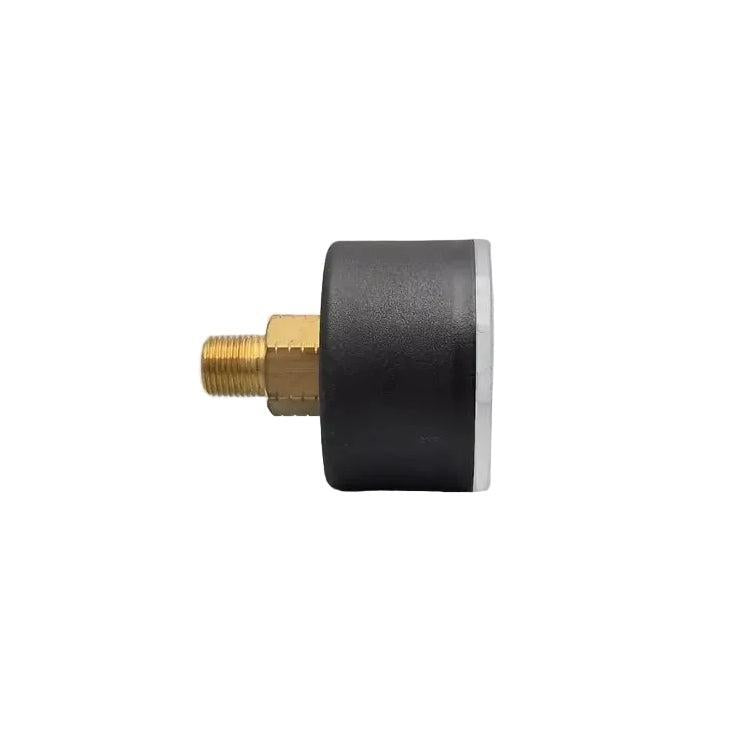

Festo MAP-40-1-1/8-EN Pressure Gauge - 161126

Festo MAP-40-1-1/8-EN Pressure Gauge - 161126

€21,78incl. VAT
€18,00 excl. VAT

موجودی: 6

Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandFesto
ModelMAP-40-1-1/8-EN
TypePressure Gauge / Bourdon Tube Dial Indicator
Order number161126
Technical specs
Output functionDial pointer indication (Mechanical local reading)
FunctionProvides direct visual measurement and tracking of operational compressed air and inert gas pressures in pneumatic lines
Setting mechanismAdjustable pointer zero-point via a front bezel removal scale adjustment (where applicable, though factory sealed for standard operation)
Media selectionCompressed air in accordance with ISO8573-1:2010 [-:-:-]; Inert gases
Accuracy class1.6
Pressure indication range0...1 bar
Connection typeG 1/8 male thread
Housing materialPolybutylene terephthalate (PBT) casing

Measuring element and screw-in thread connection: Brass

Inspection windowPolystyrene
Mounting typeThreaded inline back-connection or front-panel cutout mounting with accessories
Protection ratingIP 43

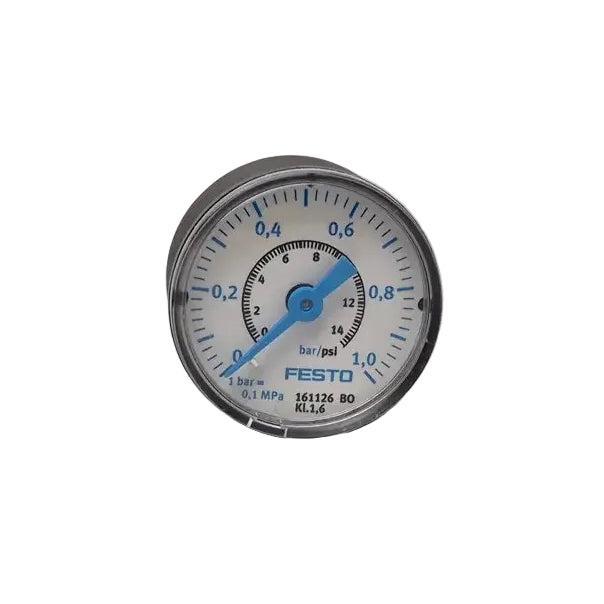

Status indicationAnalogue double scale dial face
Weight60 g
DimensionsNominal outer case diameter: Ø 40 x 43 mm
Country of originGermany
HS Code9026.20.40
