Kriwan

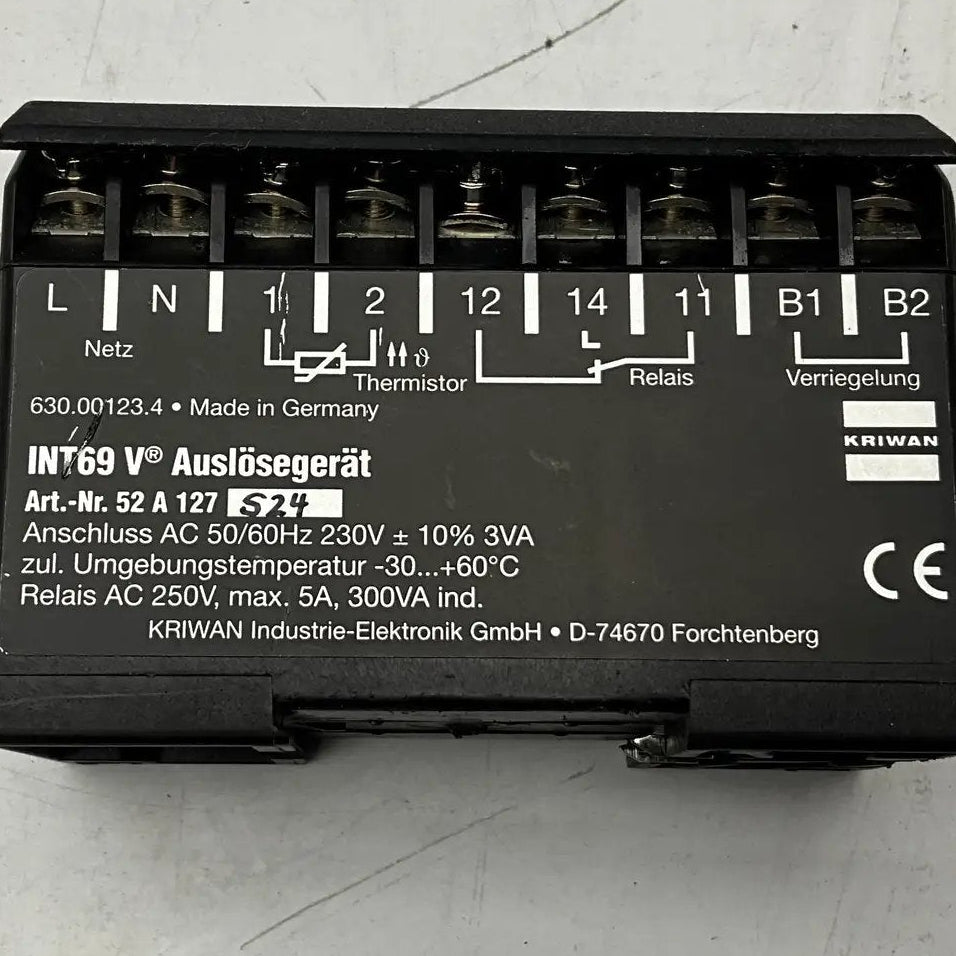

Kriwan INT69 V Motor Protector

Kriwan INT69 V Motor Protector

€151,25incl. VAT
€125,00 excl. VAT

موجودی: 2
Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandKriwan (Kriwan Industrie-Elektronik GmbH)
ModelINT69 V Trigger Device
TypeMotor Protection Module / Compressor Thermal Protection Relay
Part Number52A127S24
Technical Specs
Core ApplicationThermal overload monitoring for electrical drives, refrigeration compressors (frequently paired with Frascold compressors), and heavy-duty industrial machinery

Operating Voltage / Mains Power: 230 V AC (±10%), 50/60 Hz

Power Consumption3 VA

Ambient Temperature Performance Range: -20°C to +60°C

Measuring Circuit Configuration: Positive Temperature Coefficient (PTC) thermistor loop matching DIN 44081 / DIN 44082 standards

Sensor Deployment Capacity1 to 9 PTC sensors connected in a single series circuit string

Internal Initial Cold Resistance (R25, total): Max. 1.8 kΩ

Trip Sizing Resistance (Rtrip)4.5 kΩ ±20%
Reset Point Range2.75 kΩ ±20%
Hysteresis Configuration1 to 3 K spread profile matching standard nominal response temperatures (NAT)
Lock-out Safety FeatureElectronic lock-out activated after terminal thermal cut-out
Reset Interception OptionsBreak in supply power grid, brief removal of the B1-B2 manual jumper line, or integrated external reset switch deployment
Switching Output Configuration1 potential-free Changeover / SPDT contact configuration operating on the secure closed-circuit protection principle
Maximum Relay Contact Rating250 V AC, max. 5 A, 300 VA inductive load
Structural Durability IndexApprox. 1 million electrical switching cycles

Structural Frame Enclosure Matrix: PA6 GF30 glass fiber reinforced plastic matrix housing

Structural Mounting FormatSnap-fit installation tracking 35mm top-hat DIN rail layout
Enclosure Protection ClassIP00
Weight200 g
Dimensions85 x 54 x 65 mm
Country of OriginGermany
HS Code8536.49.00
