Leuze Electronic

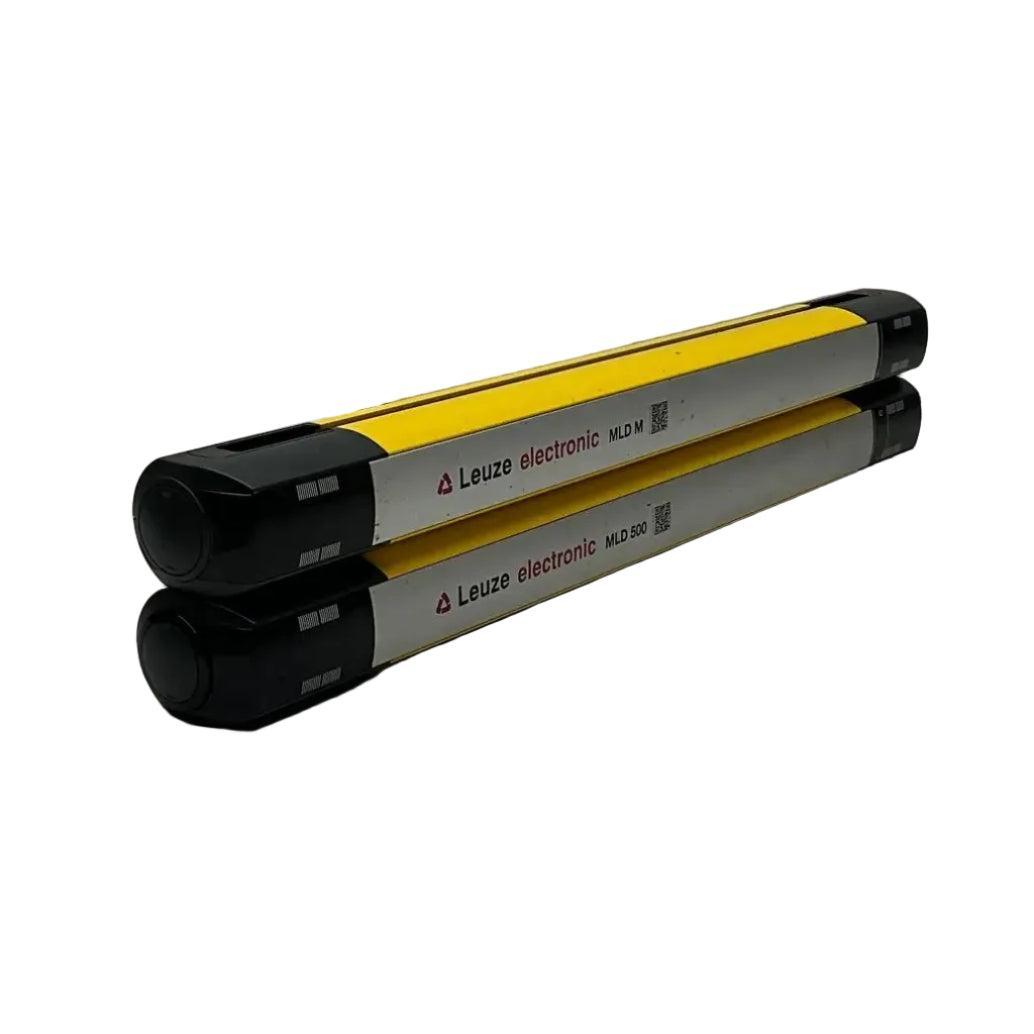

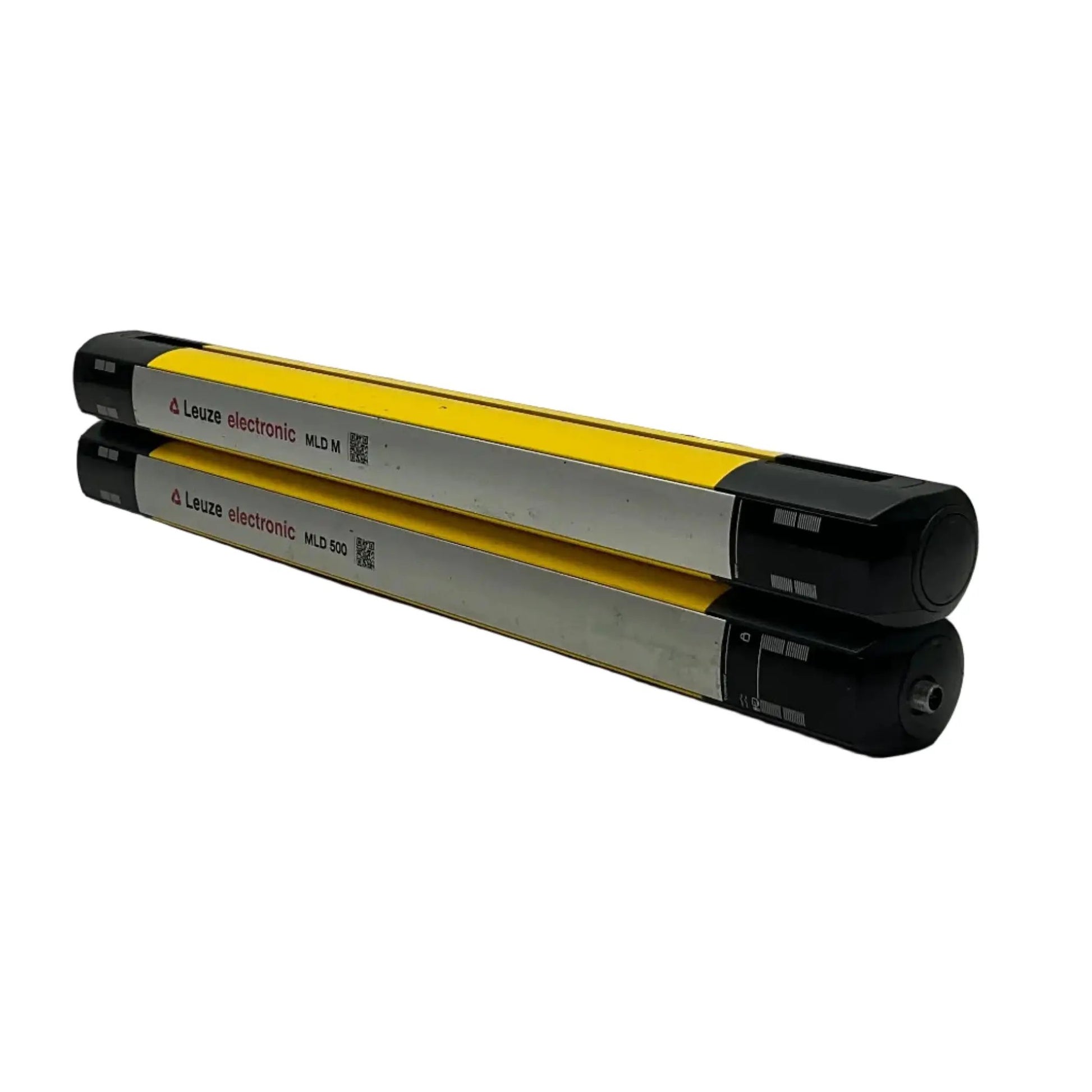

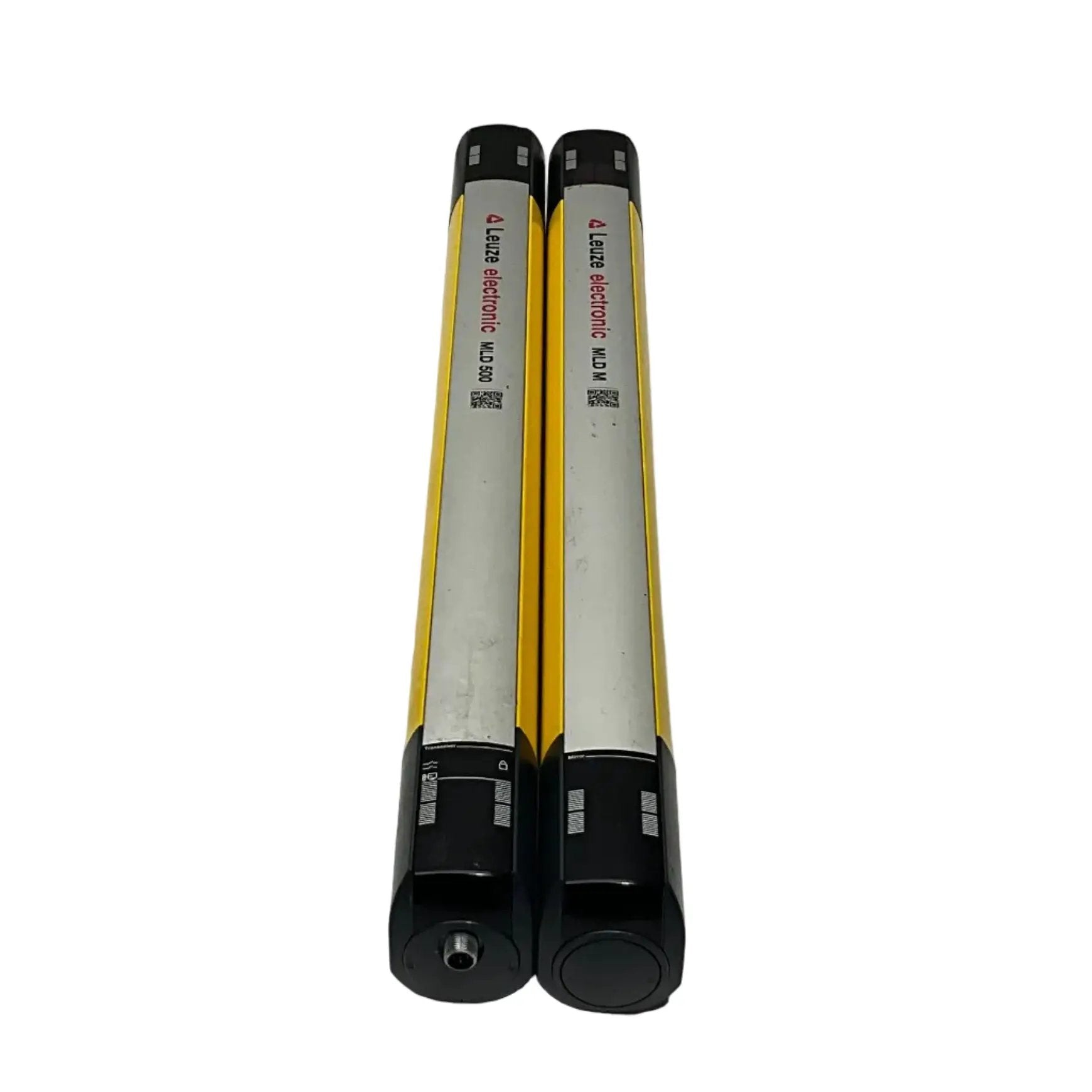

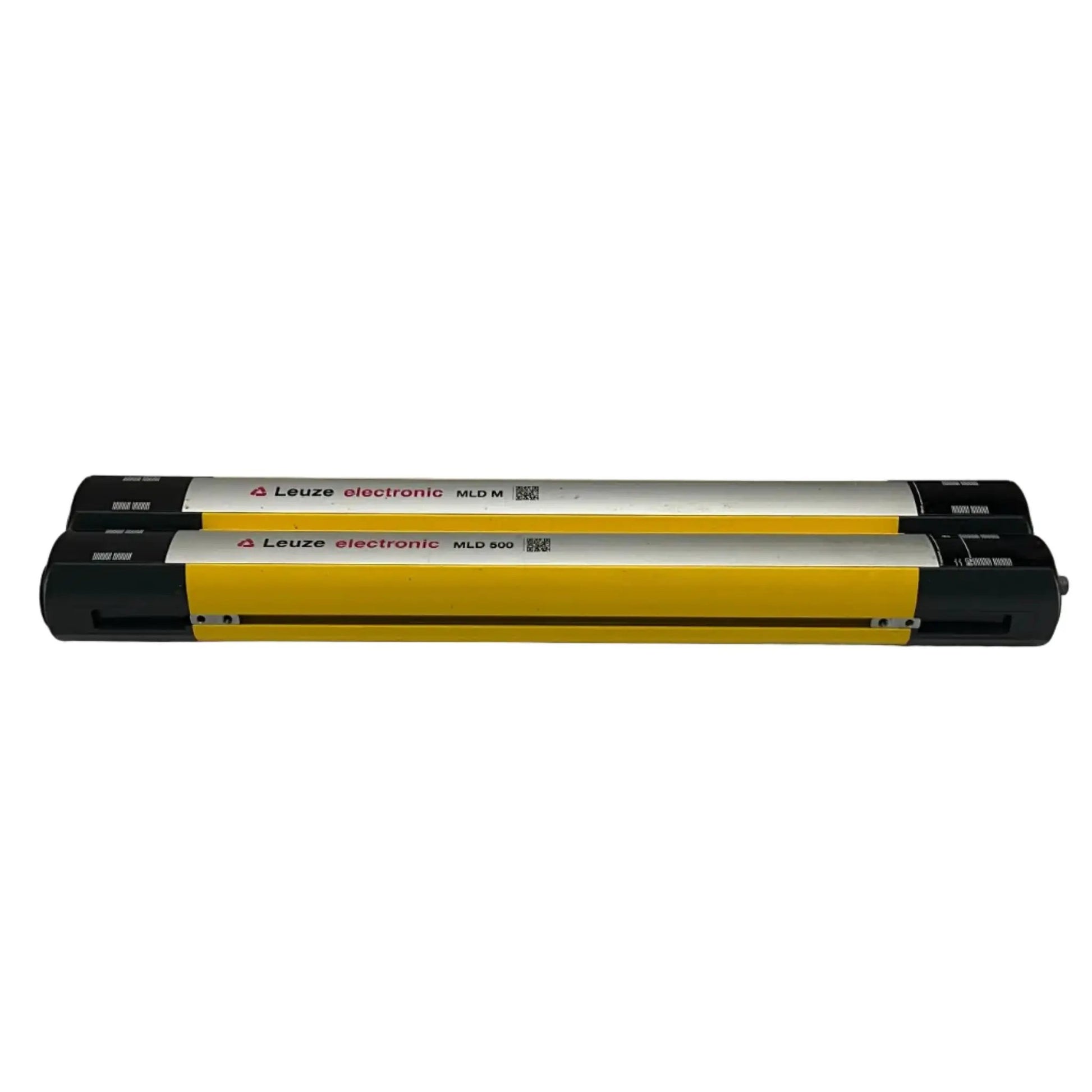

Leuze Electronic MLD510-RT2 Multiple Light Beam Safety Device Set

Leuze Electronic MLD510-RT2 Multiple Light Beam Safety Device Set

€756,25incl. VAT
€625,00 excl. VAT

موجودی: 2
Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandLeuze Electronic
ModelMLD 500 Series (MLD510-RT2 Transceiver & MLD-M002 Deflecting Mirror)
TypeMultiple Light Beam Safety Device Set (Type 4 Active/Passive Perimeter Guarding System)

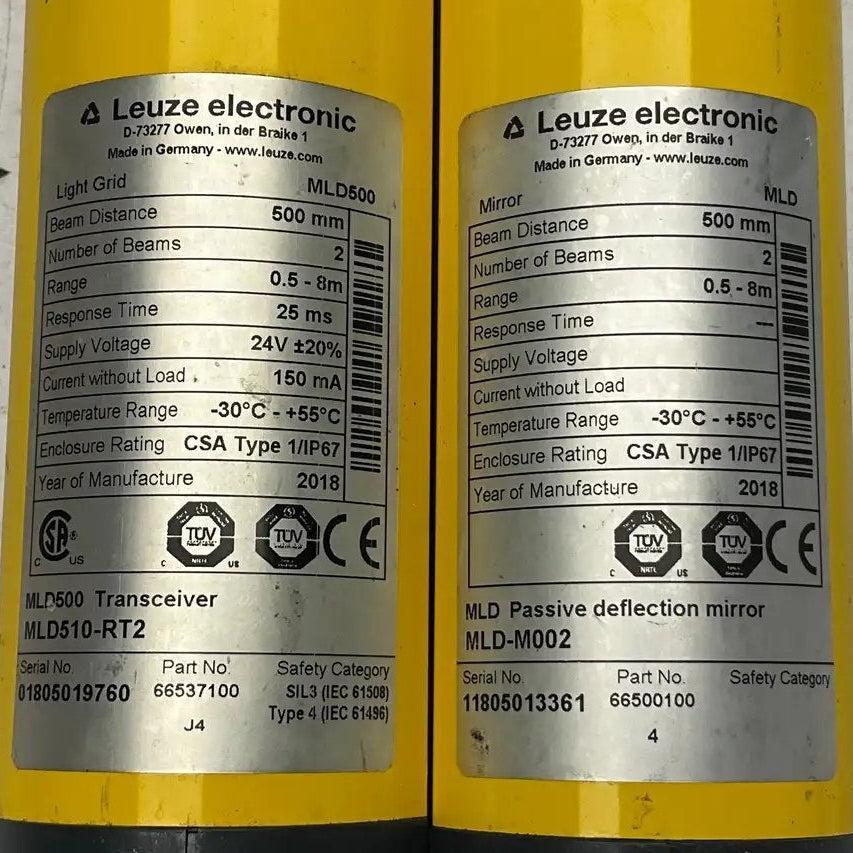

Part Numbers

66537100 (MLD510-RT2 Transceiver - Active Unit)

66500100 (MLD-M002 Deflecting Mirror - Passive Unit)

Technical Specs
System Operating ConceptActive/Passive design
Safety Integrity ParametersType 4
Number of Beams2 Pieces
Beam Spacing500 mm

Operating Range (Scanning Distance): 0.5 to 8.0 m

Light SourceInfrared LED, 850 nm wavelength
Core Functional ModesAutomatic restart mechanism
Response Time25 ms to 30 ms max
Restart Delay Time100 ms

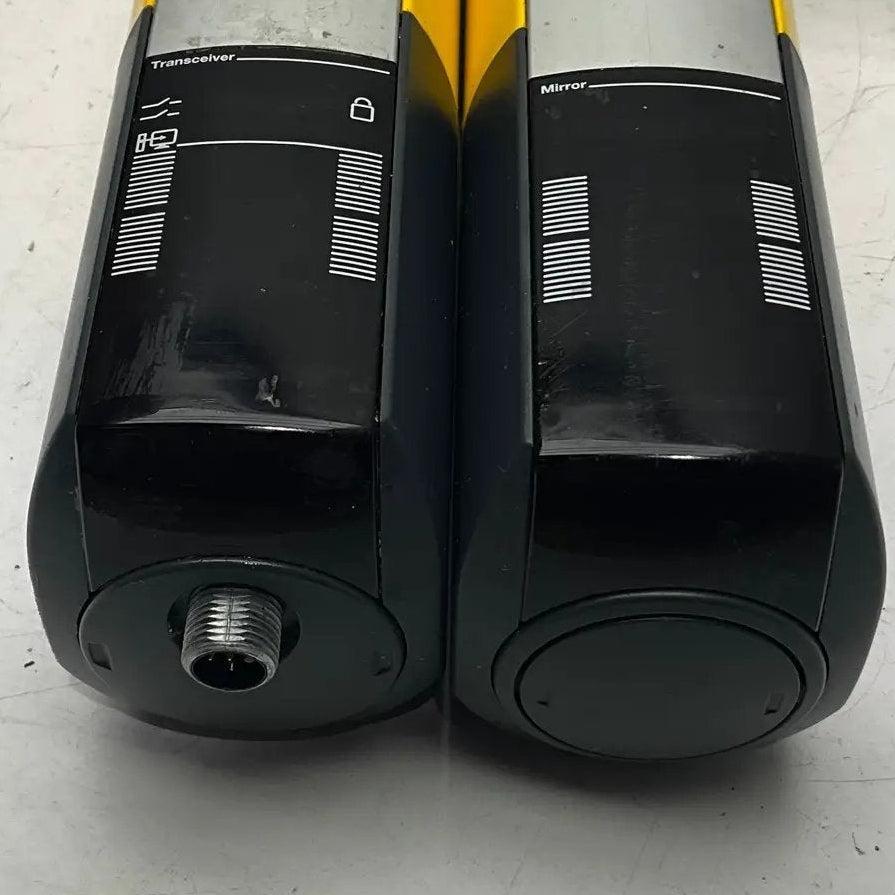

Electrical Connection Type (Active Unit): M12 connector, nickel-plated brass, 5-pin configuration

Safe Outputs (OSSDs)2 x Safety transistor outputs (OSSDs) with short-circuit and cross-fault monitoring

Output Switching Voltage / Current: 24 V DC, max. 300 mA per channel

Diagnostic IndicatorsFront-facing 2-segment status LED array on transceiver
Structural Body MatrixExtruded aluminum housing finished in Safety Yellow (RAL 1021)
Lens Window MaterialHigh-impact PMMA plastic cover
End Cap Structural ProfileRigid die-cast zinc end blocks
Mounting SystemIntegrated side-groove channels accepting sliding T-nuts or heavy-duty rear swivel mount brackets

Operational Ambient Temperature Range: -30°C to +55°C

Storage Ambient Temperature Range: -40°C to +75°C

Enclosure Protection ClassIP67
Weight1.50 kg x 2pcs.
Dimensions52 x 600 x 65 mm x 2pcs.
Country of OriginGermany
HS Code8536.50.19
