PDL Electronics

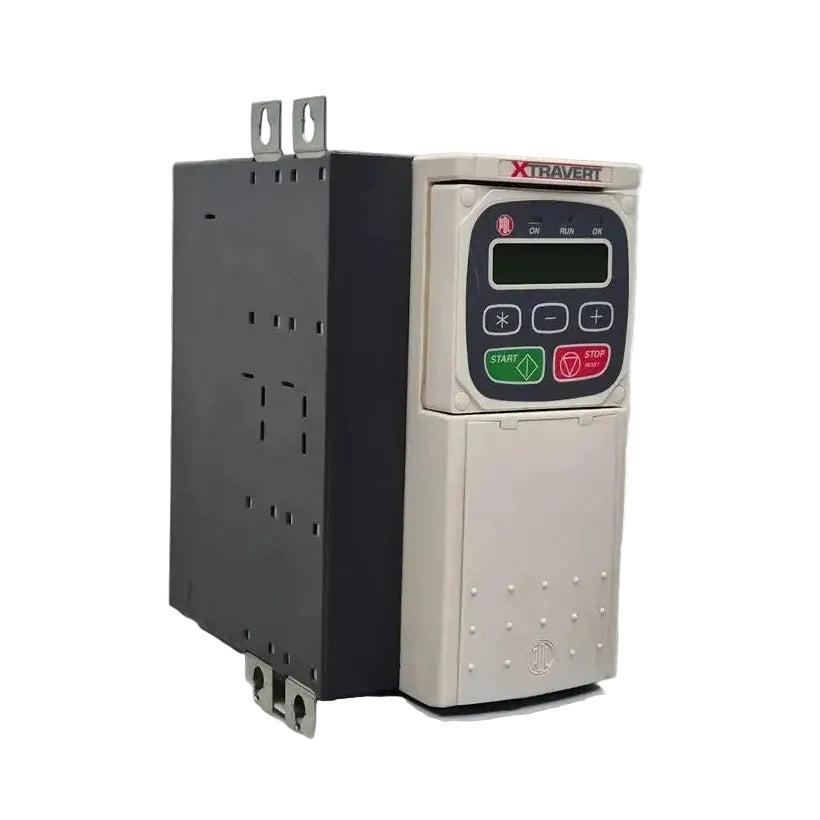

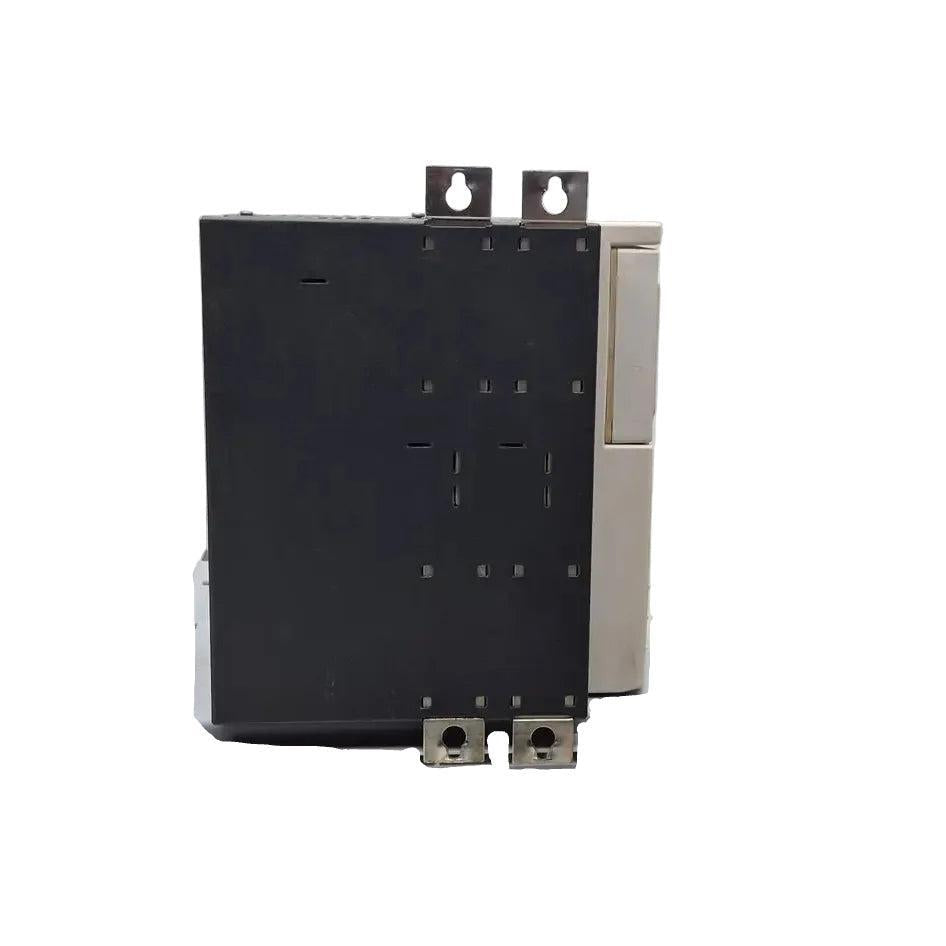

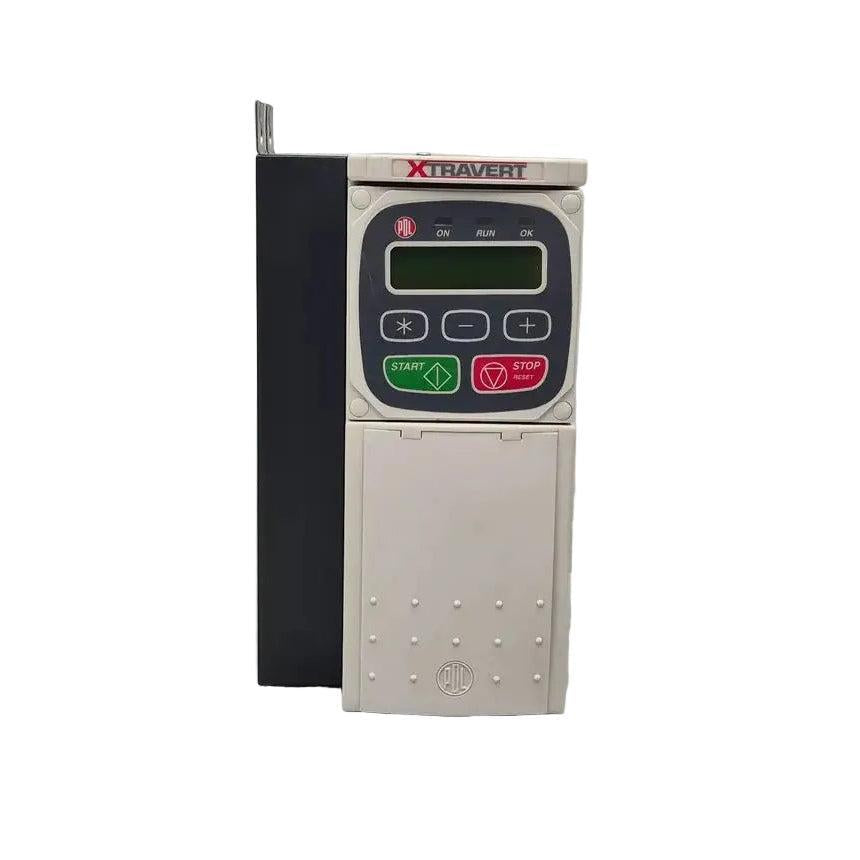

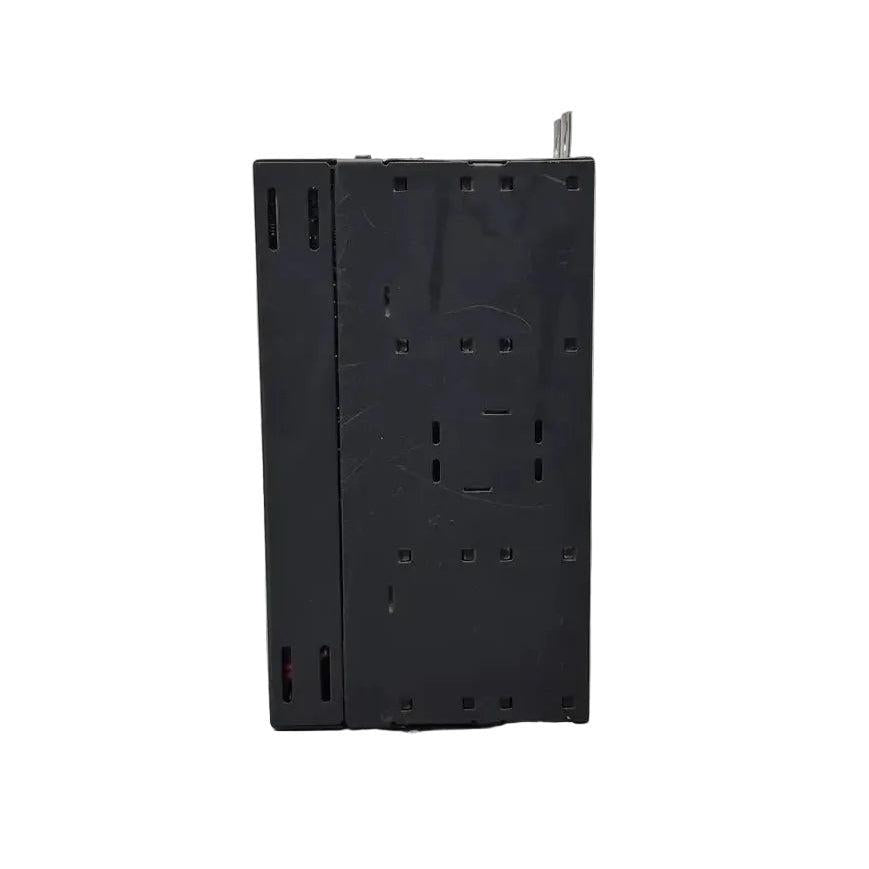

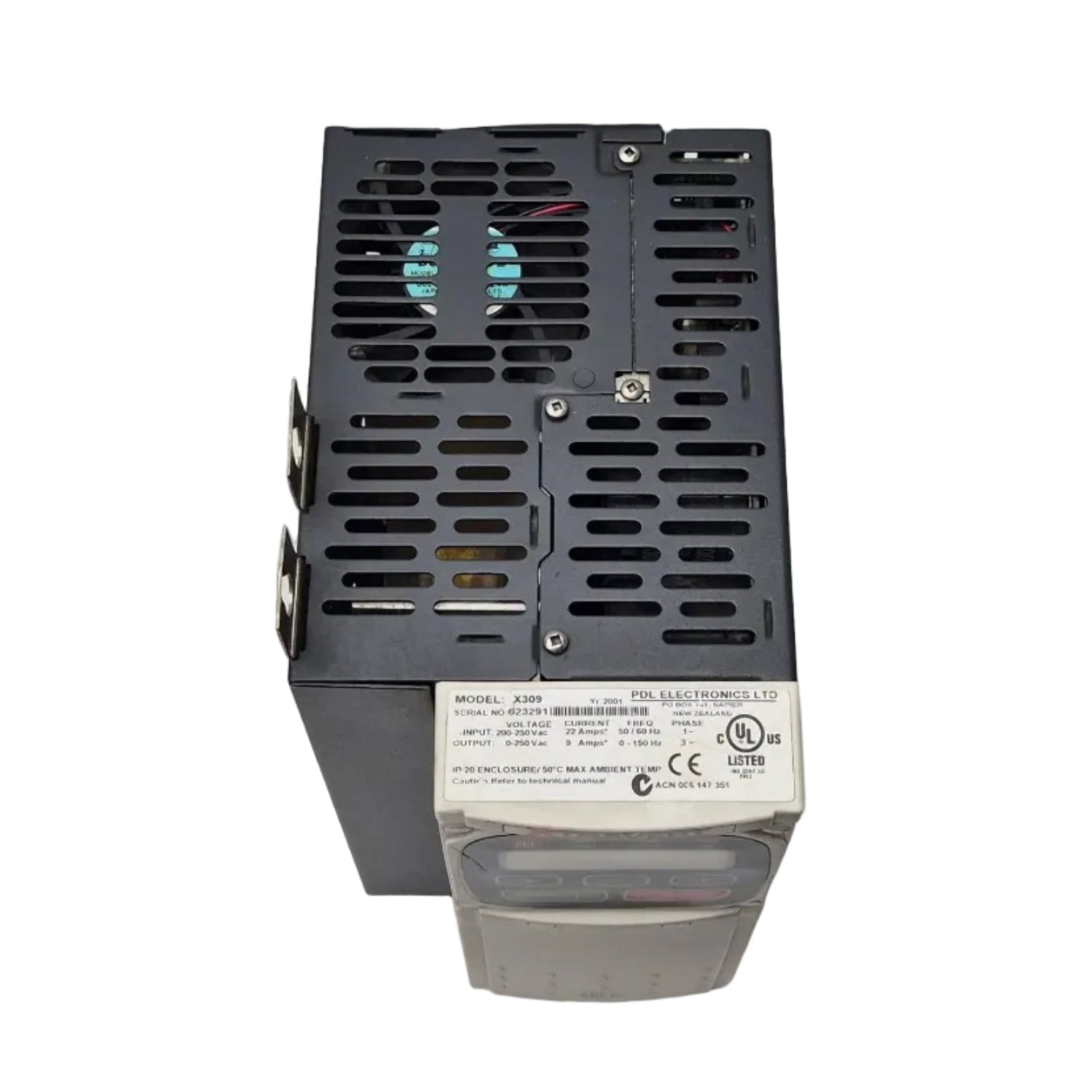

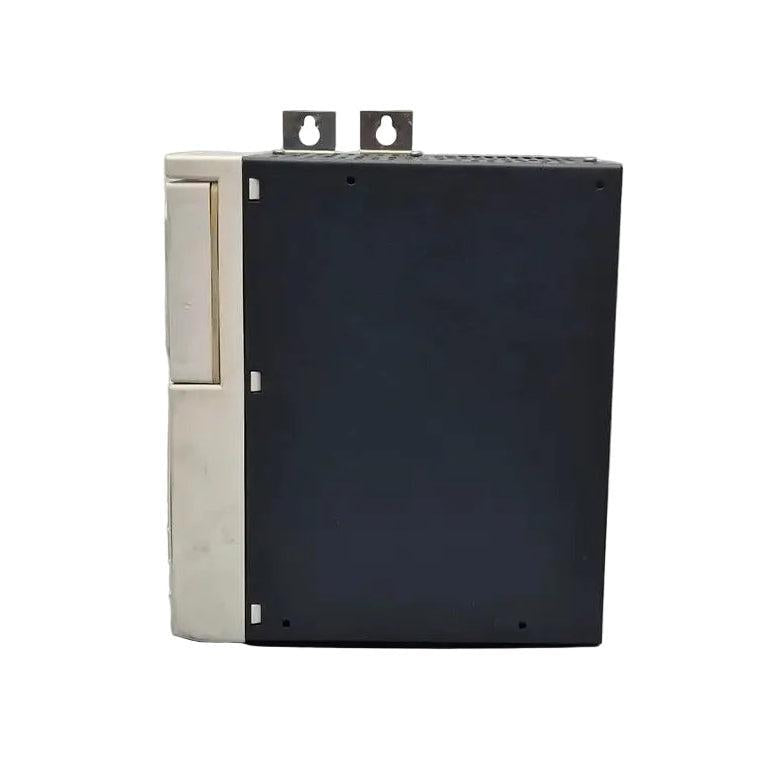

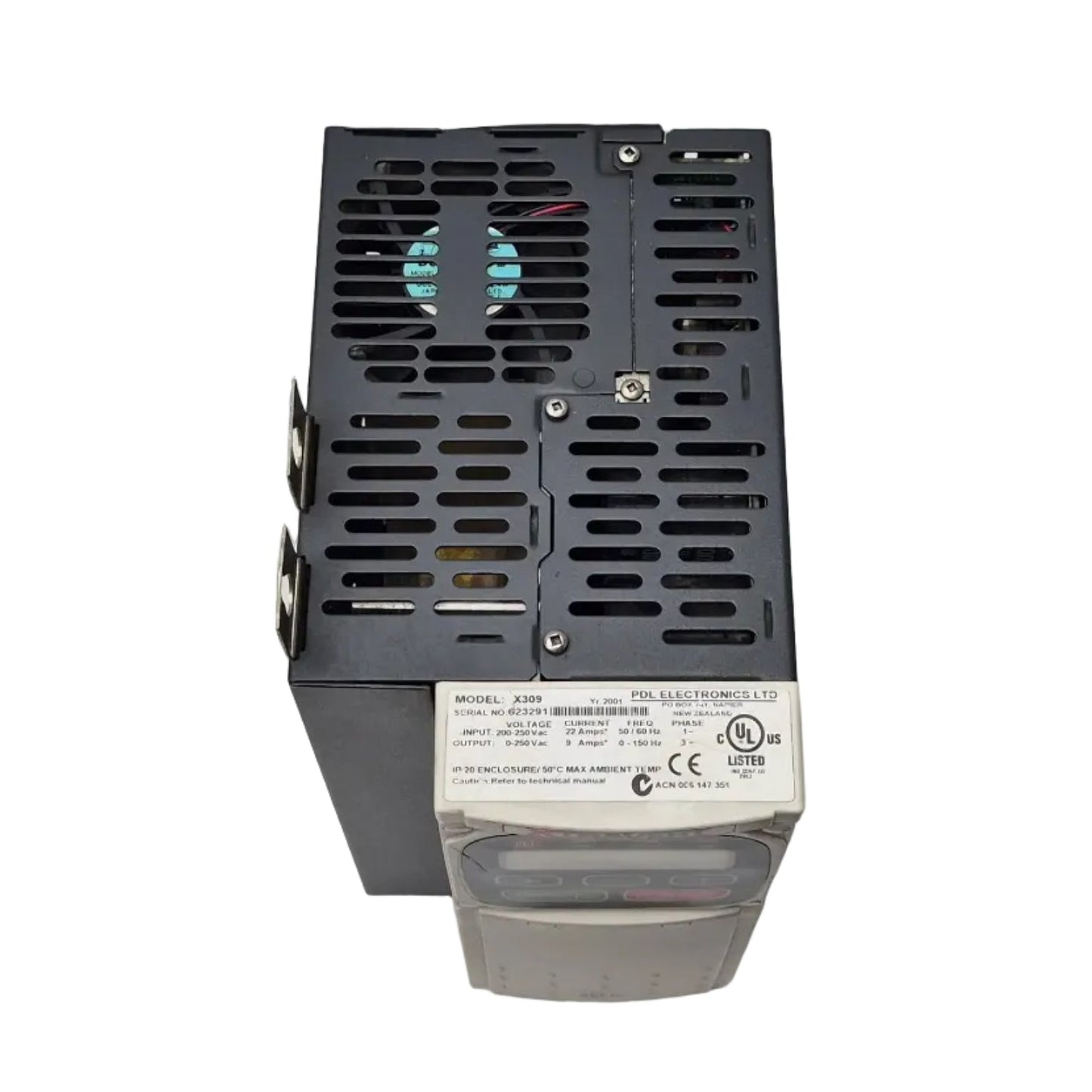

PDL Electronics Xtravert X309 Variable Speed Drive

PDL Electronics Xtravert X309 Variable Speed Drive

€756,25incl. VAT
€625,00 excl. VAT

在庫: 1
Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandPDL Electronics (acquired by Schneider Electric)
ModelXtravert X309
TypeVariable Speed Drive / Frequency Converter
Part numberX309
Technical specs
Output functionVariable frequency
Electrical design16-bit Microcontroller-driven IGBT inverter using space vector modulation and WhisperWave modulation technology

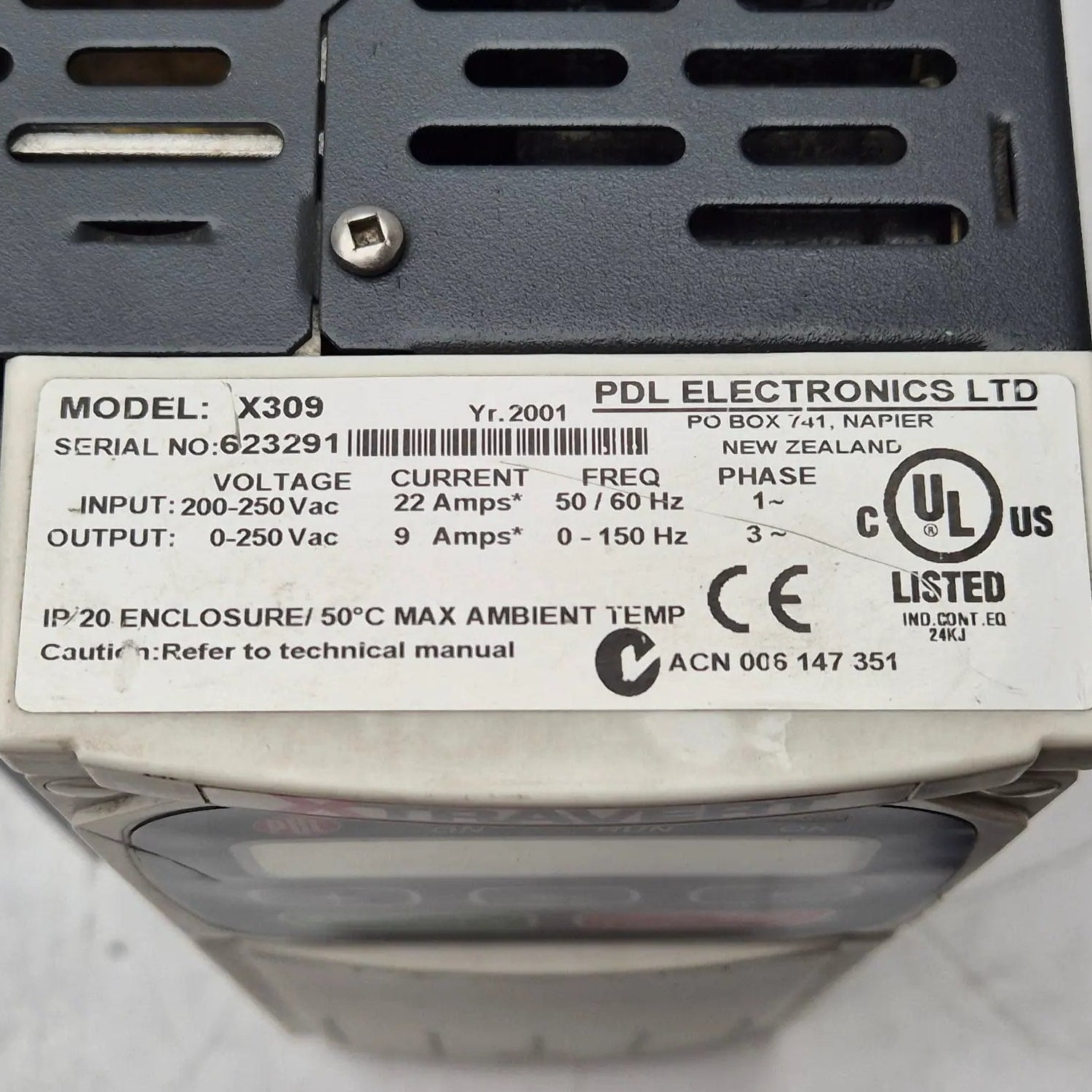

VoltageInput: 200...250 V AC 1~ | Output: 0...250 V AC 3~
Temperature0...50 °C ambient operating temperature range
Current RatingInput: 22 A  | Output: 9 A
Short-circuit ProtectionYes
Overload ProtectionYes
FunctionControls the speed and torque of smaller three-phase AC induction motors rated up to 2.2 kW (typical configuration for the 9A frame) in machinery and fluid/gas management applications
Max. power consumptionHigh efficiency design (>97% at full load, 50 Hz)
Setting mechanismFully digital programming configuration via the alphanumeric control panel; features 7 switch-selectable preset speeds and a ±10V reference option

Output frequency resolution range selectable: ±50 / ±60 / ±100 / ±120 Hz

Connection typeHeavy-duty screw terminals for mains input, motor output, and internal DC bus connections
Housing materialEngineered industrial polymer and metal alloy structural chassis
Mounting typeVertical wall-mounting inside switchboards or protective enclosures
Protection ratingIP 20
Status indication32-character alphanumeric LCD display panel with integrated status LEDs for Power On, Run, and Fault conditions
Weight7.3 kg
Dimensions281 x 135 x 220 mm
Country of originNew Zealand
HS Code8504.40.90

配送と返品

1. オランダでは通常、翌営業日に配達されます。他の国では時間がかかる場合があり、注文を受け取るまで少し待つことがありますが、それだけの価値はあります！
2. 返品については、RMA番号を取得するためにメールまたは電話でお問い合わせください。RMA番号がない場合、返金はできません。

なぜ私たちから購入するのか

私たちの強み：

1. 私たちはオランダに倉庫を持つ100％オランダ企業です。
2. 在庫ありとは本当に在庫があることを意味します。
3. すべてのUsed Industrial Partsは販売前に検査されています。
4. すべてのUsed Industrial PartsにはDOA保証と6ヶ月の保証が付いています。
5. 最大の在庫量！私たちは毎日「Surplus New」、「Used」、「Obsolete」のオートメーションコントロールおよび産業用プロセス機器を買い取り（販売も）しているため、膨大な在庫を誇っています！

詳細を表示
