Belimo

Belimo SF230A-S2 Fjærreturaktuator

Belimo SF230A-S2 Fjærreturaktuator

Varenummer:CC-03-02-03-6152427252297

€338,80incl. VAT
€280,00 excl. VAT

Utsolgt
Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
Produktbeskrivelse

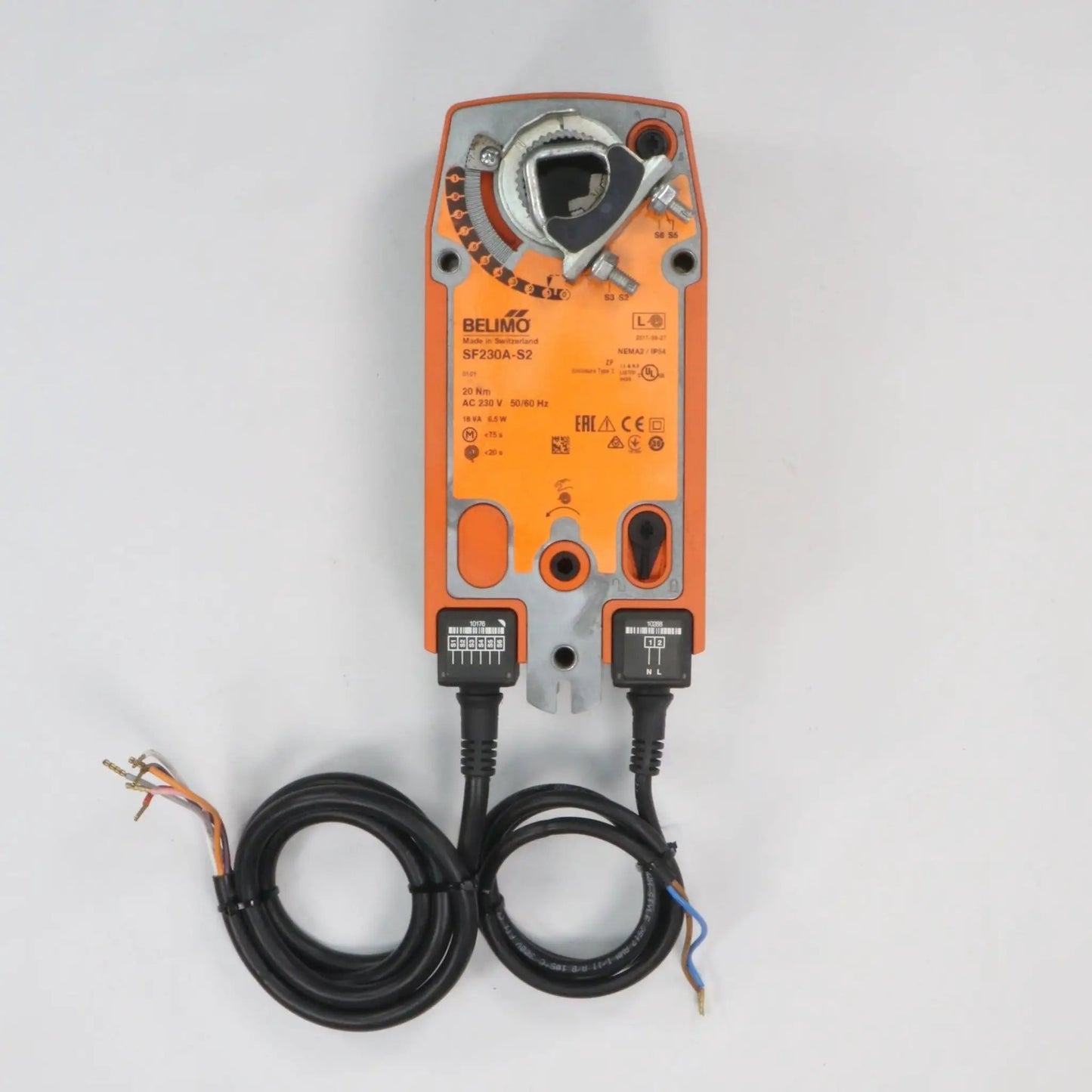

Belimo SF230A-S2 er en høyytelses fjærreturaktuator designet for HVAC-applikasjoner, spesielt for styring av luftspjeld i ventilasjonsog klimaanlegg. Med et robust dreiemoment på 20 Nm og nødfunksjon sikrer den pålitelig drift og overholdelse av sikkerhetsstandarder.

Hovedfunksjoner
Dreiemoment20 Nm
KontrolltypeÅpne/Lukke
Power Supply230 VAC, 50/60 Hz
Hjelpebrytere2x SPDT (enkeltpol dobbeltkast)
Manuell overstyringJa, med håndsveiv og låsebryter
RotasjonsvinkelMaks. 95°, justerbar med mekaniske endestopp
Driftstid75 sekunder (motor), 20 sekunder (fjærretur)
Lydtrykknivå45 dB(A) (motor), 62 dB(A) (fjærretur)
LevetidMinimum 60 000 nødsykluser
BeskyttelsesklasseIP54
Omgivelsestemperatur-30°C til +50°C
Lagringstemperatur-40°C til +80°C
FuktighetOpptil 95 % RF, ikke-kondenserende
VektOmtrent 2,3 kg

Levering & Returer

1. Normal levering neste virkedag (Nederland). Andre land kan ta lengre tid, noen ganger må du vente litt lenger på å få bestillingen din, men det er alltid verdt det!
2. Returer, send e-post eller ring for ditt RMA-nummer, uten RMA-nummer kan vi ikke gi refusjon.

Hvorfor kjøpe fra oss

Slik skiller vi oss ut:

1. Vi er et 100 % nederlandsk selskap med et lager i Nederland.
2. På lager betyr virkelig PÅ LAGER.
3. Alle Used Industrial Parts blir inspisert før de legges ut for salg.
4. Alle Used Industrial Parts leveres med DOA-garanti og 12 måneders garanti.
5. Det største varelageret! Vi kjøper (og selger) daglig «nye overskuddsvarer», «brukte» og «utdaterte» automasjonskontroller og industrielt prosessutstyr, så vi er stolte av vårt enorme varelager!

Se fullstendige detaljer
