Festo

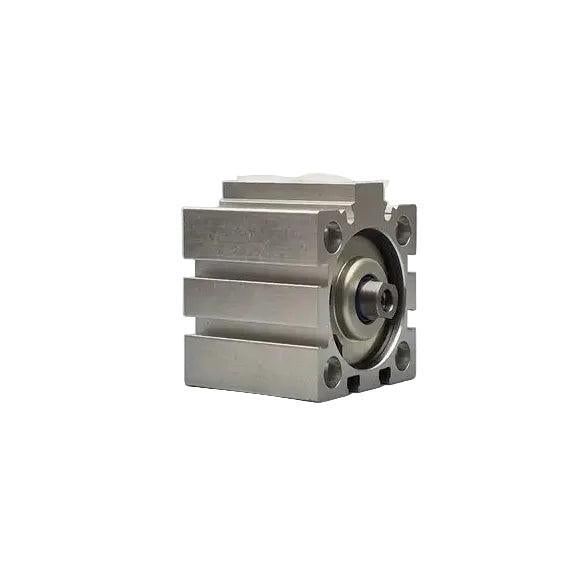

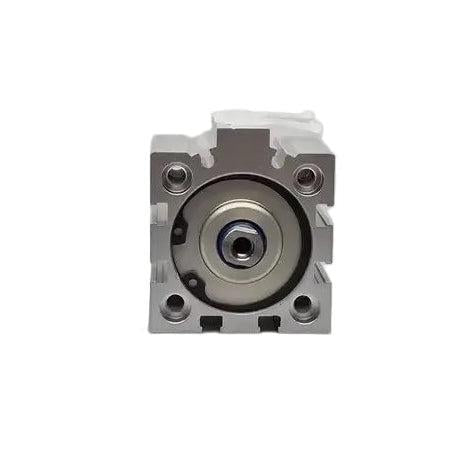

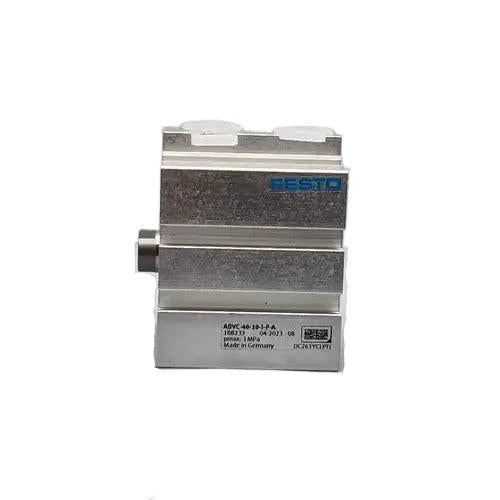

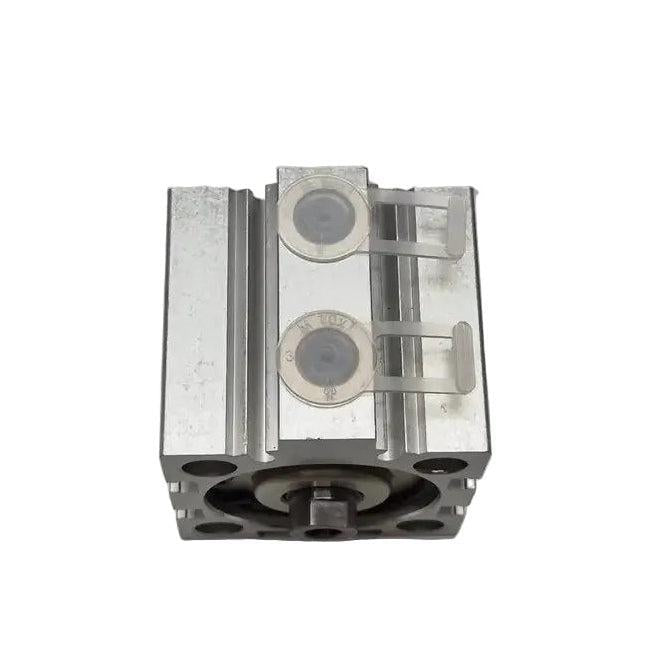

Festo ADVC-40-10-I-P-A Short Stroke Pneumatic Cylinder - 188233

Festo ADVC-40-10-I-P-A Short Stroke Pneumatic Cylinder - 188233

€114,95incl. VAT
€95,00 excl. VAT

Lager: 5
Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandFesto
ModelADVC-40-10-I-P-A
TypeShort-Stroke Pneumatic Cylinder
Order number188233
Technical specs
Output functionDouble-acting linear motion
Operating pressure1.....10 bar
Temperature-20...80 °C ambient operating temperature range
FunctionHigh-force, compact-envelope linear clamping, pushing, and rejection movements in space-critical automation
Pneumatic connections2
Stroke length10 mm
Piston diameter40 mm
Position detectionvia proximity switch
Media selectionCompressed air in accordance with ISO8573-1:2010 [7:4:4]

Theoretical force at 6 bar (advance): 754 N

Connection typeG 1/8 female threaded
Housing materialWrought aluminum alloy anodised; Seals: NBR, TPE-U(PU)
Mounting typeThrough-hole
Weight320 g
Dimensions60 x 55 x 60 mm
Country of originGermany
HS Code8412.31.00
