Pilz

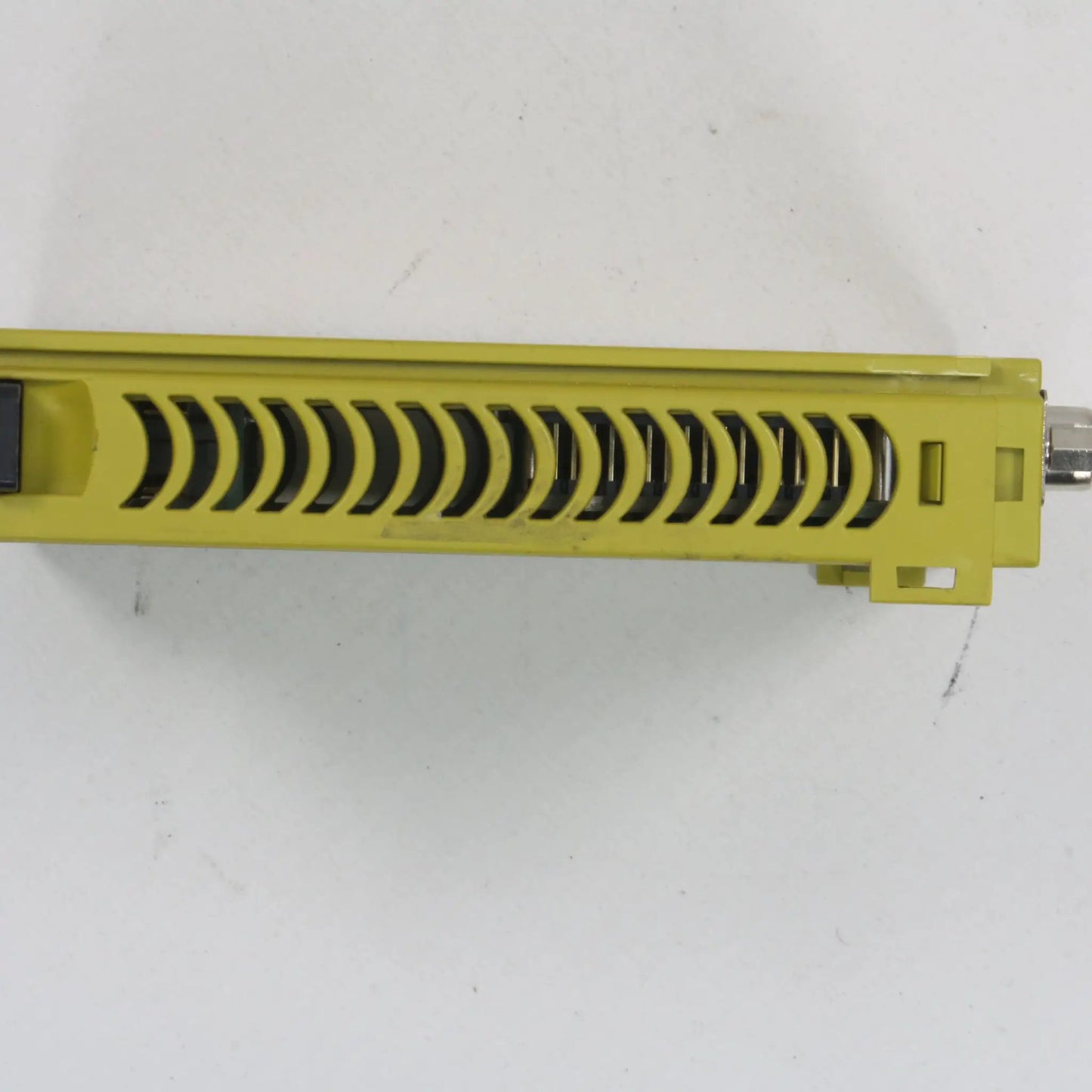

Pilz PNOZ mc6p Fieldbus-modul

Pilz PNOZ mc6p Fieldbus-modul

€308,55incl. VAT
€255,00 excl. VAT

Lager: 2
Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
Pilz PNOZ mc6p Fieldbus-modul Spesifikasjoner
ProdukttypeFieldbus-utvidelsesmodul (CANopen kommunikasjonsgrensesnitt)
ProdusentPilz GmbH & Co. KG
ModellPNOZ mc6p (varianter: 773712 standard, 773727 belagt for tøffe miljøer, 773733 med oppdatert protokoll)
EnhetsbrukKommunikasjon mellom PNOZmulti konfigurerbare kontrollsystemer og CANopen fieldbus-nettverk (f.eks. for overvåking av sikkerhetsinnretninger som E-STOP, porter og lysbarrierer)
SertifiseringerCE, cULus Listed, EAC (eurasisk), KCC, KOSHA, TÜV, CCC (kun 773727)
Belagt versjonTilgjengelig (773727) for økt miljømotstand
ForsyningsspenningVia baseenhet, 5 V DC
Spenningstoleranse-2 % / +2 %
Strømforbruk1 W (773712, 773733); 2,5 W (773727)
StatusindikatorLED (PWR, BUS)
Fieldbus-grensesnittCANopen, Enhetstype: Slave
Støttede protokollerCiA DS-301 V3.0 (773712, 773727); CiA DS-301 V4.02 (773733)
Stasjonsadresse0–99 (valgt via roterende bryter x1/x10)
Overføringshastigheter10 kbit/s, 20 kbit/s, 50 kbit/s, 125 kbit/s, 250 kbit/s, 500 kbit/s, 800 kbit/s, 1 Mbit/s (valgt via roterende bryter)
Tilkobling9-pins D-Sub hannkontakt
Galvanisk isolasjonJa
Testspenning500 V AC
Strømbrudd før frakobling20 ms
Virtuelle innganger/utganger24 (definerbare i PNOZmulti Configurator for fieldbus-kommunikasjon)
MonteringsposisjonHorisontal på monteringsskinne
DIN RailTopphatt-skinne 35 x 7,5 EN 50022
Utskåringsbredde27 mm
KapslingsmaterialeBunn: PPO UL 94 V0; Front: ABS UL 94 V0
Mekanisk holdbarhetHøy (vibrasjonsog støtbestandig; eksakte sykluser ikke spesifisert)
Omgivelsestemperatur ved drift0–60 °C (773712, 773733); 0–50 °C (773727) (EN 60068-2-14)

Omgivelsestemperatur ved lagring: -25–70 °C (EN 60068-2-1/-2)

Klimatisk egnethetEN 60068-2-30, EN 60068-2-78
Fuktighet93 % relativ fuktighet ved 40 °C
Kondens under driftIkke tillatt (kortvarig ikke tillatt)
EMCEN 61131-2
VibrasjonsmotstandFrekvens 10–150 Hz, akselerasjon 1g (EN 60068-2-6)
Korrosiv gasskontrollSO2: 10 ppm, 10 dager (DIN V 40046-36); H2S: 1 ppm, 10 dager (DIN V 40046-37) (kun 773712)
StøtbestandighetAkselerasjon 15g, varighet 11 ms (EN 60068-2-27)
Maks. driftshøyde over havet2000 m
Luftgap-krypestrømEN 61131-2
OverspenningskategoriIII
Forurensningsgrad2
Merkespenning isolasjon30 V
IP-beskyttelsesgradKapsling: IP20; Klemmer: IP20; Monteringsområde (f.eks. kontrollskap): IP54 (EN 60529)
StandarderEN 60068-2-14, EN 60068-2-1/-2, EN 60068-2-30, EN 60068-2-78, EN 61131-2, EN 60068-2-6, EN 60068-2-27, EN 60529, DIN V 40046-36, DIN V 40046-37 (kun 773712)
Spesielle egenskaper

Plug-and-play utvidelse for PNOZmulti baseenheter

Roterende brytere for adresseog baudratekonfigurasjon

LED-diagnostikk for strømog bussstatus

Galvanisk isolasjon for pålitelig kommunikasjon

Belagt versjon (773727) for forbedret beskyttelse mot korrosive miljøer

Dimensjoner
Høyde94 mm
Bredde22,5 mm
Dybde119 mm
Vekt140 g
HS-kode8537.10.91
OpprinnelseslandTyskland
