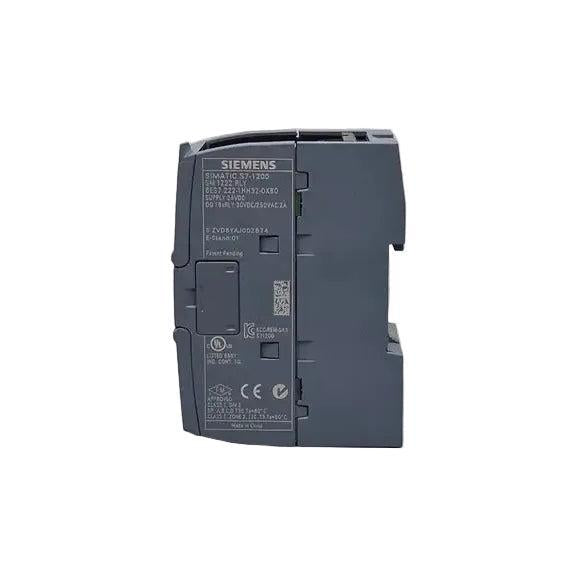

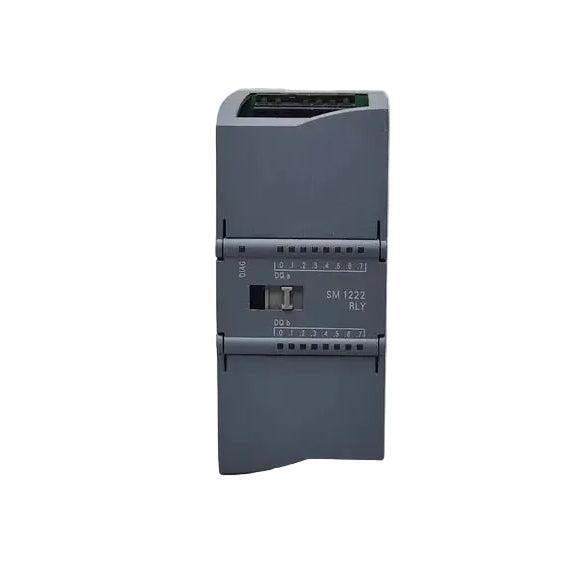

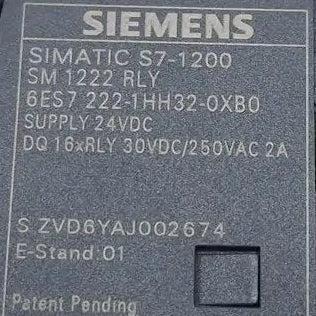

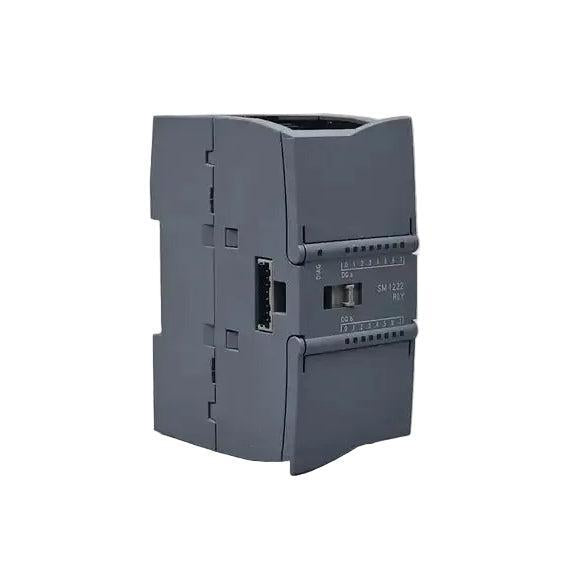

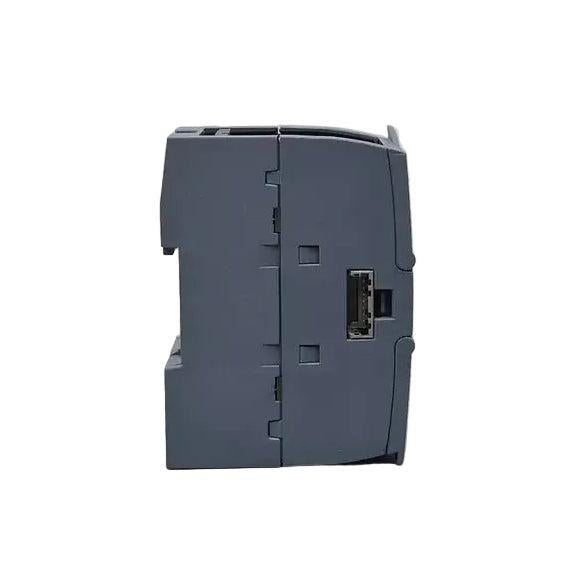

Siemens Simatic S7-1200 Digital Output Module - 6ES7 222-1HH32-0XB0

Siemens Simatic S7-1200 Digital Output Module - 6ES7 222-1HH32-0XB0

€151,25incl. VAT
€125,00 excl. VAT

Lager: 1
Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandSiemens
ModelSIMATIC S7-1200 SM 1222
TypeDigital Output Module
Part number6ES7222-1HH32-0XB0
Technical specs
Output function16 x Digital Relay Outputs
Electrical designDry-contact mechanical relay outputs with galvanic isolation between groups and the backplane bus
Supply voltage20.4..28.8 VDC
Temperature-20...60 °C horizontal installation; -20...50 °C vertical installation (95% relative humidity, non-condensing)
Current RatingMax. 2.0 A continuous load per channel; Max. 8.0 A total current load per relay group
Short-circuit ProtectionNo
Overload ProtectionNo
FunctionControls high-current or mixed-voltage field devices such as heavy-duty contactors, solenoid valves, warning lamps, and small motors via standard digital PLC logic
Power loss typical8.5 W | Current consumption from backplane bus (5 V DC): 130 mA
Switching time max10 ms (On to Off and Off to On)
Mechanical life expectancy10,000,000 switching cycles
Minimum load capacity5 V DC, 10 mA
Rated shielding cable lengths500 m (shielded) / 150 m (unshielded)

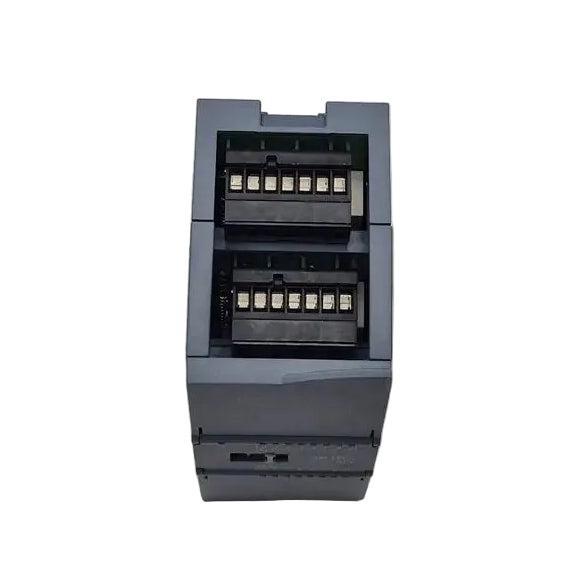

Connection typeRemovable screw terminal blocks
Housing materialIndustrial thermoplastic polymer
Mounting typeSide-by-side snap-on connection to the right side of an S7-1200 CPU or adjacent module on a standard 35mm DIN rail
Protection ratingIP 20
Status indication1 x Green LED (DIAG/Module status), 16 x Green LEDs
Weight250 g
Dimensions45 x 100 x 75 mm
Country of originChina
HS Code8538.90.91
