ABB 10DS3111C Electromagnetic Flow Meter

ABB 10DS3111C Electromagnetic Flow Meter

€1.179,75incl. VAT
€975,00 excl. VAT

Stock: 1

Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications

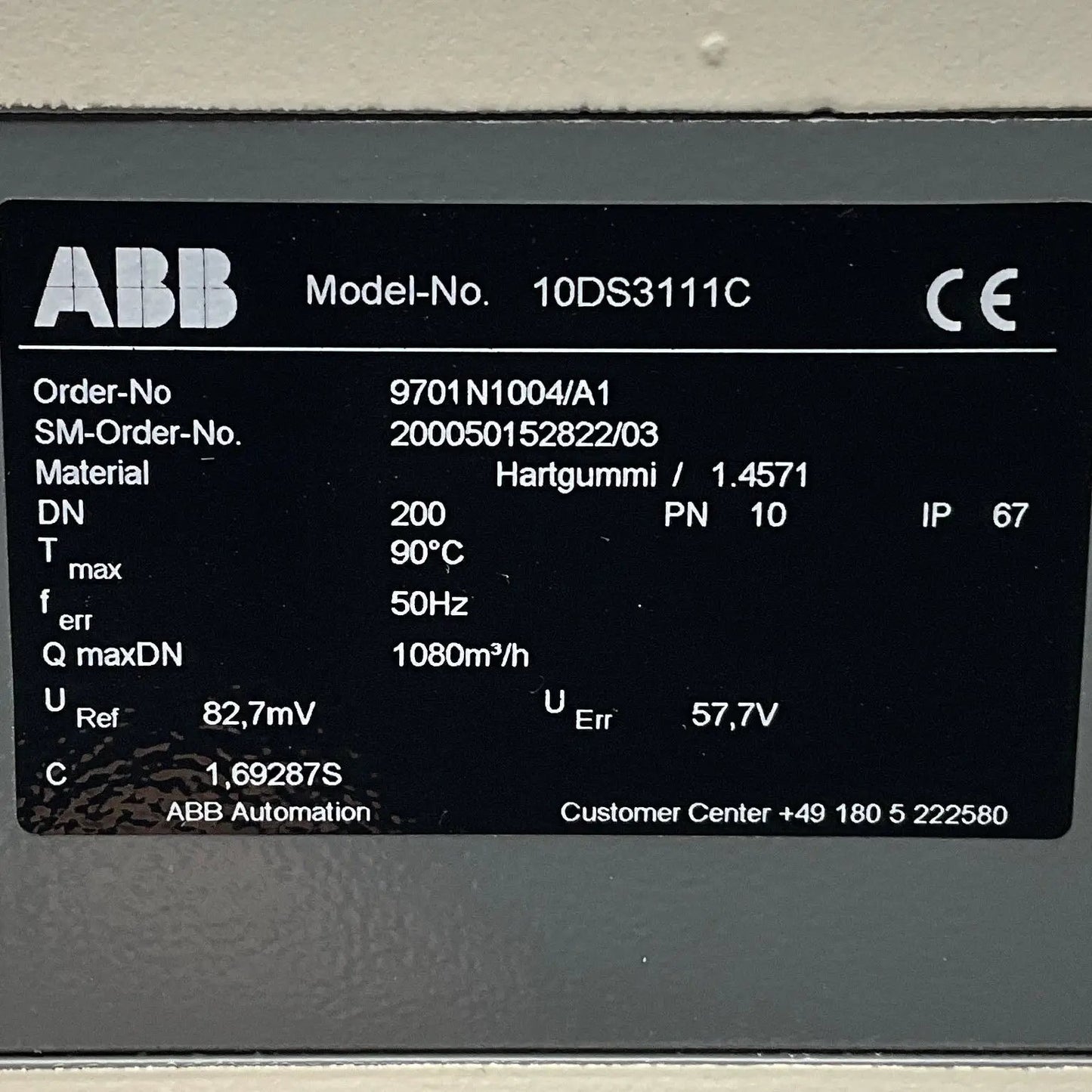

BrandABB
Model10DS3111C
TypeElectromagnetic Flow Meter
Order Number9701N1004/A1
Technical Specs
Measuring PrincipleElectromagnetic
Nominal DiameterDN 200
MaterialsHard Rubber liner/ 1.4571 Titanium stabilised steel (AISI 316Ti)
Electrode MaterialHastelloy C (A1 likely indicates Hastelloy C)
Process ConnectionFlange DN 200 PN 10
Maximum Pressure Rating10 bar at 20 °C
Process Temperature Range-20 °C to +90 °C
Ambient Temperature Range-20 °C to +60 °C
Q. MaxDN1080 m3/h
Accuracy±0.5 % of rate
Repeatability±0.15 % of rate
Conductivity≥ 5 µS/cm
Output Signal4–20 mA (active/passive)
Power Supply100–240 V AC, 50/60 Hz or 24 V DC/AC (depending on transmitter)
Protection ClassIP67 / NEMA 6P
Additional Features

  Fully welded construction for high durability

  No moving parts – maintenance-free

  Empty pipe detection

  Bi-directional flow measurement

  Low pressure drop

  Grounding/earthing electrodes included

CertificationsCE, PED (Category III), WRAS (drinking water)
Dimensions360 x 330 x 480 mm
Weight45 kg
Country of Origin Germany
HS Code  9026.10
