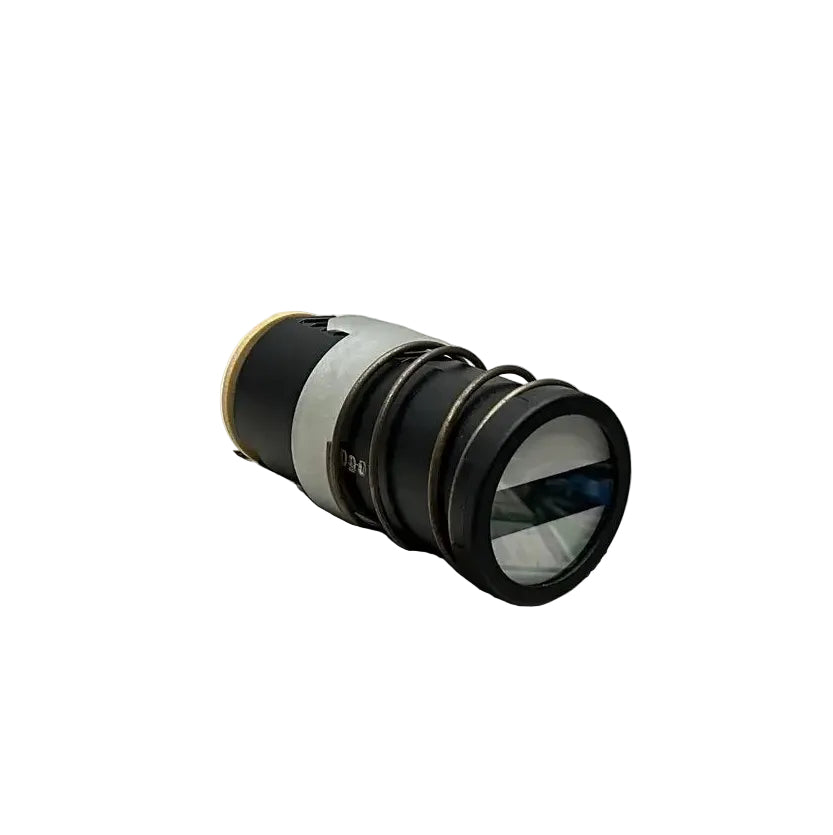

ABB AM036 Position Repeater
ABB AM036 Position Repeater
Stock: 6
Couldn't load pickup availability
Product description and type information
- Brand: ABB
- Model: AM036
- Type: Position Repeater / Mimic Diagram Indicator
- Part Number: 86744-0-1500001
- Technical Specifications:
- Electromechanical position repeater for mimic panel indication systems
- Designed to indicate switching states of industrial equipment
- Functions: “ON / CLOSED” indication, “OFF / OPEN” indication, “FAULT / INVALID STATE” indication
- Input principle: Energised coil creates magnetic field to switch display state
- Coil type: DC
- Rated coil voltage: 100–110–130 VDC
- Contact/display principle: Mechanical position indicator
- Display type: Front indicator
- Mounting: Panel-mounted plug-in device
- Locking ring mounting (tool-free installation)
- Panel cut-out: Ø 32.5 mm
- Panel thickness: Max 30 mm
- Connection type: Screw terminals (rear connection)
- Protection class: IP40 front, IP20 terminals
- Insulation class: Class II
- Mechanical life: 2 × 10⁶ indication changes
- Operating temperature: -25°C to +70°C
- Humidity: Max 85% relative humidity
- Overvoltage category: III
- Pollution degree: 2
Weight: 125 g
Dimensions: 36 x 65 mm
Country of Origin: Germany
HS Code: 8531.80
SKU:01-AB-01-08-04-6152429844896
