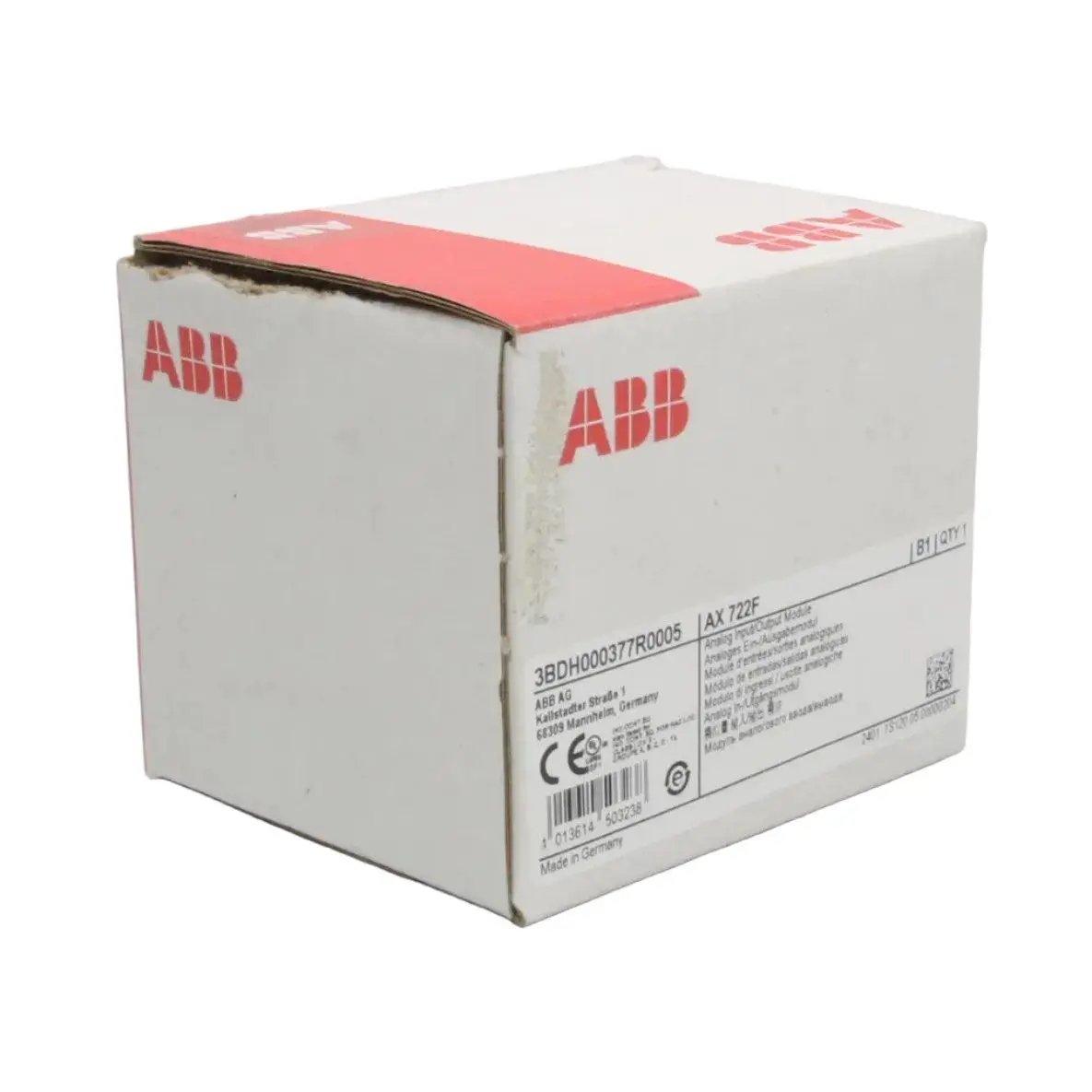

ABB AX 722F Analog Input/Output Module

- Brand: ABB

- Model: AX 722F

- Part Number: 3BDH000377R0005

- Type: Analog Input/Output Module - S700 I/O Series for Freelance AC 700F / AC 900F DCS

- All tech specs:
- Total channels: 16 analog channels (combined input and output in one module)
- Configurable inputs: 8 channels individually configurable as analog inputs (voltage: 0…10 V, -10…+10 V; current: 0…20 mA, 4…20 mA; temperature: RTD such as Pt100, Pt1000, Ni1000 in 2- or 3-wire connection)
- Configurable outputs: 4 channels configurable as analog voltage outputs (-10…+10 V) or analog current outputs (0…20 mA or 4…20 mA)
- Fixed voltage outputs: 4 channels as analog voltage outputs only (-10…+10 V)
- Resolution: 12-bit + sign
- Isolation: Inputs and outputs electrically/galvanically isolated from the module electronics and backplane
- Connection: 2-wire
- Power supply: 24 V DC - supplied via TU
- Power consumption: Approximately 6 W
- Compatible Termination Units: TU715F, TU716F
- Bus communication: Direct I/O for AC 700F / AC 900F Freelance controllers or PROFIBUS DP-V0 slave as remote I/O
- Features: High packing density, flexible per-channel/group configuration, suitable for mixed analog signal processing in process automation
- Protection class: IP20
- Operating temperature: 0 to +60 °C
- Certifications: cULus, Class I Div 2 compliant
- Part of ABB S700 I/O family: Modular, compact I/O for Freelance DCS and PROFIBUS masters

Dimensions: 85 x 70 x 75 mm (box)

Weight: 180 mm

Country of origin: Germany

HS code: 853890
