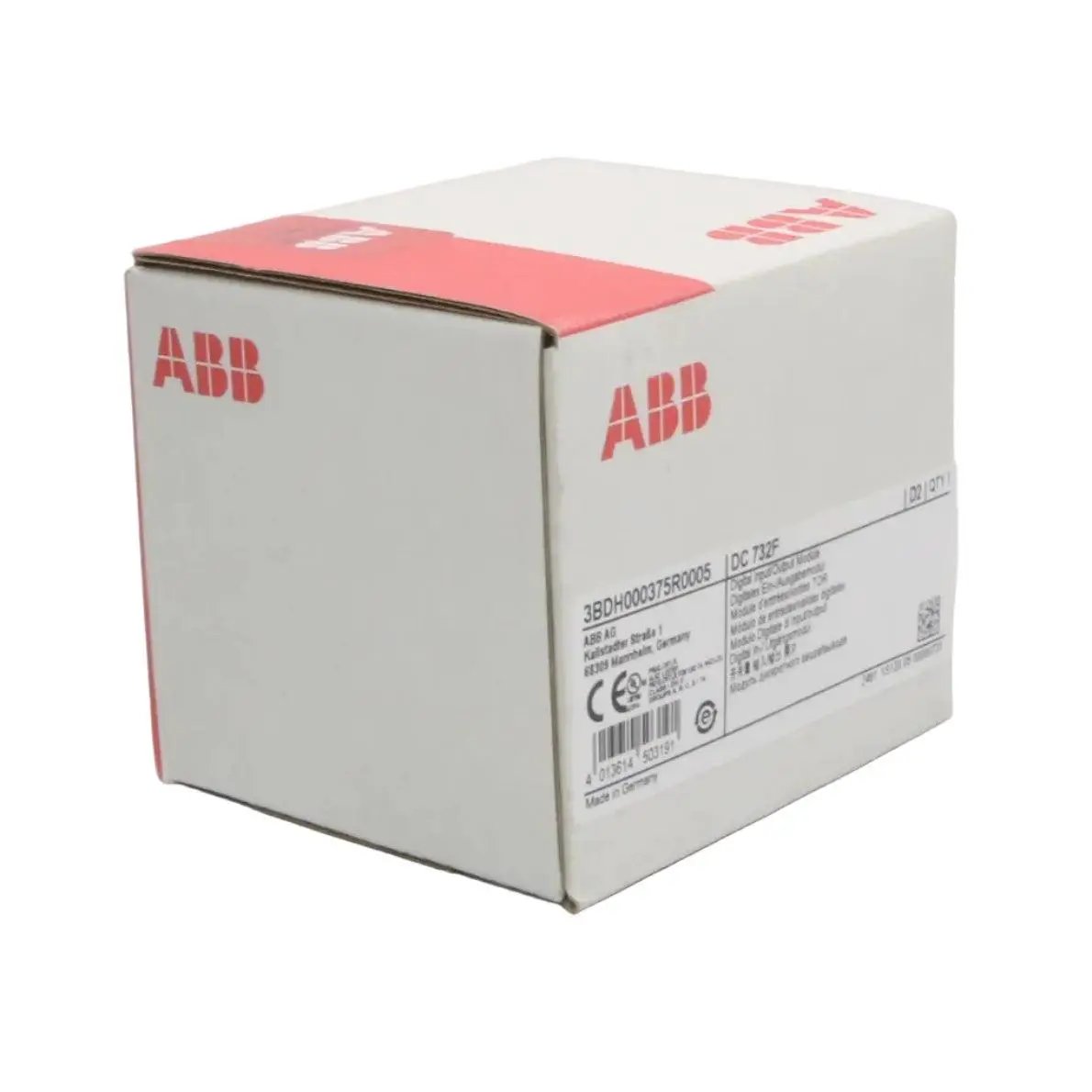

ABB DC 732F Digital Input/Output Module

- Brand: ABB

- Model: DC 732F

- Part Number: 3BDH000375R0005

- Type: Digital Input/Output Module - S700 I/O Series for Freelance AC 700F / AC 900F DCS

- All tech specs:
- Number of channels: 32 channels total
- Fixed digital inputs: 16 channels DI 24 V DC
- Configurable channels: 16 channels DI/DO 24 V DC / 0.5 A
- Input voltage range (logic "0"): -30 V to +5 V
- Input voltage range (logic "1"): +13 V to +30 V
- Output type: Transistor, current sourcing
- Maximum output current: 0.5 A per channel
- Connection: 1-wire
- Power supply: 24 V DC
- Power dissipation: 200 W
- Isolation: Galvanic isolation to backplane
- Compatible Termination Units: TU715F, TU716F
- Communication: Direct I/O for AC 700F / AC 900F or PROFIBUS DP-V0 slave as remote I/O
- Features: High packing density, mixed DI/DO in one module, configurable per channel, suitable for binary signals in process automation
- Protection class: IP20
- Operating temperature: 0 to +60 °C
- Certifications: cULus, ATEX Zone 2 / Class I Div 2 compliant (S700 family)

Dimensions: 85 x 75 x 70 mm (box)

Weight: 180 g

Country of origin: Germany

HS code: 853890
