ABB

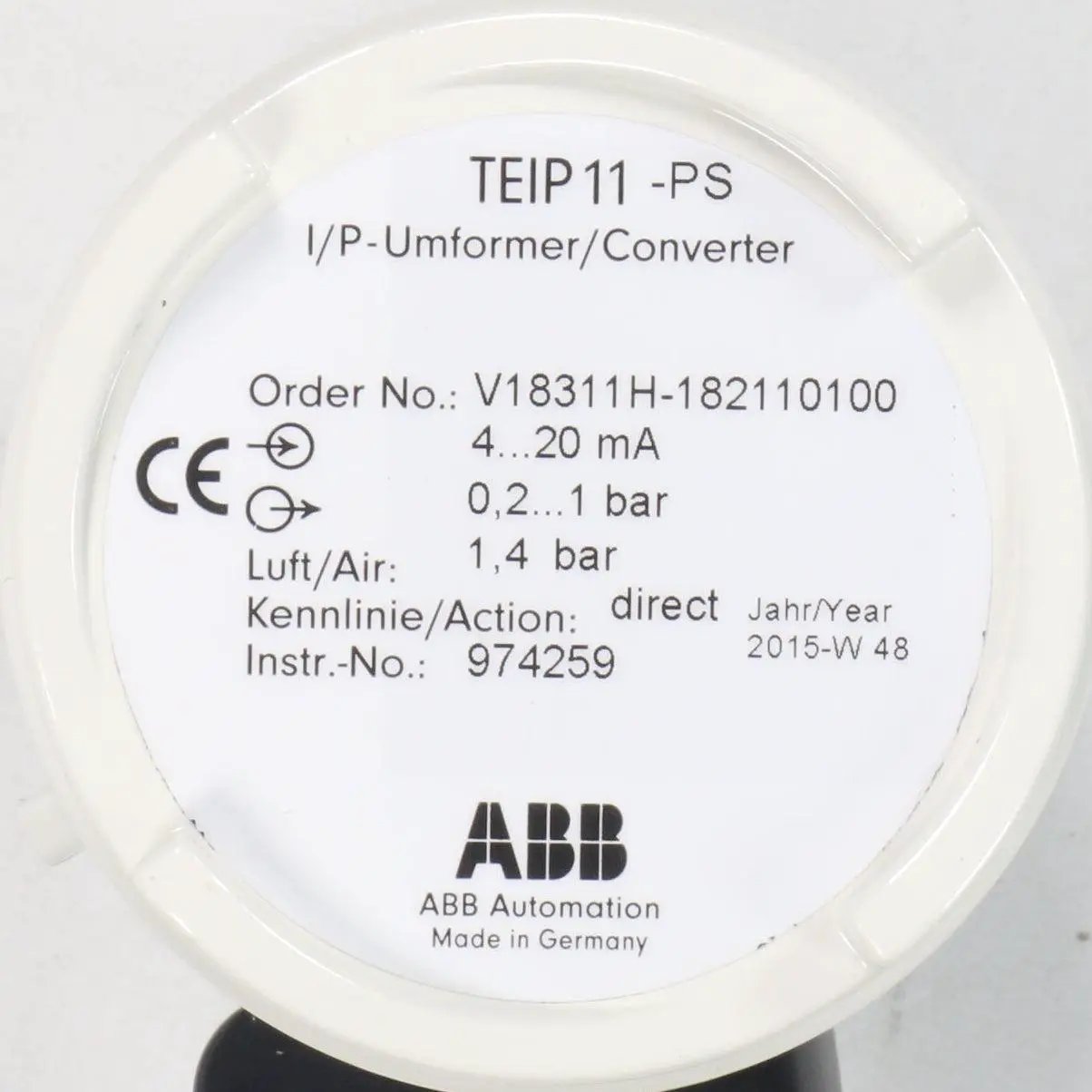

ABB TEIP11-PS Signal Converter

ABB TEIP11-PS Signal Converter

€780,45incl. VAT
€645,00 excl. VAT

Stock: 2

Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandABB
ModelTEIP11-PS
TypeSignal Converter / I/P Converter
Order numberV18311H-182110100
all tech specs
  FunctionConverts standard electrical input signal (4-20 mA) to proportional pneumatic output pressure
  Input Signal4-20 mA
  Output Pressure0.2-1.0 bar
  Supply Air Pressure1.4 bar
  Air Consumption≤ 0.3 Nm³/h
  Accuracy±0.5 % of span
  Linearity±0.25 % of span
  Hysteresis≤ 0.15 % of span
  Repeatability±0.15 % of span
  Sensitivity≤ 0.05 % of span
  Dead Band≤ 0.1 % of span
  Response Time≤ 0.1 s (for 90 % step)
  Ambient Temperature Effect±0.02 % of span per °C
  Supply Pressure Effect≤ 0.1 % of span per bar change
  Load SensitivityNegligible
  Protection ClassIP65
  Operating Temperature-40°C to +85°C
  Storage Temperature-55°C to +85°C
  Relative Humidity0-100 % (non-condensing)
  Vibration Resistance2 g at 5-400 Hz
  Shock Resistance30 g
  MountingPipe, wall or panel mount (with bracket)
  Pneumatic Connection1/4" NPT
  Electrical ConnectionM20 cable gland
  Housing MaterialAluminium die-cast, epoxy coated
  CertificationsFM, CSA, SIL 2 capable (IEC 61508)
Dimensions110 x 70 x 150 mm
Weight850 g
Country of originGermany
HS code903289
