ABB TU 716F I/O Terminal Unit

- Brand: ABB

- Model: TU 716F

- Part Number: 3BDH000382R0001

- Type: I/O Terminal Unit (Termination Unit / Base Module for S700 I/O Series)

- All tech specs:
- Designed for: Mounting and wiring of S700 I/O modules (e.g., AI 723F, AO 723F, DX 731F, DX 722F, DC 732F, AX 722F, etc.) in Freelance AC 700F / AC 900F DCS or as PROFIBUS DP remote I/O
- Terminal type: Spring clamp terminals
- Number of terminals: Sufficient for 16-32 channel modules
- Wire size: 0.2–2.5 mm²
- Connection: 1-wire or 2-wire depending on module
- Power supply distribution: 24 V DC to module via backplane and terminals
- Bus connection: Integrated PROFIBUS DP interface support when used with remote I/O configuration
- Mounting: DIN rail (TS 35) horizontal or vertical
- Keying: Mechanical coding to prevent incorrect I/O module insertion
- Isolation: Supports galvanic isolation as provided by mounted I/O module
- Features: Compact design, high packing density, easy module replacement,       integrated ModuleBus / backplane for communication and power
- Protection class: IP20
- Operating temperature: 0 to +60 °C
- Certifications: cULus, Class I Div 2 compliant
- Part of ABB S700 I/O family: Passive termination base for modular, flexible I/O in process automation

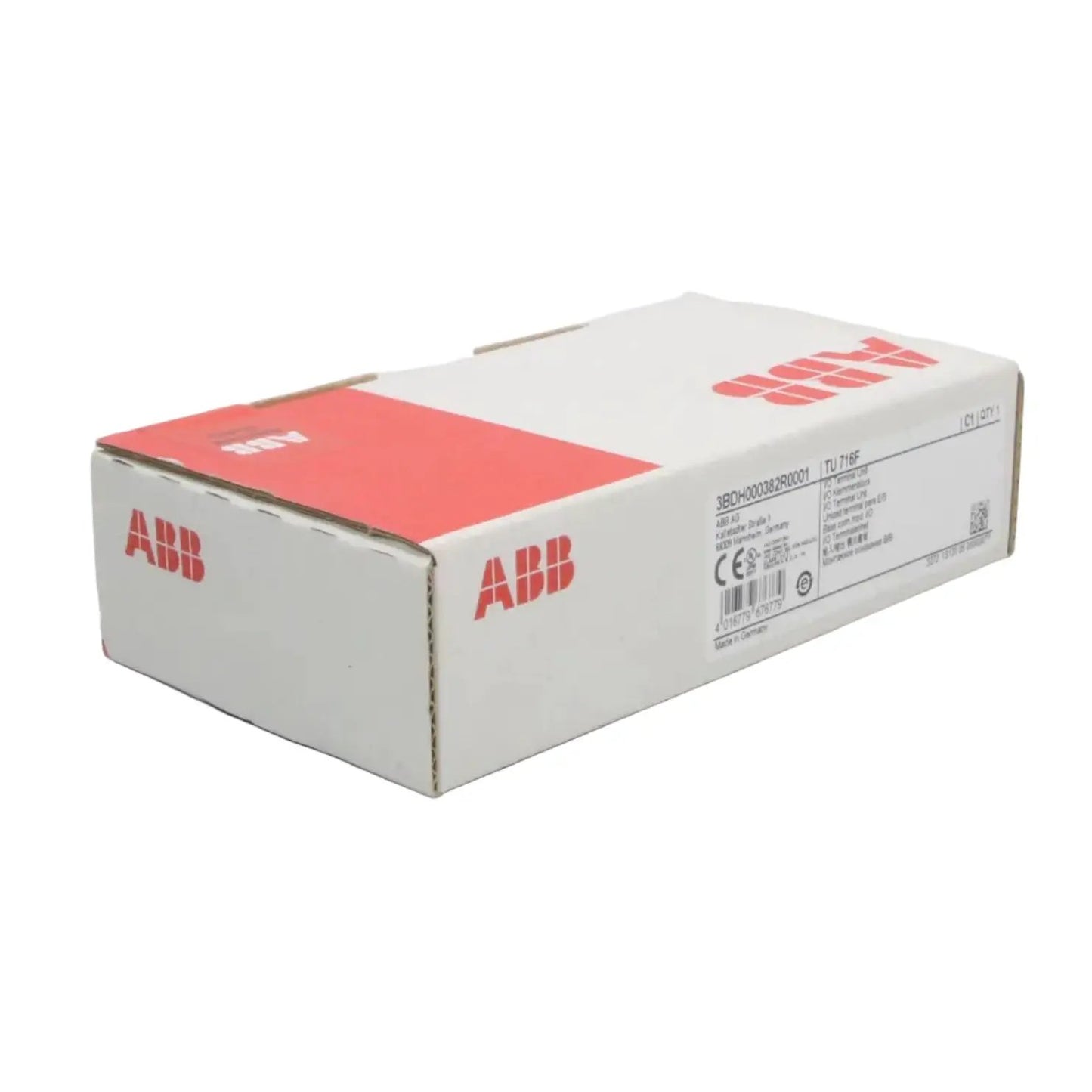

Dimensions: 150 x 80 x 40 mm (box)

Weight: 210 g

Country of origin: Germany

HS code: 853890
