GFA/Assa Abloy

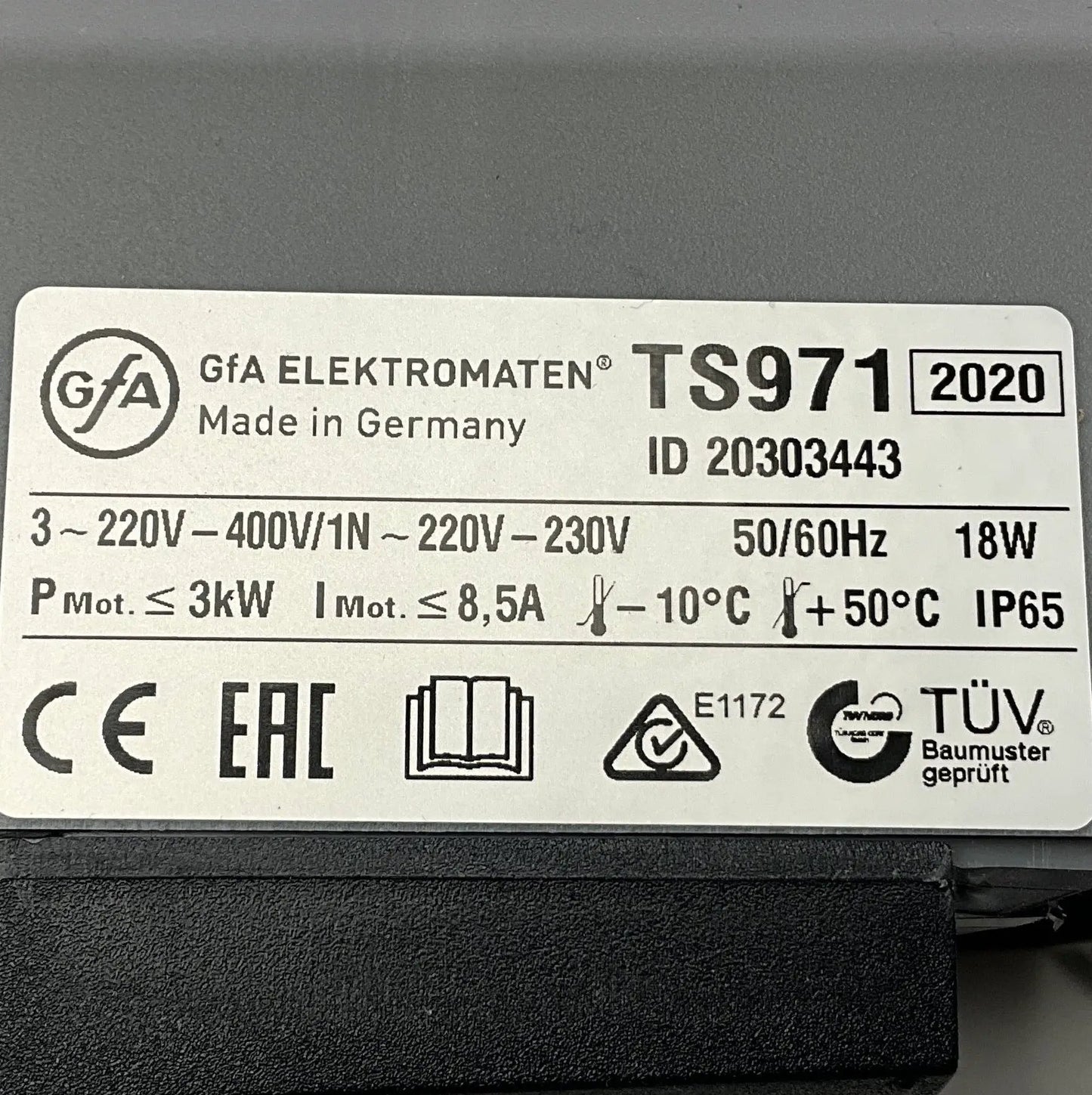

GFA/Assa Abloy TS 971 Door Control Unit

GFA/Assa Abloy TS 971 Door Control Unit

€477,95incl. VAT
€395,00 excl. VAT

Out of stock

Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandGFA ELEKTROMATEN GmbH & Co. KG (Assa Abloy)
ModelTS 971
TypeControl Unit / Door Controller for Industrial Sectional Doors
Part Number30097100
Technical Specs
FunctionMicroprocessor-based control unit for automatic sectional, roller, and high-speed industrial doors; supports single-leaf, double-leaf, and bi-parting doors
Operating voltage1 N~220-230 V, 3 N~220-400V, 3~220-400V
Motor PowerUp to 1.1 kW
Rated Current per phase10…..16 A
Control Voltage24 V DC, 10mA

 24 V DC supply for accessories (max 500 mA)

Safety FeaturesCategory 2/PL c (EN ISO 13849-1)
Operating ModesAutomatic, Deadman, Push-and-Go, Impulse, Partial Open, Timer
Display7-segment LED display + status LEDs (operation, fault, safety circuit)
Programming3-button interface or optional IR remote (TS 971 IR)
CommunicationWSD 2.4 GHz, Funk 434 MHz
Enclosure RatingIP54
Operating Temperature-20 °C to +60 °C
Additional Features

  Integrated frequency inverter option (for soft start/stop)

  Automatic door closing timer (adjustable 0–300 s)

  Partial opening function (adjustable height)

  Maintenance interval counter

  Self-learning limit switch adjustment

Dimensions400 x 180 x 200 mm
Weight2.0 kg
Country of Origin: Germany
HS Code8537.10
