Baumer

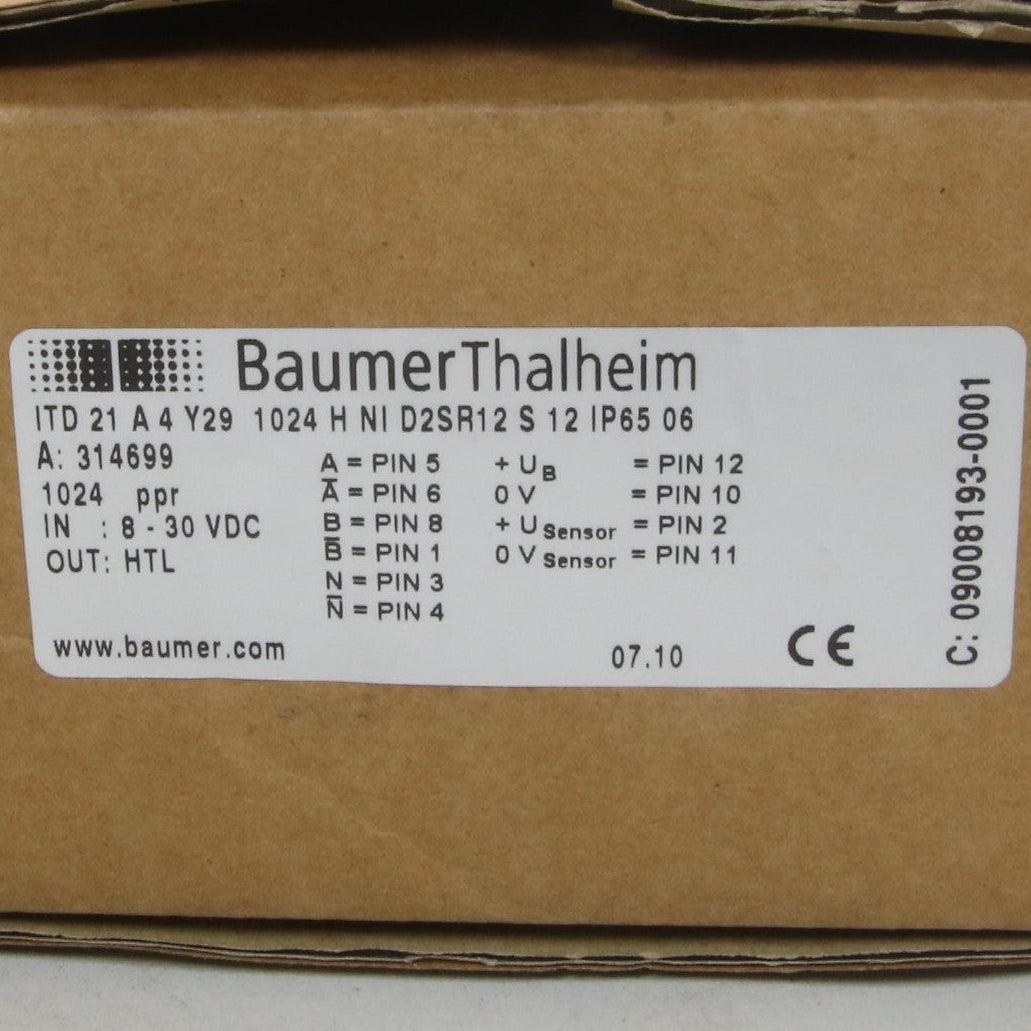

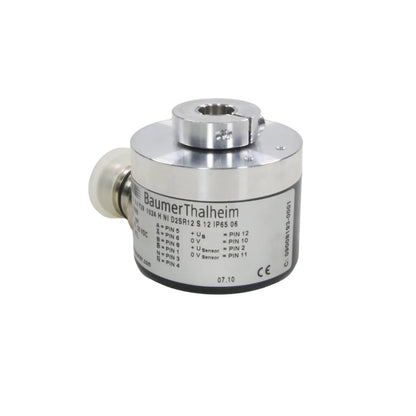

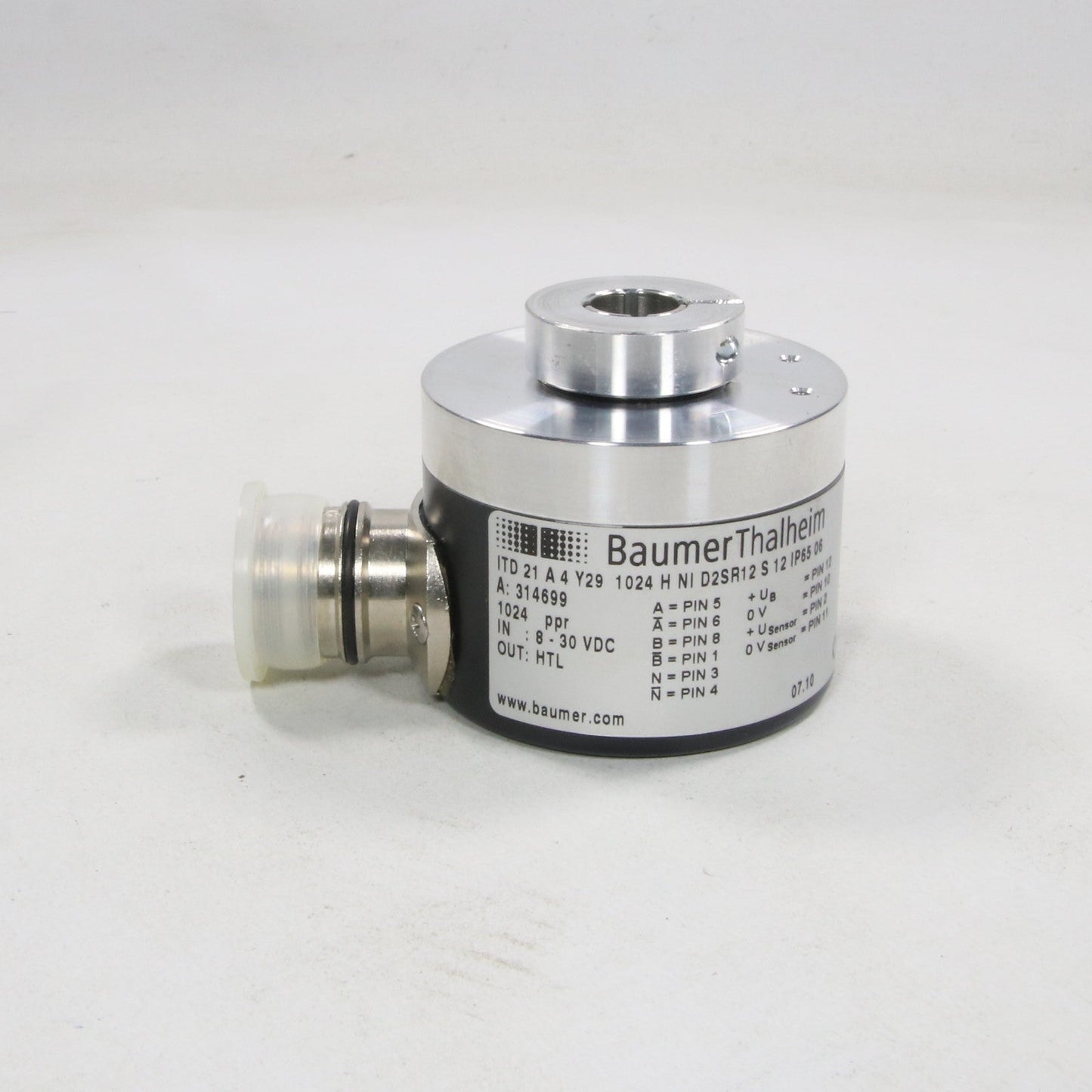

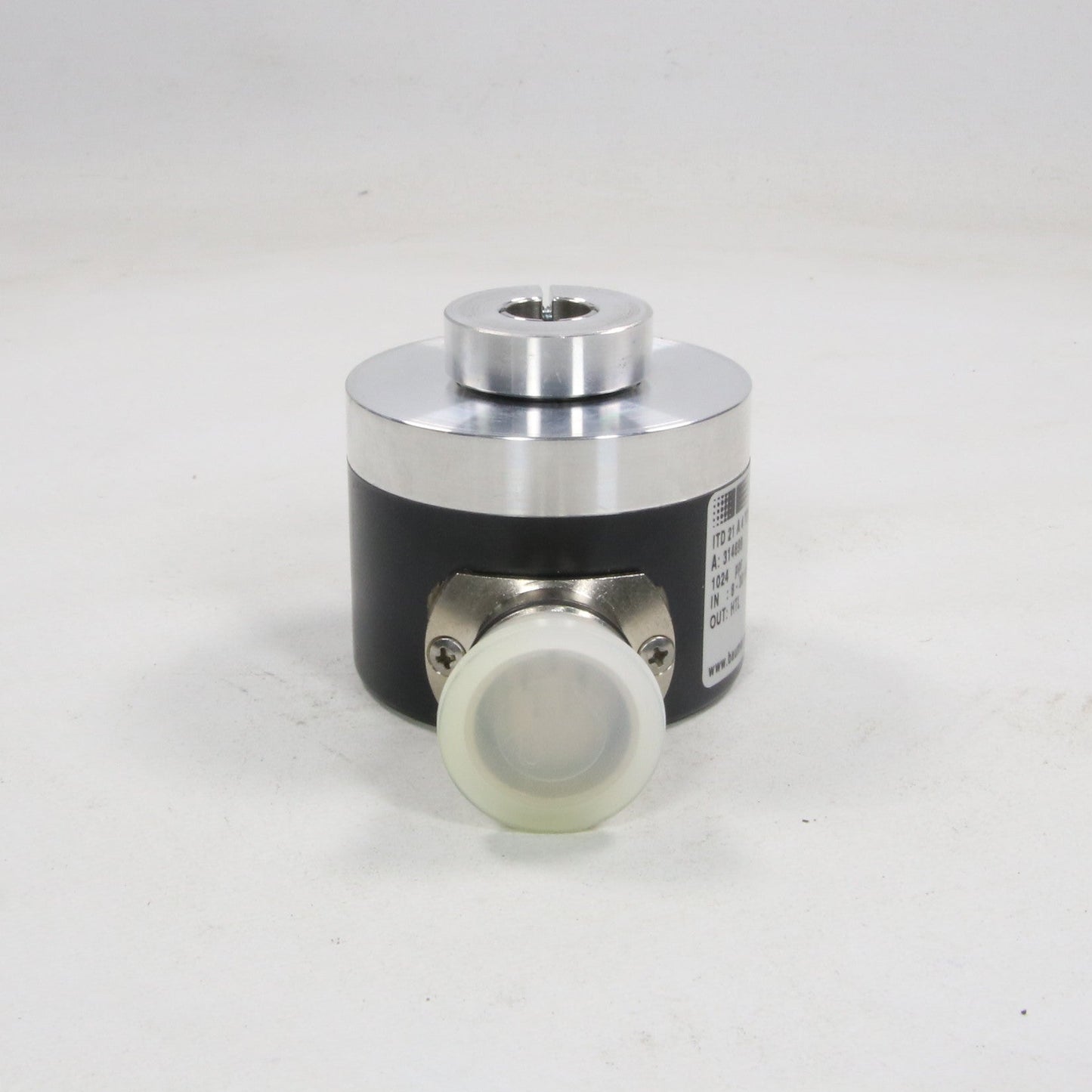

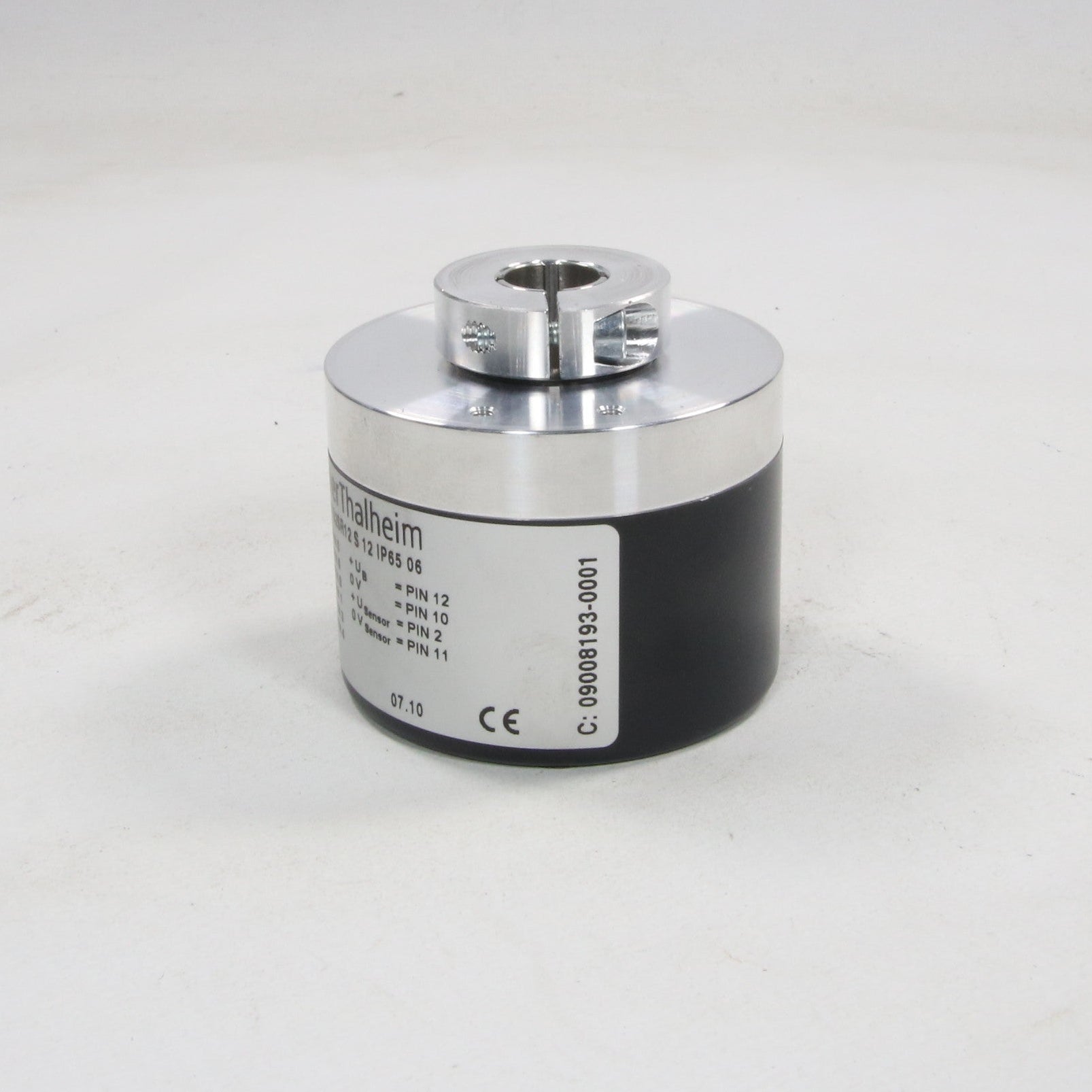

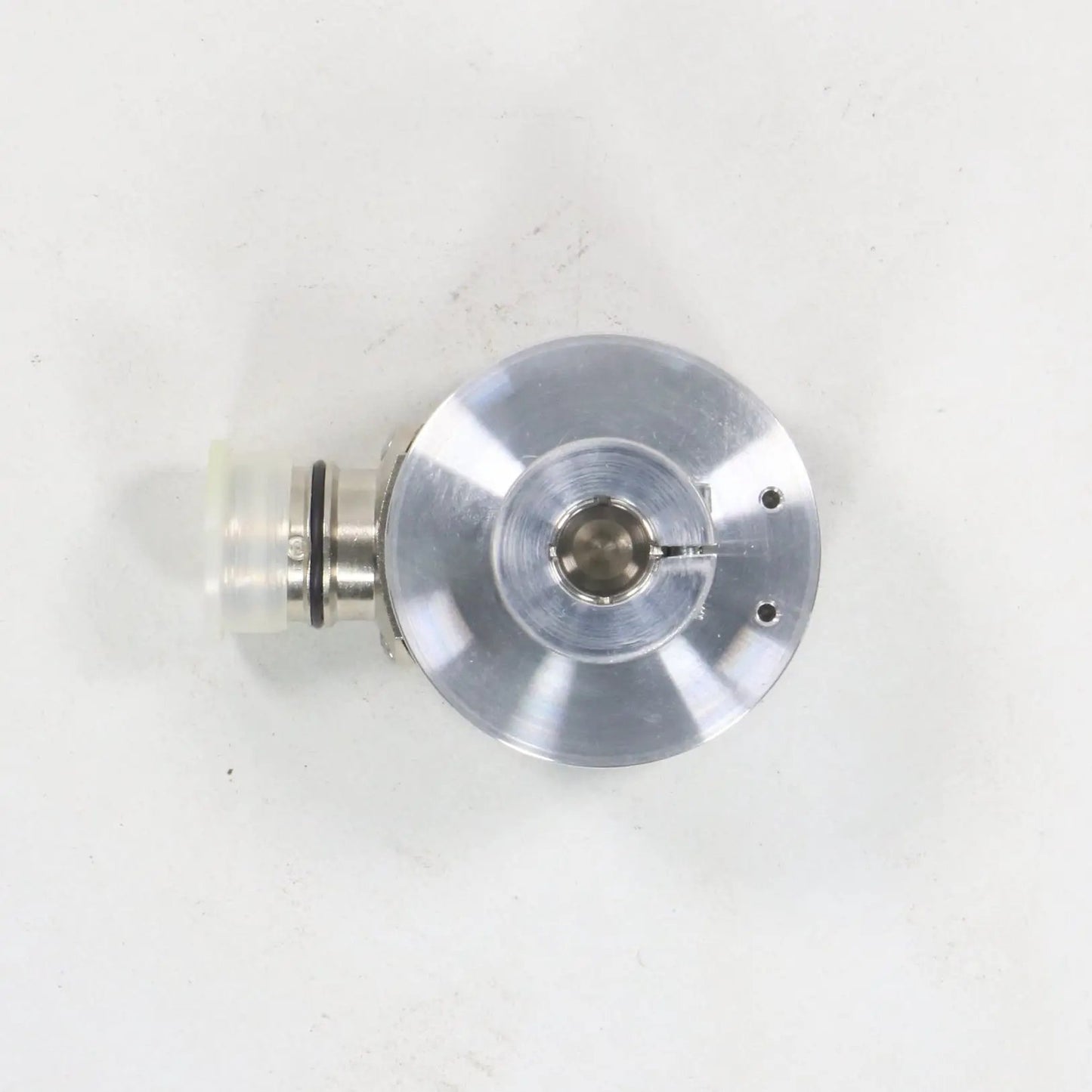

Baumer ITD 21 A4 Y29 Incremental Rotary Encoder

Baumer ITD 21 A4 Y29 Incremental Rotary Encoder

€393,25incl. VAT
€325,00 excl. VAT

Stock: 1

Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandBaumer (Baumer Thalheim; Baumer Group)
ModelITD 21 A 4 Y29 1024 H NI D2SR12 S 12
TypeIncremental Rotary Encoder
Part number314699
Technical specifications
Sensing methodOptical
Pulses per revolution (PPR)1024
Output signalsHTL / Push-Pull
Phase shift90° electrical
Reference signalZero pulse
Supply voltage8–30 V DC
Consumption w/o loadApprox. 100 mA
Max. output frequencySufficient for industrial speeds
Shaft / MountingBlind hollow shaft - Ø 12 mm
Flange / HousingCompact design
Protection ratingIP65
Operating temperature-25°C to +85°C
Max. speedUp to 5000–8000 rpm
ConnectionConnector D2SR12 (12-pin connector)
Additional featuresRobust for industrial use; high resistance to shock/vibration; optical for precise, contactless measurement; suitable for motors, conveyors, or machine tools; long cable tolerance with HTL driver
StandardsCompliant with IEC/EN for industrial encoders; CE marked
Weight400 g
Dimensions58 mm; shaft bore Ø 12 mm (blind hollow); overall length 83 mm
Country of originGermany
HS code9031.80
