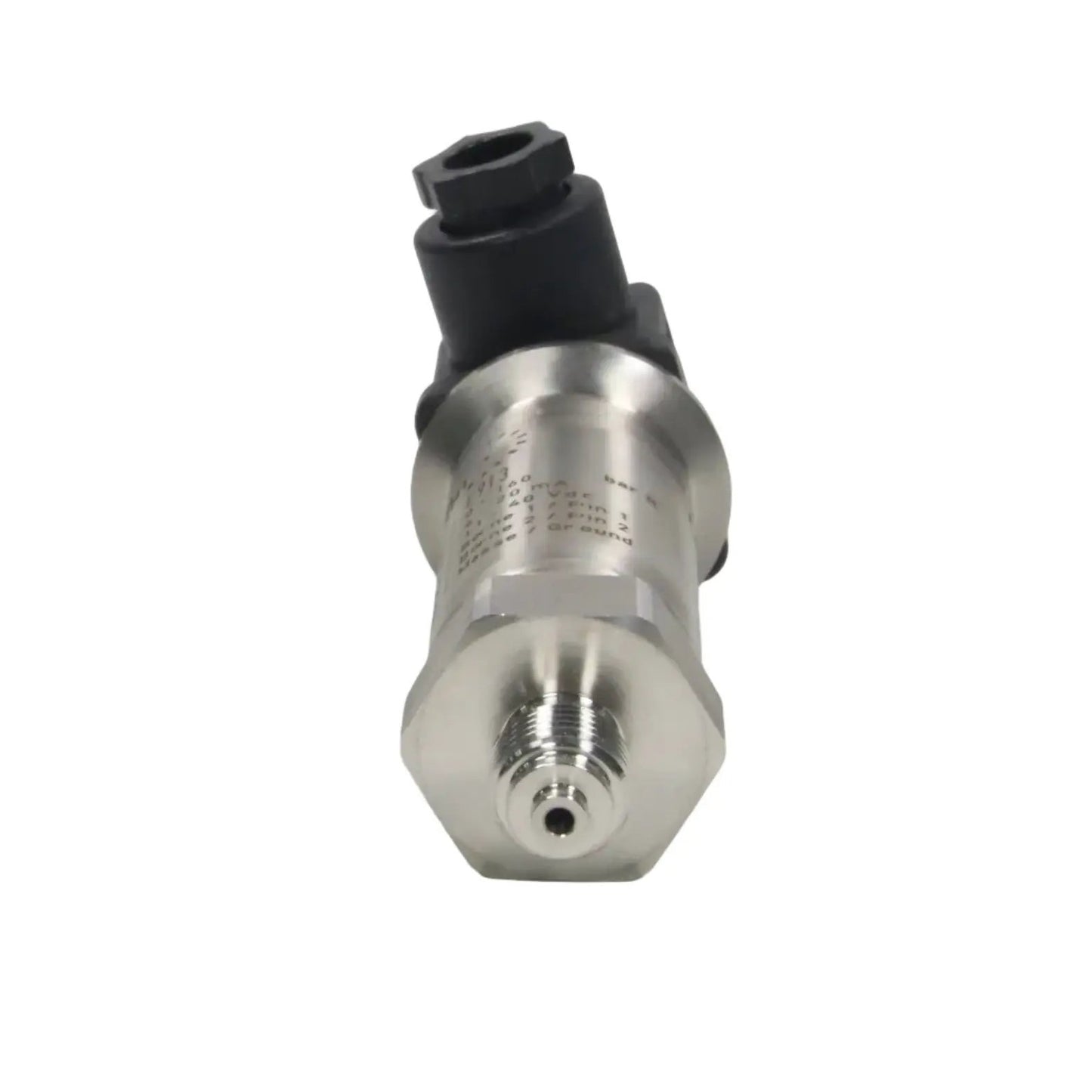

Bourdon Haenni E913 Pressure Transmitter

Bourdon Haenni E913 Pressure Transmitter

€211,75incl. VAT
€175,00 excl. VAT

Stock: 1

Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandBourdon Haenni
ModelE913
TypePressure Transmitter
All tech specs
  FunctionIndustrial pressure transmitter for relative or absolute pressure measurement of gases, vapours and liquids
  Measuring PrinciplePiezoresistive sensor with stainless steel diaphragm
  Measuring Range0 … 160 bar
  Overpressure Limit2 × full scale
  Accuracy±0.5 % of full scale (standard), ±0.25 % optional
  Long-term Stability≤ ±0.2 % FS per year
  Temperature Influence≤ ±0.015 % FS / °C
  Output Signal4 … 20 mA (2-wire)
  Supply Voltage11 … 40 V DC
  Current Consumption≤ 22 mA
  Response Time≤ 5 ms
  Process ConnectionG1/4" male
  Wetted Parts MaterialStainless steel 1.4571 (316Ti) diaphragm and process connection
  Seal MaterialNBR
  Housing MaterialStainless steel 1.4305
  Electrical ConnectionM12 × 1 connector (4-pin)
  Protection RatingIP67
  Operating Temperature–25 °C to +85 °C
  Ambient Temperature–20 °C to +80 °C
  Vibration Resistance10 g (10–2000 Hz)
  Shock Resistance100 g (11 ms)
  FeaturesCompact design, high overload protection, reverse polarity protection, EMC resistant, zero and span adjustment, discontinued
DimensionsØ 40 mm × 110 mm
Weight220 g
Country of originFrance
HS code902620
