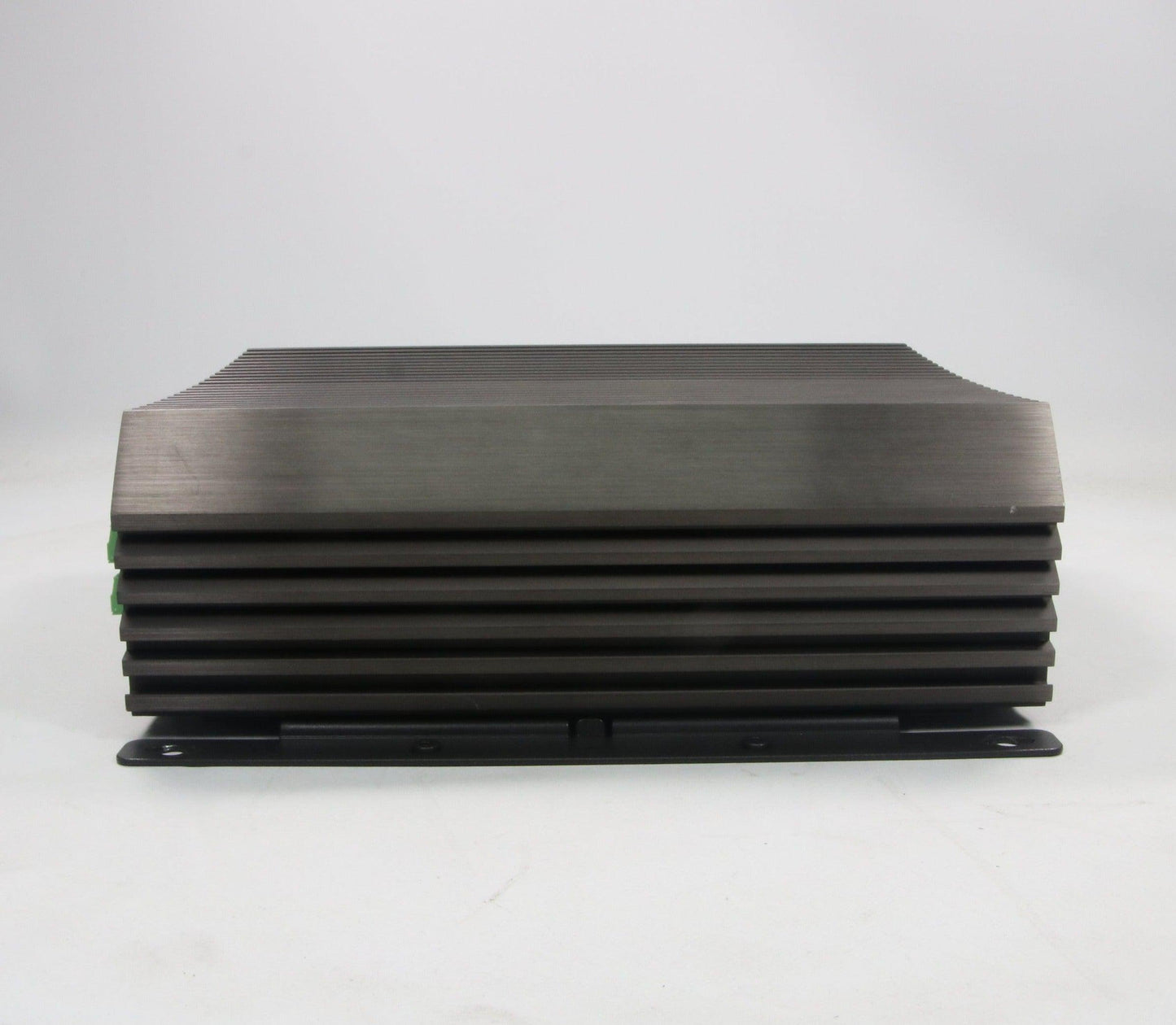

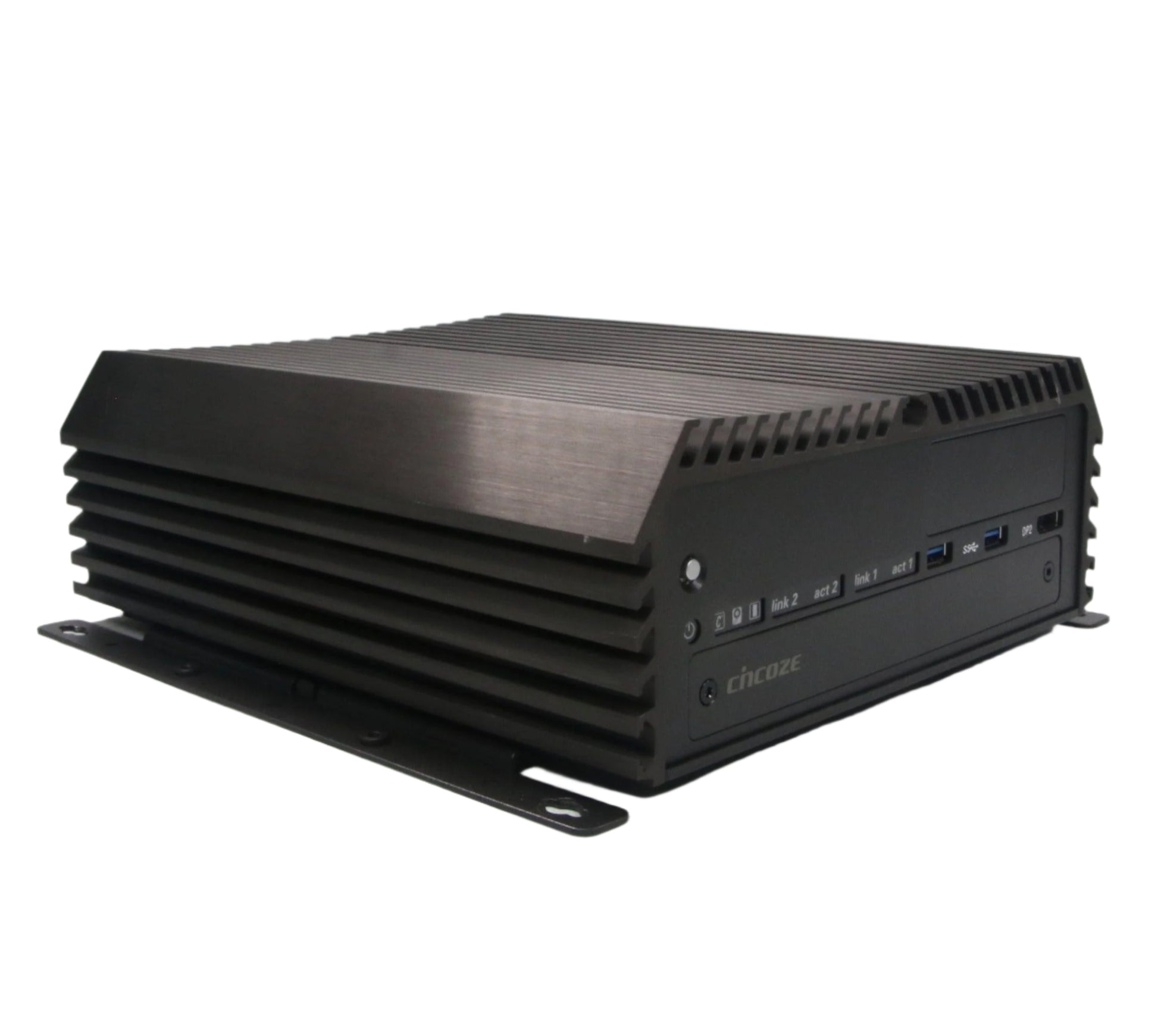

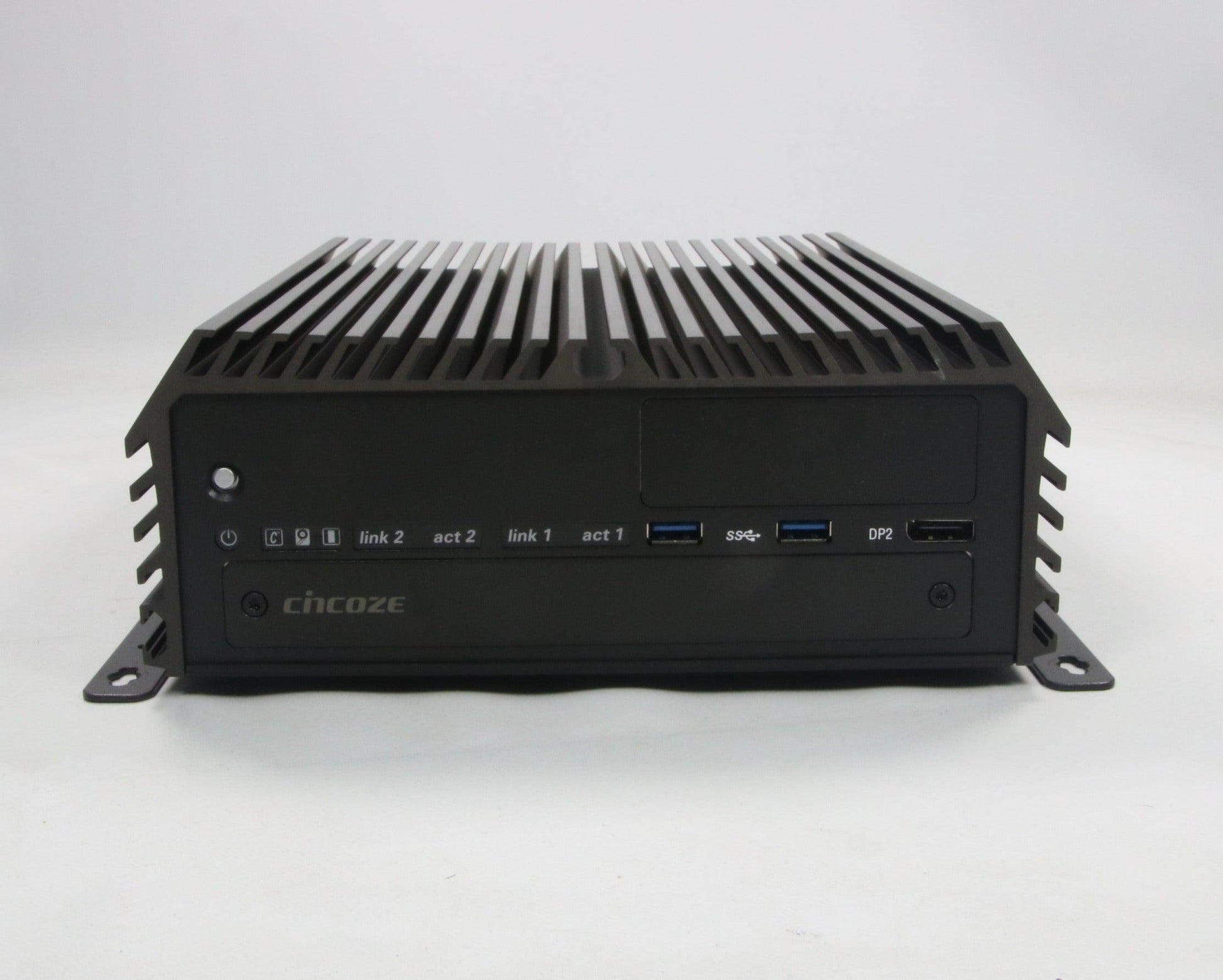

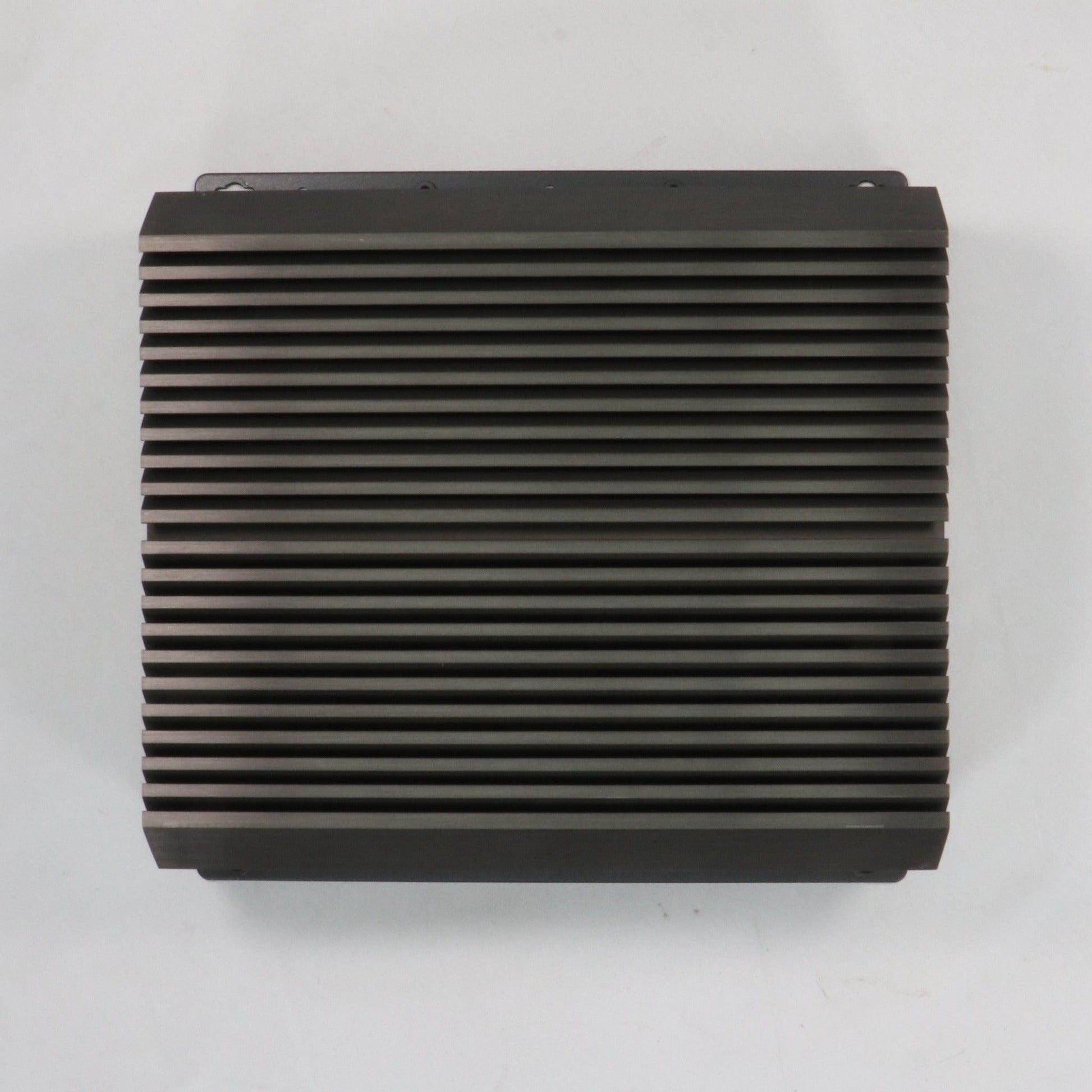

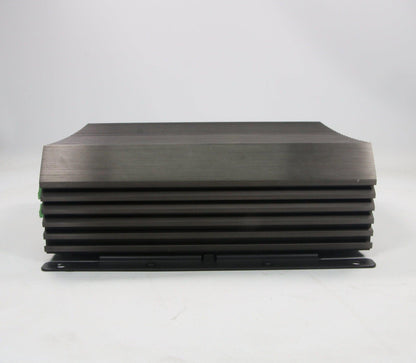

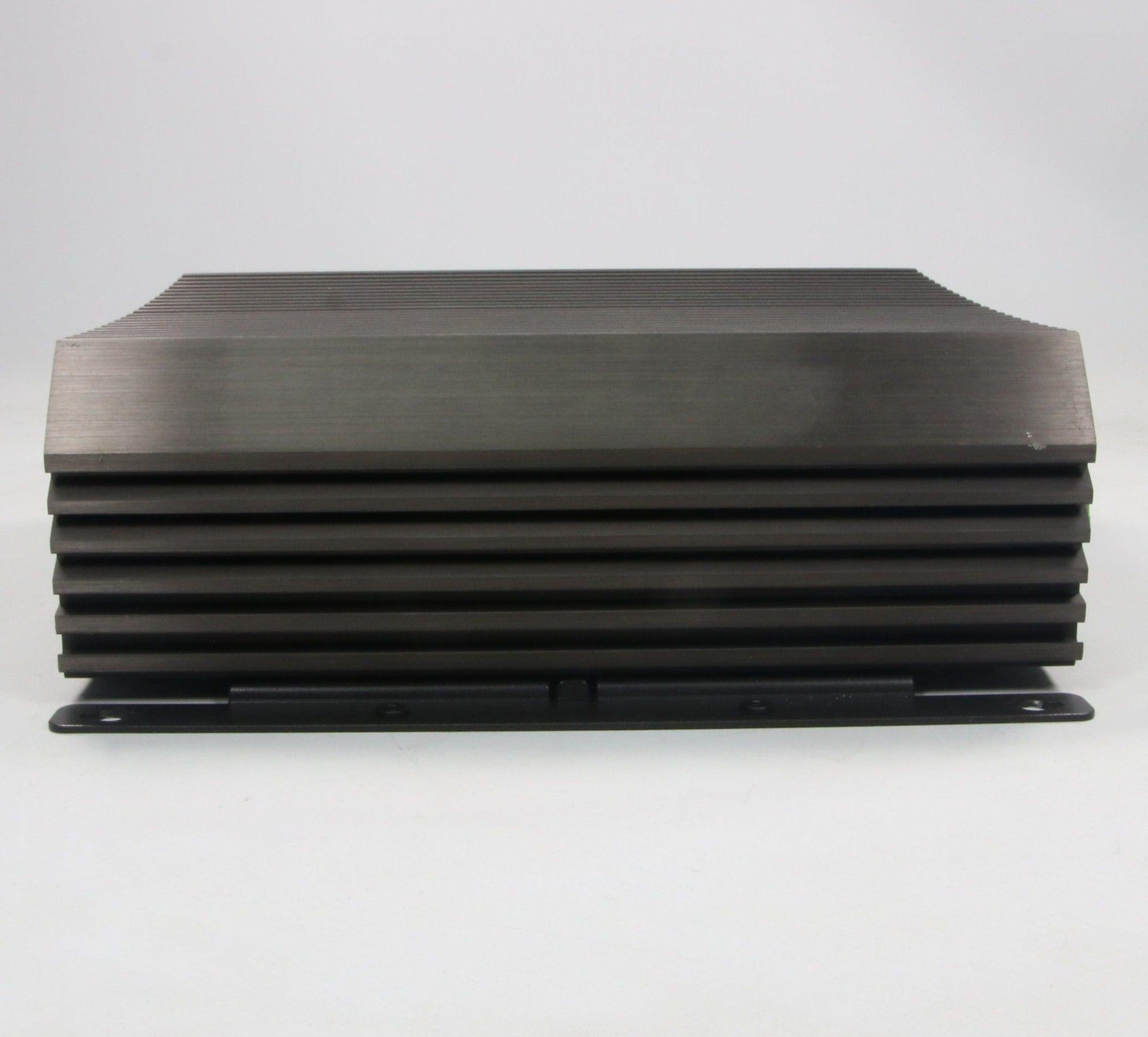

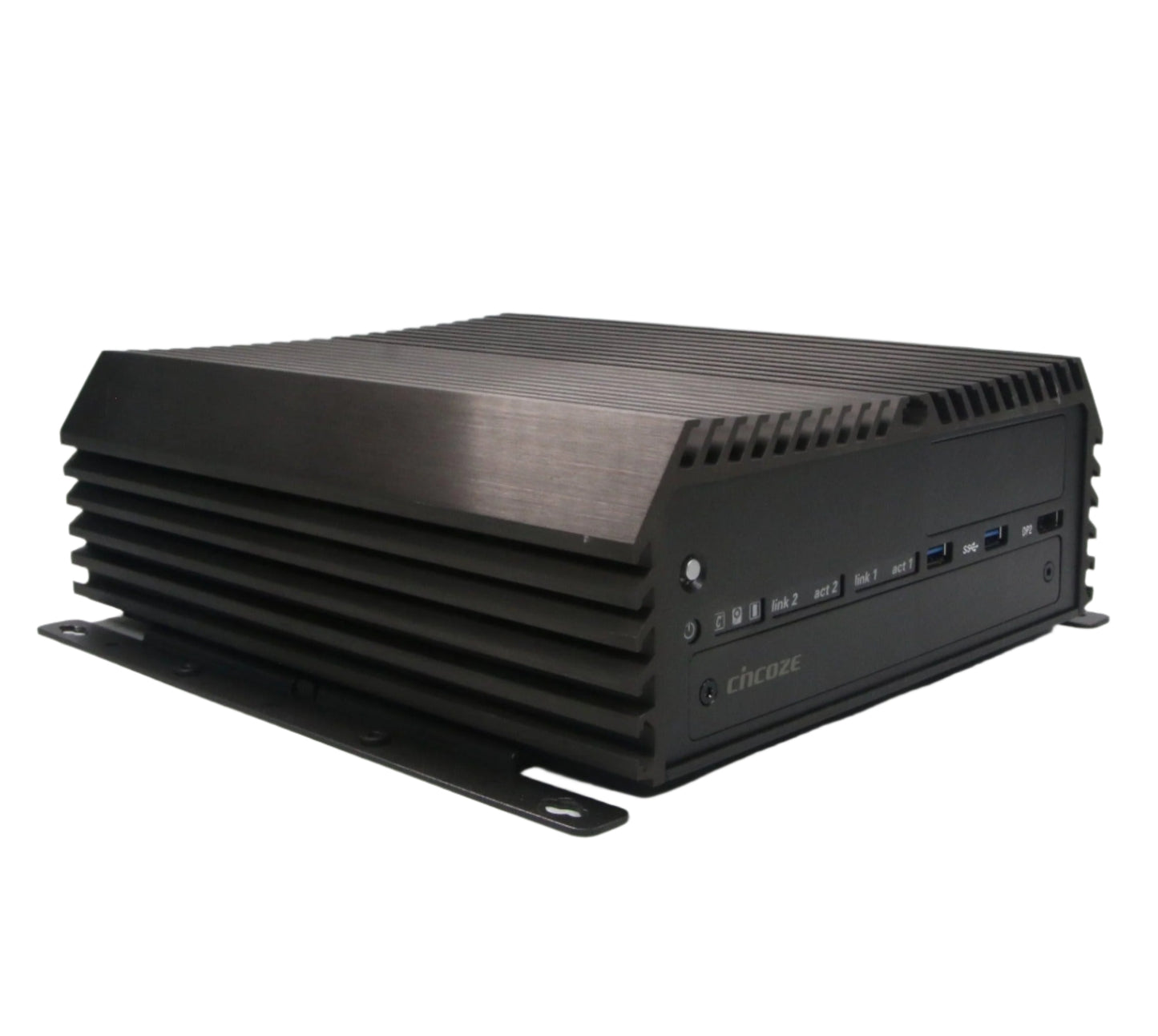

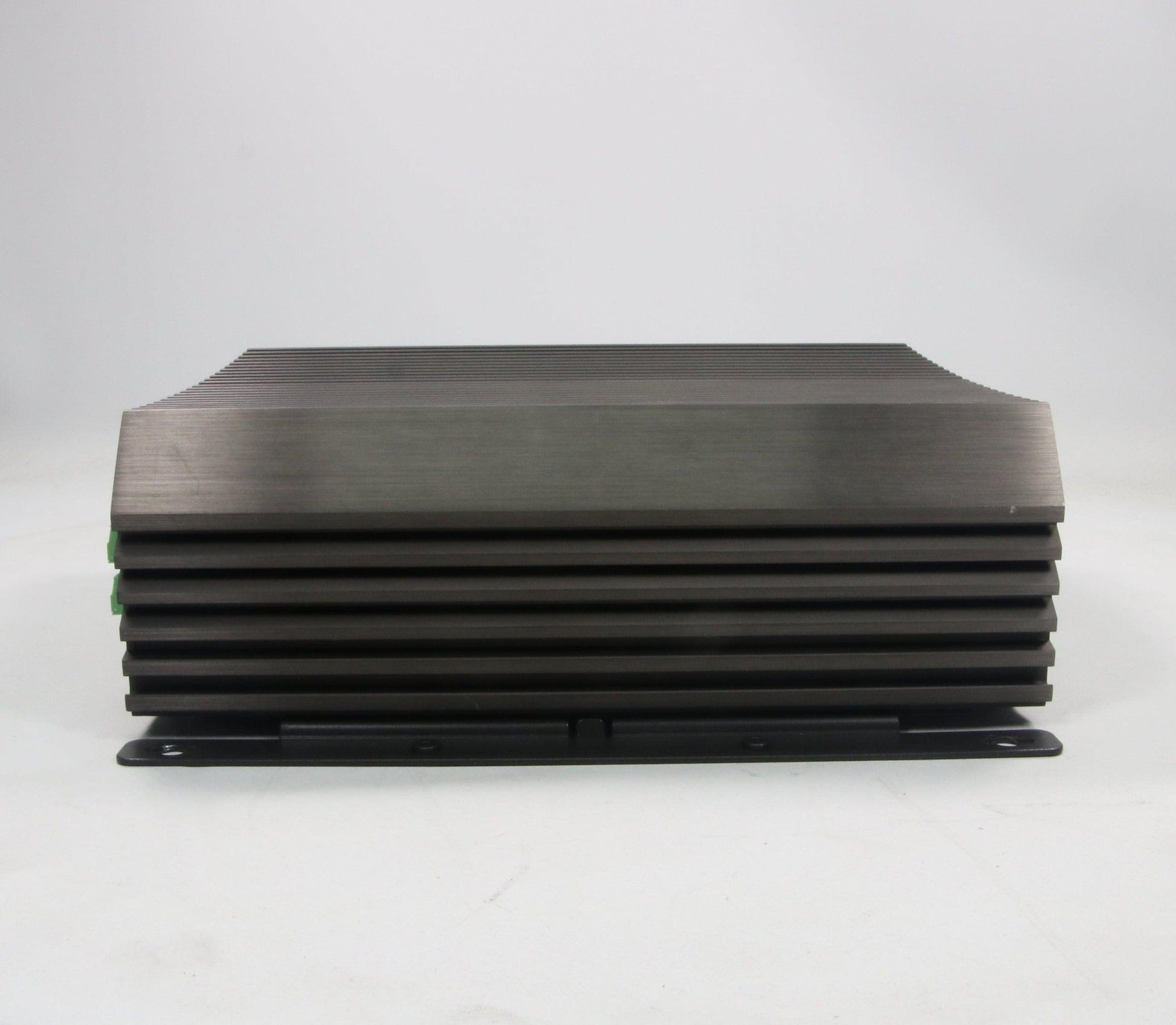

Cincoze DS1100-R20 Fanless Embedded PC
Cincoze DS1100-R20 Fanless Embedded PC
Low stock: 4 left
Couldn't load pickup availability
SKU:CA-04-08

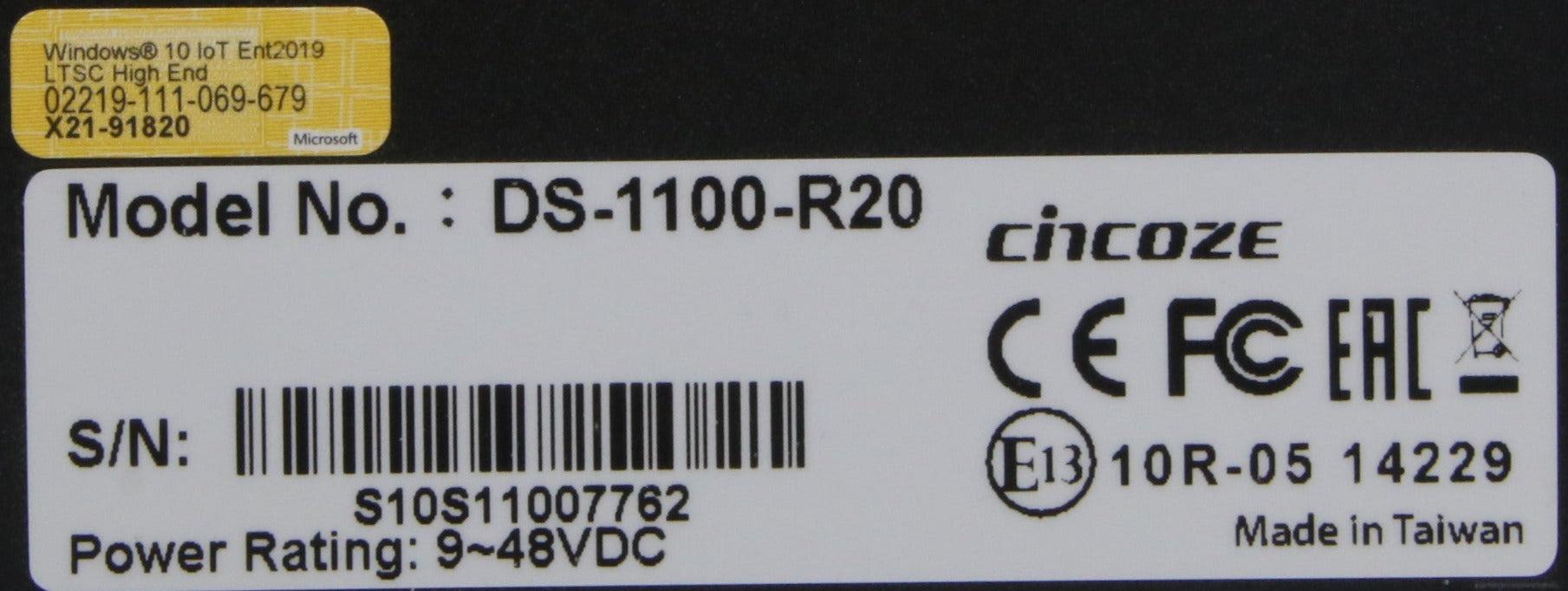

UIP no.:DS11-R20
Weight: 5.5 kg
- Cincoze
- DS1100-R20
- Fanless Embedded PC
-
Intel Core i5 CPU
- 1TB SATA SSD
- 16GB DDR4 SO-SIMM 2400Mhz
- Window Server 2019

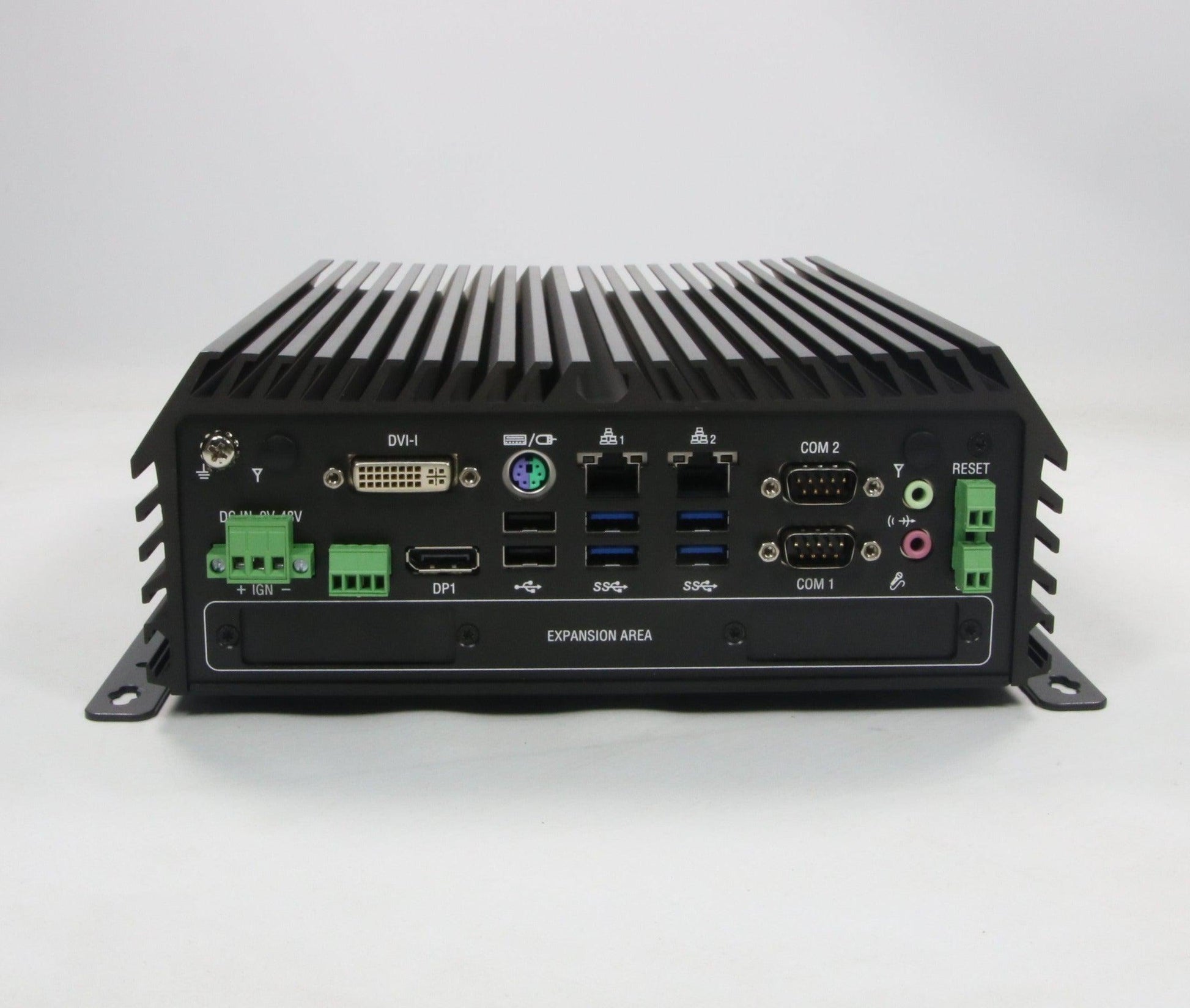

- 2 x 1GbE LAN
- 6 x USB 3.2
- 2 x USB 2.0
- 2 x RS232/422/485
- 2 x SIM Card Slots
- 2 X Display Port
- 1 x DVI-I Port
- 1 x PS/2 Port
- 1 x External Fan Connector
- 1 x Mic/Speaker Jack
- 1 x DC In 9V-48V Connector
- 1 x Reset/SW Connector
- 2 X Rear Expansion Slots
- Cincoze DS-1100 Series is a high-performance fanless embedded computer powered by 7/6th generation Intel® Core™ platform supporting a wide range of desktop CPUs (socket-type, LGA1151), and accommodates two DDR4 sockets up to 64 GB which allows DS-1100 Series to fulfill all kinds of high-end computing requirements. DS-1100 Series provides powerful functionalities such as rich I/Os, Power over Serial, Electrical Isolated Serial Ports, Optical Isolated Digital I/O, multiple LAN, Power over Ethernet, M12 connectors, RAID 0/1, Power Ignition Sensing and Instant Reboot. Thanks to Cincoze’s CMI & CFM Technology, it allows you to configure DS-1100 Series according to your specific needs with ready-to-use modules. DS-1100 Series also supports maximum 2 PCI/PCIe expansion slots withdifferent combination of interfaces for expanding all kinds of application add-on cards. DS-1100 Series is truly a rugged computing system with features of wide operating temperature (-40°C to 70°C), wide range DC power input (from 9V to 48V), high tolerance of shock and vibration, high-standard industrial protections and the integrated SuperCap for battery maintenance-free operation. DS-1100 Series is suitable to deploy in a harsh environment and for critical applications, and it is totally maintenance-free.
