Danfoss

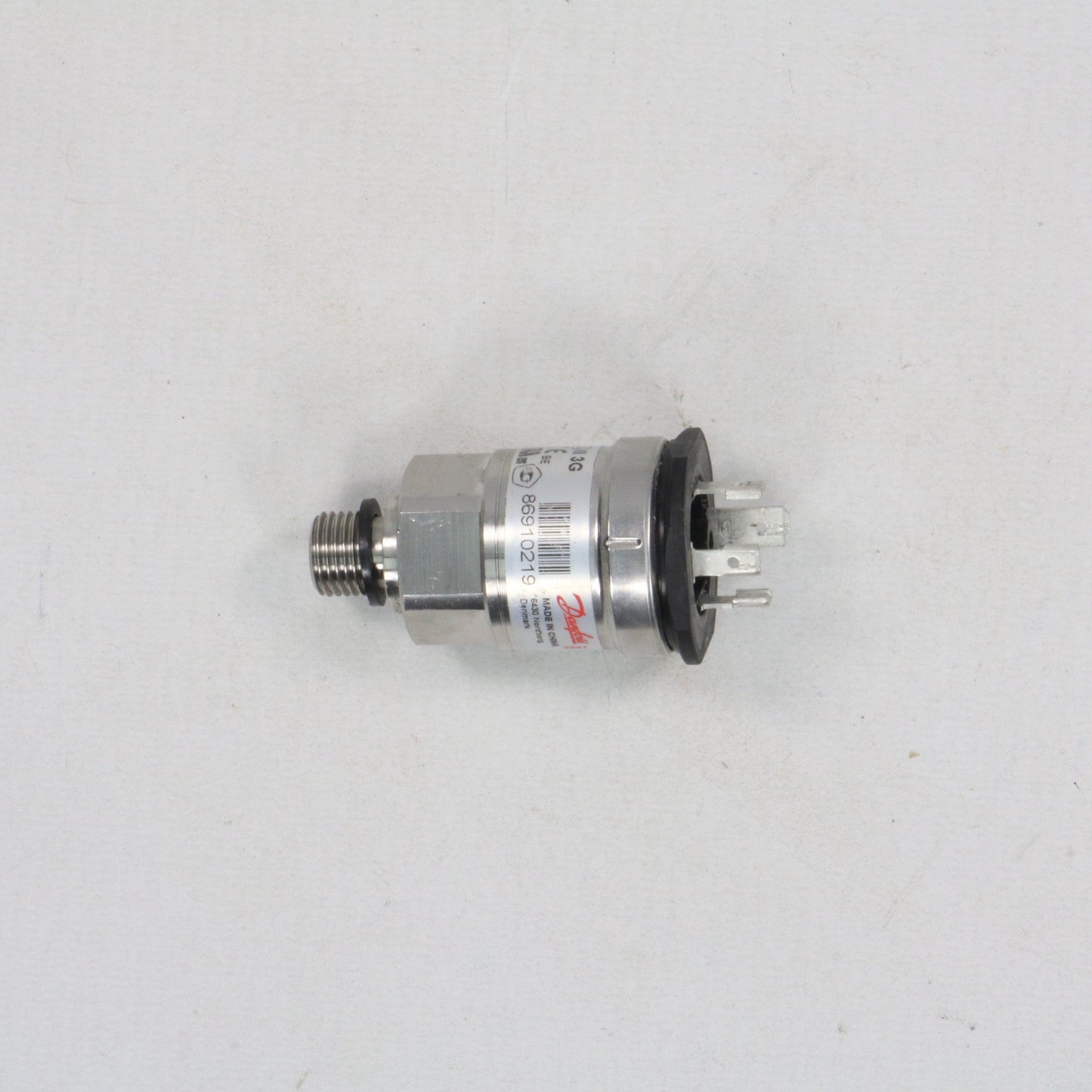

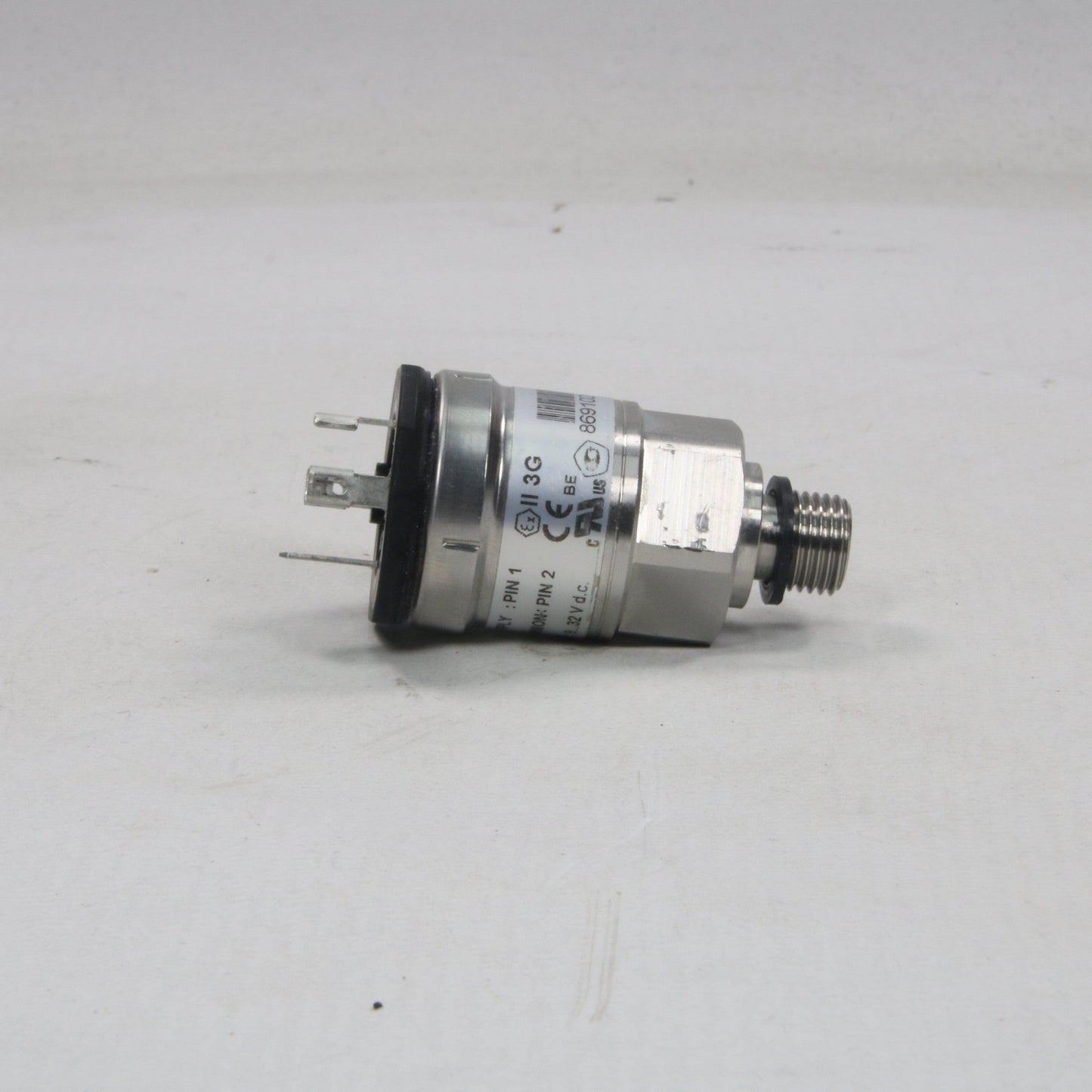

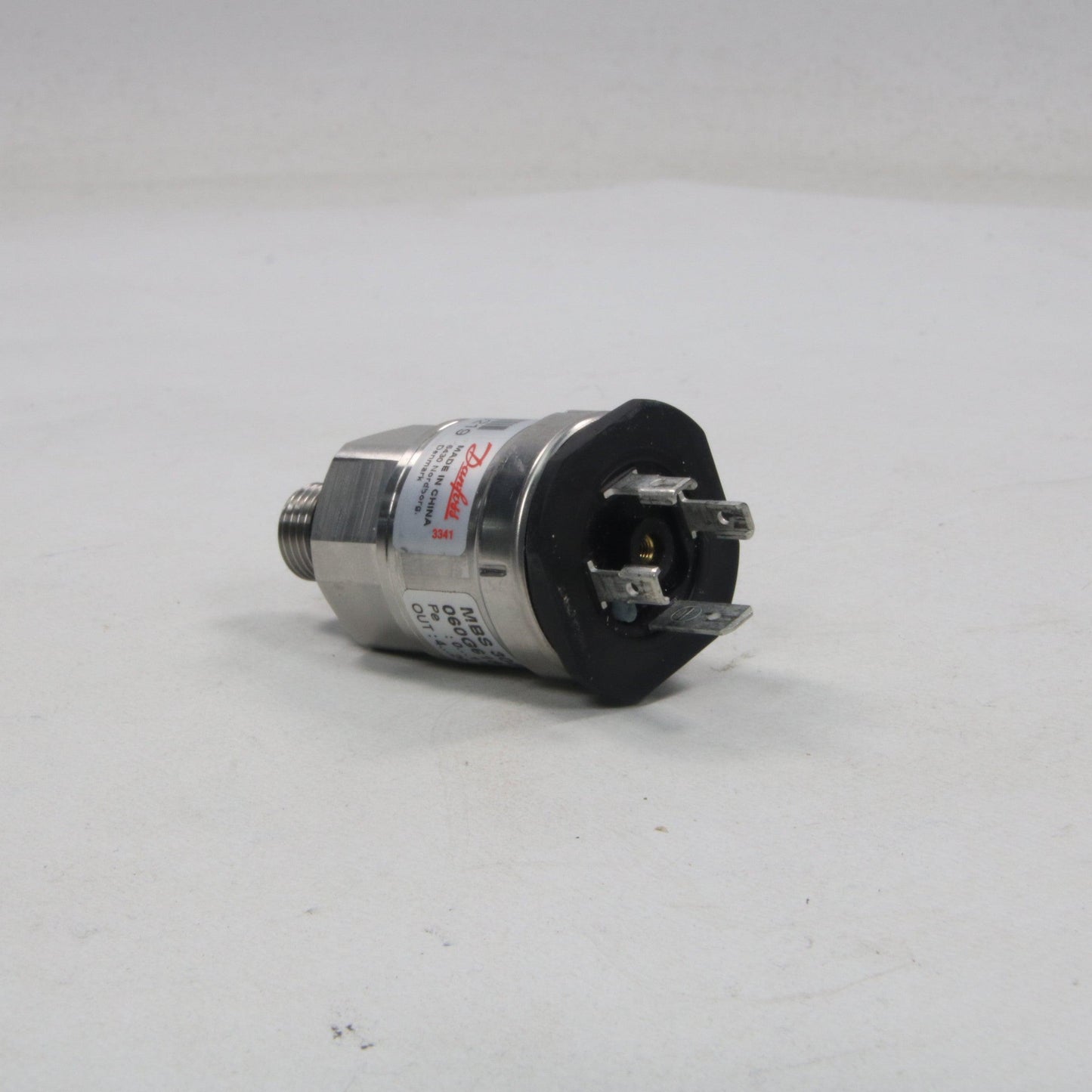

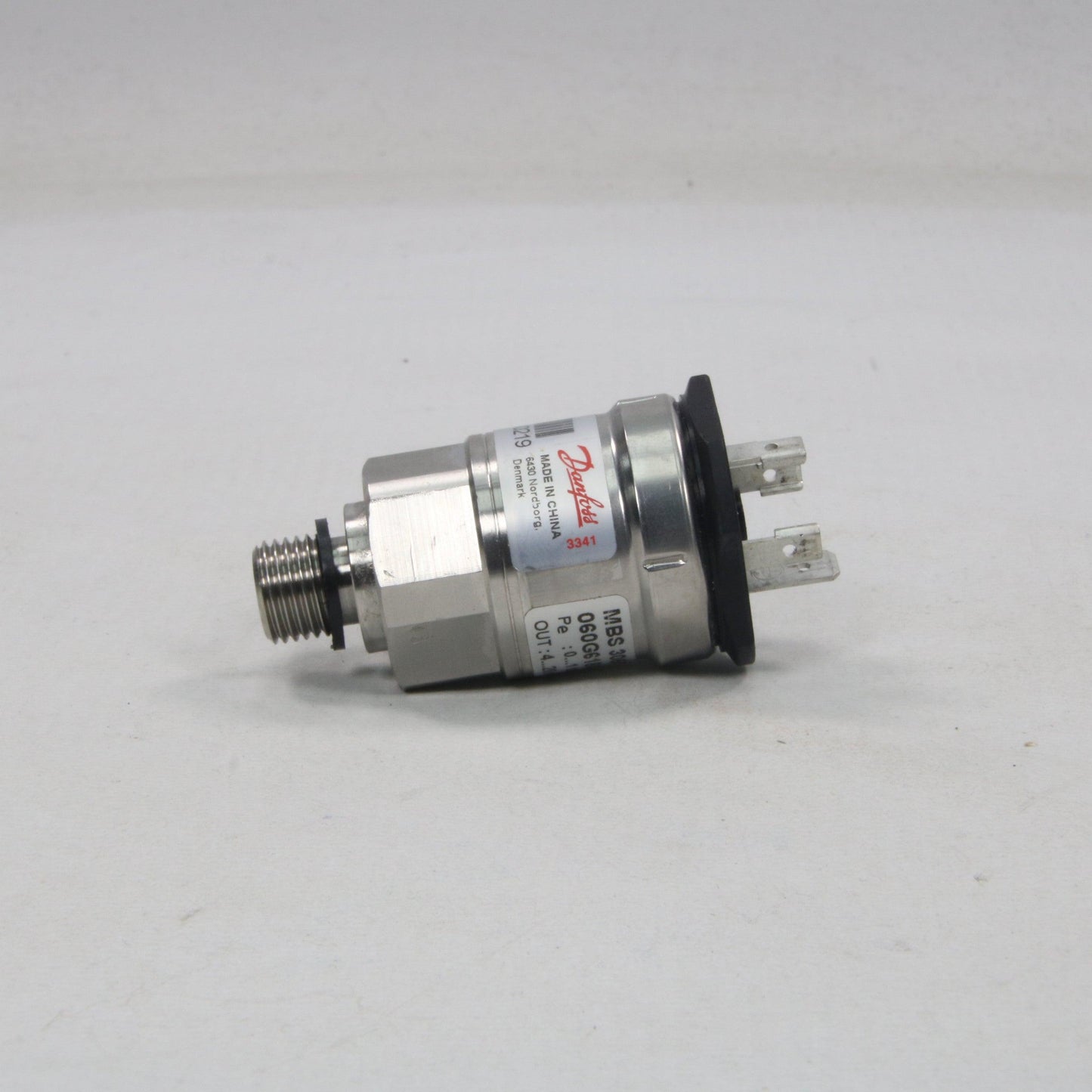

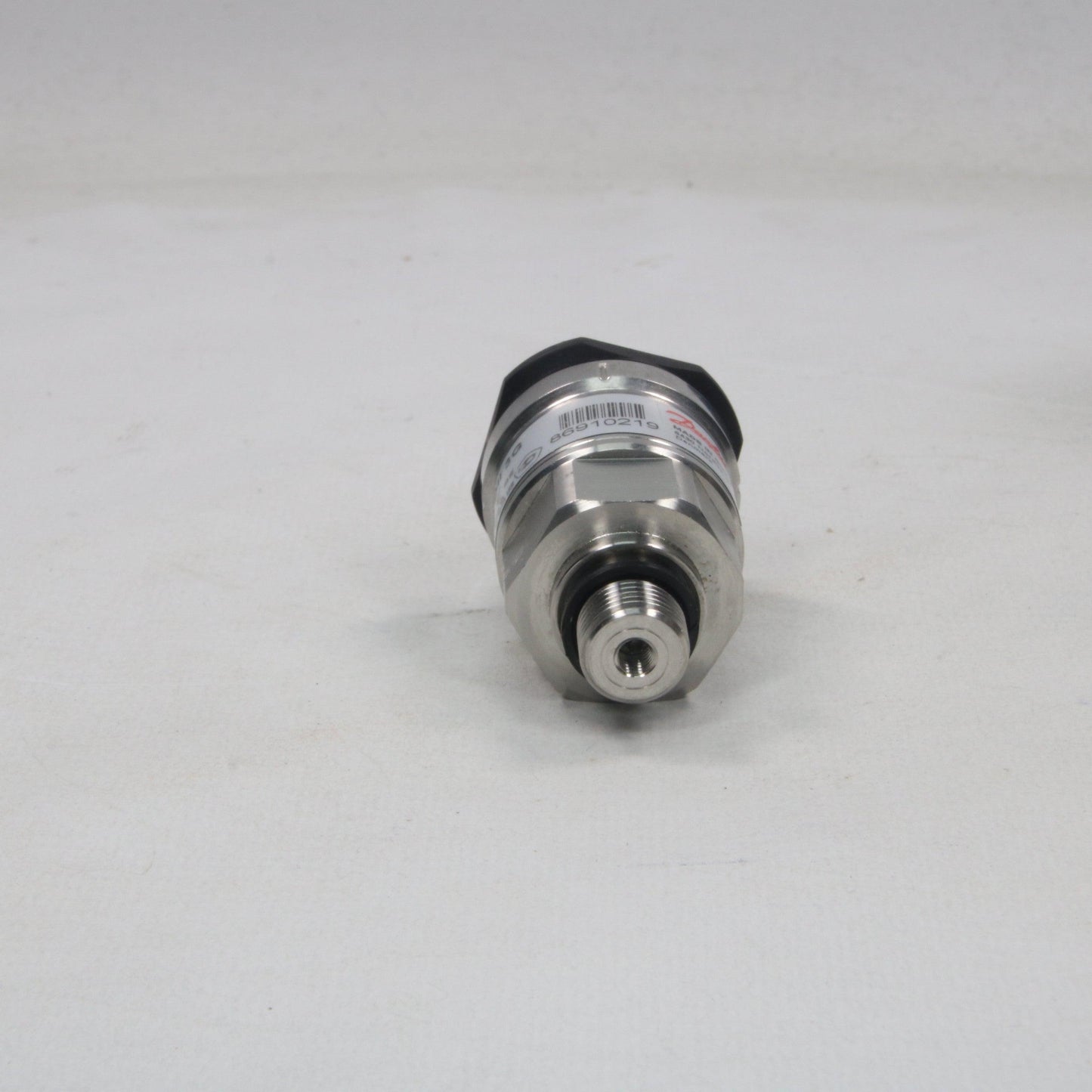

Danfoss MBS 3050 Pressure Transmitter - 060G6180

Danfoss MBS 3050 Pressure Transmitter - 060G6180

€163,35incl. VAT
€135,00 excl. VAT

Stock: 20

Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandDanfoss
ModelMBS 3050
TypePressure Transmitter
Part Number060G6180
Technical Specs
Core ApplicationSpecifically designed for heavy-duty hydraulic and industrial applications subject to severe medium conditions like cavitation, liquid hammer, or high-pressure spikes.
Pressure Range0.0 to 1.0 bar
Output Signal4 to 20 mA (2-wire loop-powered configuration)
Supply Voltage9 to 32 V DC

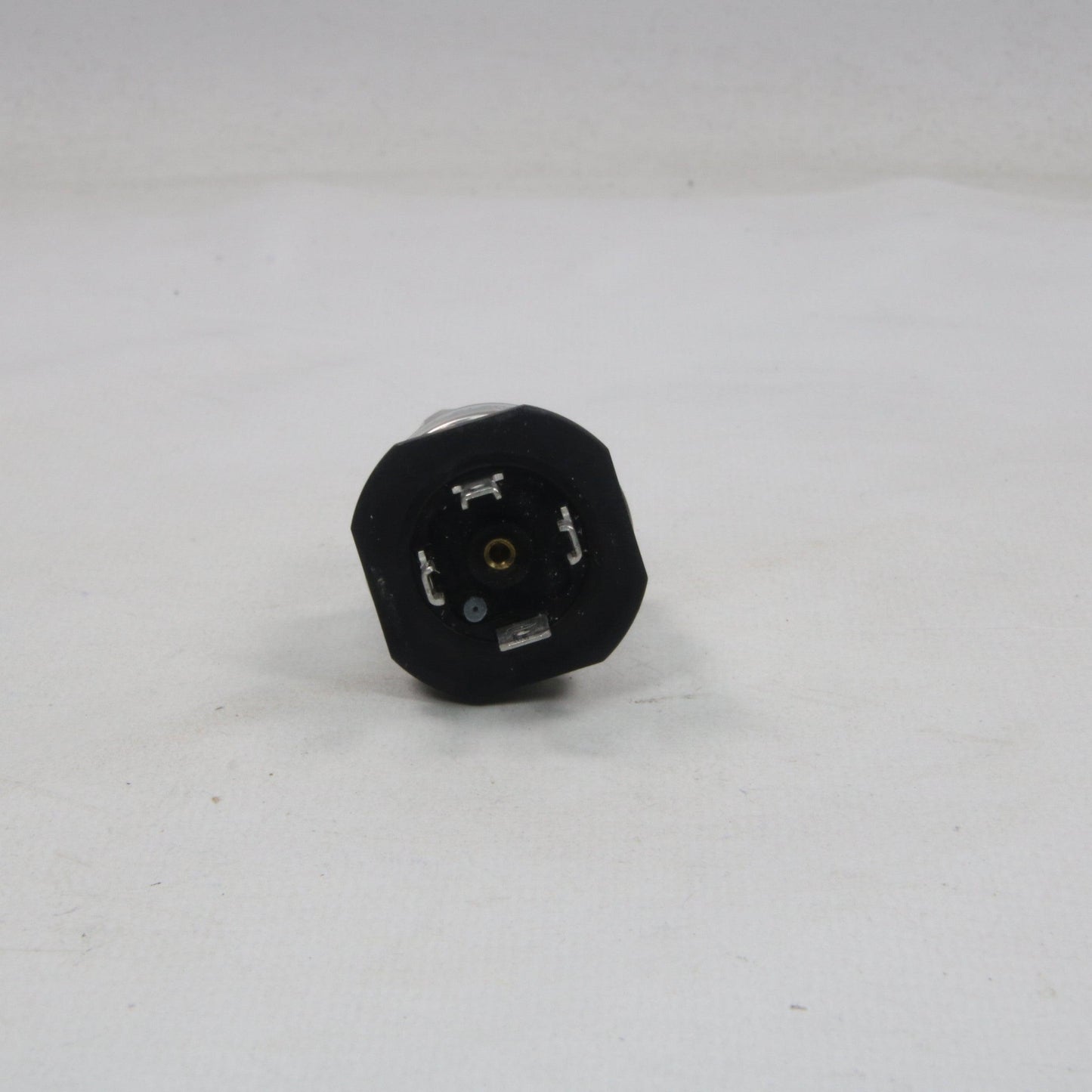

Electrical ConnectionEN 175301-803-A
Process Connection / ThreadG 1/4 A Male
Wetted MaterialsStainless Steel AISI 316L (1.4404)
Enclosure / Housing MaterialStainless Steel AISI 316L (1.4404)
Accuracy (Total Error Band)±0.5% FS (typical) / ±1.0% FS (maximum)
Non-Linearity (BFSL)≤ ±0.2% FS
Response Time< 4 ms

Overload Pressure (Static Proof): 6 bar

Burst Pressure6 bar (max static rating / burst >6x FS)

Operating Temperature Range (Medium): -40°C to +85°C

Ambient Temperature Range-40°C to +85°C
Compensated Temperature Range0°C to +80°C
Enclosure Protection RatingIP65
Vibration Stability20 g (25 Hz – 2 kHz, sinusoidal) conforming to IEC 60068-2-6
Shock Resistance500 g / 1 ms conforming to IEC 60068-2-27
Weight200 g
Dimensions100 x 50 x 25 mm
Country of OriginChina / Denmark
HS Code9026.20.20
