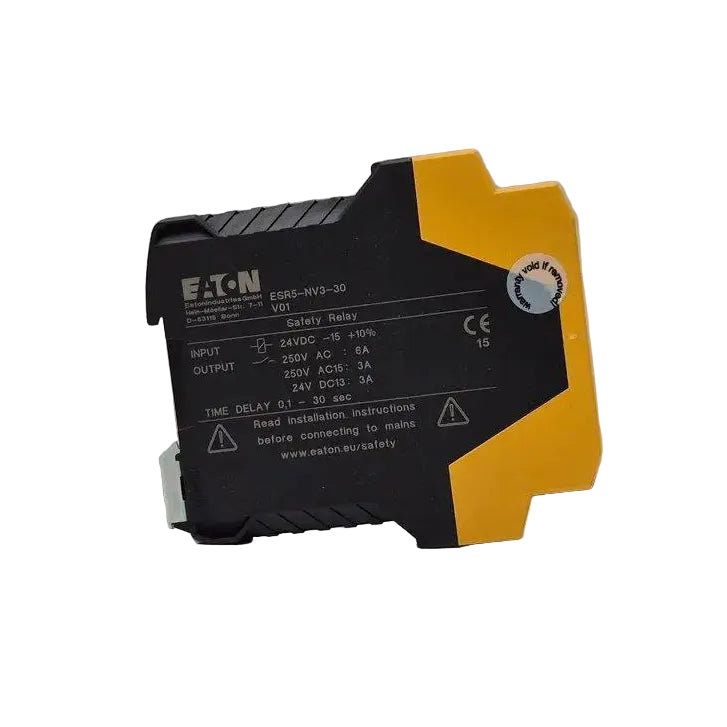

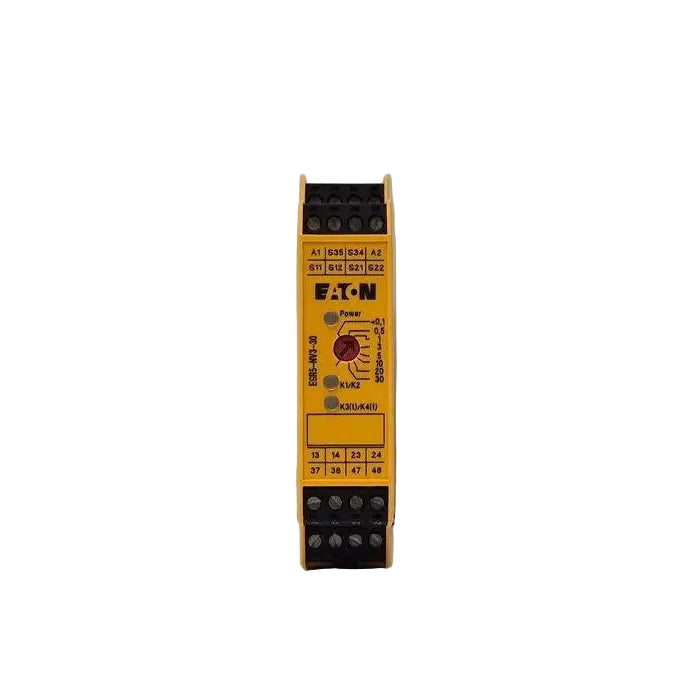

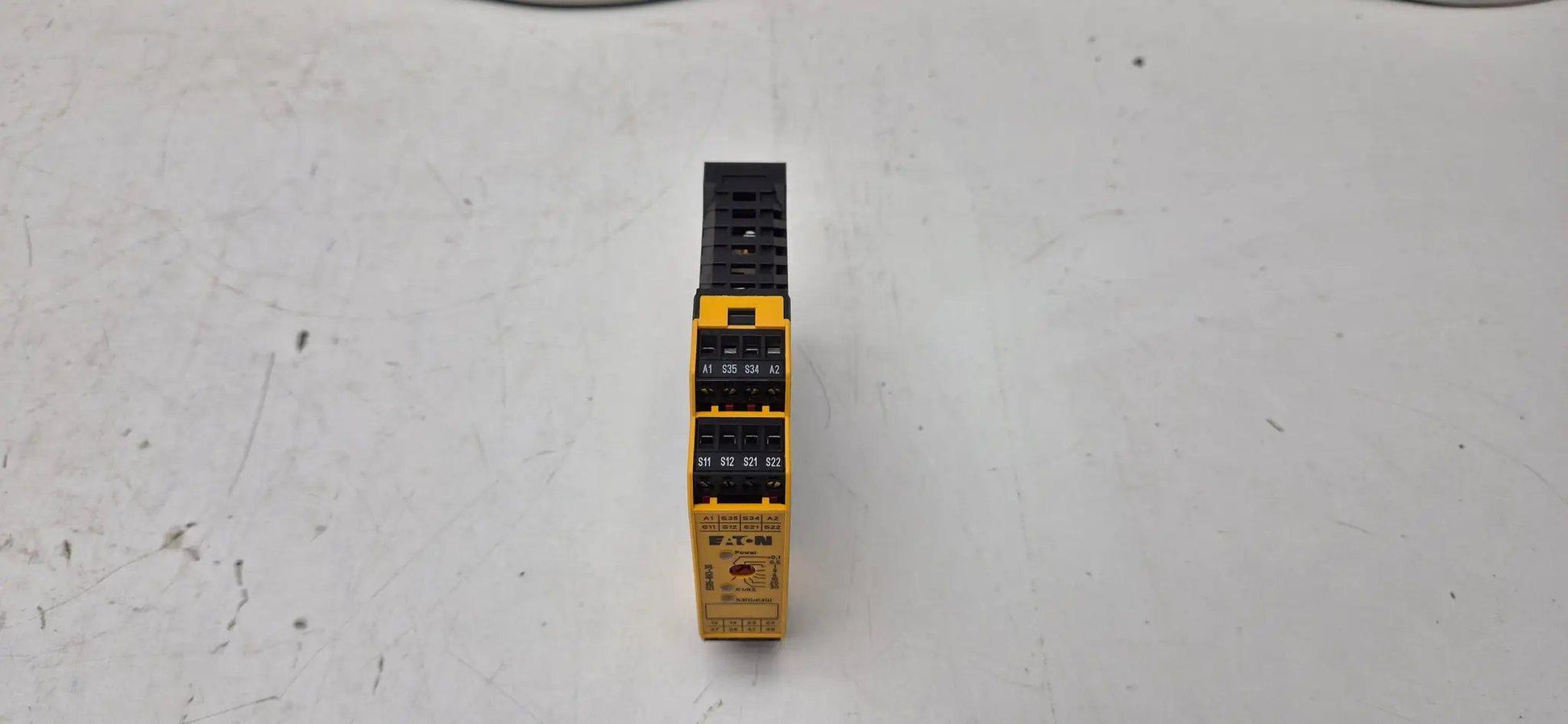

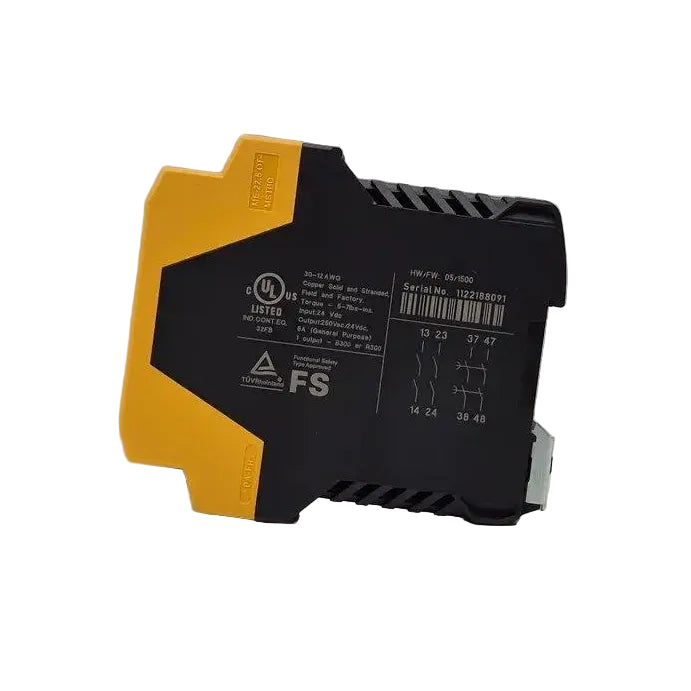

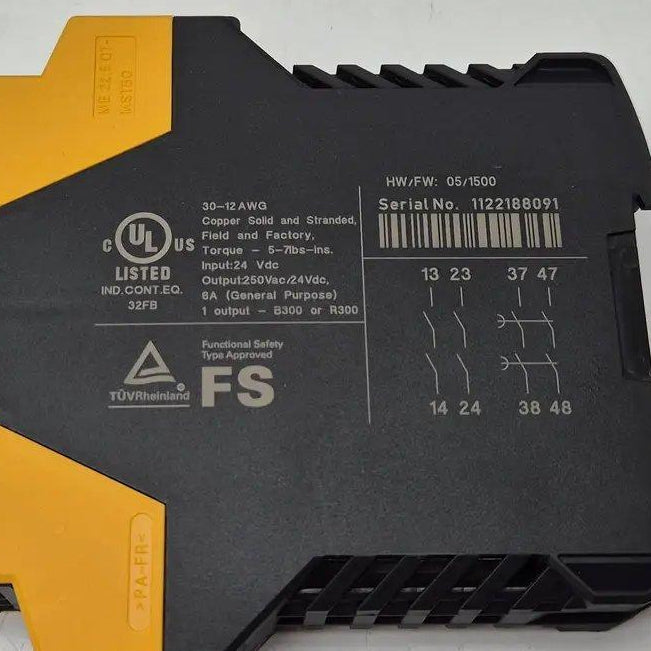

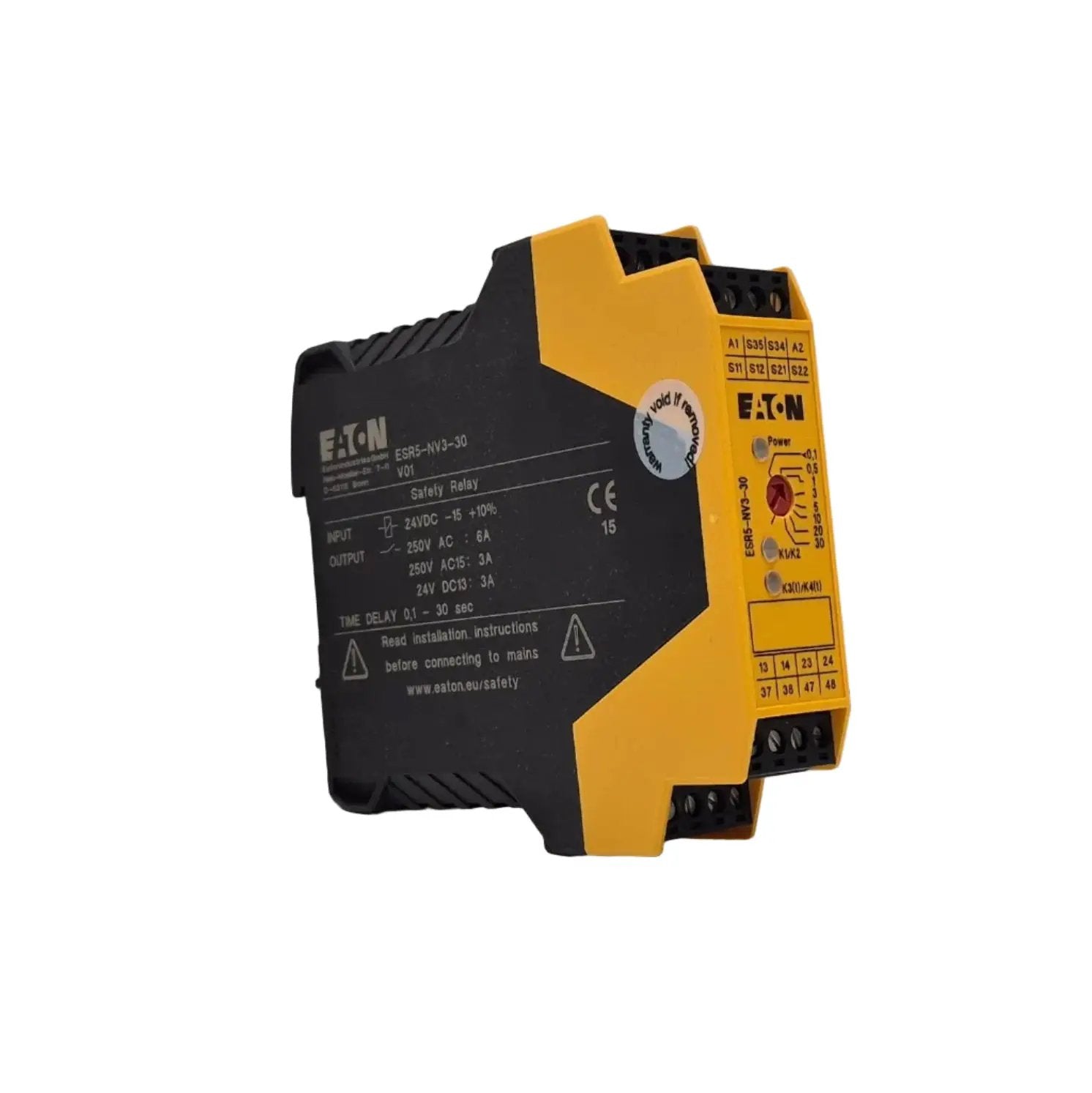

Eaton ESR5-NV3-30 Safety Relay
Eaton ESR5-NV3-30 Safety Relay
Stock: 1
Couldn't load pickup availability
Product description and type information
- Brand: Eaton
- Model: ESR5-NV3-30
- Type: Safety Relay / Emergency Stop Safety Relay
- Part Number: 118705
- Version: 01
- Technical Specifications:
- Safety relay for: Emergency stop circuits, Protective door monitoring, Light curtain monitoring
- Supply voltage: 24 VDC
- 4 enabling current paths: 2 instantaneous safety contacts, 2 delayed safety contacts
- Delayed output adjustable: 0.1–30 s
- 1 signal current path
- Suitable for: Cat. 4 according to EN ISO 13849-1, PL e, SIL 3 according to IEC 62061 / IEC 61508
- Supports: Manual reset,Automatic reset, Feedback loop monitoring, Cross-circuit detection
- Switching capacity: 5 A AC-15 at 230 VAC, 3 A DC-13 at 24 VDC
- Rated insulation voltage (Ui): 250 V
- Rated impulse withstand voltage (Uimp): 4 kV
- Mounting type: DIN rail
- Connection type: Plug-in screw terminals
- Protection class: IP20 housing and terminals
- Operating mode: Stop Category 0 and 1 according to IEC/EN 60204
- LED status indication
- Housing material: Polyamide (PA)
- Contact material: AgSnO2 gold-plated contacts
- Ambient operating temperature: -25 °C to +55 °C
- Mechanical service life: Approx. 10 million switching operations
- Certifications: TÜV, CE, UL, cULus,IEC 62061, EN ISO 13849-1, IEC 61508
Weight: 200 g
Dimensions: 23 × 99 × 115 mm
Country of Origin: Germany
HS Code: 8536.49
