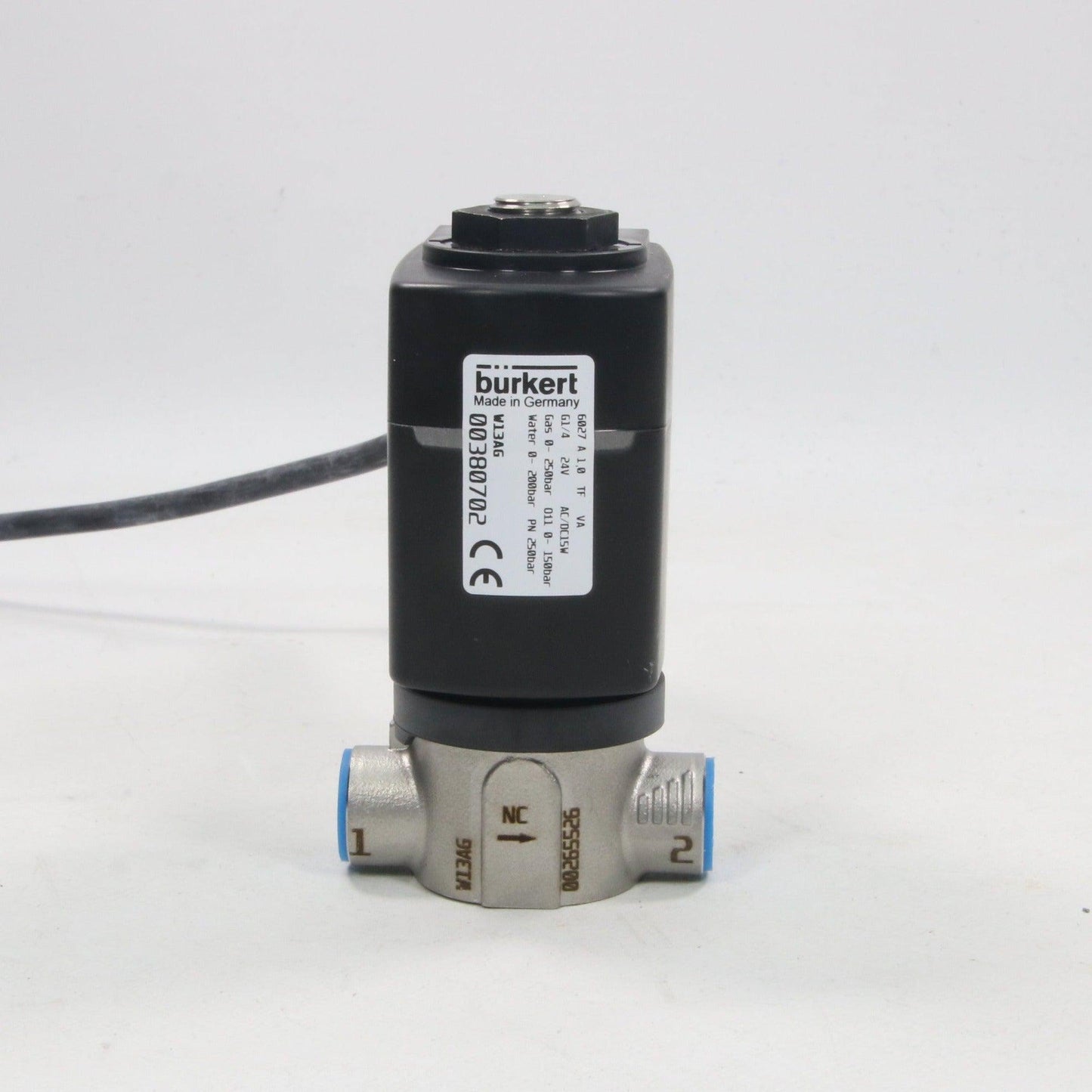

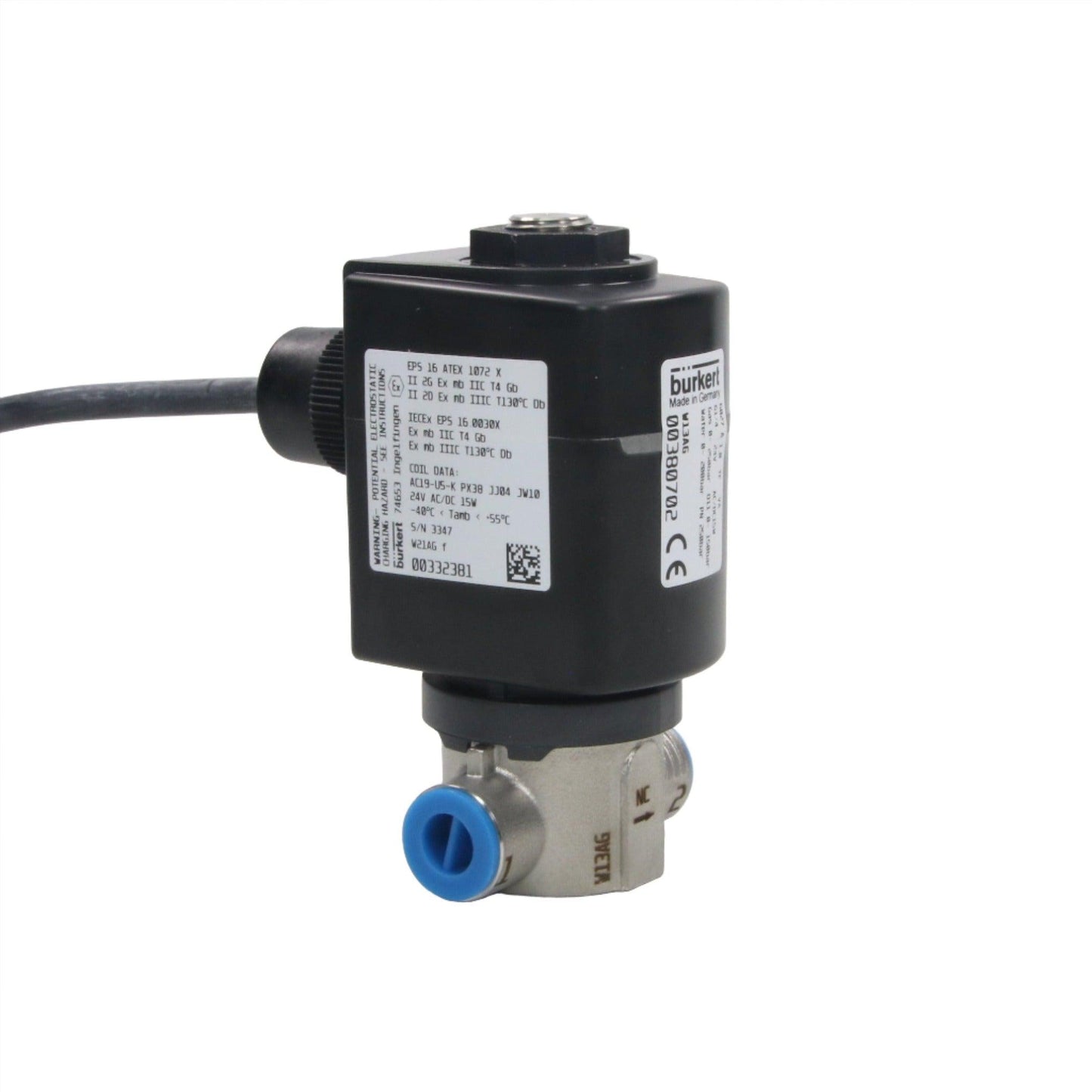

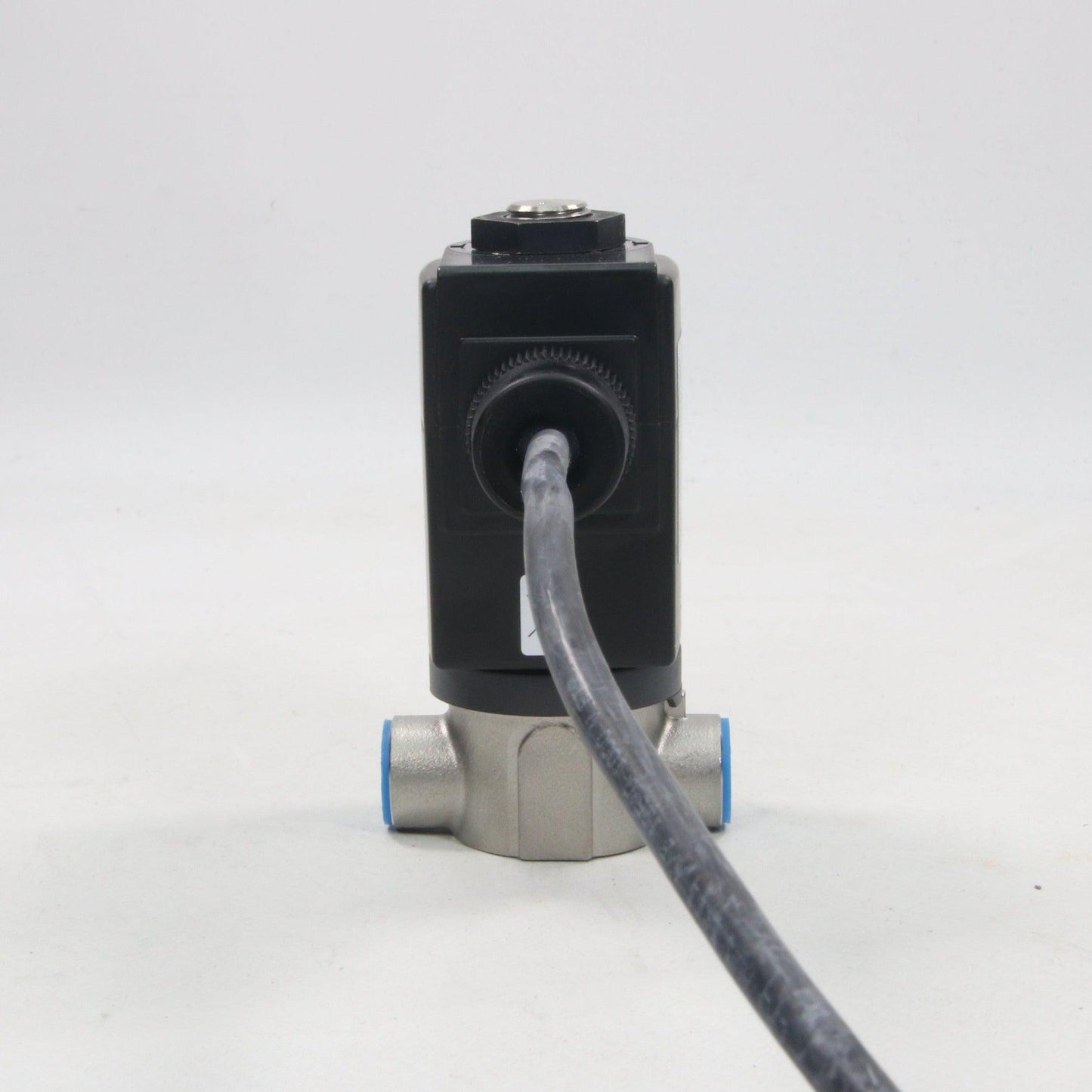

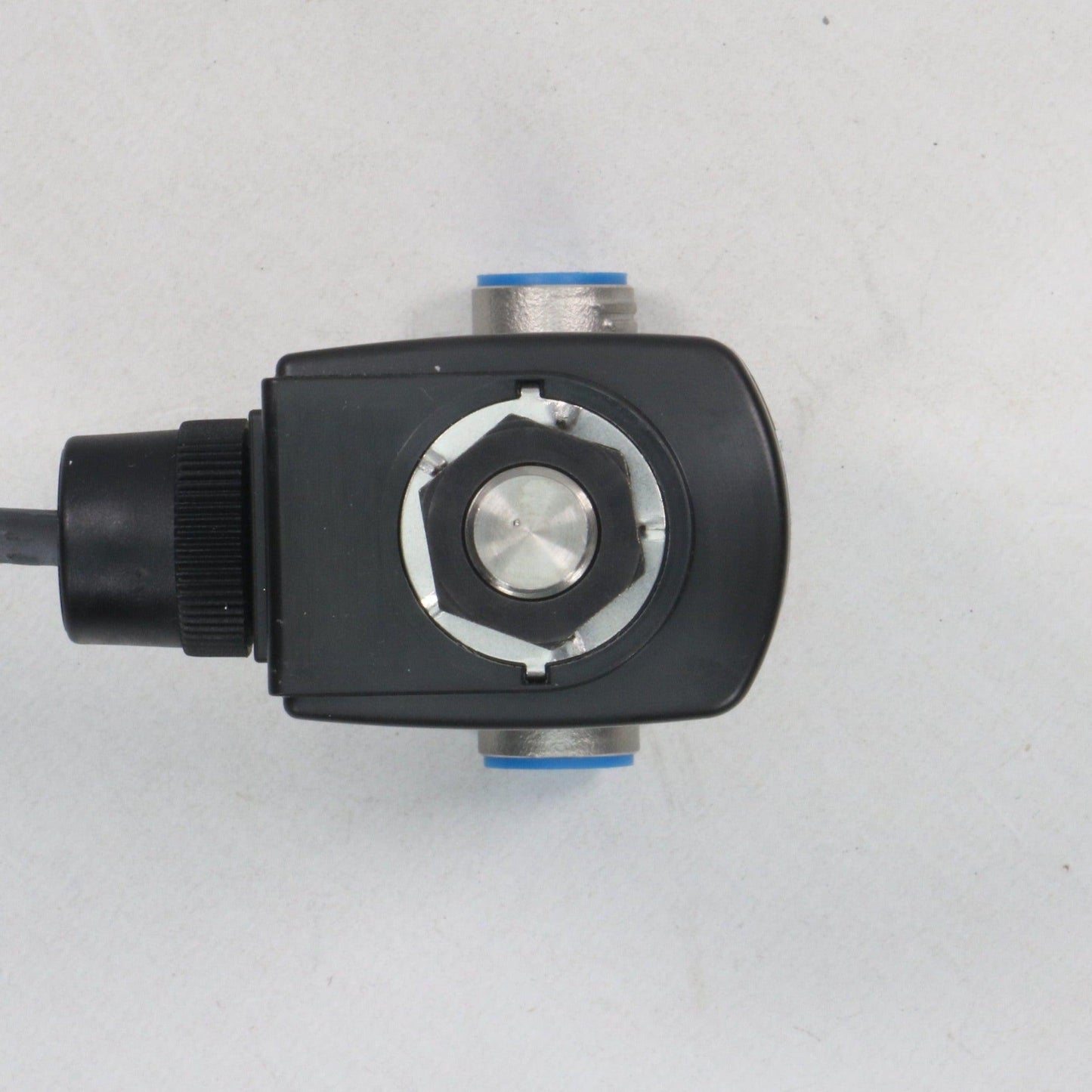

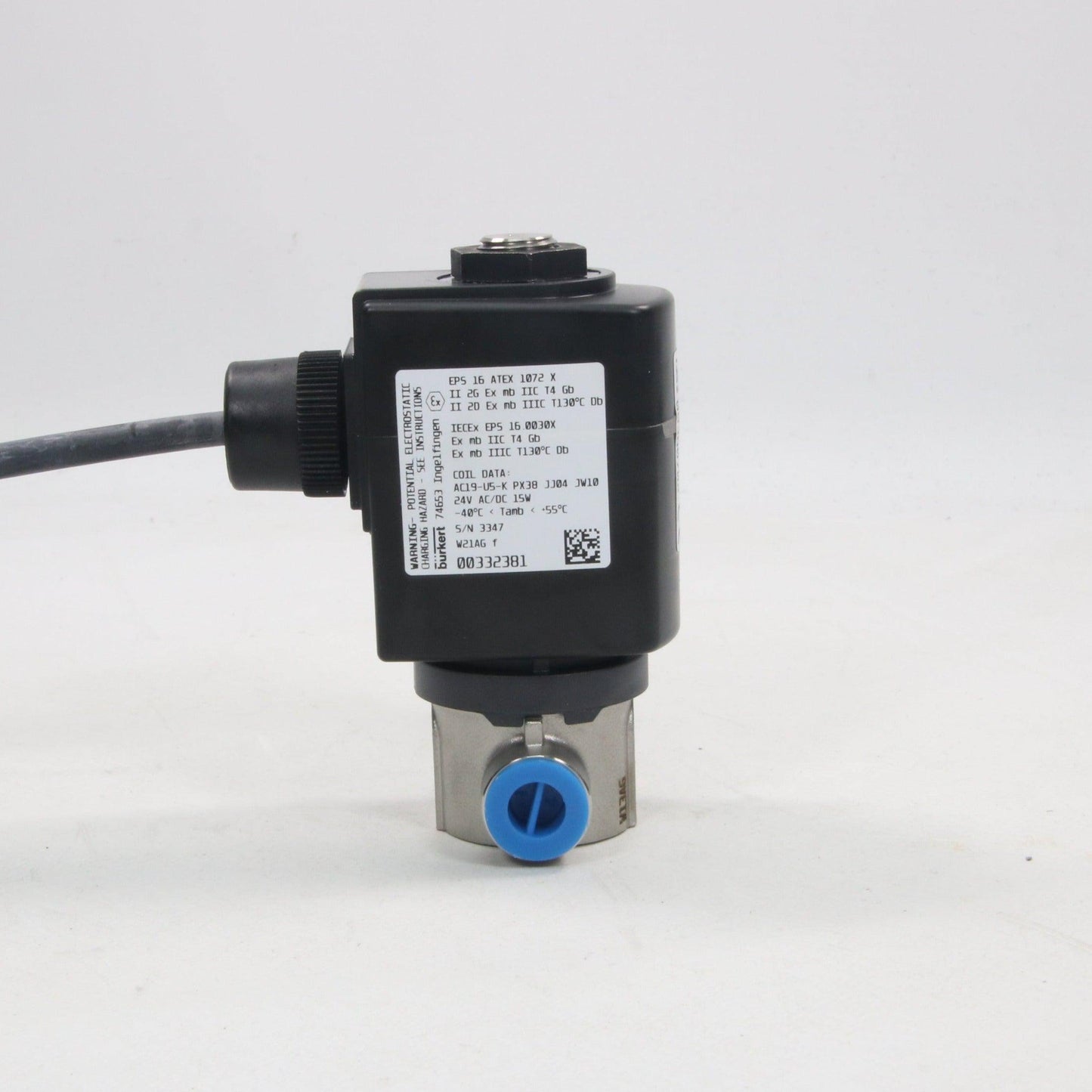

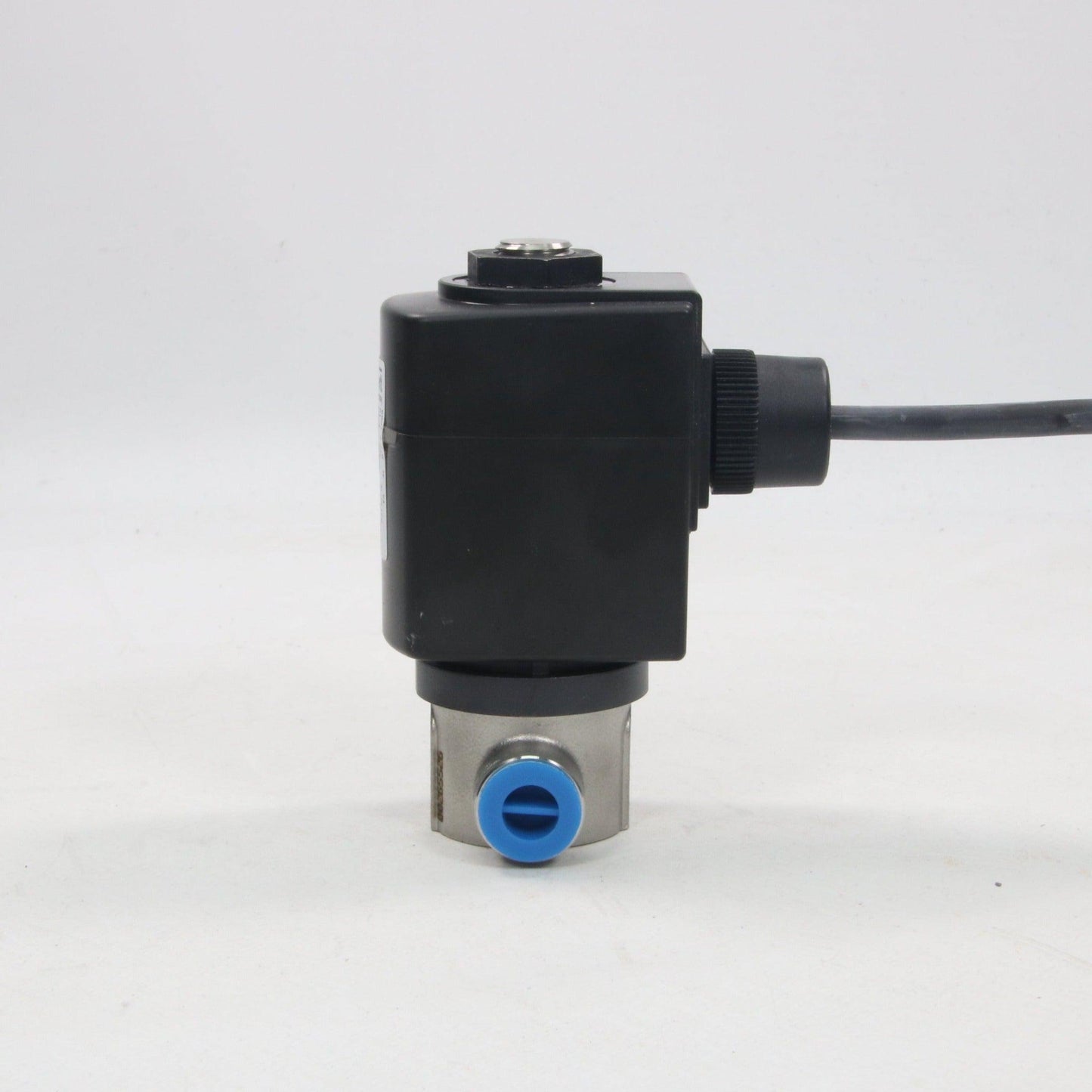

Burkert 6027 2-Way Solenoid Valve 00380702

Bürkert Type 6027 Solenoid Valve (24V AC/DC, 15W, Art. Nr. 380702) Specification:

• Product Type: Solenoid Valve
• Manufacturer: Bürkert Fluid Control Systems
• Model: Type 6027 (Article No. 380702)
• Device Application: Control, shut-off, and metering of neutral media (gases and liquids) up to 21 mm²/s viscosity
• Valve Function: 2/2-way, A - normally closed (NC), inlet port 1 (P/NC)
• Actuator Type: Direct-acting plunger valve
• Orifice Size: 1.0 mm (1/25 inch)
• Kv Value: 0.045 m³/h
• Port Connection Type: Inner thread, G1/4
• Body Material: Stainless steel
• Seal Material: FKM (Fluor rubber)
• Voltage: 24 V AC/DC
• Power Consumption: 15 W
• Electrical Connection: Cable
• Pressure Range: 0–250 bar
• Medium Temperature Range: -10 to 140 °C
• Ambient Temperature Range: Max. 55 °C
• IP Degree of Protection: IP65
• Coil Material: Chemically resistant epoxy, molded
• Duty Cycle: 100% continuous rating
• Switching Time:
  • Opening: 10–20 ms
  • Closing: 20–30 ms
• Standards Compliance: IEC 60947, DIN EN ISO 23553-1 (safety shut-off valve), ATEX/IECEx
• Product Certifications: CE, TÜV-Süd (for safety shut-off versions), DIN Certco
• Special Features:
  • Vibration-proof, bolted coil system for enhanced durability
  • Welded stopper and plunger guide tube for increased pressure resistance and leak-tightness
  • High-pressure variant suitable for gases and liquids
  • Optional Kick and Drop double coil technology for reduced power consumption
• Dimensions:
  • Width: Approximately 40 mm
  • Height: Approximately 100 mm
  • Depth: Approximately 40 mm
• Weight: Approximately 1,15 kg
• HS Code: 8481.80.79
• Country of Origin: Germany
