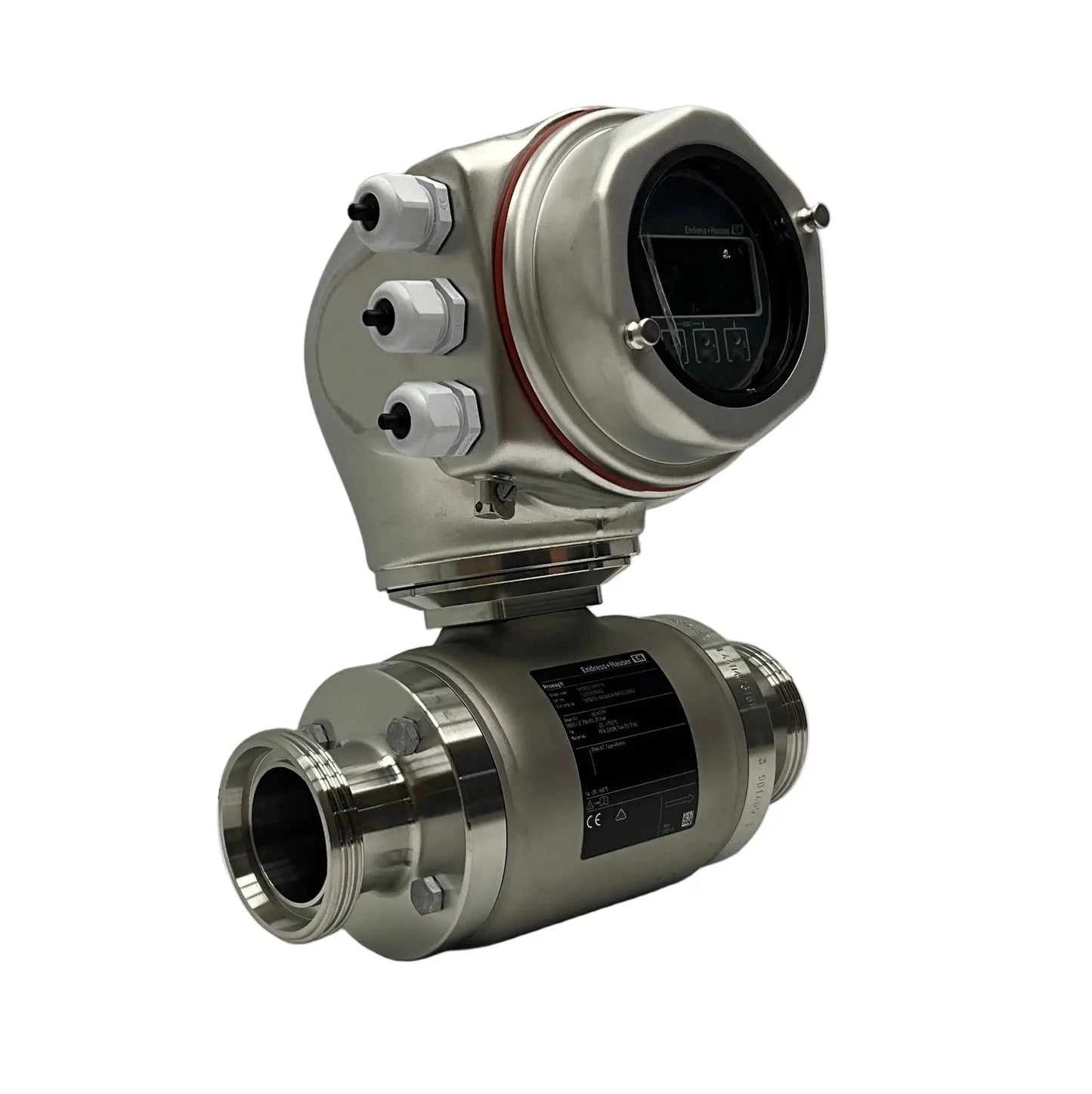

Endress+Hauser Promag H 300 Electromagnetic Flowmeter

Brand: Endress+Hauser

Model: Promag H 300 (Proline series)

Type: Electromagnetic Flowmeter

Part number: 5H3B50-(U6X1/0) / (ERK7/0)

Technical specifications:

Measuring principle: Electromagnetic

Measured variables: Volume flow, temperature, conductivity, mass flow (calculated), corrected volume flow

Qmax: 66 m³/h

Accuracy:

Standard: ±0.5% of reading ±1 mm/s

Optional: ±0.2% of reading ±2 mm/s

Nominal diameter : DN50

Medium temperature range: -20°C to +150°C

Ambient temperature range: -40°C to +60°C

Maximum process pressure: PN 40

Measuring principle characteristics: Bidirectional, independent of pressure, density, temperature, and viscosity

Materials:

Liner: PFA

Electrodes: 316L (1.4435), Alloy C22, Tantalum, Platinum

Process connections: Stainless steel (1.4404 / 316L), PVDF, PVC

Seals: EPDM, PFA

Sensor housing: Aluminium / Stainless steel (hygienic design, 3-A / EHEDG compliant)

Transmitter & electronics:

Output signals: 4–20 mA, pulse/frequency, digital communication

Communication protocols: HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus, PROFINET, Ethernet/IP, OPC-UA

Power supply:

19.2…28.8 V DC

85–264 V AC 50/60 Hz

Display: Backlit 4-line display with touch control

Protection class: IP66/67

Functional safety: SIL capable (IEC 61508 / IEC 61511)

Certifications: IECEx, CSA, FM, CE

Features:

Hygienic design suitable for CIP/SIP cleaning

No pressure loss

Heartbeat Technology for diagnostics and verification

WLAN access and advanced connectivity options

Compact dual-compartment housing

Dimensions: 265 x 220 x 310 mm

Weight: 11.0 kg

Country of origin: France

HS code: 9026.10
