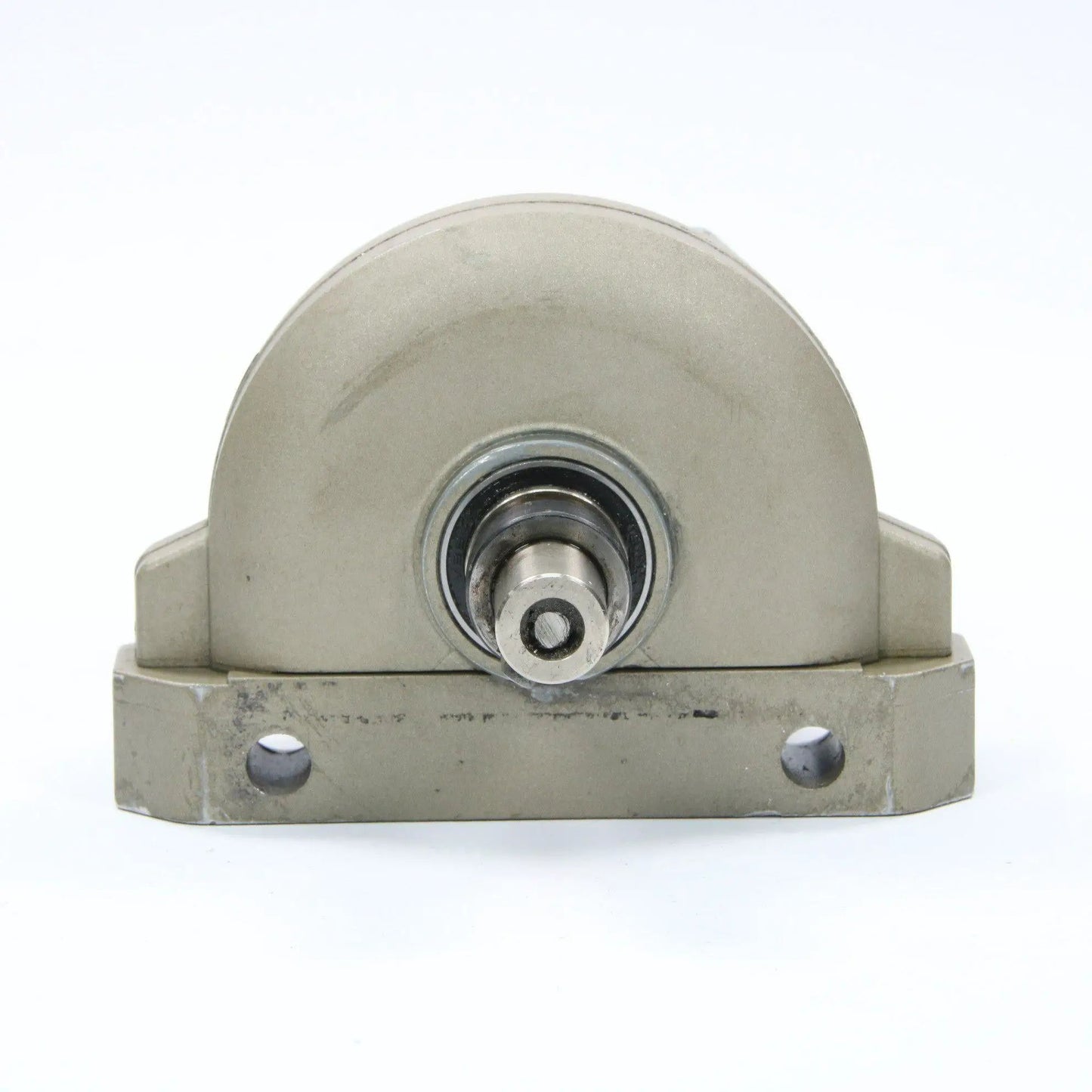

Festo Quarter turn actuator DSR-25-180-P
Festo Quarter turn actuator DSR-25-180-P
SKU:DA-01-08-6152422747729
Stock: 1
Couldn't load pickup availability
Product description & specifications
Festo Quarter turn actuator DSR-25-180-P
Size 25
Cushioning angle 0.9 deg
Adjustment range of swivel angle 0 deg ... 180 deg
Swivel angle 0 deg ... 180 deg
Type code DSR
Cushioning Elastic cushioning rings/pads at both ends
Mounting position Any
Mode of operation Double-acting
Design Rotary vane
Position sensing None
Operating pressure 1.5 bar ... 8 bar
Max. swivel frequency at 6 bar 3 Hz
Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-]
Ambient temperature -10 °C ... 60 °C
Theoretical torque at 6 bar 20 Nm
Product weight 520 g
Type of mounting With through-hole
Drive shaft material Steel
Nickel-plated
Seals material NBR
