Honeywell

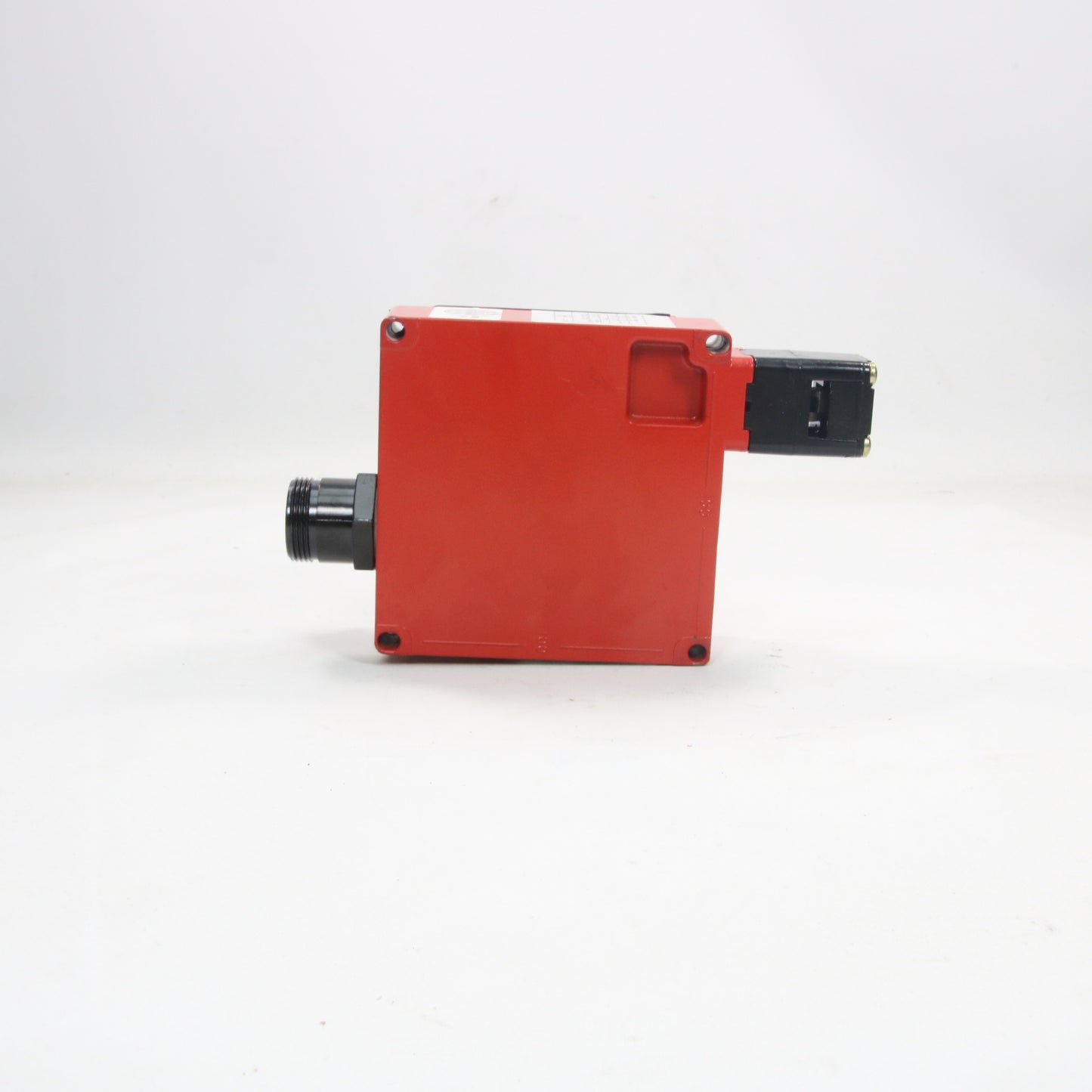

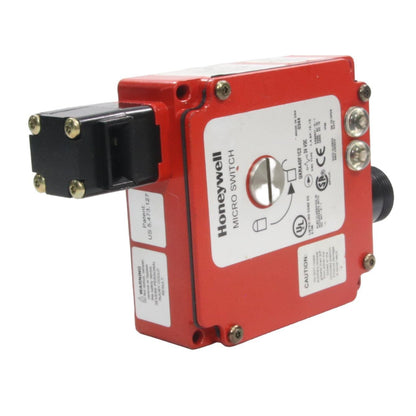

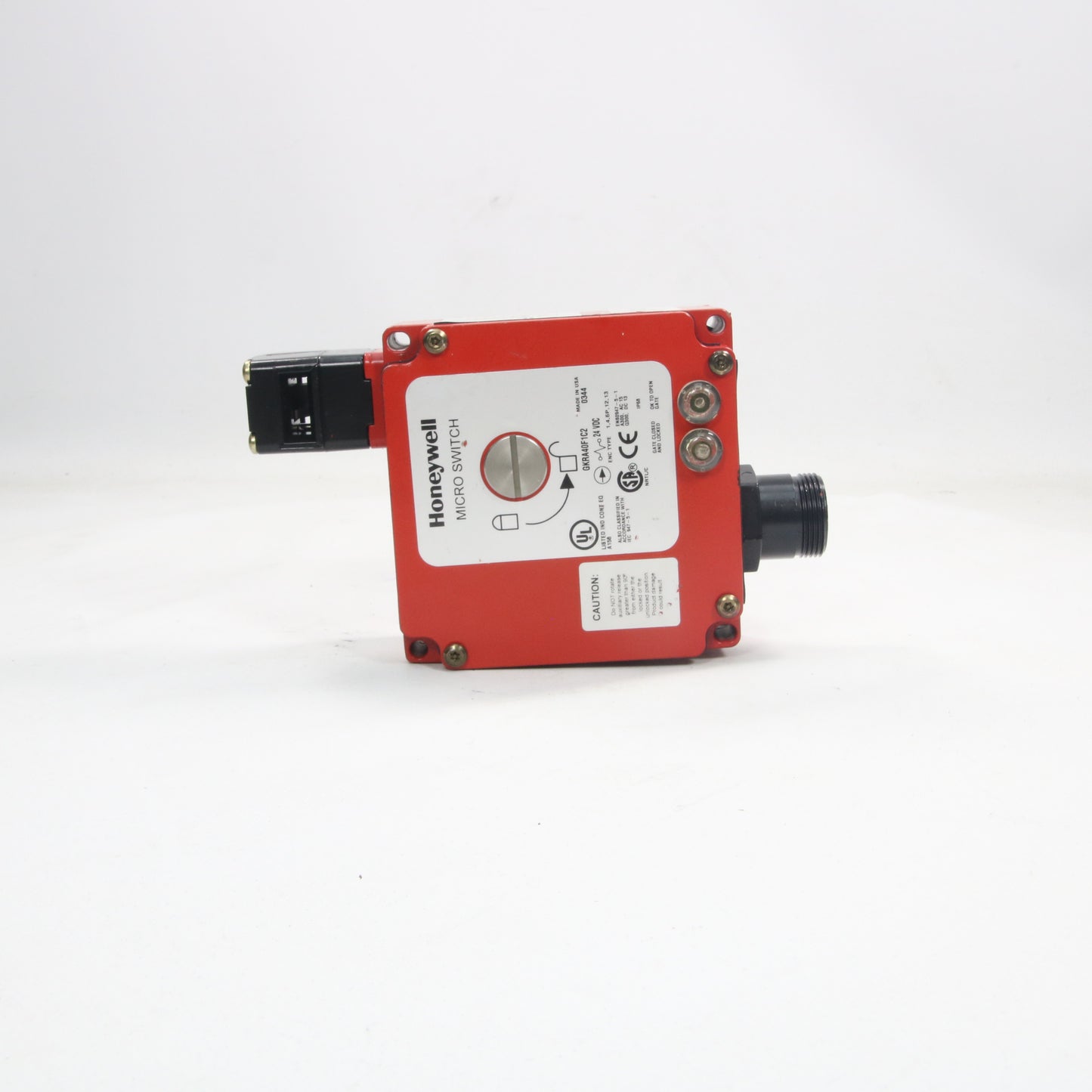

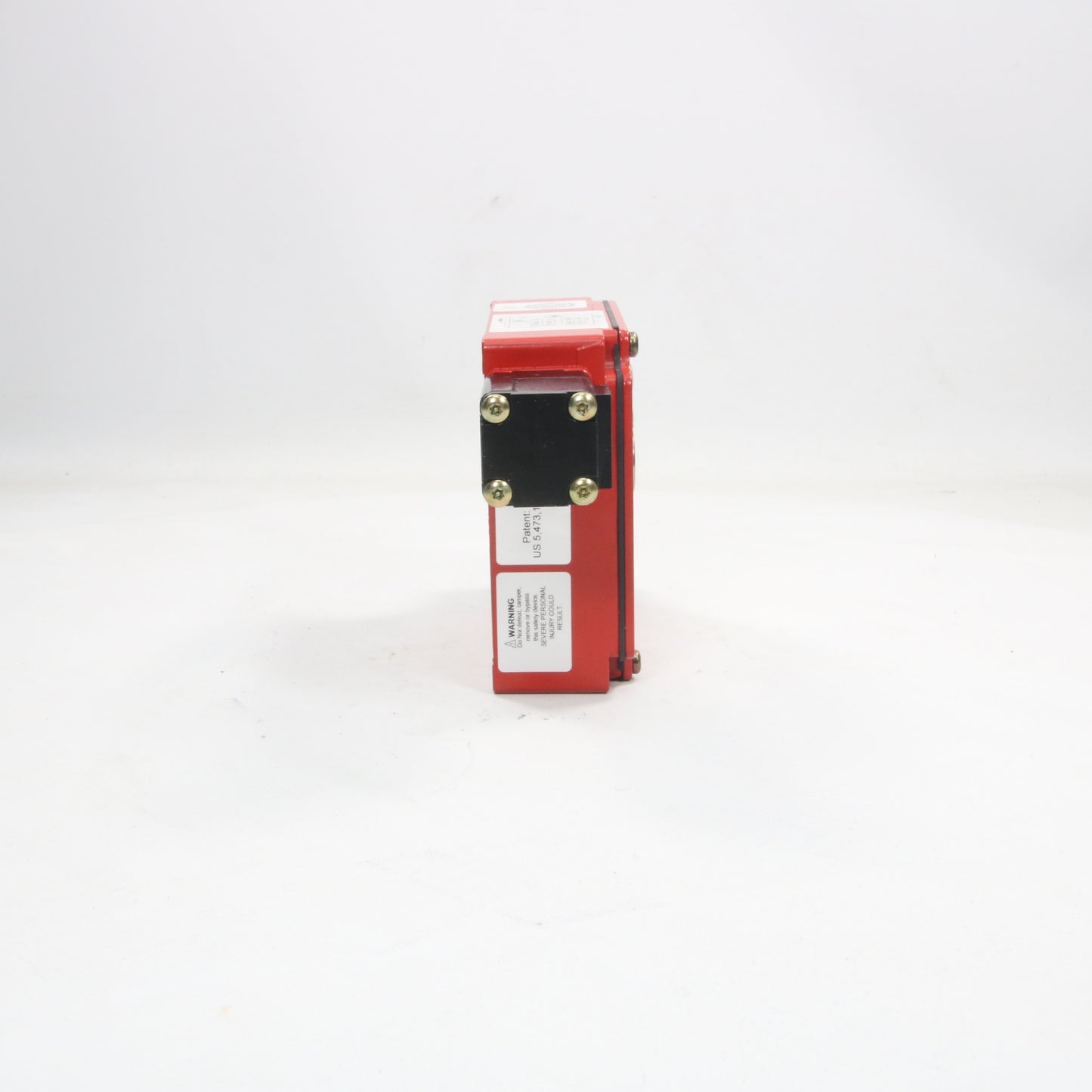

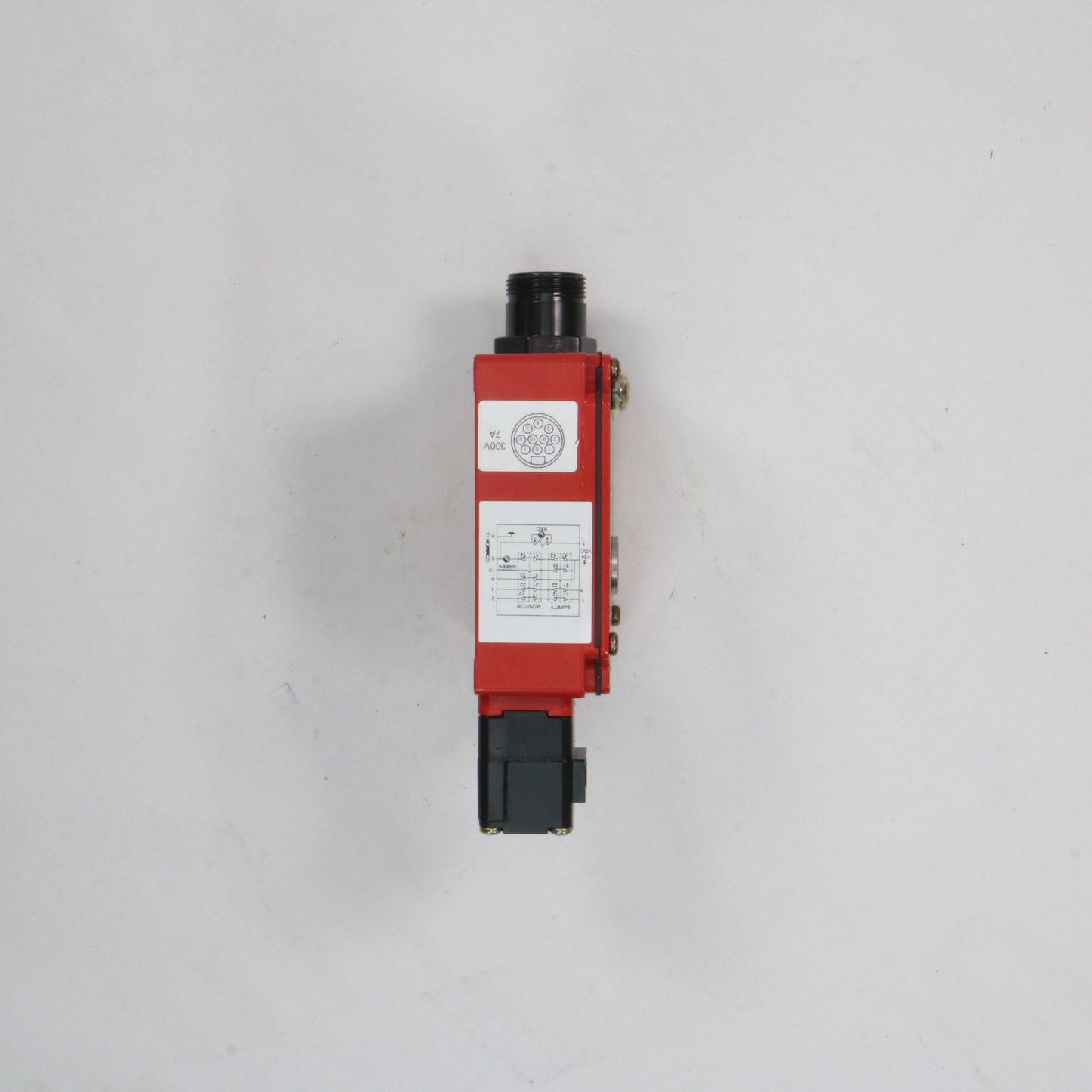

Honeywell Safety interlock limit switch

Honeywell Safety interlock limit switch

€296,45incl. VAT
€245,00 excl. VAT

Stock: 9

Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandHoneywell
ModelGKRA40F1C2
TypeSafety interlock limit switch (MICRO SWITCH™ GKR series, electromechanical with solenoid locking for guard door monitoring)
All Tech Specs
  MaterialZinc die-cast metal housing; stainless steel actuator for corrosion resistance
  Voltage24 VDC (solenoid actuation)
  Current0.2 A (solenoid inrush); 0.1 A (holding)
  Contacts2NC/1NO (positive opening safety contacts)
  ActuationSolenoid locking (holds door closed when energized; unlocked when de-energized)
  LED IndicatorsYes (red/green for lock status and power)
  Actuator TypeKey-operated (rectangular head, rotatable in 90° increments)
  Operating Force20 N (pretravel); 5 N (overtravel)
  Release TypeEmergency release (tool-operated)
  Safety RatingCategory 4 per EN ISO 13849-1; PL e; SIL 3 per IEC 61508
  Operating Temperature Range-25°C to +75°C (-13°F to +167°F)
  Protection RatingIP67 (dust-tight, water-resistant)
  Mechanical Life1 million cycles
  Electrical Life500,000 cycles

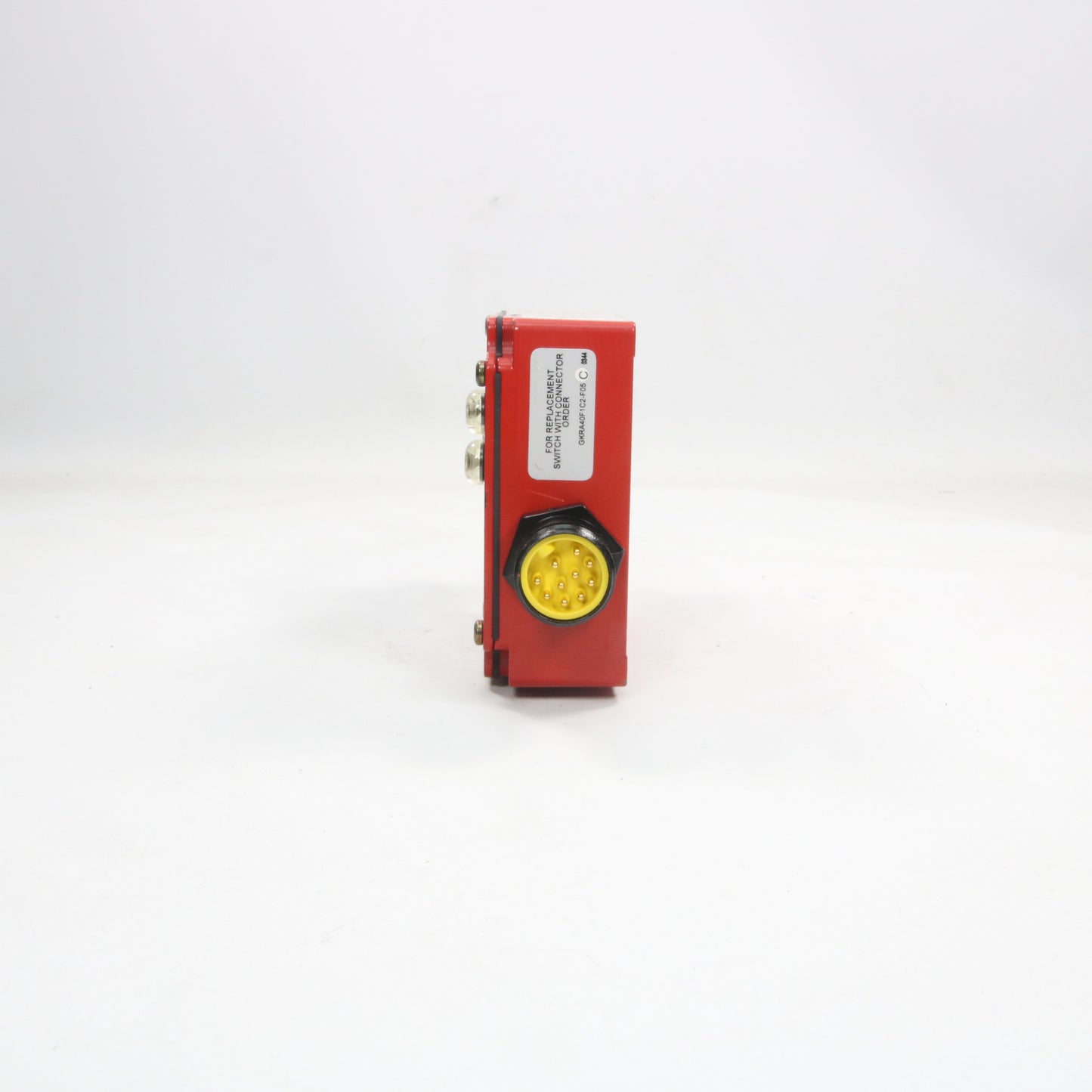

  ConnectionM23 connector (pre-wired or plug variant)
  StandardsEN ISO 14119; IEC 60947-5-1
  CertificationCE marked; RoHS compliant; cULus listed
  FeaturesGuard locking with monitoring; tamper-resistant; suitable for safety doors/gates in industrial automation
Dimension30 mm width x 120 mm height x 30 mm depth (1.18 in x 4.72 in x 1.18 in)
Weight0.45 kg (0.99 lbs)
Country of OriginMexico
HS Code8536.50 (electrical switches, including limit switches)
