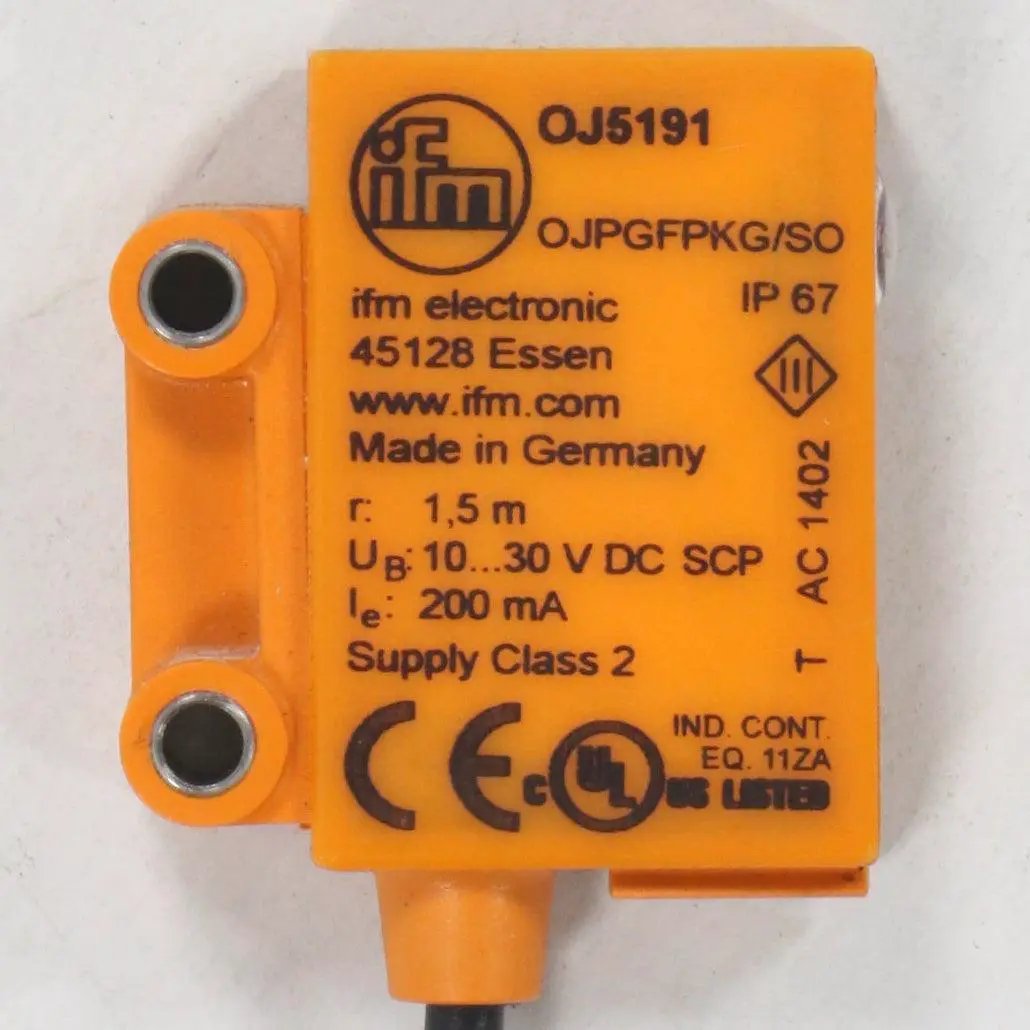

IFM Electronic OJ5191 Retro Reflective Photoelectric Sensor & Reflector

- Brand: IFM Electronic
- Model: OJ5191
- Type: Retro-reflective Photoelectric Sensor & Reflector
- Part Number: OJPGFPKG/SO/0,15M/US

- Technical Specifications:

- Sensor Type: Retro-reflective sensor for transparent object detection

- Detection Principle: Polarised retro-reflective optical sensing

- Sensing Range: 0.2 – 1.5 m with reflector E20722

- Light Source: Red light LED, 660 nm

- Electrical Design: PNP transistor output

- Output Function: Light-on / dark-on programmable

- Operating Voltage: 10 – 30 V DC

- Current Consumption: < 22 mA

- Max. Switching Current: 200 mA

- Switching Frequency: 2000 Hz

- Short-circuit Protection: Yes

- Reverse Polarity Protection: Yes

- Protection Rating: IP67

- Ambient Temperature Range: 0°C to +60°C

- EMC Standard: EN 60947-5-2

- Mechanical Specifications:

- Housing Shape: Rectangular compact housing

- Housing Material: ABS plastic

- Lens Material: Glass

- Lens Alignment: Side sensing

- Connection Type: 0.15 m PVC cable, M12 4-pin connector

- Integrated Features:

- Reliable transparent object detection

- Polarisation filter technology

- Visible red alignment light

- LED indication for operation and switching status

- High-speed switching for fast conveyor systems

- LED Indicators:

- Yellow LED: Switching status

- Green LED: Power/operation

- Red LED: Function indication

Weight: 50 g

Dimensions: 35 × 11 × 24 mm

Country of Origin: Germany

HS Code: 9031.49
