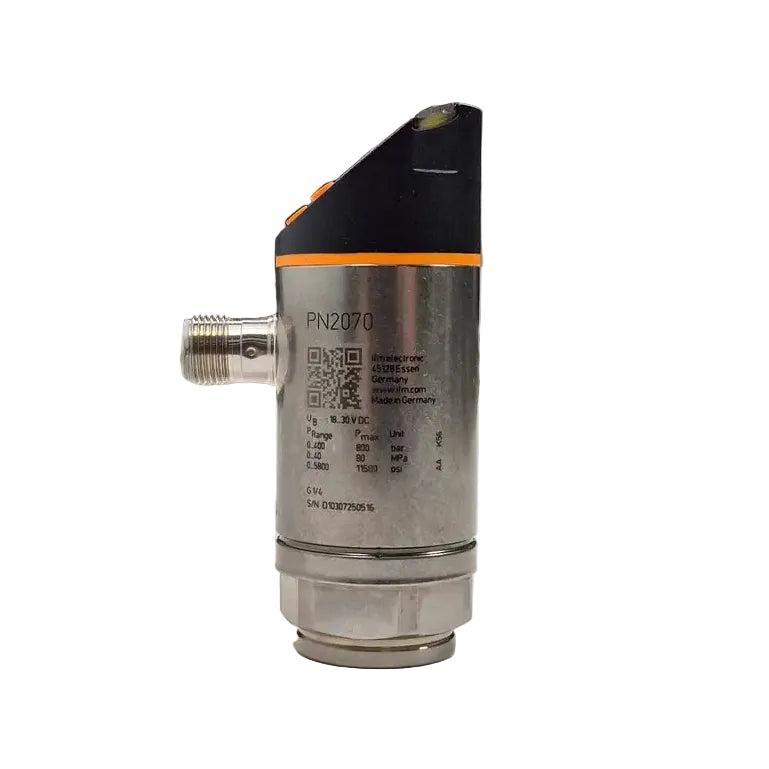

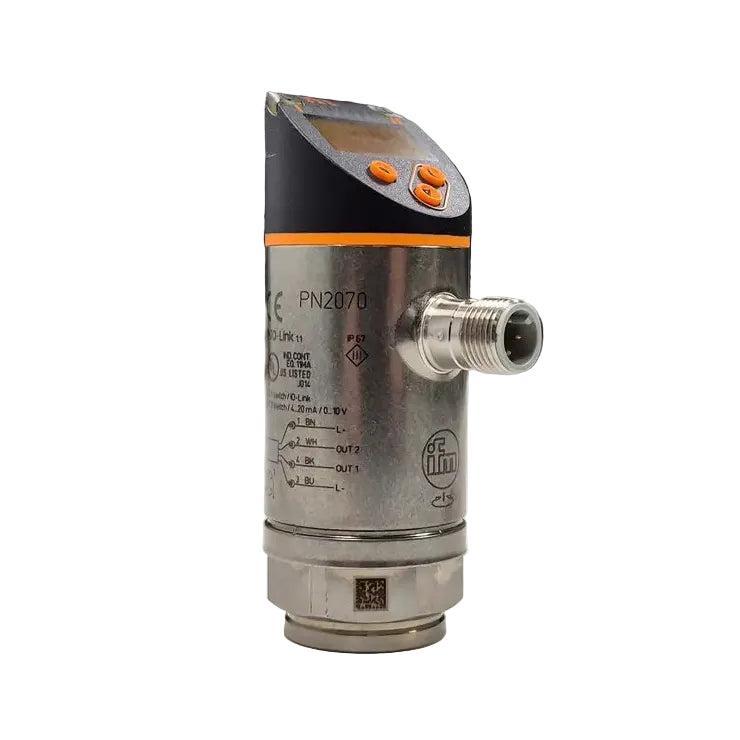

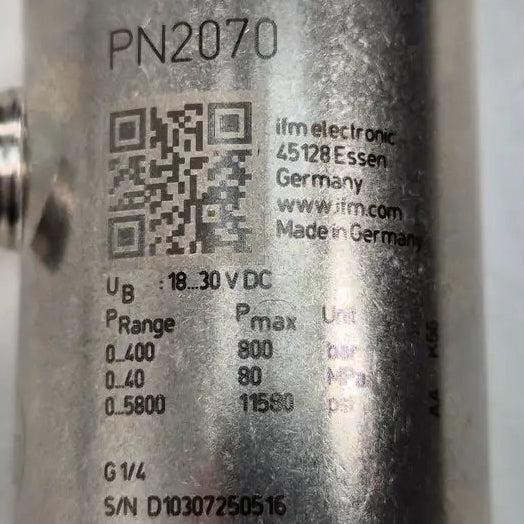

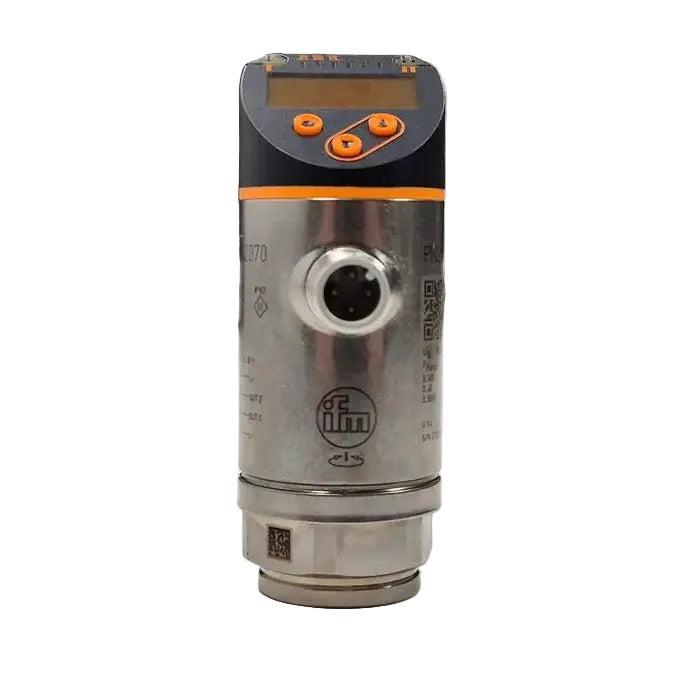

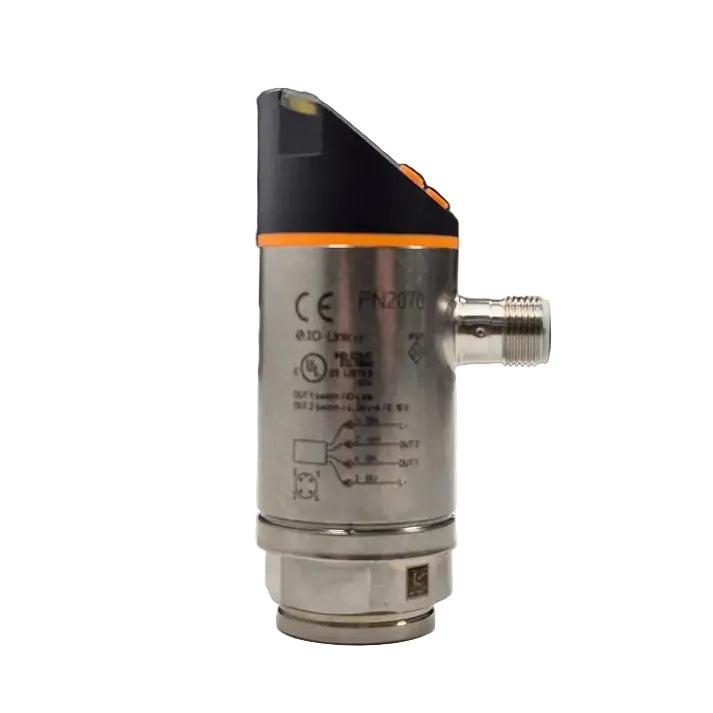

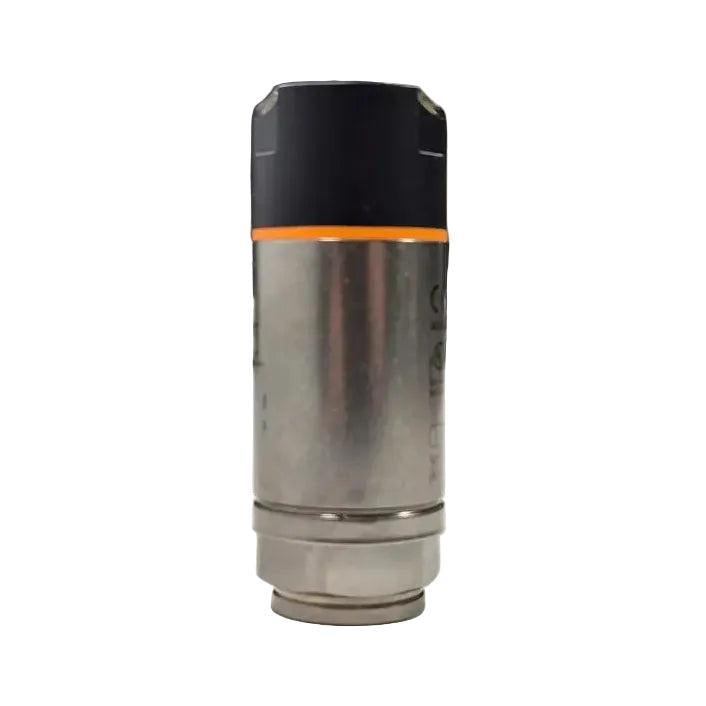

IFM Electronic PN2070 Electronic Pressure Sensor with Display

- Brand: IFM Electronic
- Model: PN2070
- Type: Electronic Pressure Sensor with Display
- Part Number: PN-400-SER14-MFRKG/US/ /V
- Technical Specs:
- Measuring Element: Metallic thin film cell
- Measuring Range: 0 to 400 bar
- Type of Pressure: Relative pressure
- Pressure Rating (Max Overload): 800 bar
- Minimum Burst Pressure: 1700 bar
- Vacuum Resistance: -1000 mbar
- Operating Voltage: 18 to 30 V DC
- Current Consumption: < 35 mA
- Total Number of Outputs: 2
- Output Signal: Switching signal, analogue signal, IO-Link
- Electrical Design: DC PNP/NPN
- Output Function: Normally open / normally closed programmable
- Output 1 (OUT1): Switching output or IO-Link communication (COM2, 38.4 kBaud, Revision 1.1)
- Output 2 (OUT2): Switching output or Analogue output (4 to 20 mA current / 0 to 10 V voltage; scalable 1:5)
- Permanent Current Rating of Switching Output: 250 mA
- Maximum Voltage Drop: < 2 V DC
- Switching Frequency: ≤ 500 Hz
- Short-Circuit & Overload Protection: Yes
- Switch Point Accuracy: < ± 0.4% of the span
- Medium Temperature Range: -25°C to +80°C
- Process Connection: Threaded connection G 1/4 internal thread
- Electrical Connection: M12 connector (4-pin), gold-plated contacts

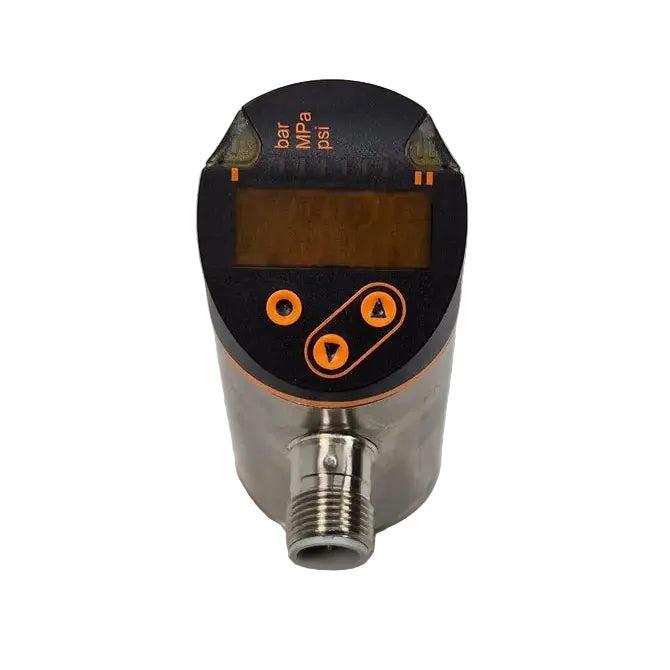

- Display Elements: 4-digit alphanumeric display with alternating red/green coloration; 3 x green LEDs (bar, psi, MPa), 2 x yellow LEDs (switching status)
- Enclosure Protection Class: IP65 / IP67
- Materials (Wetted Parts): Stainless steel 1.4542 (17-4 PH / 630)
- Housing Materials: Stainless steel (316L/1.4404); 1.4542; PBT+PC-GF30; PBT-GF20; PC

Weight: 200 g

Dimensions: 34 x 50 x 90.7 mm

Country of Origin: Germany

HS Code: 9026.20.20
