IFM Electronic

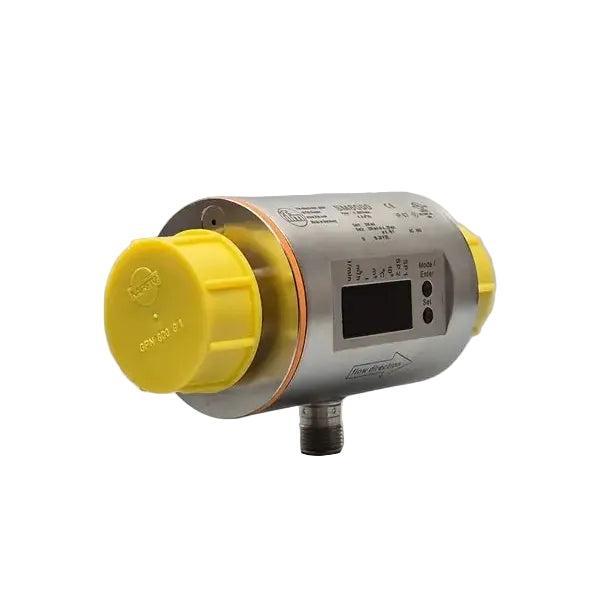

IFM Electronic SM8000 Magnetic Inductive Flow Meter

IFM Electronic SM8000 Magnetic Inductive Flow Meter

€877,25incl. VAT
€725,00 excl. VAT

Stock: 1
Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandIFM Electronic
ModelSM8000
TypeMagnetic-Inductive Flow Meter

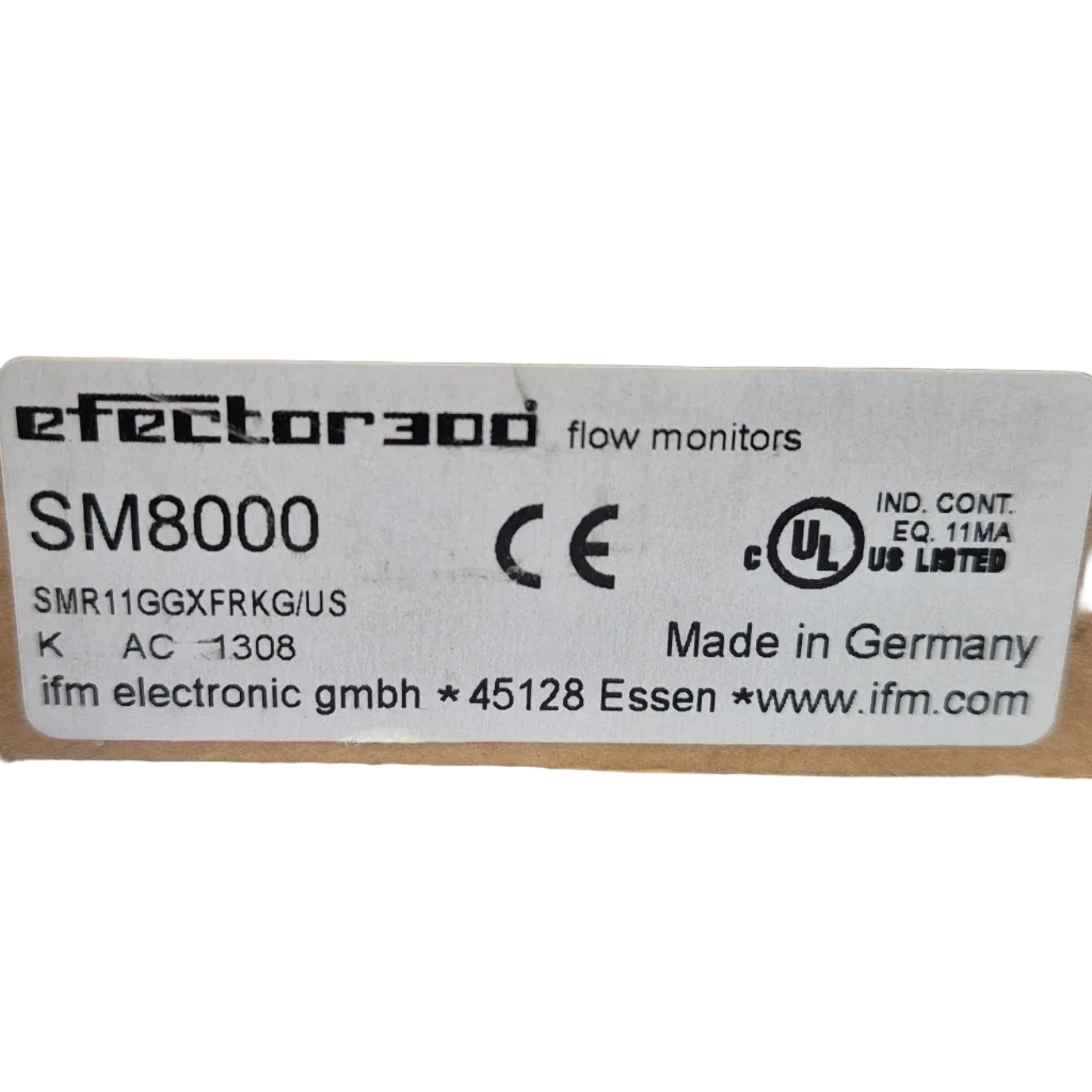

Part NumberSMR11GGXFRKG/US-100
Technical Specs
Measuring PrincipleMagnetic-inductive volumetric flow detection
Special FeatureGold-plated contacts, 4-digit alphanumeric LED display
ApplicationVolumetric flow monitoring, totaliser, and medium temperature detection
Suitable MediaConductive liquids, water, hydrous media (Conductivity: ≥ 20 µS/cm / Viscosity: < 70 mm²/s at 40°C)

Volumetric Flow Measuring Range: 0.2 to 100 l/min (0.01 to 6.0 m³/h)

Temperature Measuring Range-20°C to +80°C
Operating Voltage18 to 30 V DC
Current Consumption95 mA (at 24 V)

Reverse Polarity / Short-Circuit Protection: Yes

Total Number of Outputs2 (Configurable)
Output SignalSwitching signal, analogue signal, pulse signal, IO-Link (configurable)
Electrical DesignDC PNP/NPN
Output 1 (OUT1)Switching output (flow rate), pulse output (quantity meter), or preset counter signal
Output 2 (OUT2)Switching output (flow or temperature) or Analogue output (4...20 mA / 0...10 V, scalable)

Permanent Current Rating of Switching Output: 200 mA

Maximum Voltage Drop2 V

Pressure Rating / Maximum Allowable Operating Pressure: 16 bar

Maximum Allowable Working Pressure (CRN App): 10.4 bar

Medium Temperature Range-10°C to +70°C
IO-Link CommunicationTransmission type COM2 (38.4 kBaud), Revision 1.1, SIO mode supported
Process ConnectionThreaded connection G 1 external thread / DN25 flat seal
Electrical ConnectionM12 Connector (4-pin), gold-plated pins
Housing MaterialsStainless steel (316L/1.4404); PBT-GF20; PC; FKM; TPE
Wetted MaterialsStainless steel (316L/1.4404); PEEK; FKM
Enclosure Protection ClassIP65 / IP67 (Protection Class III)
Weight600 g
Dimensions115 x 60 x 80 mm
Country of OriginGermany
HS Code9026.10.20
