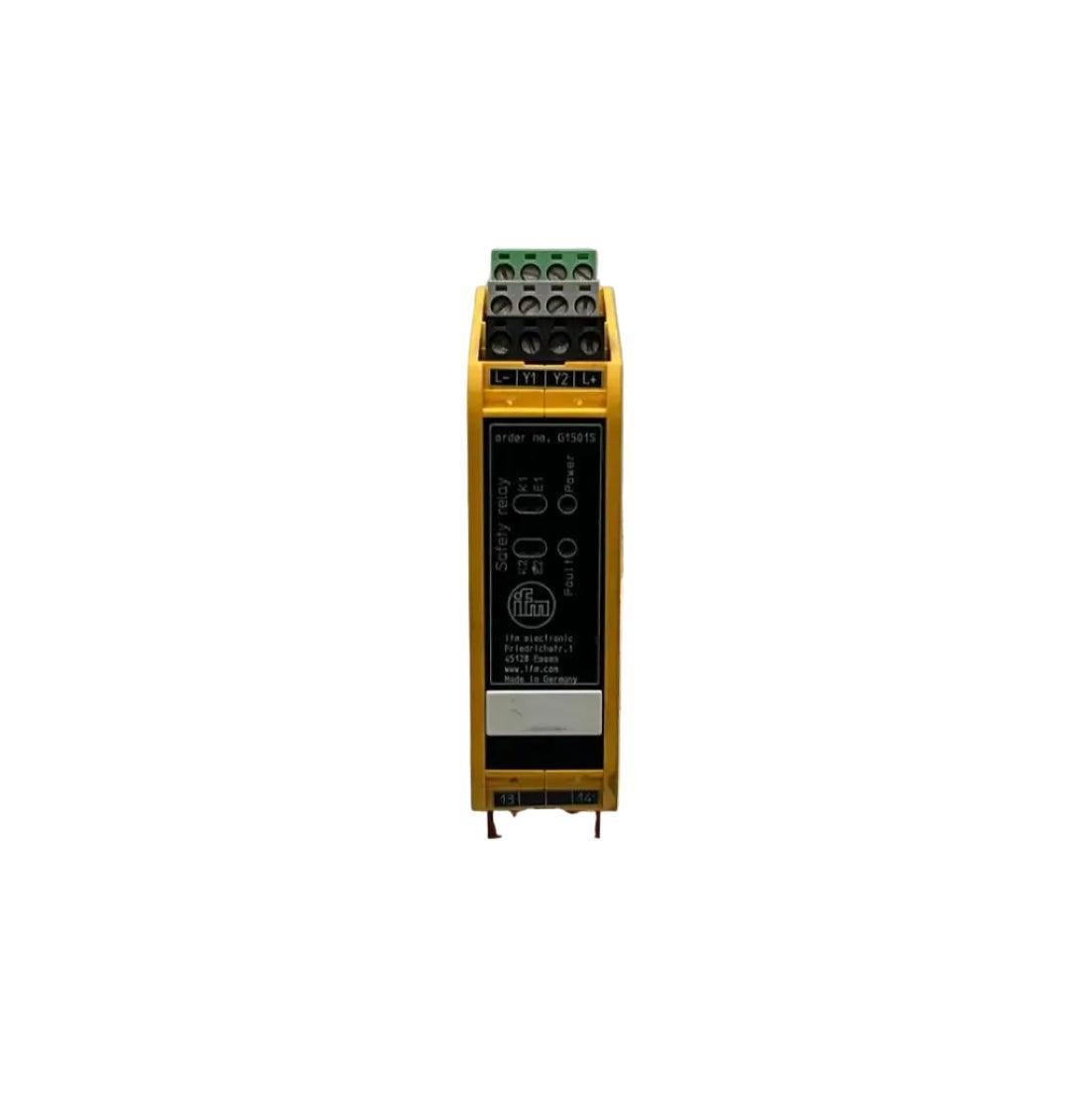

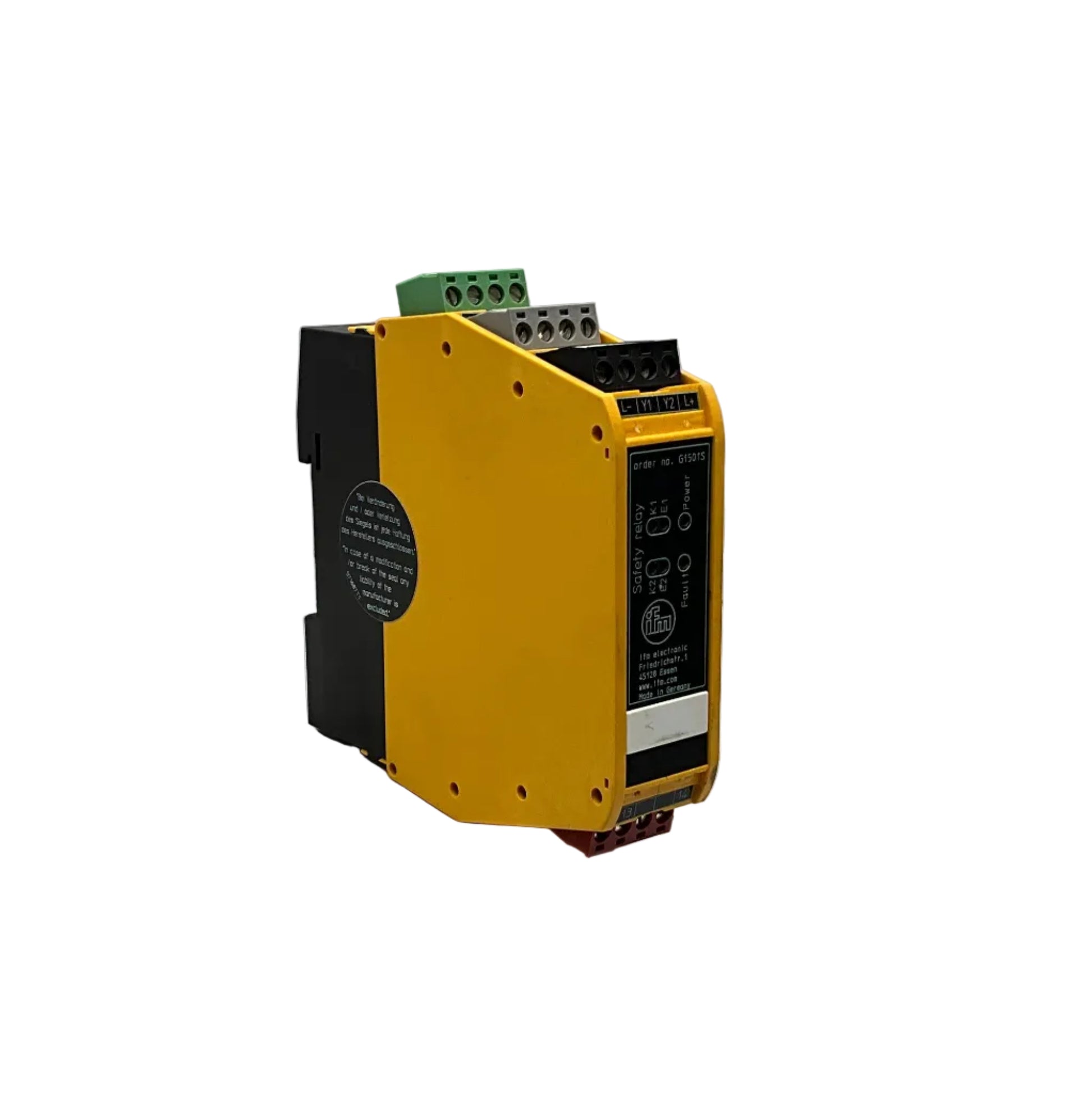

IFM Electronic G1501S Safety Relay

IFM Electronic G1501S Safety Relay

€165,00
€165,00

Stock: 4
Gear Icon Product description and type information

- Brand: IFM Electronic

- Model: G1501S

- Type: Safety Relay / Emergency Stop and Safety Monitoring Relay

- Part Number: G1501S

- Technical Specifications:

- Safety relay for fail-safe sensors and emergency stop circuits

- Supply voltage: 24 VDC

- Safety category: Category 4 according to EN ISO 13849-1

- Performance Level: PL e

- Safety Integrity Level: SIL 3 according to IEC 61508

- Two-channel safety monitoring

- Cross-fault monitoring

- Monitored or automatic start selectable

- Safety outputs: 2 NO safety relay contacts (DPST-NO)

- Auxiliary output: 1 non-safety semiconductor status output

- Contact rating: 6 A

- Maximum switching voltage: 250 VAC, 24 VDC

- Response time: 30–180 ms

- Power-on delay: < 6 s

- Input current: 6 mA

- LED indicators: Green: Power, Red: Fault, 2 × Yellow: Switching status, 2 × Yellow: Input signals

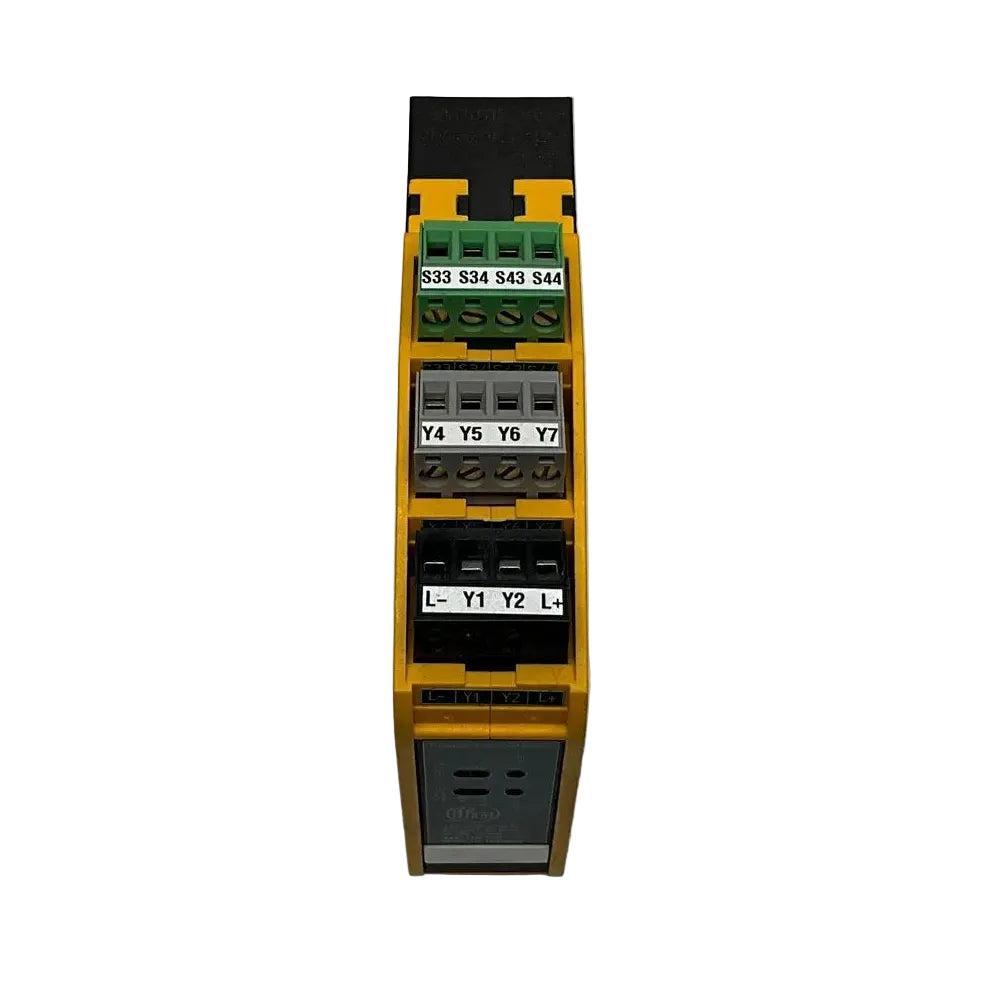

- Connection type: Combicon plug-in screw terminals

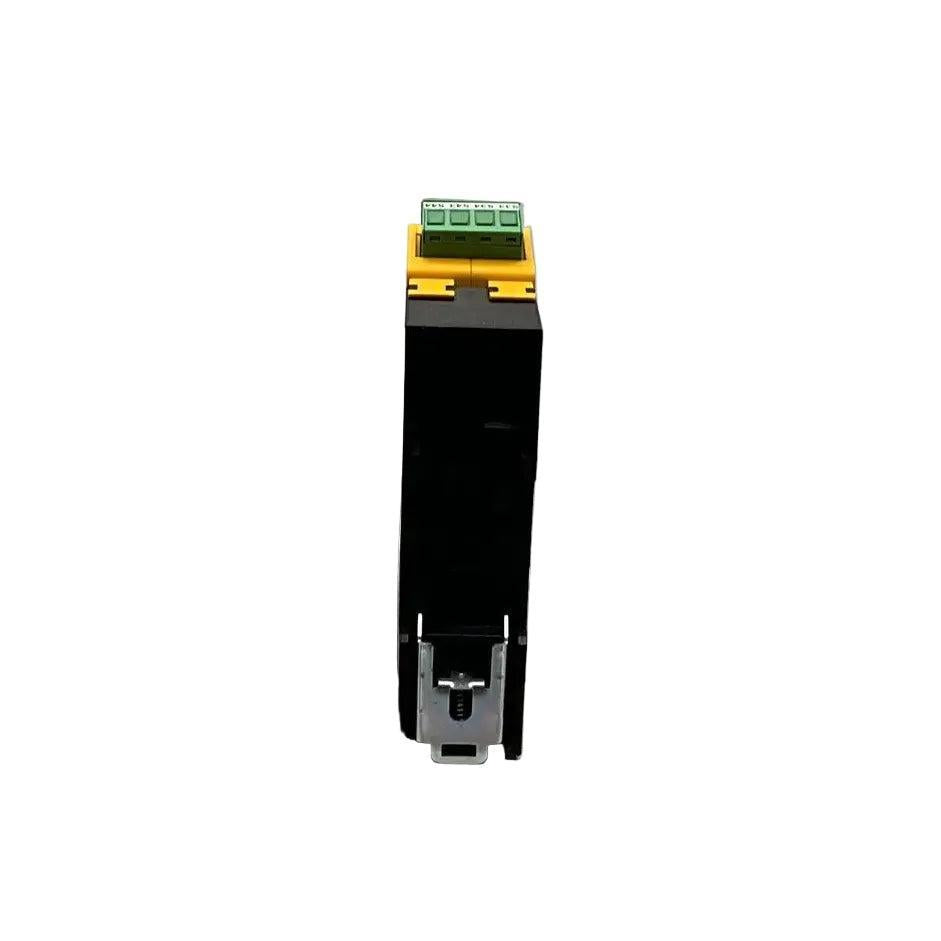

- Mounting: DIN rail

- Protection class: IP20

- Operating temperature: -25°C to +55°C

- Housing material: Polyamide (PA)

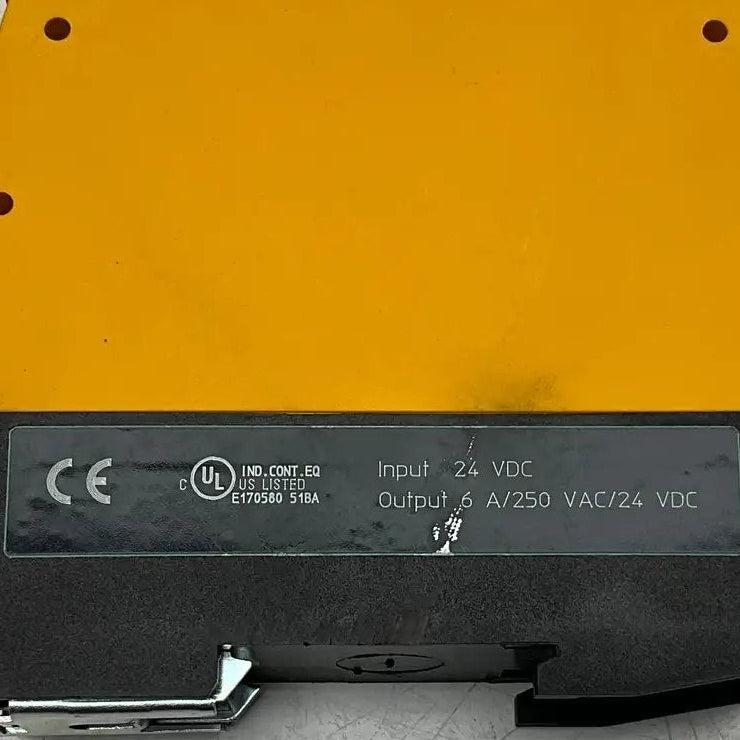

- Certifications: TÜV Nord, cULus,CE

- Standards: EN ISO 13849-1 Category 4 PL e, IEC 61508 SIL 3, EN 574 Type IIIC, Machinery Directive 2006/42/EC

Weight: 300 g

Dimensions: 45 × 100 × 120 mm

Country of Origin: Germany

HS Code: 8536.49

SKU:01-AB-01-09-07-6152429830882
