Piezoresistive Low-Pressure Transmitter

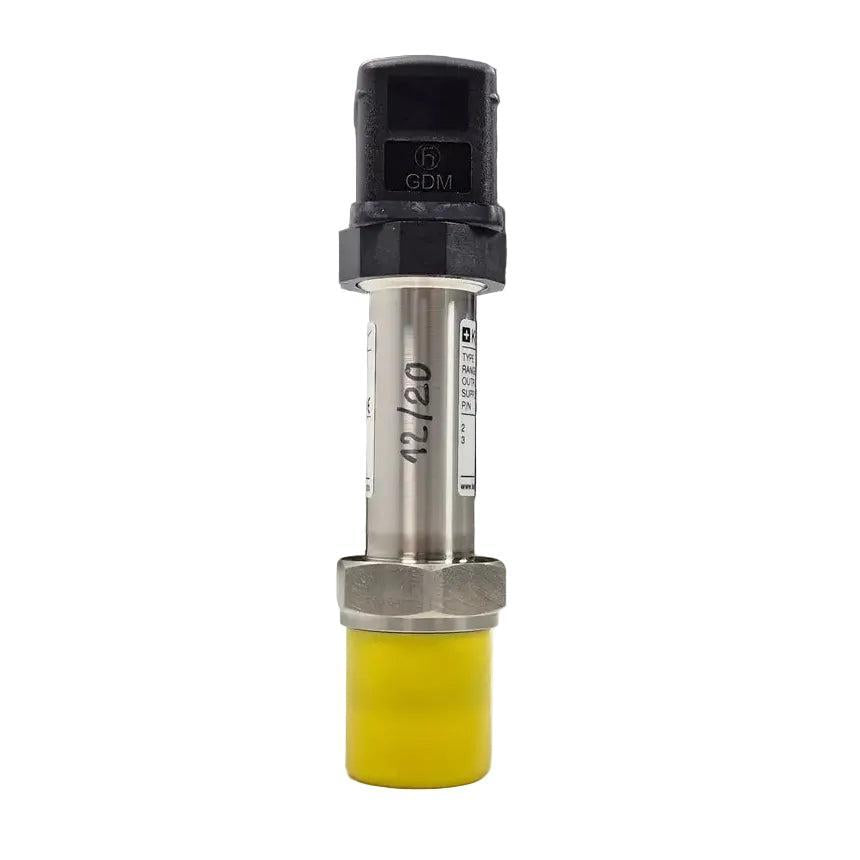

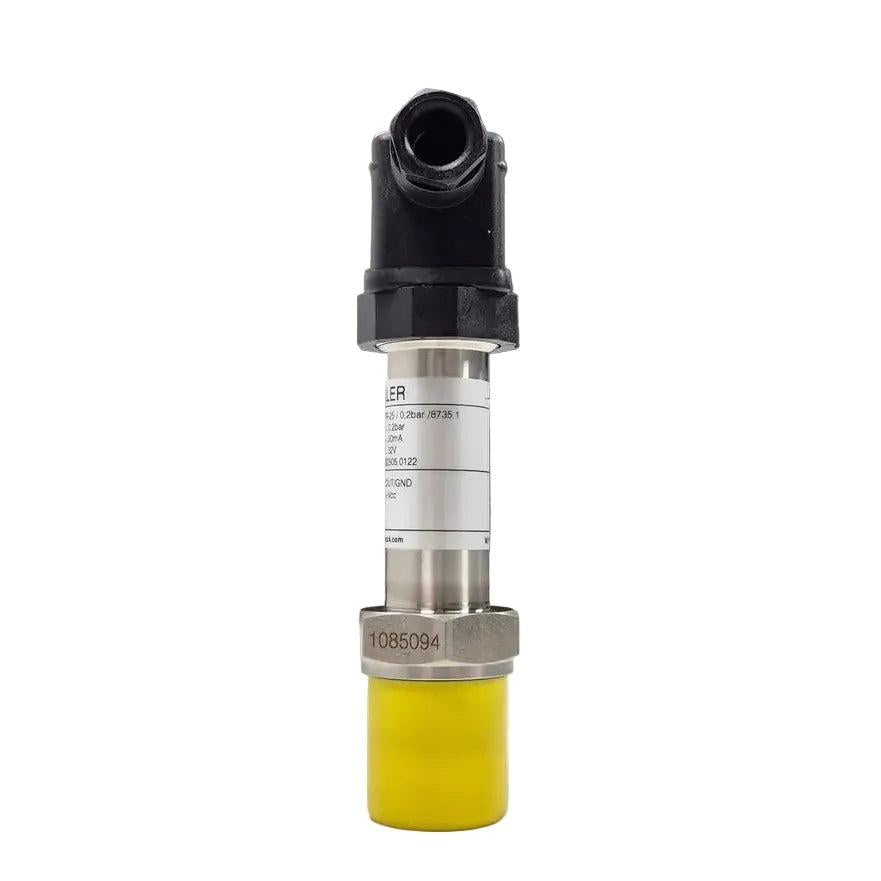

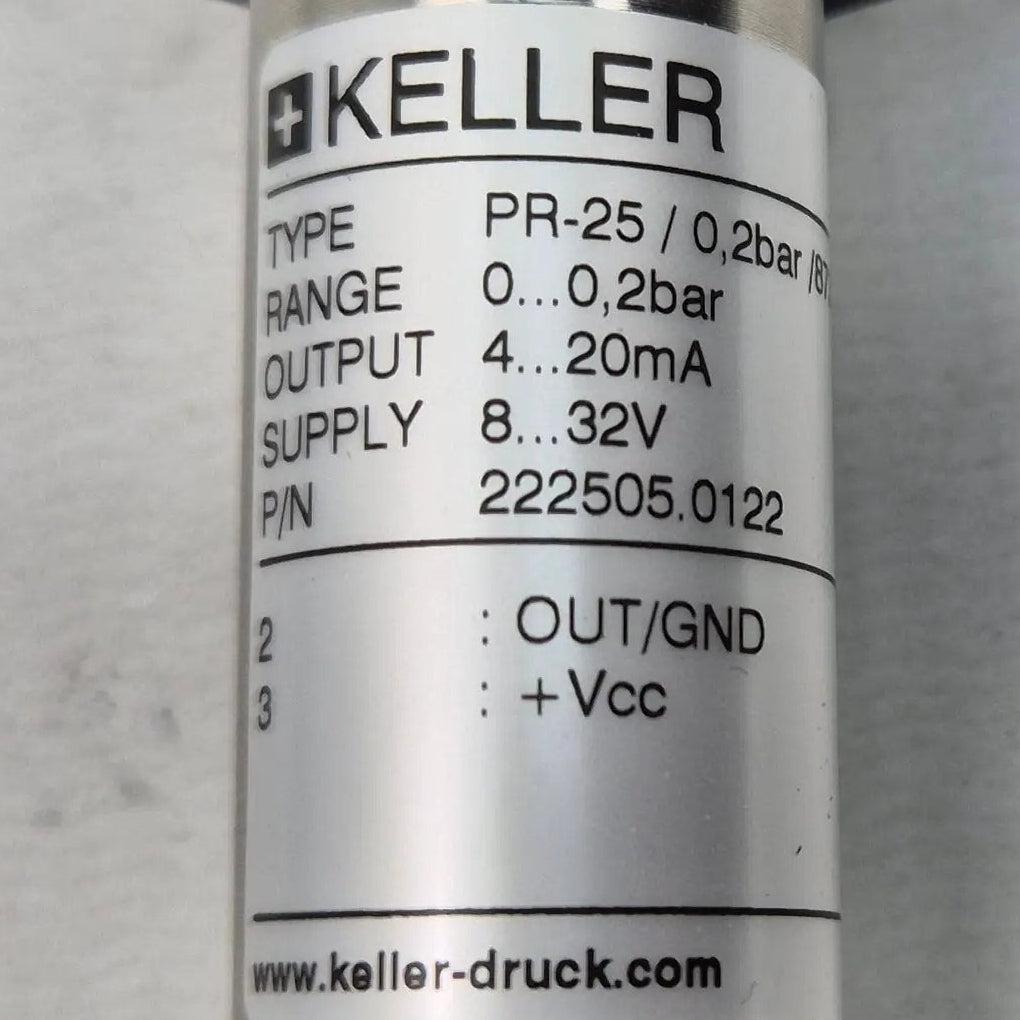

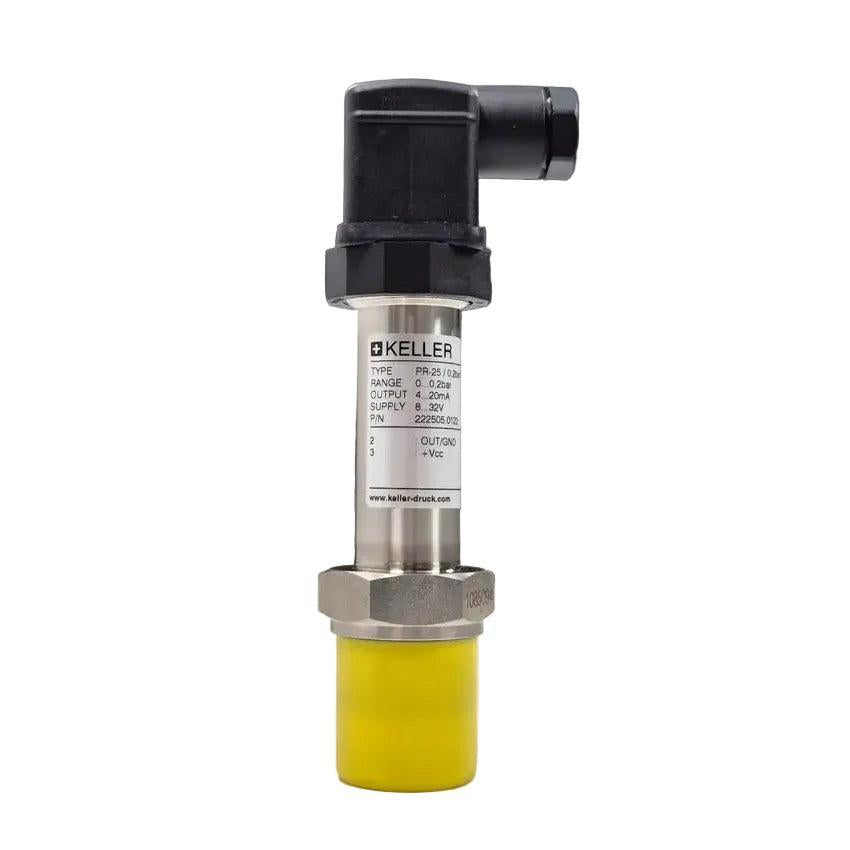

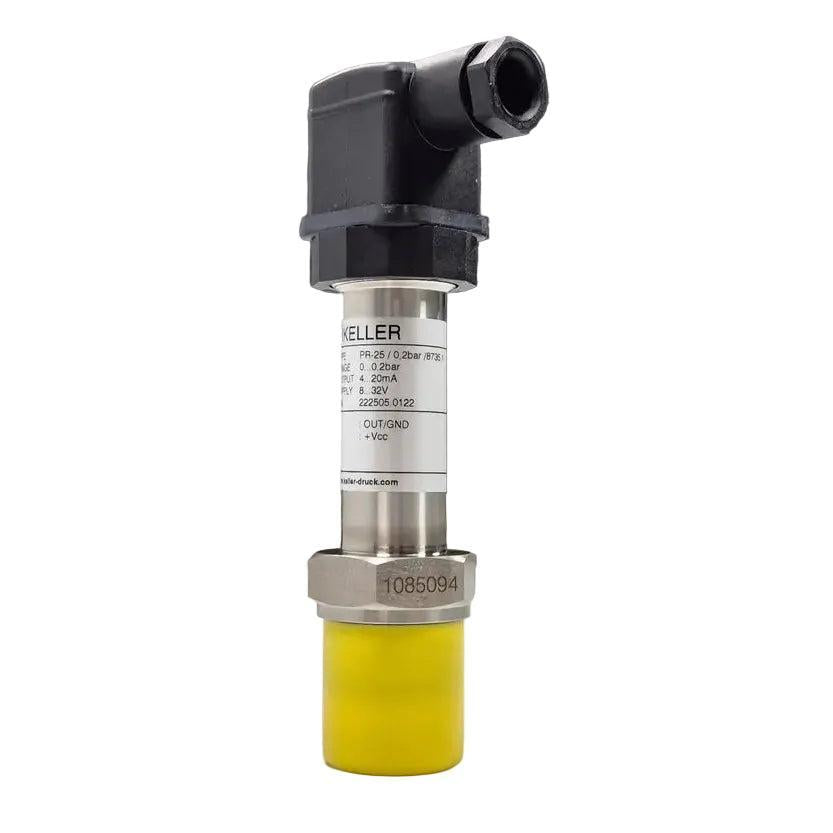

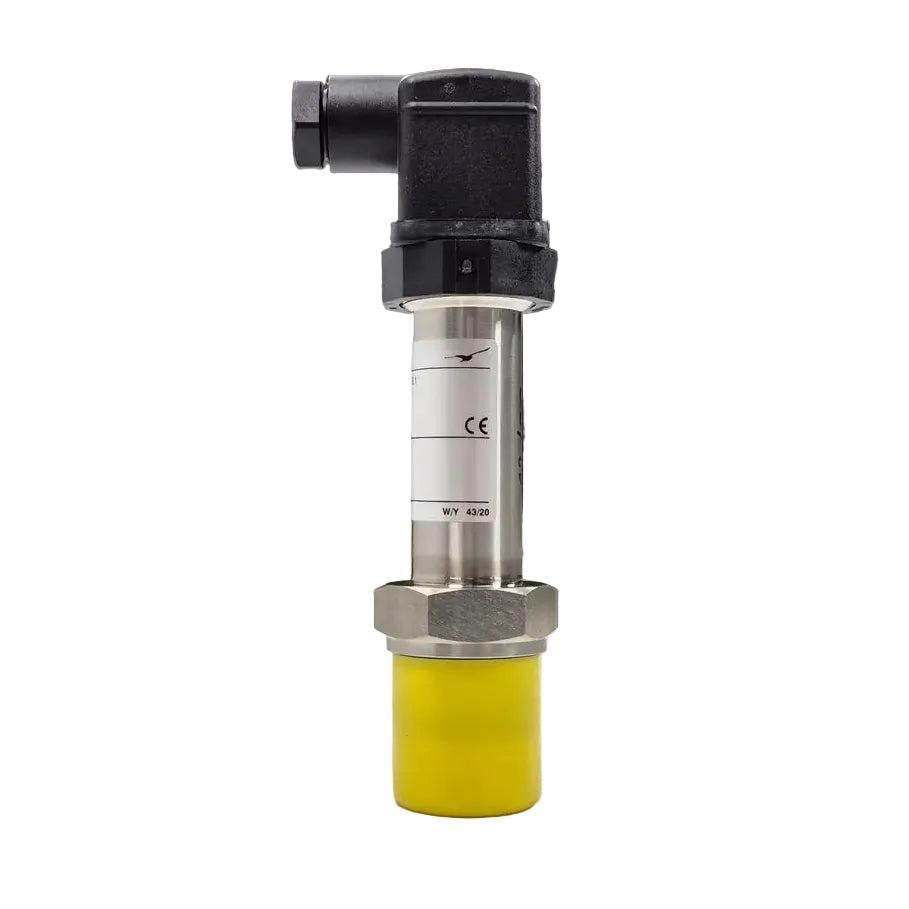

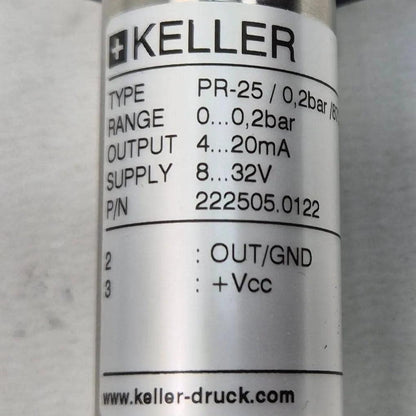

Keller P5-25/0.2 Bar/8735.1 Piezoresistive Low-Pressure Transmitter

Keller P5-25/0.2 Bar/8735.1 Piezoresistive Low-Pressure Transmitter

€369,05incl. VAT
€305,00 excl. VAT

Stock: 1
Tested & workingReally in stockWorldwide shipping12-month warranty
Ships from our own warehouse in Veen, the Netherlands
Order before 16:00 CET — shipped the same day
Worldwide shipping with track & trace
Questions? Contact our team
GearProduct description & specifications
BrandKeller
ModelP5-25/0.2 Bar/8735.1
TypePiezoresistive Low-Pressure Transmitter
Part Number222505.0122
Technical Specs
Measuring PrinciplePiezoresistive silicon measuring cell (oil-filled floating cell design)
Pressure TypePR
Nominal Measuring Range0 to 0.2 bar
Overpressure Limit1.5 to 2 bar
Operating Supply Voltage8 to 32 V DC
Output Signal4 to 20 mA
Linearity / Accuracy< ±0.5% FS at room temperature
Total Error Band±1.0% FS across the compensated temperature range
Compensated Temperature Range0°C to +50°C
Operating Temperature Range-20°C to +80°C
Housing Insulation> 10 MΩ @ 50 V DC
Electrical ConnectionPackard plug socket
Process Pressure ConnectionG3/4" Male thread with Viton/O-ring integration
Wetted MaterialsStainless steel AISI 316L (1.4404 / 1.4435) and silicon oil fill
Enclosure Protection ClassIP67
Weight250 g
Dimensions34 x 50 x 145 mm
Country of OriginSwitzerland
HS Code9026.20.20
