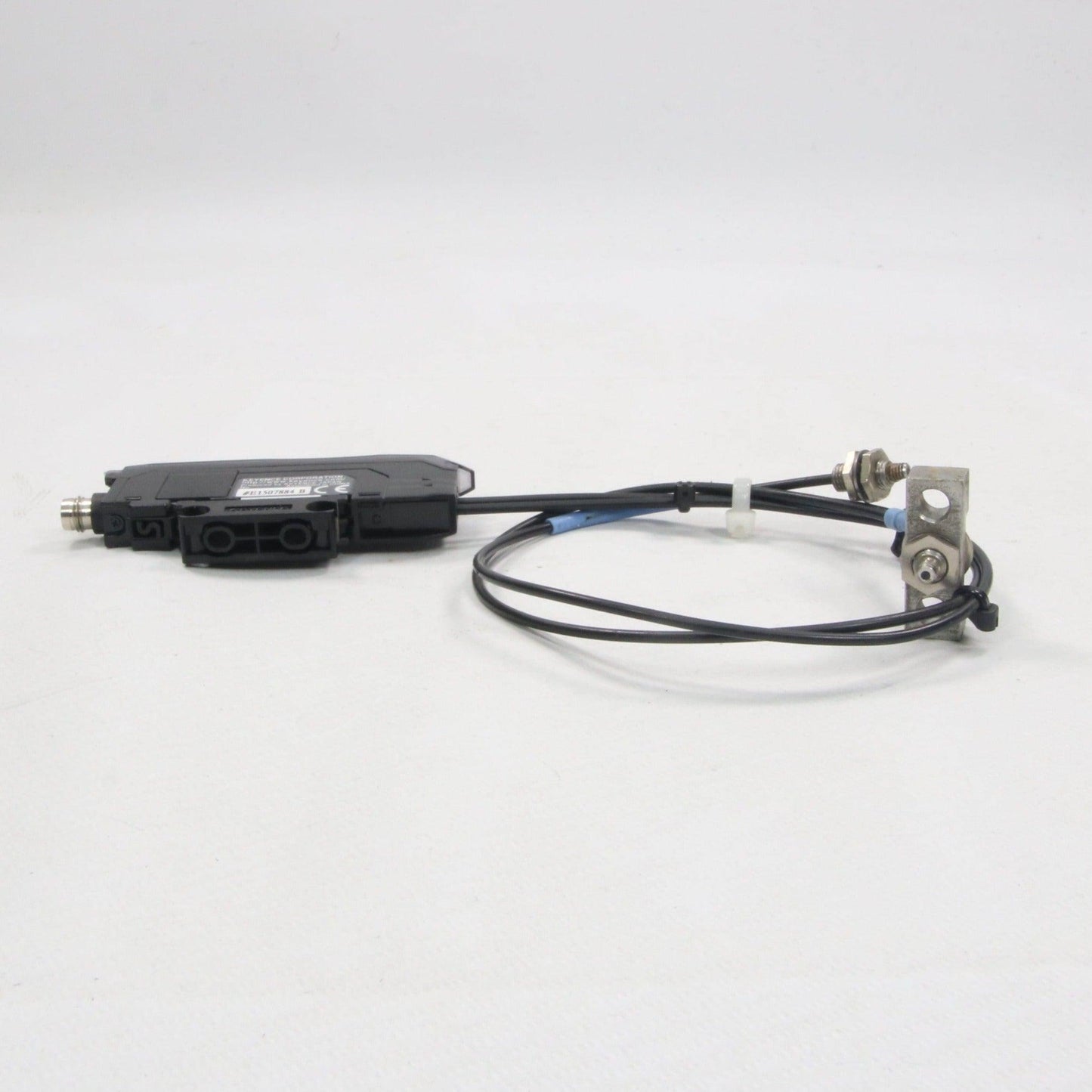

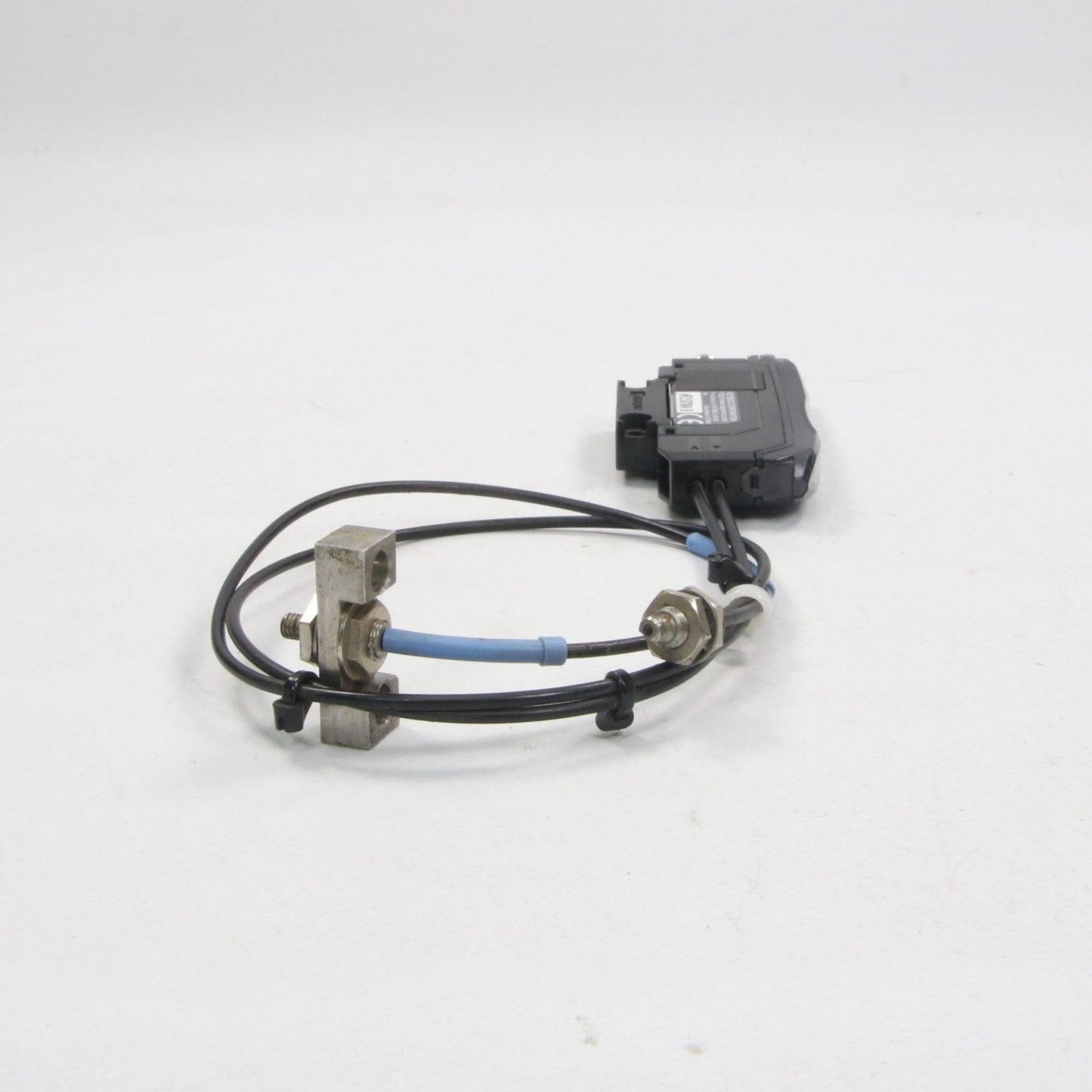

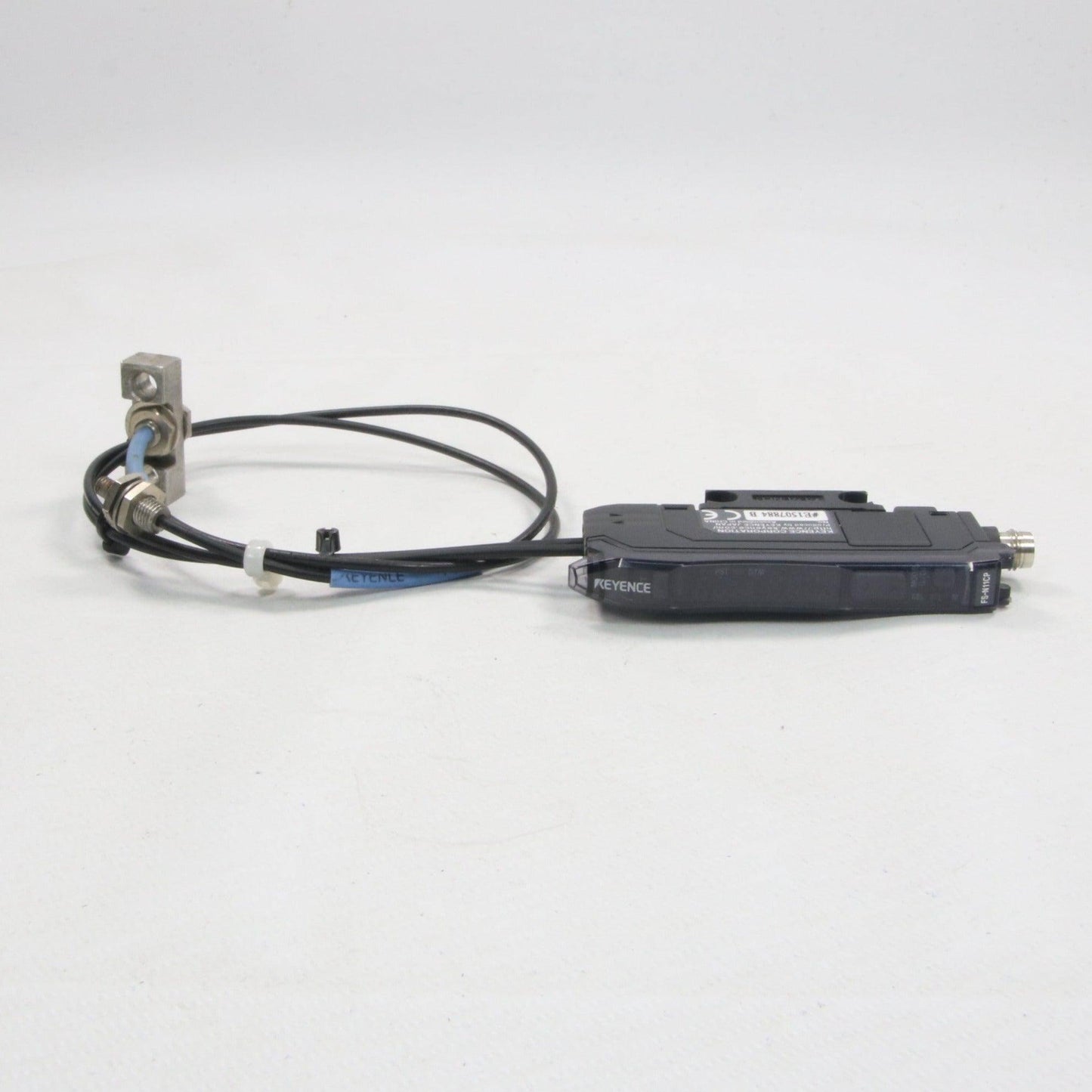

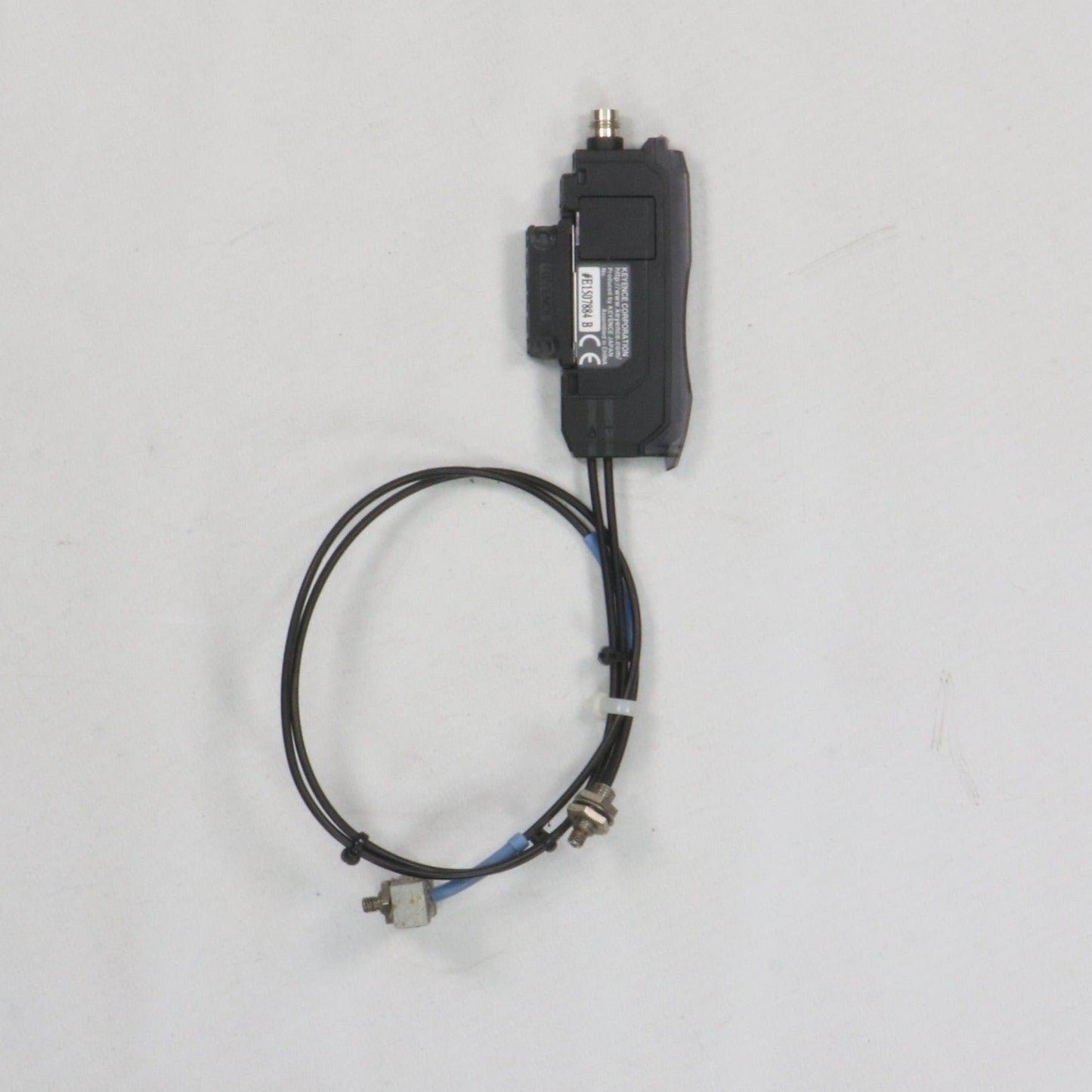

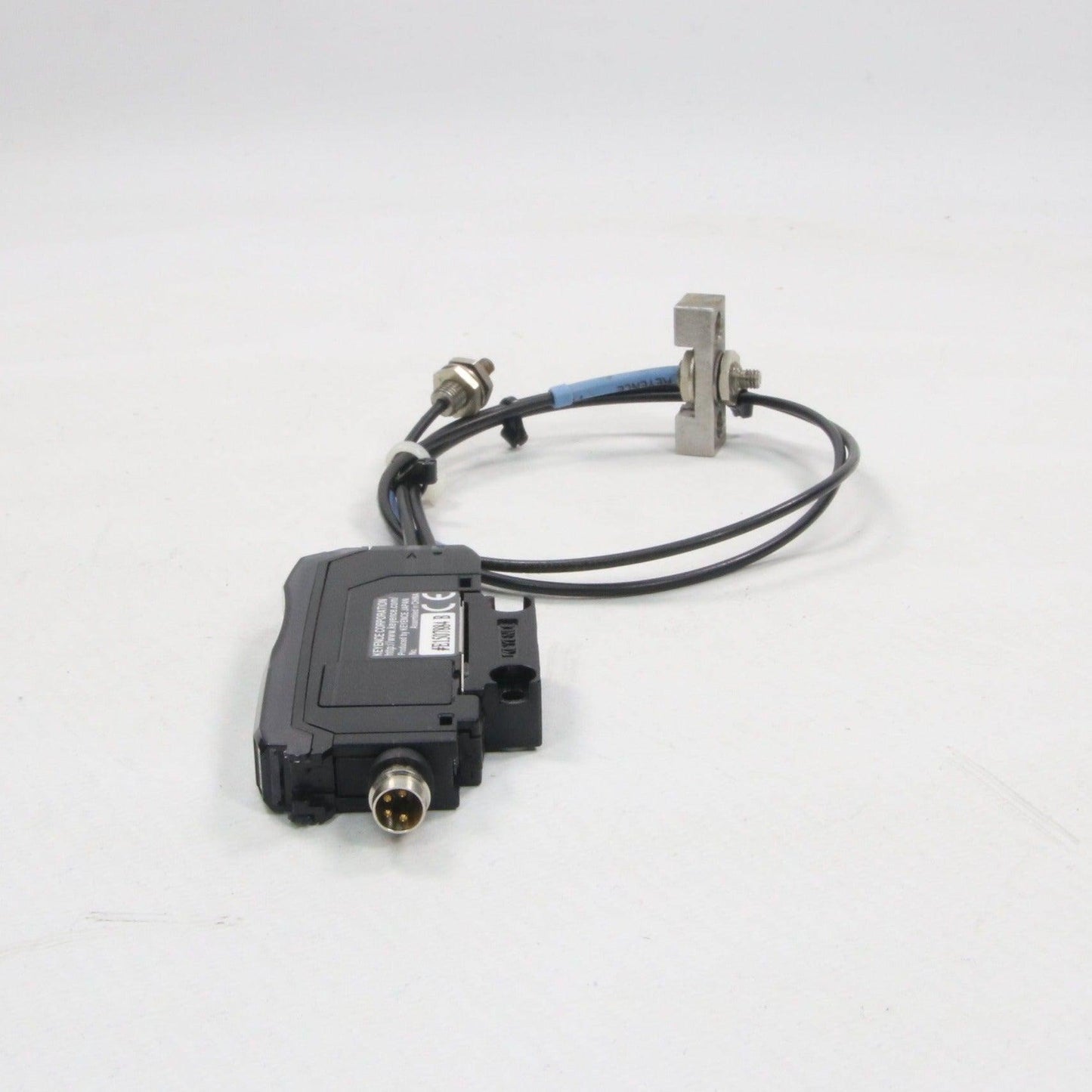

Keyence FS-N11CP Fibre Optic Sensor

Brand: Keyence
Model: FS-N41C
Type: Fibre Optic Sensor (Fibre Amplifier)
Part Number: FS-N41C

Technical Specs:
- Sensor Type: Digital fibre optic sensor (amplifier unit)
- Output Type: NPN
- Main Unit/Expansion Unit: Main unit
- Light Source: Red 4-element LED
- Response Time: 50 µs (FINE mode), 150 µs (TURBO), 500 µs (SUPER), 1 ms (ULTRA), 4 ms (MEGA), 32 ms (TERA)
- Output: 1 output (NPN open-collector, max 100 mA, 40 V DC)
- External Input: Not specified (typically supported for main units; confirm with datasheet)
- Supply Voltage: 12 to 24 V DC (±10%, ripple max 10% p-p)
- Power Consumption: Normal mode: 870 mW or less (36 mA at 24 V, 48 mA at 12 V); Eco mode: 720 mW or less (30 mA at 24 V, 39 mA at 12 V)
- Control Output: 100 mA max (40 V max), residual voltage 1.6 V max
- Connection Type: M8 4-pin connector
- Display: OLED display with 4-digit, 2-level indication (red and green)
- Indicators: Output indicator (orange), calibration indicator (green), power/mode indicators (green/red)
- Protection Circuit: Reverse polarity protection, overcurrent protection, surge absorber
- Enclosure Rating: IP65 (with M8 connector)
- Operating Temperature Range: -20°C to 55°C
- Storage Temperature Range: -20°C to 70°C
- Operating Humidity Range: 35 to 85% RH
- Vibration Resistance: 10 to 55 Hz, double amplitude 1.5 mm, 2 hours in X/Y/Z directions
- Shock Resistance: 500 m/s², 3 times in X/Y/Z directions
- Housing Material: Polycarbonate
- Weight: Approx. 25 g
- Additional Features:
  - High power “TERA” mode for enhanced detection range
  - Built-in indicators on fibre optic heads for alignment/status checks
  - Intuitive OLED display with simple menu navigation
  - Wide variety of compatible fibre optic heads for versatile applications
- Certifications: UL standard / CSA standard conformity (confirm with datasheet)

Dimensions:

Country of Origin: Japan

HS Code: 9031.80
